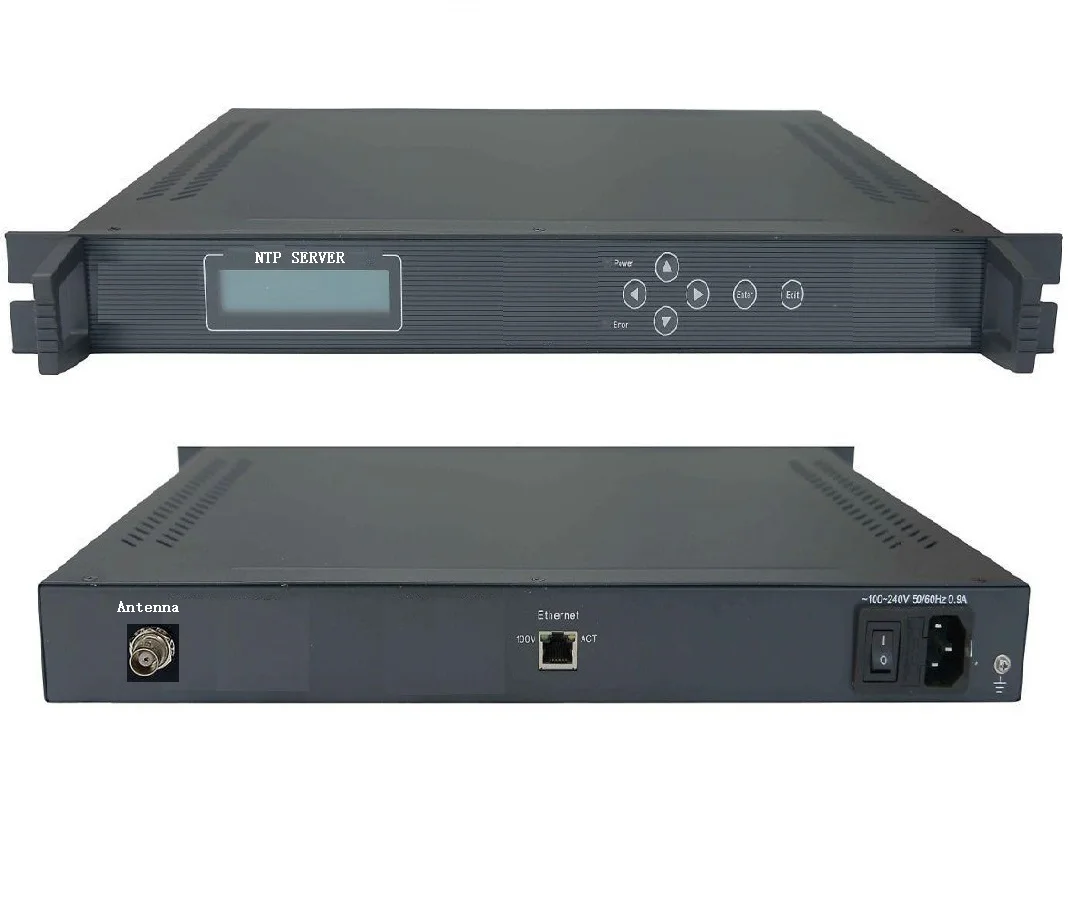

SC-7104 NTP Time Server(GPS/BDS,Antenna,LCD display)
7106 Network Time Protocol (BDS GPS NTP) time Server,GPS Clock watch timer
Product Description
Compatible with GPS Mushroom Antenna
8 NTP Server
Order Guide
Model NO. | Name/Descriptor |
7106 | GPS/BDS NTP Time Server(1*RJ45 port) |
7108 | GPS/BDS NTP Time Server(2*RJ45 port) |
7108 | GPS/BDS NTP Time Server(3*RJ45 port) |
7108 | GPS/BDS NTP Time Server(4*RJ45 port) |
7108 | GPS/BDS NTP Time Server(5*RJ45 port) |
7108 | GPS/BDS NTP Time Server(6*RJ45 port) |
7108 | GPS/BDS NTP Time Server(7*RJ45 port) |
7108 | GPS/BDS NTP Time Server(8*RJ45 port) |
| 10 meters Mushroom Antenna with base |
| 30 meters Mushroom Antenna with base |
7107 | NTP based digital clock |
|
Antenna Base
Overview
Message processing based on hardware time stamp;
Network time message synchronized with UTC, exceptional time accuracy to UTC;
The processing capacity of NTP requests can reach 20000 times per second;
Very reliable and easy-to-use network time appliance for modern networks and business operations;
Features
Technical Specification
GPS receiver | L1 C/A code | |
Beidou(BDS) second generation receiver | TTFF cold start time 45s | |
Input | BDS/ GPS; Support 2-way satellite time source input; Auto switch priority reference source; | |
Output | Standard NTP, At least 20000 NTP requests per second, | |
Network timing Accuracy | 1 PPS pulse signal (TTL): ≤ 100ns | |
|
| |
User Setting by LCD+Keyboard | Time Zone (UTC) | -/+ hour:minute (-/+ 08:12); Precision:minute; |
Network | Local IP,IPv4; Mask IP; Gateway IP; MAC Address; | |
Network-managment | Don’t support (high-security); | |
General Features | Size | 482mm*280mm*44mm |
Temperature | 0~45°C (Operation); -20~80°C (Storage) | |
Power | 220VAC (±10%), 50Hz, 25W | |
Operation
1>Front panel
Press “UP” keyboard to show “SW/HW version”:
Press “Download” keyboard to show “IP Address”:

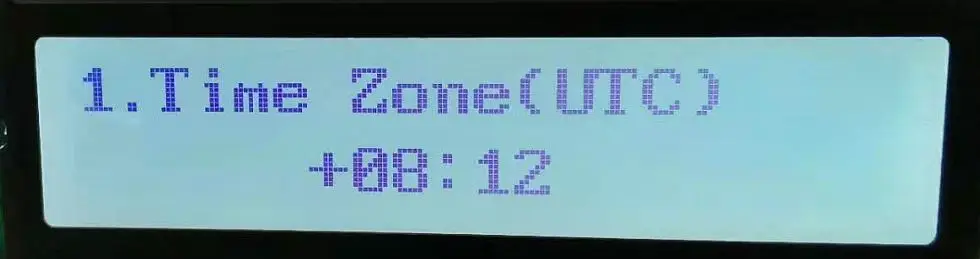

Press “Left” keyboard to show “Time Zone”:
Press “Right” keyboard to show “MAC Address”:
2>Front panel
"√": satellite signal is locked;
"×": satellite signal is unlocked;
"G15": Find 15 GPS satellite;
"B17": Find 17 BDS satellite;
