Full HD 1080p H264 RTMP RTSP 4 канала HDMI

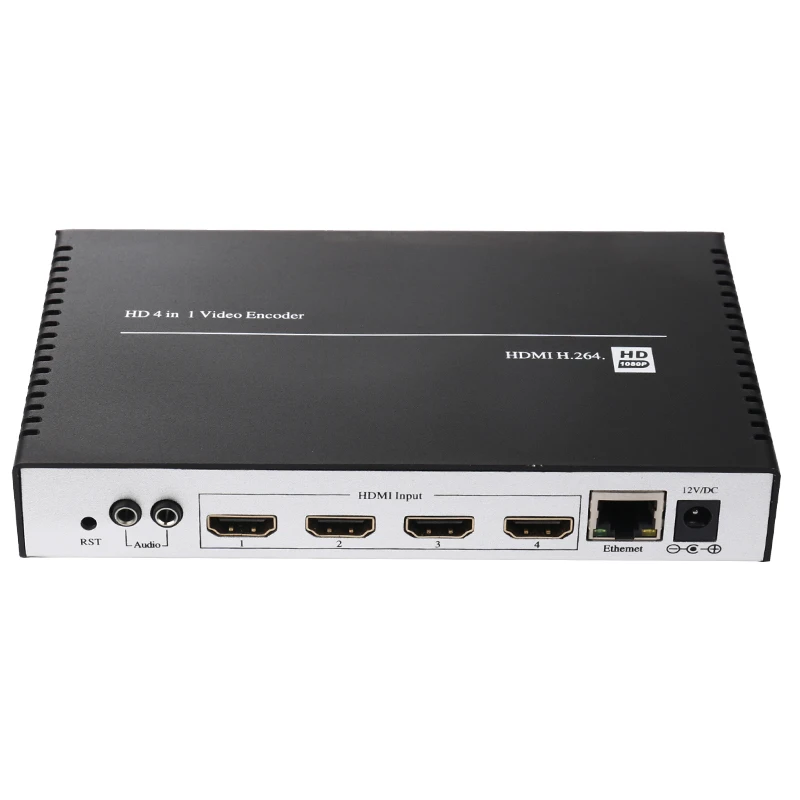

 MV-E4001 four channels MPEG-4 /H.264 AVC HDMI video encoder is our new-released professional HD audio and video encoding device with powerful functionality. It is equipped with 4 channels HDMI and 2 channels external audio input supporting H.264 /AVC high profile /main profile /baseline profile coding format and four video streamings output each channel, which is streaming by HTTP, RTSP, UDP, RTMP, HLS, FLV, Multicast. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, etc.

•   Embedded HiLinux System, stable and effective

•   Support H.264 /AVC baseline /main /high profile encoding

•   From 16Kbit/s to 32Mbit/s for CBR /VBR code rate controlling

• Support HDMI embedded audio or external audio optional from output video streaming

•   Support HTTP, UDP, RTSP, RTMP, HLS, FLV, Multicast streaming protocol

•   Support image, logo, text parameter settings on the output video streamings

•   Support english WEB operating interface and language customizable

•   Support output video streaming resolution setting(Up to 1920 * 1080P /60fps)

1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 608x448, 544x480, 480x480, 480x384, 480x360, 480x320, 480x272, 480x270, 400x320, 400x224, 352x480, 352x228, 320x256, 320x240, 320x180, 240x180, 176x144

•   Support up to 4 streamings output each channel

•   Less than 200ms time delay for core chip processing

•   Support GOP frame rate settings

•   Network interface full-duplex mode with 1000M speed

•   Support HDCP and HD blue-ray

•   A wide area network remote management (Web control panel)

•   Support different protocol transmission for the 4 output streamings each channel

•   Support MP3 and AAC and AAC+ and AAC++ audio coding format selection

•   A click to restore the default configuration

•   Stable and effective, support 7 x 24h working time

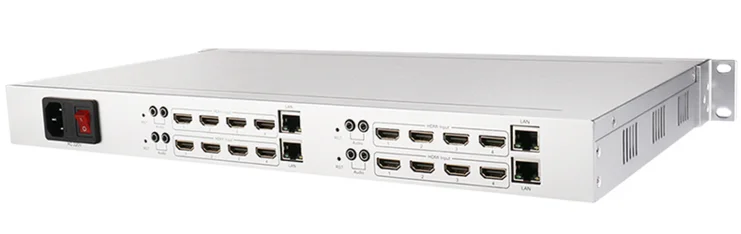

•   Support 4, 8, 12,16 channels with 1U chassis structure available, max support 16pcs encoder cards to be installed

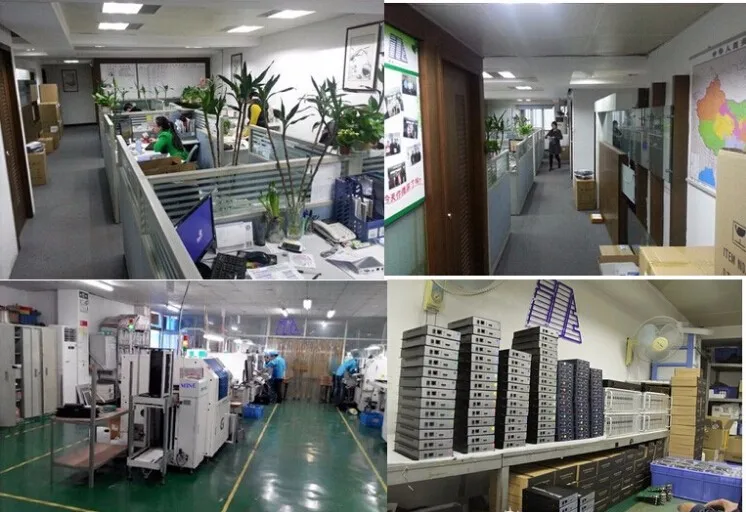

Shenzhen Mine Technology Co.,Ltd, founded in 1998, is a high-tech system research and development of multimedia video technology application system integration company. Our main business includes video capture, image processing and video conversion, transmission technology. We provide not only global leading video media product, but also custom solutions for customers as a comprehensive value-added service.
The main products of the company are:
1, USB external graphics, through the external USB display screen can display different desktop task (USB VGA, USB HDMI/DVI);
2, video capture card (external USB video collection box, 7130 capture card, PCI PCI-E data acquisition card,
SDI HD collection card /HDMI HD Acquisition card / Android free drive USB acquisition card, streaming
media data acquisition card);
3, HDMI video converter (AV HDMI, YPbPr color HDMI, VGA HDMI, HDMIVGA, HDMI AV);
4, MINE Video Showcase (portable video Showcase, digital desktop video Showcase);
5, video converter (Video: PC to TV computer, AV or BNC to VGA, DVI to VGA,VGA to DVI conversion);
6, HDMI audio and video signal switcher and dispenser series.
We make it easy for IT professionals to identify, find, get and use the hard-to-find parts they need to enable their business solutions.

Our main technology and components are from Twain and we committed to providing our customers with quality products. We continuously focus on our products and packaging to ensure they appear and function as expected by IT professionals and deliver a consistent brand experience. We deliver products, services, and customer support according to Shenzhen Mine's industry-leading standards for quality. Our goal is to deliver error-free results, and exceed the expectations of our customers in everything we do.

7th years gold supplier of Alibaba Group
13 years experience in  the core technology of audio and video processing.

Q1. Are you manufacturer or trade company?

A: We are manufacturer. All of our video encoder hardware is our own brand "MINE". We are dealer of "Magewell" capture card.

Q2  How long to deliver the tools?

A: All products can be delivered within 2-3 days.

Q3 What is the chip of your encoder?

A: All of our encoder is made by Hisilicon chip.

Q4. How can i pay for the product?

A: We accept PayPal, western union, bank transfer, or credit card online paying through alibaba /aliexpress.

Q5. Can i get a sample to check the quality of your products?

A: Yes, you can buy a sample to check quality,but sample is not free.

Q6. Do you offer warranty and technical support?

A: We offer 1 year warranty, technical support without limited time.

Q7.Can we do OEM project?

A. Yes,we accept OEM. Custom logo and packing will be no problem for us.

Q8 How fast can i get the quotation after sending inquiry?

A: We normally quote within 12 hours after getting your inquiry. If you need urgently, please contact us by mob or whatsApp.
