Бетонная машина Yhzs35 производство Китай Малый мобильный бетонный
- Категории: Concrete Batching Plant >>>
- Поставщик: Zhengzhou,Zhenheng,Construction,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
concrete batching machine Yhzs35 China Manufacture Small Mobile Concrete Batch Plant
Brief Introduction of Mobile concrete batching plant:
YHZS concrete batching plant is also called concrete mixing plant, concrete mixing station. It includes horizontal twin-shaft compulsory concrete mixer, concrete batching machine, cement silo and screw conveyor, belt conveyor or skip hopper, and control room. It can produce a variety of concretes, such as plastic, dry hard concrete with high production efficiency, short mixing time, and easy operation. YHZS concrete batching plant is widely used in large and medium-sized building construction, road and
bridge, and precast plants. It is the ideal plant for the production of commercial concrete.
bridge, and precast plants. It is the ideal plant for the production of commercial concrete.

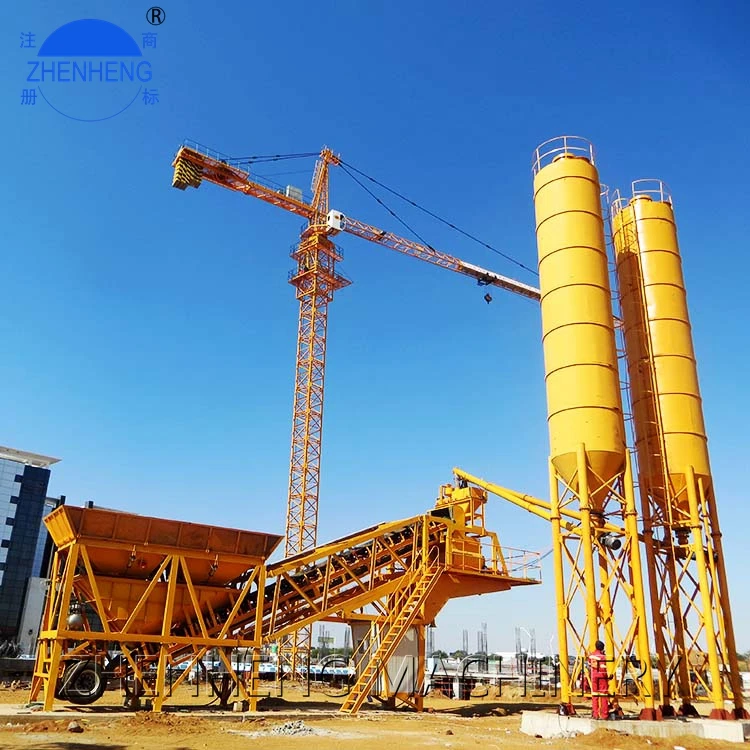

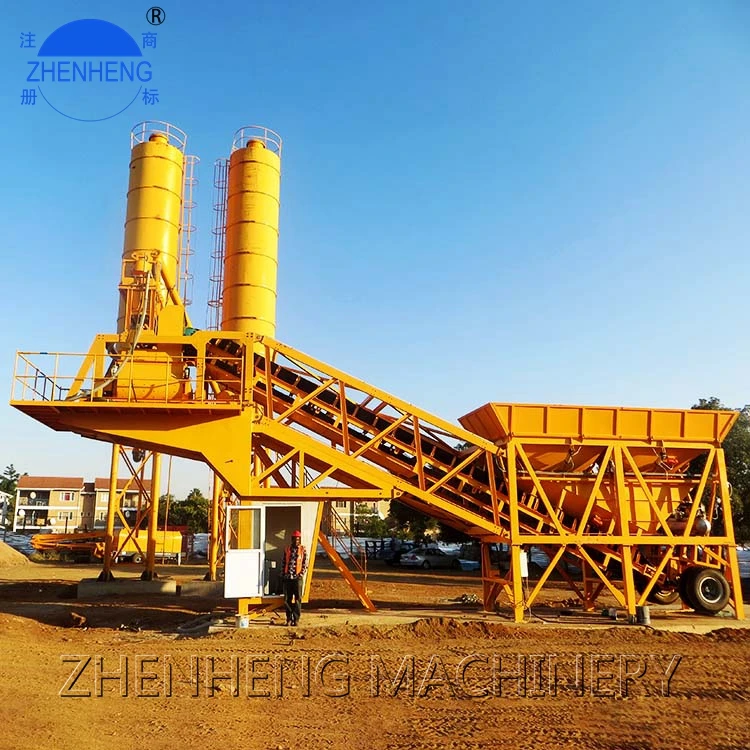

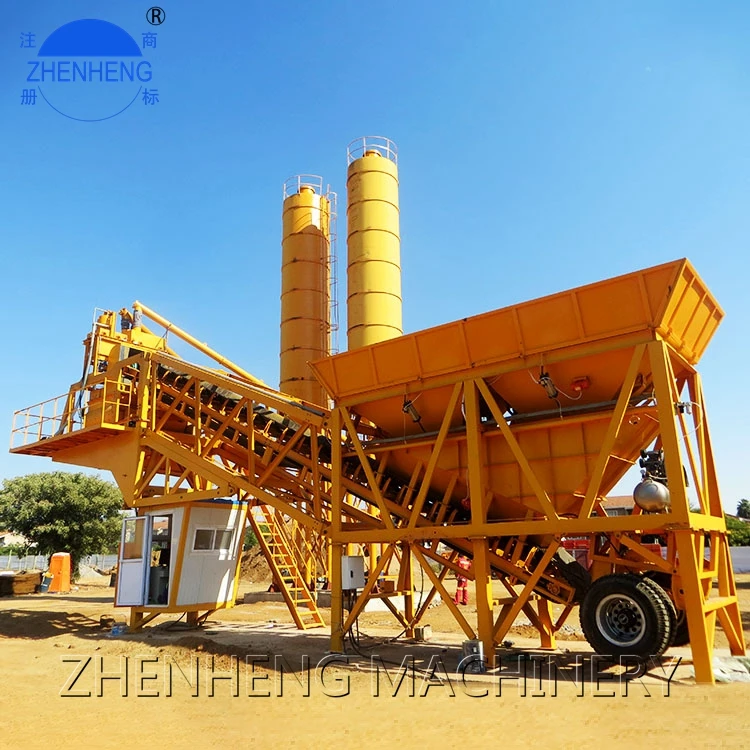

Details Images
Product features
Mobile concrete batching plant is a concrete production equipment that integrates the batching, weighing, conveying, mixing,unloading and automatic control systems into a mobile unit. It has the same production process and operation method as the stationary concrete batching plant, but gets the advantages of flexible movement and easy disassembled and assembled. When moving the work site, except the screw conveyor and cement silo, other parts do not need to be disassembled

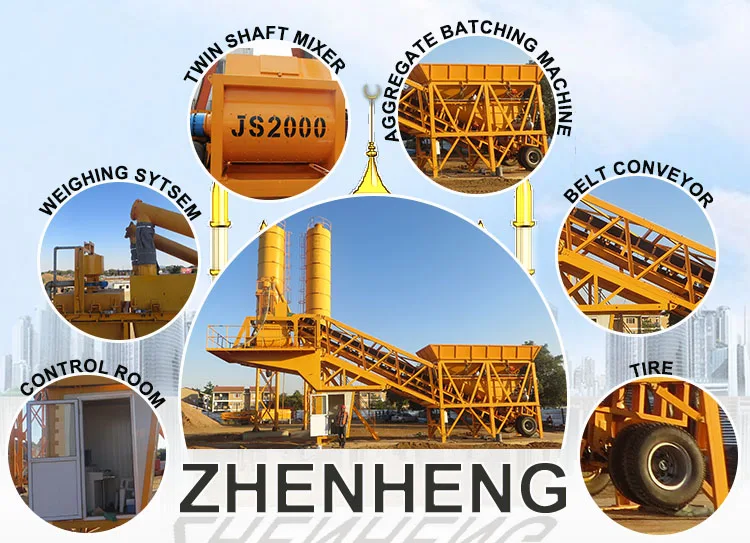

The components of YHZS concrete mixing plant are
1.JS series mixer
2. Aggregate, powder storage, weighing and conveying system;
3. Water supply, weighing and drainage system;
4. Additive storage, supply and weighing system;
5. Mixed dust collecting system;
6. Main tower structure;
7. Pneumatic system;
2. Aggregate, powder storage, weighing and conveying system;
3. Water supply, weighing and drainage system;
4. Additive storage, supply and weighing system;
5. Mixed dust collecting system;
6. Main tower structure;
7. Pneumatic system;
8.Automatic control system.
Specification
Model | YHZS25 | YHZS35 | YHZS50 | YHZS75 | YHZS100 | ||
Theory capacity | 25m³/h | 35m³/h | 50m³/h | 75m³/h | 100m³/h | ||
Discharging height | 3800mm | 3800mm | 3800mm | 3800mm | 3800mm | ||
Total power | 38.5kw | 42kw | 60kw | 86kw | 100kw | ||
Approximate weight without silo | About 13T | About 15T | About 18T | About 22T | About 26T | ||
Dimension(L * W * H) | 13.2m X 3.2m X 6.3m | 13.2m X 3.2m X 6.3m | 16m X 3.3m X 8m | 18.5m X 3.9m X 8.2m | 18.5m X 3.9m X 8.2m | ||
Moving size(L * W * H) | 11.8m X 2m X3.8m | 11.8m X 2m X3.8m | 15.6m X 2.1m X4.2m | 18.1m X 2.3m X 4.3m | 18.1m X 2.3m X 4.3m | ||
Mixing System | Model of Mixer | JS500 | JS750 | JS1000 | JS1500 | JS2000 | |
Mixing motor | 18.5kw | 22kw | 37kw | 30kw×2 | 37kw×2 | ||
Charging volume | 800L | 1200L | 1600L | 2400L | 3200L | ||
Discharging volume | 500L | 750L | 1000L | 1500L | 2000L | ||
Aggregate System | Aggregate bin | 5m³×2 | 6m³×2 | 7m³×2-4 | 8m³×2-4 | 10m³×2-4 | |
Cylinder | SCU φ100 | SCU φ100 | SCU φ100 | SCU φ100 | SCU φ100 | ||
Measurement System | Cement weighing hopper | 300KG | 400KG | 560KG | 900KG | 1120KG | |
Water weighing and support frame | 120KG | 170KG | 220KG | 330KG | 450KG | ||
Additive weighing and support frame | 20KG | 20KG | 30KG | 40KG | 50KG | ||
Moving System | Towing pin | φ50mm/ φ90mm1 set | φ50mm/ φ90mm1 set | φ50mm/ φ90mm1set | φ50mm/ φ90mm 1set | φ50mm/ φ90mm 1 set | |
Tyre | 70R16 4sets | 70R16 4sets | 70R16 4sets | 75R16 4sets | 75R16 4sets | ||
Computer ControlSystem | Industrial control computer | 1 set | 1 set | 1 set | 1 set | 1 set | |
Display | 15” liquid crystal LCD | 15” liquid crystal LCD | 15” liquid crstal LCD | 17” liquid crystal LCD | 17” liquid crystal LCD | ||
Product Recommend
Company Profile
The factory video
our team
Exhibitions&Projects
Packing & Delivery
Export standard container: 20GP or 40GP, 40HQ, FR container in bulk, the spare parts in wooden or iron case according to the size and weight. (Automatic Concrete Batcher Plant)
FAQ
Q1. Why Choose Us?
A:1.For end users, we are the manufacturer; the product quality has strict control, and for the same reason, the price is also
competitive.
2.For the dealer, except first one, our company also has more than 30 years of sales & service experience, which can solve a
variety of complex technical problems, and provide a full range of pre and after-sales service
3.For different area customers, we have an unique product, installed design accordingly to make sure you have a better using
experience; for rainy, sandy areas, we will use a fully enclosed system to protect your equipment normal operation to reduce the
impact of the environment; for wet climate areas, we have special processing techniques to reduce the probability of rusting the
equipment and so on.
4.Delivery ability
We have rich experience engineers and professional team to solve different kinds of questions and promise the goods will be
shipped as soon as possible when you confirm the order within 15 days
Q2. Which kind of concrete it can mix?
A:Heavy concrete, common concrete, light concrete. Light concrete we recommend our JSS series, it adds spiral blade and can mix
more evenly.
Q3. What is the discharging mode of your concrete mixer?
A:Both hydraulic and pneumatic discharging modes are available. Hydraulic is more advanced and popular than pneumatic type.
However we supply as per customer's requirement.
Q4. What is the material do you use for milling blades and lining board?
A:High chromium alloy wear resistant plate and high manganese alloy lining board.
A:1.For end users, we are the manufacturer; the product quality has strict control, and for the same reason, the price is also
competitive.
2.For the dealer, except first one, our company also has more than 30 years of sales & service experience, which can solve a
variety of complex technical problems, and provide a full range of pre and after-sales service
3.For different area customers, we have an unique product, installed design accordingly to make sure you have a better using
experience; for rainy, sandy areas, we will use a fully enclosed system to protect your equipment normal operation to reduce the
impact of the environment; for wet climate areas, we have special processing techniques to reduce the probability of rusting the
equipment and so on.
4.Delivery ability
We have rich experience engineers and professional team to solve different kinds of questions and promise the goods will be
shipped as soon as possible when you confirm the order within 15 days
Q2. Which kind of concrete it can mix?
A:Heavy concrete, common concrete, light concrete. Light concrete we recommend our JSS series, it adds spiral blade and can mix
more evenly.
Q3. What is the discharging mode of your concrete mixer?
A:Both hydraulic and pneumatic discharging modes are available. Hydraulic is more advanced and popular than pneumatic type.
However we supply as per customer's requirement.
Q4. What is the material do you use for milling blades and lining board?
A:High chromium alloy wear resistant plate and high manganese alloy lining board.
