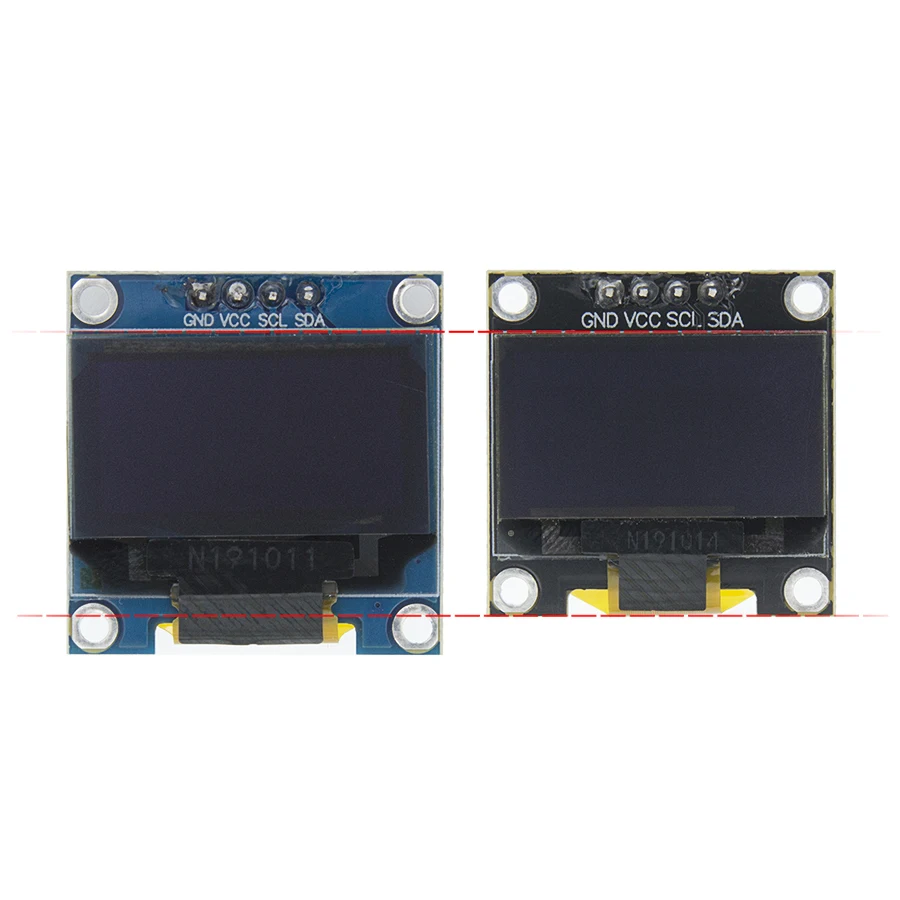

Плата ЖК-экрана 0 96 дюйма oled IIC Серийный белый модуль дисплея 128X64 I2C SSD1315 12864 для
- Категории: OLED\/E-Paper Module >>>
- Поставщик: Shenzhen,Aite,Jinghua,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
128*64 LED display module for Arduino, supports many control chip.
Fully compatible with for Arduino, 51 Series, MSP430 Series, STM32 / 2, CSR IC, etc.
Ultra-low power consumption: full screen lit 0.08W
Super high brightness and contrast are adjustable
With embedded driver/controller
Interface type is IIC
Pin Definition: GND, VCC ,SCL, SDA
Pins: 4 pins
Voltage: 3V ~ 5V DC
Working Temperature: -30 ° ~ 70 °
Drive Duty: 1/64 Duty
High resolution: 128 * 64
Driver IC: SSD1315
