Product Description

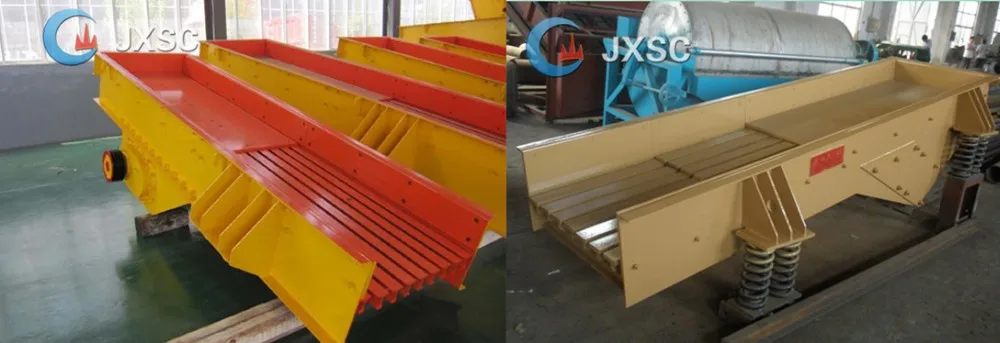

Large Capacity Aggregate Crushing Plant Vibrating Feeder Motor Apron Feeder Vibrating Grizzly Feeder Price for Sale
Product introduction:
Our companys feeder series is a kind of linear direction vibration feeder. it makes a feature of smooth vibrating, reliable in operation, long service life and suitable for feeding, material into the crusher while screening away soil contained in the raw material. They are widely used in mining, building-material, silicate and chemical industry in the crushing and screening plants.
Vibrating feeder can send the massive, granular materials into feeding device from the storage binin uniform, timing, continuously. It can feed continuously and uniformly for crushing machine in sand-make line, and screening of rough materials. Widely used in crushing, screening equipment in metallurgy, mining, mineral processing, building materials, chemical industry, abrasive and otherindustries.
Application Field:
Quarry, crawler sand,dry mortar, mechanism sand, power plant desulfurization, quartz sand, etc.
Suitable Material:
Pebble, granite,basalt, iron ore, limestone, calcite, quartz and diabase.

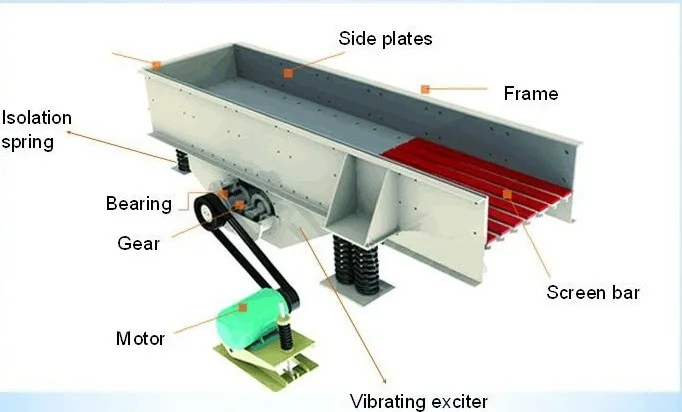

Principle of Operation:

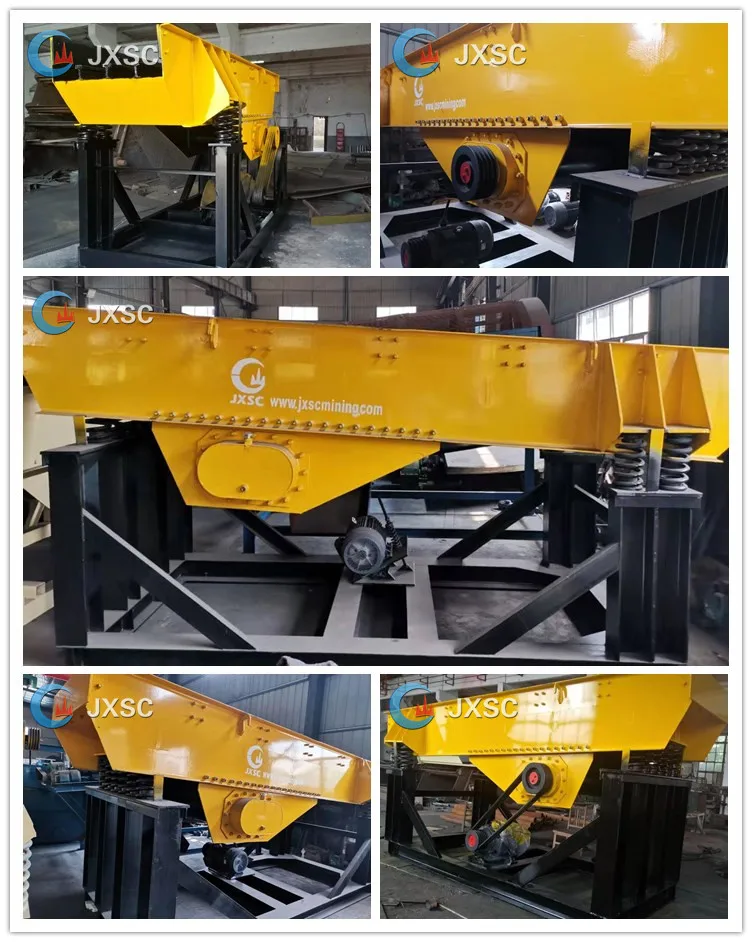

Vibrating feeder is composed of a feeding trough, vibrator, spring support, driving device, etc. Body vibration feeder vibration source is the vibration exciter, which is composedof two eccentric shaft (main, passive) and gear pair. Motor drives the drivingshaft through the belt, and the driving shaft gear driven shaft rotation. Thedriving shaft and the driven shaft reverse rotation at the same time, the bodyvibration, so that the material continuous flow, achieve the purpose ofconveying material.
Performance characteristics:
1. Small volume, light weight, simple structure.
2. Easy toinstall, repair, low operation cost.
3. High efficiency, good feeding capacity.
4. Low noise,low power consumption, high power factor.
5. Stable vibration, even feeding, long service life.
Model | Size of Funnel(mm) | Max Feed Size(mm) | Capacity (t/h) | Motor Power (L*W*H) (kw) | Weight (kg) | Overall Dimensions (mm) |
DN-380*95 | 3800*950 | 500 | 96-160 | 11 | 4082 | 3882*2224* 2121 |
DN-490*95 | 4900*950 | 500 | 120-240 | 15 | 5004 | 4957*2277* 2150 |
DN-490*110 | 4900*1100 | 800 | 120-280 | 15 | 5320 | 4957*2400* 2150 |
DN-590*110 | 5900*1100 | 820 | 200-350 | 22 | 6130 | 6000*2500* 2150 |
DN-600*130 | 6000*1300 | 900 | 400-560 | 22 | 7800 | 6082*2580* 2083 |
DN-600*150 | 6000*1500 | 1000 | 800 | 30 | 12110 | 6627*2350* 3068 |
DN-600*200 | 6000*2000 | 1000 | 1200 | 37 | 18650 | 6436*3853* 3014 |
Model | Max Feed Size(mm) | Capacity (t/h) | Motor Power(kw) | Installation Slope(°) | Double Amplitude (mm) | Weight (kg) | Overall Dimensions(mm) |
GDN-0724 | 450 | 30-80 | 2*1.5 | 10 | 4-6 | 2422 | 2481*1130*990 |
GDN-0932 | 560 | 80-150 | 2*2.4 | 10 | 4-8 | 3203 | 3298*1512*1195 |
GDN-0940 | 560 | 80-180 | 2*3.7 | 10 | 4-8 | 3700 | 4100*1818*1134 |
GDN-1148 | 600 | 150-300 | 2*5.5 | 10 | 4-8 | 5060 | 4926*1676*1475 |
GDN-1256 | 800 | 180-400 | 2*7.5 | 10 | 4-8 | 6385 | 5704*1840*1492 |
GDN-1560 | 1000 | 400-600 | 2*13 | 10 | 4-8 | 8900 | 6110*2440*1560 |

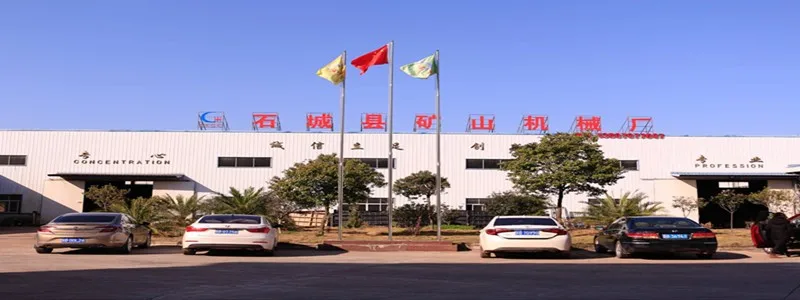

Our Company
Jiangxi shicheng Mine Machinery Factory was established in 1985, it's a professional machinery factory special in mining equipment research, manufacturing, sales and offers professional mine processing plant workflow design, plant installation, equipment maintenance, beneficiation processing technology guidance service as one of the metallurgical machinery equipment factory. Our products are exported to Africa, Nigeria, Zambia, Zimbabwe, Congo, Uganda, Mozambique, Angola, Southeast Asia, South America and many other coutries and regions.We are committed to creating high quality and efficient crushing and screening equipment,quality is our eternal pursuit and responsibility.

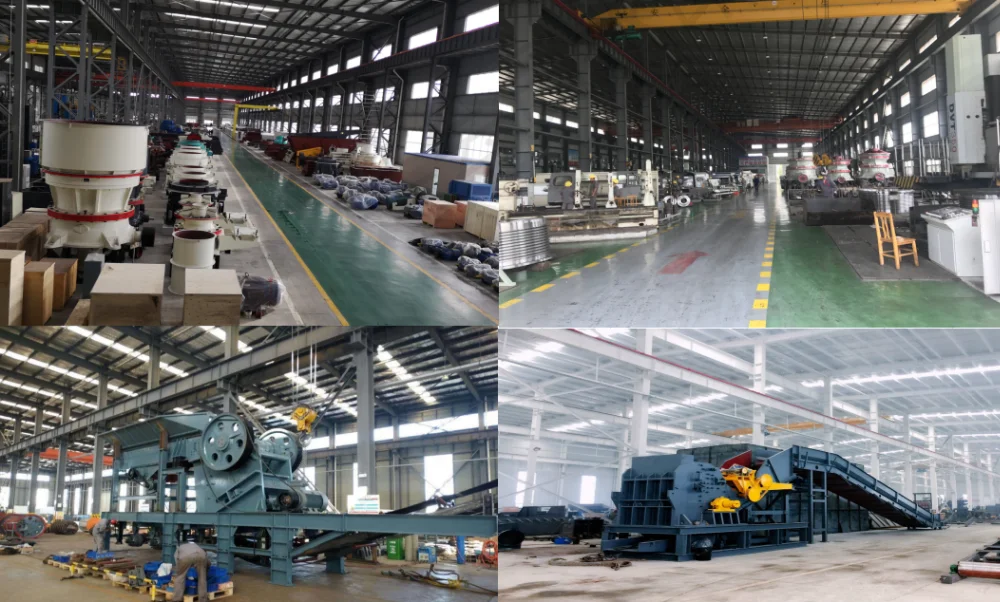

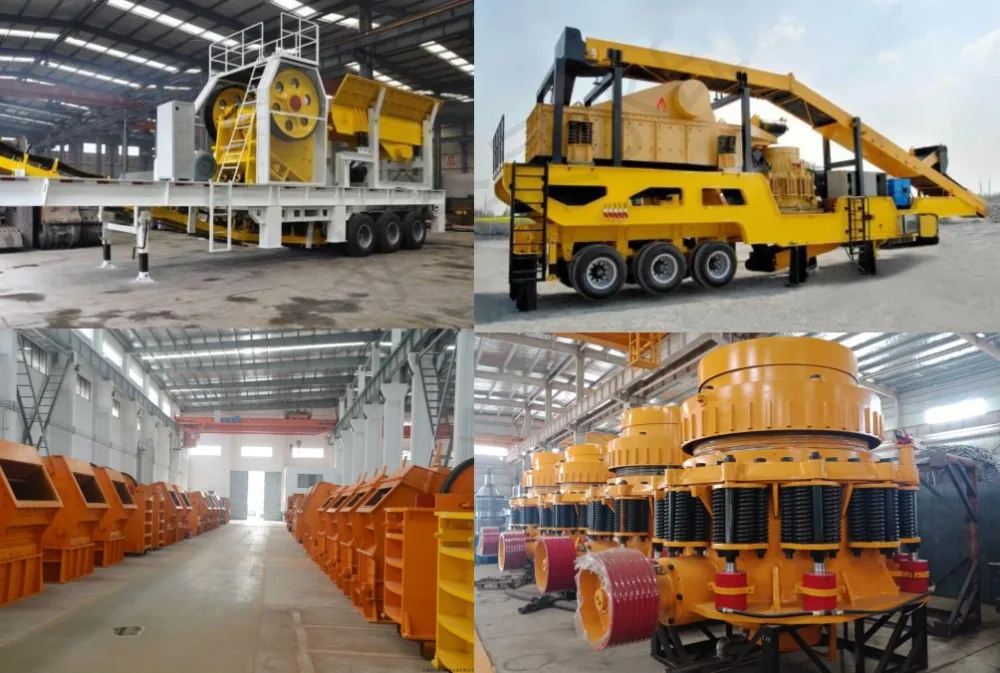

Our Workshop
Our Customers

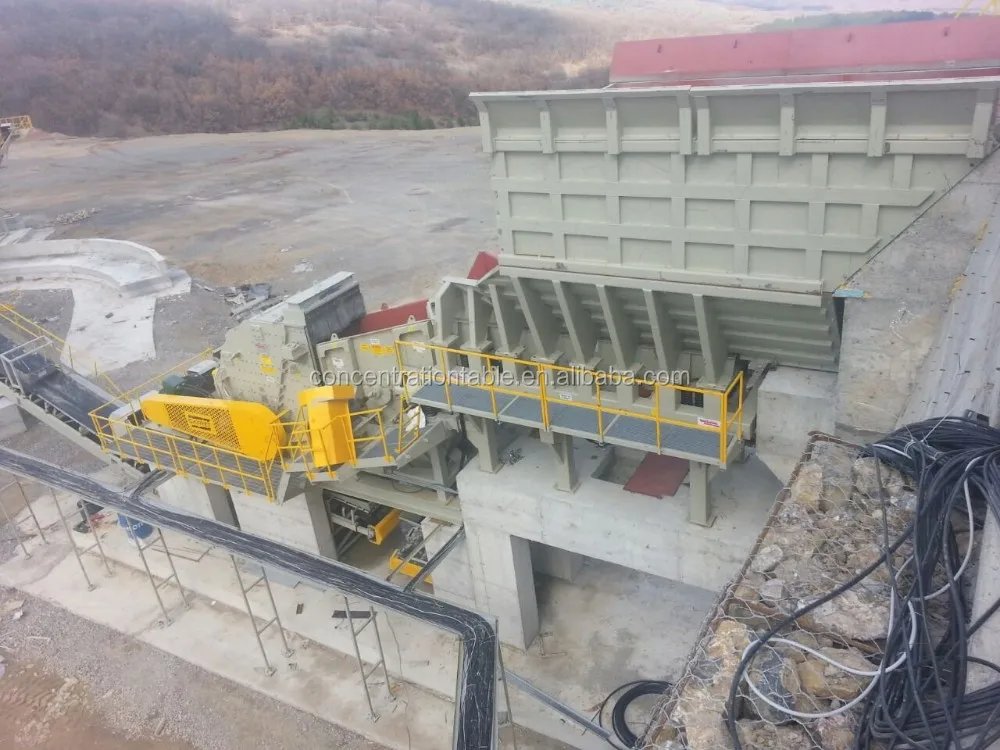

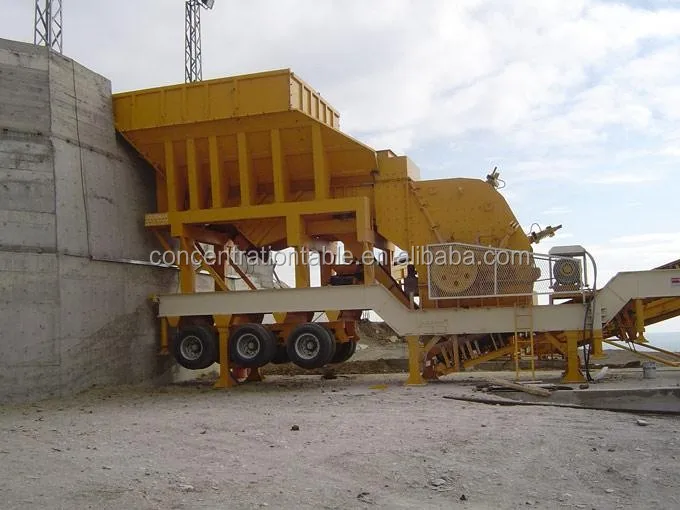

Our successful cases
Democratic Republic of the Congo customer's production line
Packing & Shipping
Certifications
Related Products
Single-Cylinder Hydraulic Cone Crusher
100% Response Rate
Compound Cone Crusher
100% Response Rate
Jaw Crusher
100% Response Rate
Impact Crusher
100% Response Rate
VSI Sand Maker
100% Response Rate
Mobile Crushing Plant
100% Response Rate
Our Service
●Pre-sales service: We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
●Sales service: Send technicians to the jobsite guiding the installation and adjustment, training operators and finishing the check and accept together with you.
●After-sales service: To establish long term friendship, we will reg-ularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
●Lifelong service: One year warranty to make sure your machine runs constantly.Always offer lifelong service and provide spare parts for a long term.
●How long is the guarantee?
All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●What is the delivery time?
According to the specific data provided by the customer,our customized crushing machine`s delivery time is 30-48 days.
●What is the nearest port?
Xiamen, Guangzhou, Shenzhen
●What is the trade terms?
CIF,FOB,DDU ect is acceptable.
●Service and Payment Terms?
We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
