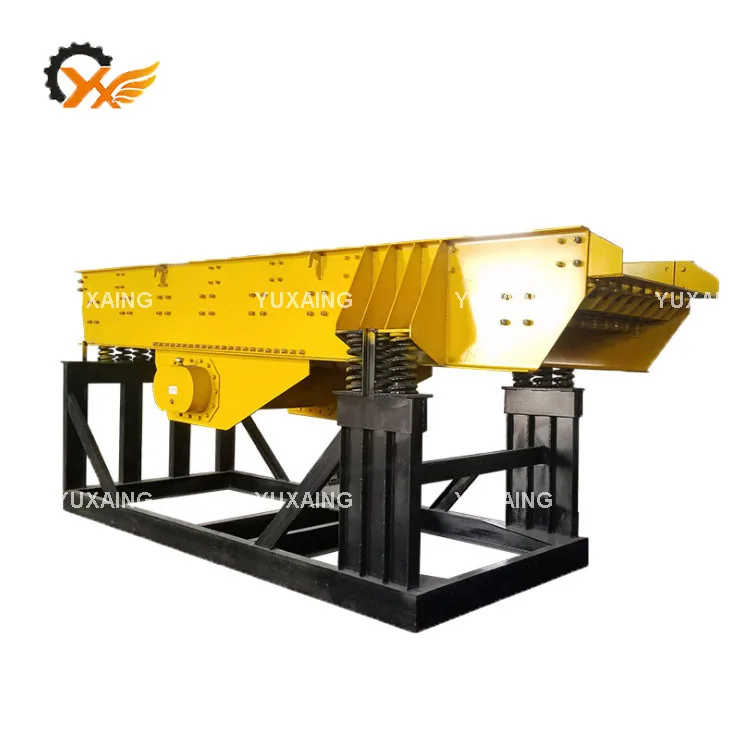

High Efficiency Professional Sand Crusher Feeder Equipment Electric Vibrating Feeder for Mining
Product Description
Vibrating feeder is a new type heavy-duty feeder which uses the vibration and gravity to push the material forward. It can transport the large stone materials uniformly, regularly and continuously to rock crusher machine from the hopper. Our equipment is an ideal vibrating feeder for feeding rock aggregates, coal, ore, gold, crushed stone. And widely used in metallurgy, coal mining, mineral processing, building materials, chemicals, abrasives, and other industries in the crushing, screening and joint equipment.
Application
Product Structure

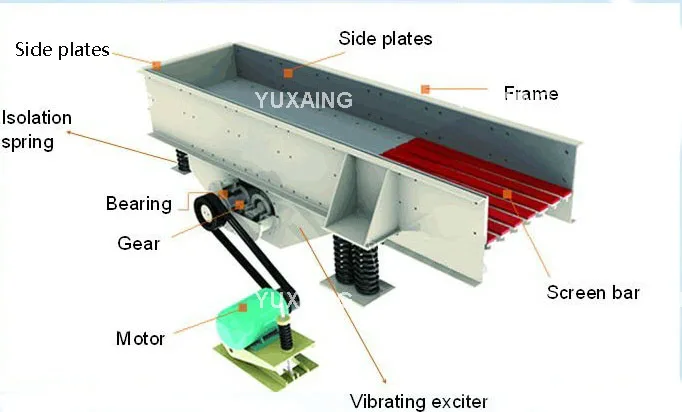

The vibrating feeder is made up of side plates, frame, bearing, gear, motor and vibrating exciter. There are many characteristics, compared with other feeder:
1) Simple structure, easy installation
2) High accuracy and feeding capacity;
3) Low energy consumption and low noise
4)Easy to adjust and maintain
5) Less damage to vibrating feeder.
2) High accuracy and feeding capacity;
3) Low energy consumption and low noise
4)Easy to adjust and maintain
5) Less damage to vibrating feeder.
Specification
Model | Vibrating Frequency (r/min) | Double Amplitude (mm) | Capacity (t/h) | Power (KW) | Dimension(mm) | Weight(t) |
GZD0624 | 970 | 4-6 | 50-100 | 2x1.1 | 2510x1170x1290 | 1.6 |
GZD0830 | 970 | 4-6 | 90-150 | 2x1.1 | 3110x1370x1370 | 2.5 |
GZD9538 | 970 | 4-6 | 120-210 | 2x3 | 3910x1520x1460 | 3 |
GZD1149 | 970 | 4-6 | 160-320 | 2x5.5 | 5010x1670x1710 | 4.3 |
GZD1249 | 970 | 4-6 | 180-380 | 2x5.5 | 5010x1770x1710 | 4.5 |
GZD1360 | 970 | 4-6 | 200-450 | 2x7.5 | 6120x1870x1950 | 5.7 |
GZD1560 | 970 | 4-6 | 240-590 | 2x11 | 6120x2070x1950 | 7.3 |

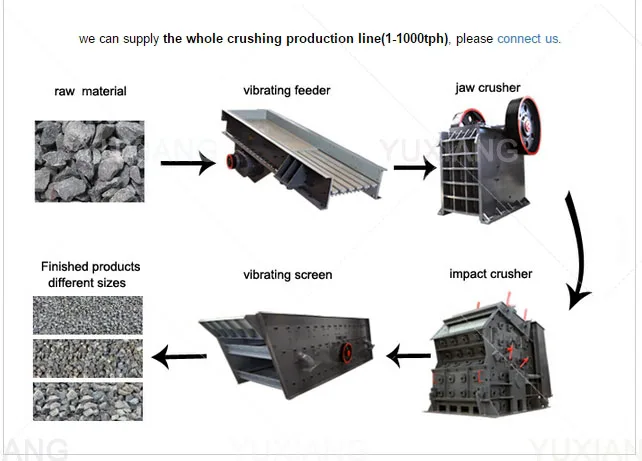

Production Line

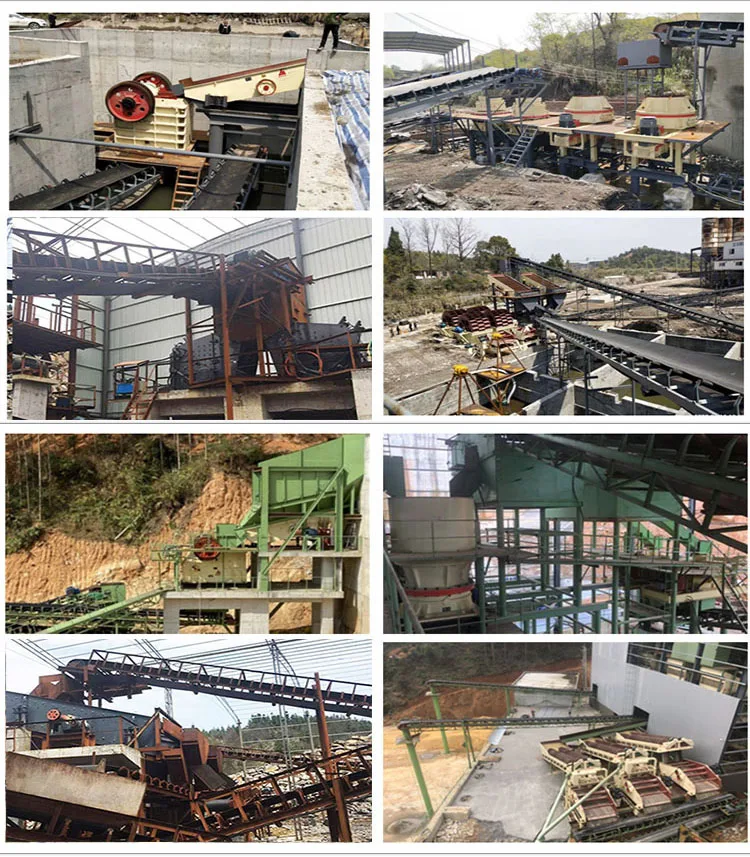

Product Case
Company Profile
GONGYI YUXIANG HEAVY MACHINERY CO.,LTD. is an professional manufacturer of wet pan mill&mining series machines,with R&D team, excellent technical team, sales team and strong production capability, we have been devoting our self to the development and promotion of gold mining machinery and all our products have got CE certificates.
