Product Overview

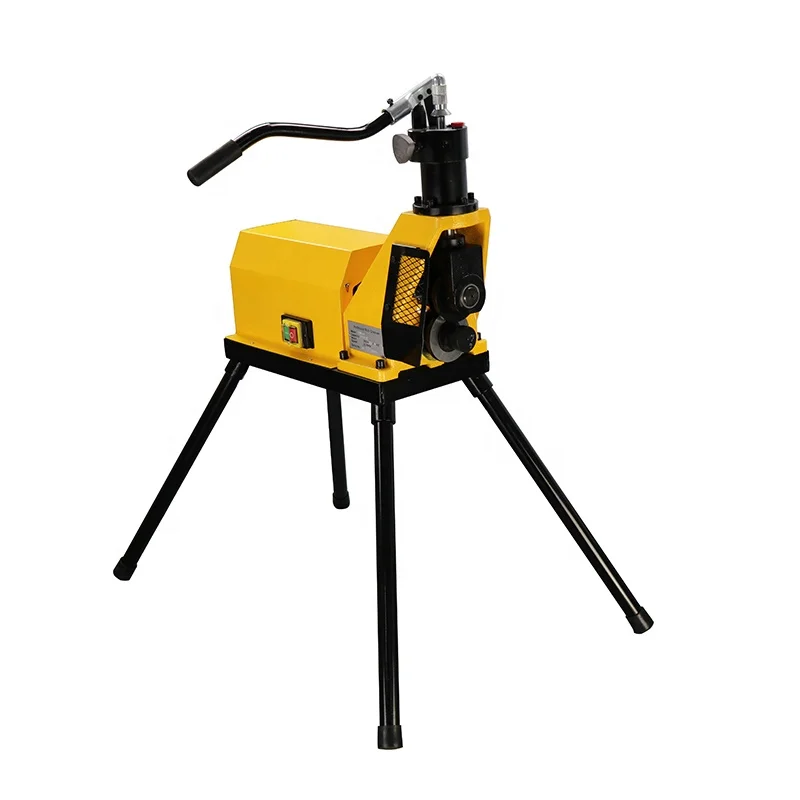

YG6C-A Roll Grooving Machine for 1 1/4"-6" Steel Pipes
The Model YG6C-A hydraulic roll groover, powered by 550W indcution motor, is capable of grooving up to 6” Sch 10 and 3” Sch 40 standard wall pipes.
“All-in-one”standard support legs, the unit can be set up quickly.
The induction motor ensures design for the drive shaft, suitable for heavy duty jobs.
The YG6C-A comes with steady and quiet working.
HS Code of Roll Groover: 8462490000
Warranty: 1 Year
1 1/4-6 inch Roll Groover for Sch10/40

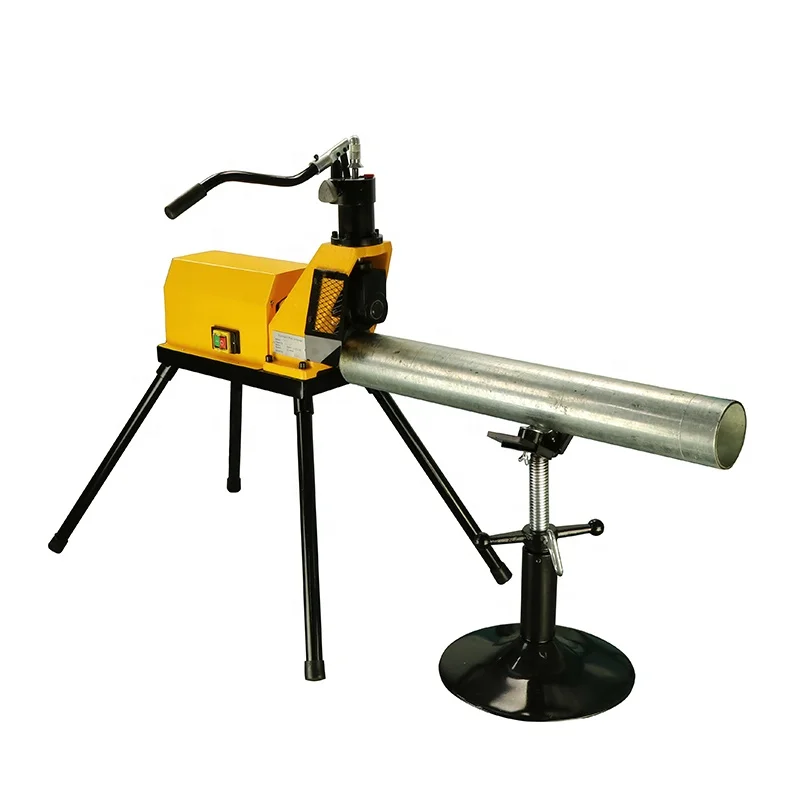

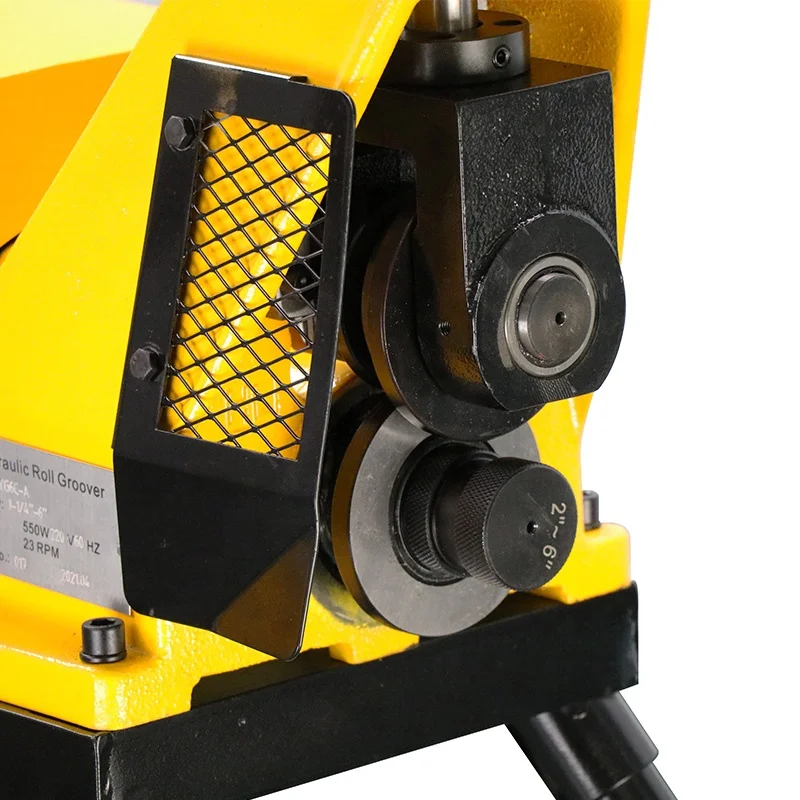

Heavy duty roll groover forms rolled grooves in steel, stainless steel tubing. The grooves are formed by the hydraulic feeding of a grooving roll into the pipe which is supported by a drive roll.
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Power | 550W |
2 | Capacity | 1 1/4"-6" Sch. 40 steel, stainless steel. |
3 | Voltage | 220 V /110 V, 50/60 Hz |
4 | Weight | 75kgs |
5 | Package dimension | 69*38*71cm |

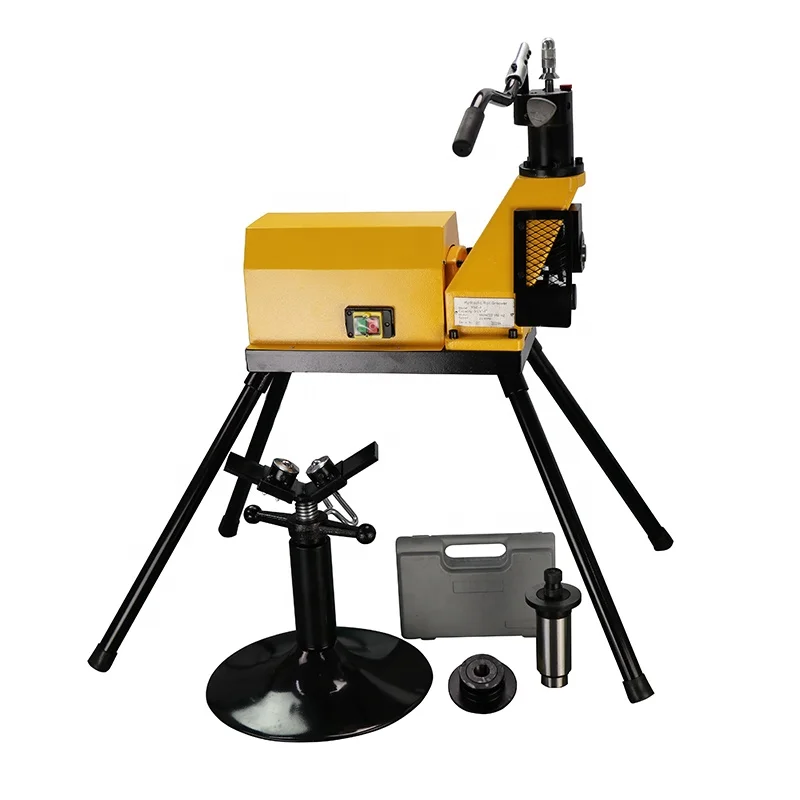

Standard Parts Coming with Machine
Roller & Shaft 2"-6"
Roller & Shaft 1 1/4"-1 1/2"
658C Pipe Stand
