Тестер емкости литий-ионных цилиндрических элементов 128 256 512 каналов 5V5A 5V6A

128 256 512 Channel High Current Lithium Ion Cylindrical cell Battery Capacity Tester 5V5A 5V6A 5V10A Analyzer

Different channels can be customized according to customer requirements, and the current and voltage are unified, its suitable for mass production.

• Each channel can be started and stopped at a single point, and the response speed is fast.



• The operation is simple, convenient and intuitive



• Modular design, easy to maintain.



• The digital current and voltage automatic calibration function



• Using network connection and SQL database



• The hardware technology is advanced, stable and durable.





































































































  Working power	Three-phase five-wire system AC380V±10%, 50HZ
  Work environment	Temperature 0-40 degrees, relative humidity ≤80%
  Heat-dissipating method	Take in the wind naturally and exhaust it upward
  Channel Parameter
  Voltage measuring range	0-5V, 1MV resolution
  Battery voltage range	Charge 0-4.5V: Discharge 4.5-2V
  Constant voltage range	2.5V-4.5V
  voltage accuracy	±(1‰ reading +1‰ full)
  Current accuracy	±(1‰ reading +1‰ full)
  Software Function
  Control mode	Computer connection equipment work, FCL control
  Communication mode	RS485 baud rate 57,600
  Process set	A maximum of 32 work steps and 256 cycles are se
  Charging mode	Constant current, constant pressure
  Charging cutoff condition	Voltage, current, time, capacity
  Discharge	constant current
  Discharge cut-off condition	Voltage, time, capacity
  Defensive function	Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity, etc
  Time range	Set it anywhere from 0 to 30,000 minutes
  Time accuracy	≤±1‰
  Sampling inspection period	≤8S
  Minimum frequency of data recording	≤8S
  Battery sorting	By capacity, time, discharge platform, etc
  Data processing	Data, graphs, and loop diagrams

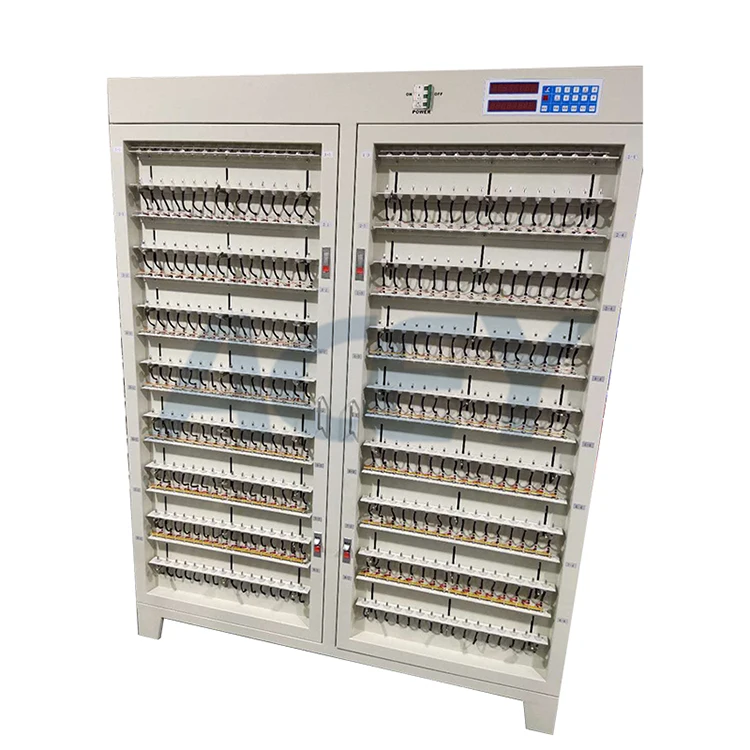

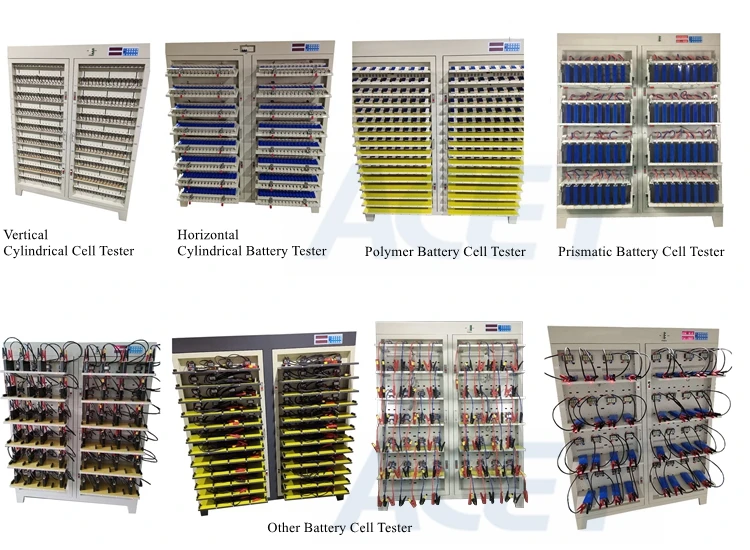

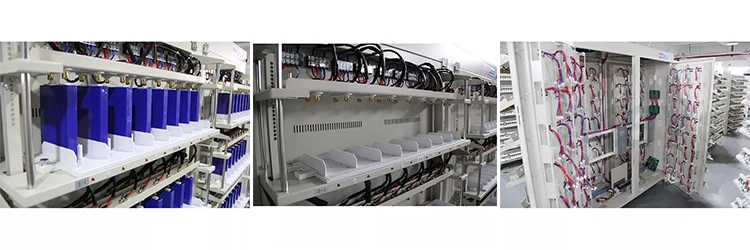

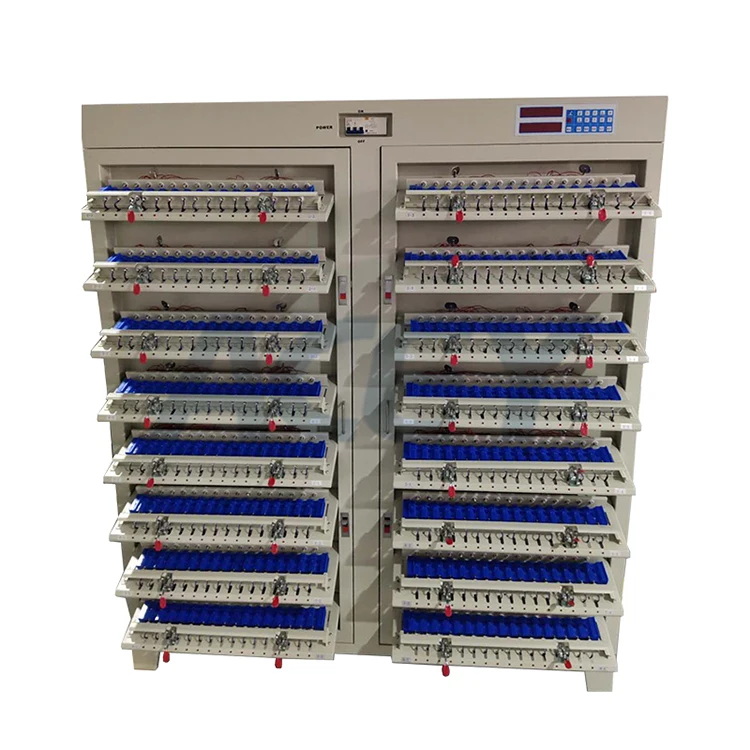

Vertical Cylindrical Cell Tester Horizontal Cylindrical Cell Tester Details
