Energy-saving ball mill is a key equipment for material grinding after crushing process. It is widely used in powder-making production lines, such as cement, silicate, new-type building material, refractory material, fertilizer, glass ceramics and non-ferrous metal etc.

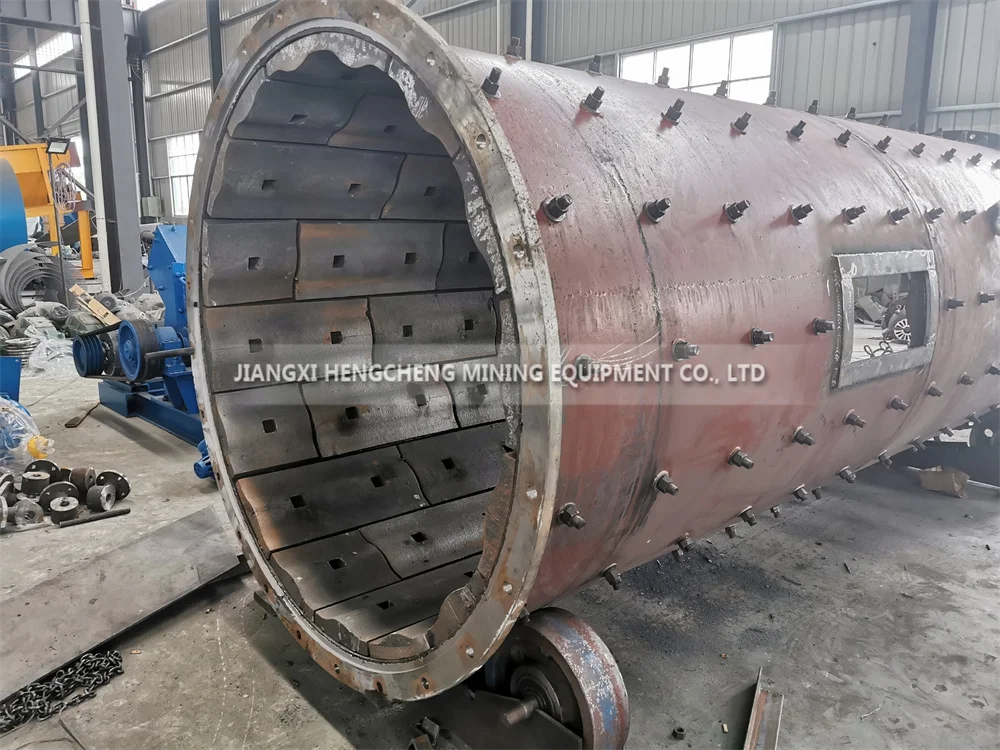

1. The lining can be replaced. 2. Mineral ball mill is an efficient tool for grinding many materials into fine powder. 3.Two ways of grinding: the dry way and the wet way. 4.Ultimate particle size depends entirely on how hard the material you’re grinding is. 5. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.

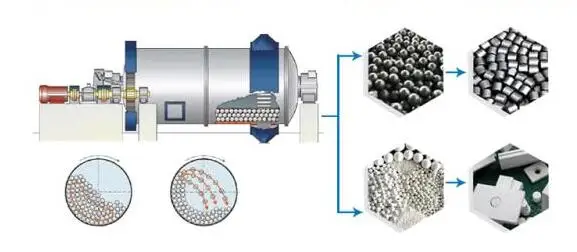

Working principle

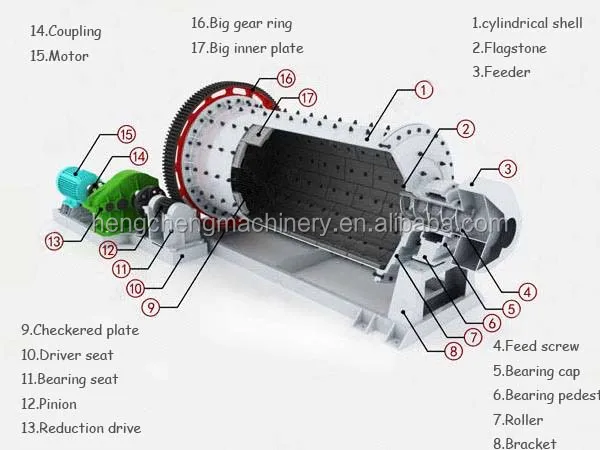

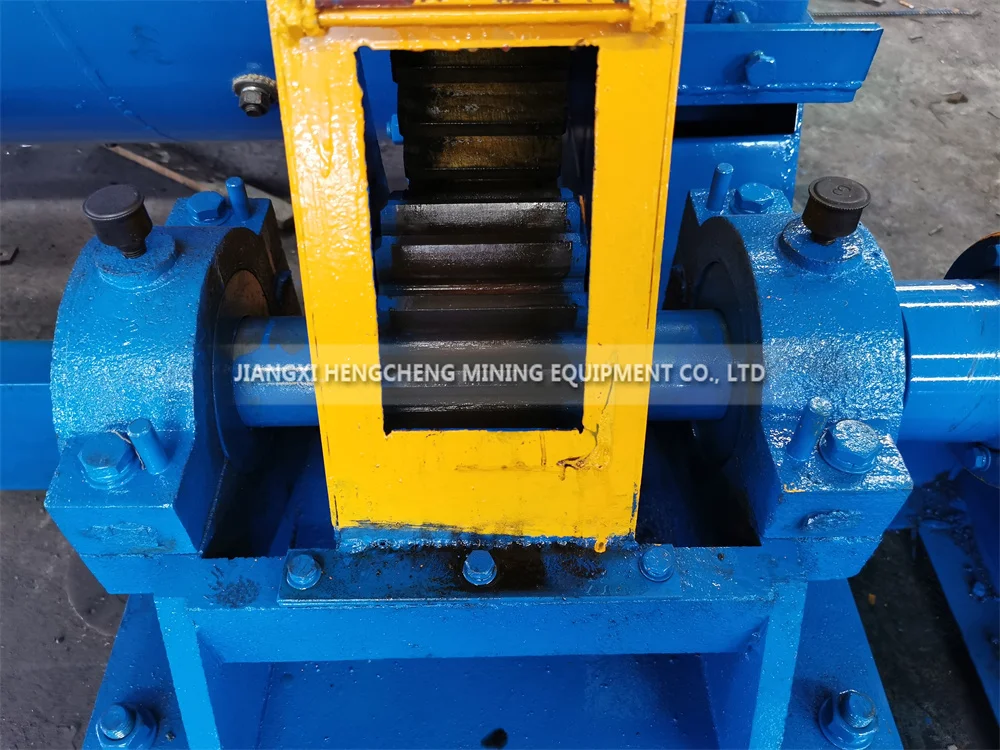

The ball mill is horizontal cylindrical rotation device,driving by brim gearwheel, there are two chambers and grid. Material goes into the first chamber through the feeding inlet, inside the first chamber, there are stage liners and ripple liners as well as steel balls with various kinds.The shell rotates which generates eccentricity, this force brings balls to a certain height and then balls drop down by gravity, which will impact and grind the material. After the primary grinding in the first chamber, material goes into the second chamber through segregate screen, in the second chamber, there are fiat liners and steel balls, after the secondary grinding, material is discharged through the discharge screen.
Applicationof Ball Mill
A ball mill is a type of grinder used to grind materials into extremely fine powder mainly for use in mineral dressing processes.
Technical Specification of Ball Mill
Model
Rotating Speed(r/min)
Ball Added(t)
Feeding Size
(mm)
Discharging Size
(mm)
Capacity
(t/h)
Motor Power(KW)
Weight
(t)
900*1800
36-38
1.5
≤20
0.075-0.89
0.65-2
18.5
4.6
900*3000
36
2.7
≤20
0.075-0.89
1.1-3.5
22
5.6
1200*2400
36
3
≤25
0.075-0.6
1.5-4.8
30
12
1200*3000
36
3.5
≤25
0.074-0.4
1.6-5
37
12.8
1200*4500
32.4
5
≤25
0.074-0.4
1.6-5.8
55
13.8
1500*3000
29.7
7.5
≤25
0.074-0.4
2-5
75
15.6
1500*4500
27
11
≤25
0.074-0.4
3-6
110
21
1500*5700
28
12
≤25
0.074-0.4
3.5-6
130
24.7
1830*3000
25.4
11
≤25
0.074-0.4
4-10
130
28
1830*4500
25.4
15
≤25
0.074-0.4
4.5-12
155
32
2100*3000
23.7
15
≤25
0.074-0.4
6.5-36
155
34
2100*4500
23.7
24
≤25
0.074-0.4
8-43
245
42
2400*3000
21
23
≤25
0.074-0.4
7-45
245
54
2400*4500
21
30
≤25
0.074-0.4
8.5-60
320
65
2700*4000
20.7
40
≤25
0.074-0.4
12-80
400
94
2700*4500
20.7
48
≤25
0.074-0.4
20-90
430
102
3200*4500
18
65
≤25
0.074-0.4
90-110
800
137

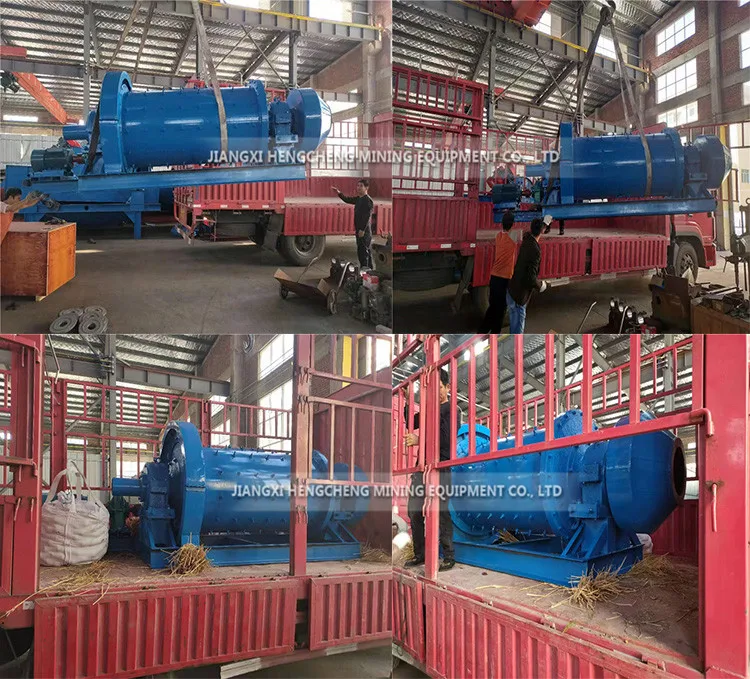

Packaging & Shipping
1. All the goods will be delivered in 10-20 days after receving payment. 2. The machine will be packed in export container. 3. Motors and small parts will be packed in new strong wooden cases that suitable for long distance ocean transportation. 4. We promise that your goods will be shipped to destination timely and safely.
Company Information
Jiangxi Hengcheng Mining Equipment Company is specialized in manufacturing various kinds of mining equipment. We have served the mineral processing industry as an excellent mineral processing equipment manufacturer for over 20 years.
Hengcheng company is dedicated to provide a complete line of equipment includingshaking table, spiral chute, jig machine,trommel,rotary scrubber, flotation machine, magnetic separator,grinding mill, and so on. We are involved in the range of mineral beneficiation services including mineral testing, process flowchart design, installation and commissioning, technical consulting, as well as staff training,etc. Our proven technologies and experience permit us to provide every customer with the most effiicent & commercial beneficiation plant equipment.
Certifications
Contact Us
We’d like to recommend a suitable model for you and send you a best quotation. So please give us some more information about your requirement in your enquiry.
1) What's the capacity per hour would you want ?
2) What 's the raw materials do you want to process?
