Product Description
Introduction

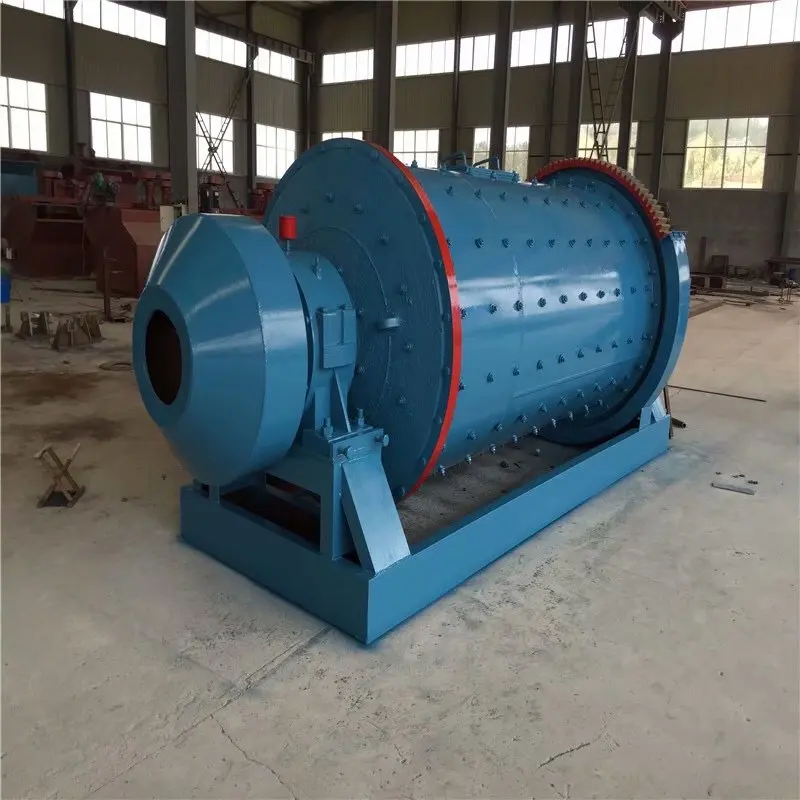

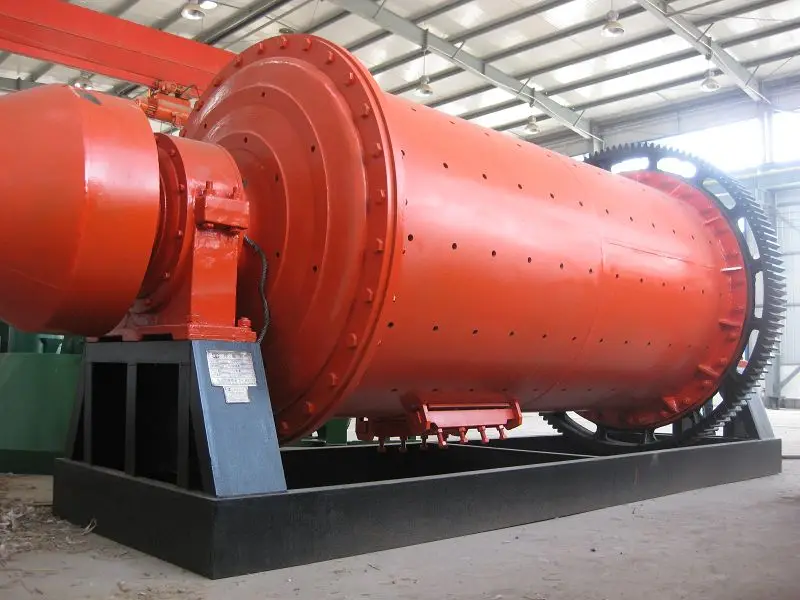

Ball mill is composed of feeding part, cylinder part, discharging part, transmission part. The cylinder of the machine is equipped with a grinding medium (steel balls), the centrifugal force produced by the rotation of the cylinder, make the grinding balls to a certain height then fell off, smashing the ore, the grinding action between the steel ball and the cylinder lining plate grinds the ore into fine sand or fine powder.
Ball mill is composed of feeding part, cylinder part, discharging part, transmission part. The cylinder of the machine is equipped with a grinding medium (steel balls), the centrifugal force produced by the rotation of the cylinder, make the grinding balls to a certain height then fell off, smashing the ore, the grinding action between the steel ball and the cylinder lining plate grinds the ore into fine sand or fine powder.

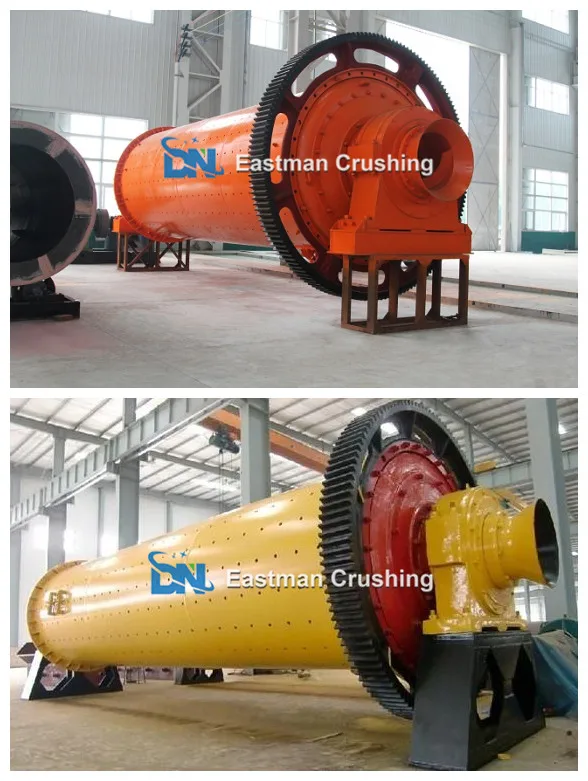

Product details
Application
Eastman ball mill is widely used in non-ferrous metals, ferrous metals, non-metallic mineral processing plants and chemical industry, building materials and other industries for grinding materials. Wet lattice type, overflow type for wet grinding a variety of hardness of the ore; dry lattice type for dry grinding all kinds of hardness of the ore and materials.
Eastman ball mill is widely used in non-ferrous metals, ferrous metals, non-metallic mineral processing plants and chemical industry, building materials and other industries for grinding materials. Wet lattice type, overflow type for wet grinding a variety of hardness of the ore; dry lattice type for dry grinding all kinds of hardness of the ore and materials.
Working Principle

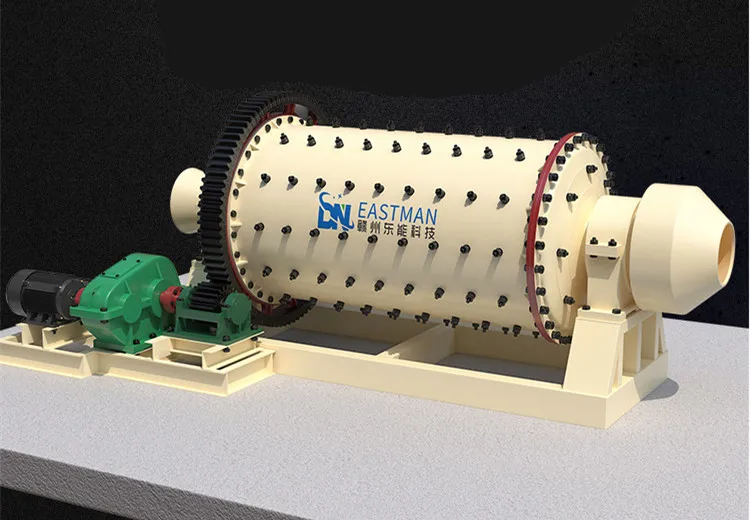

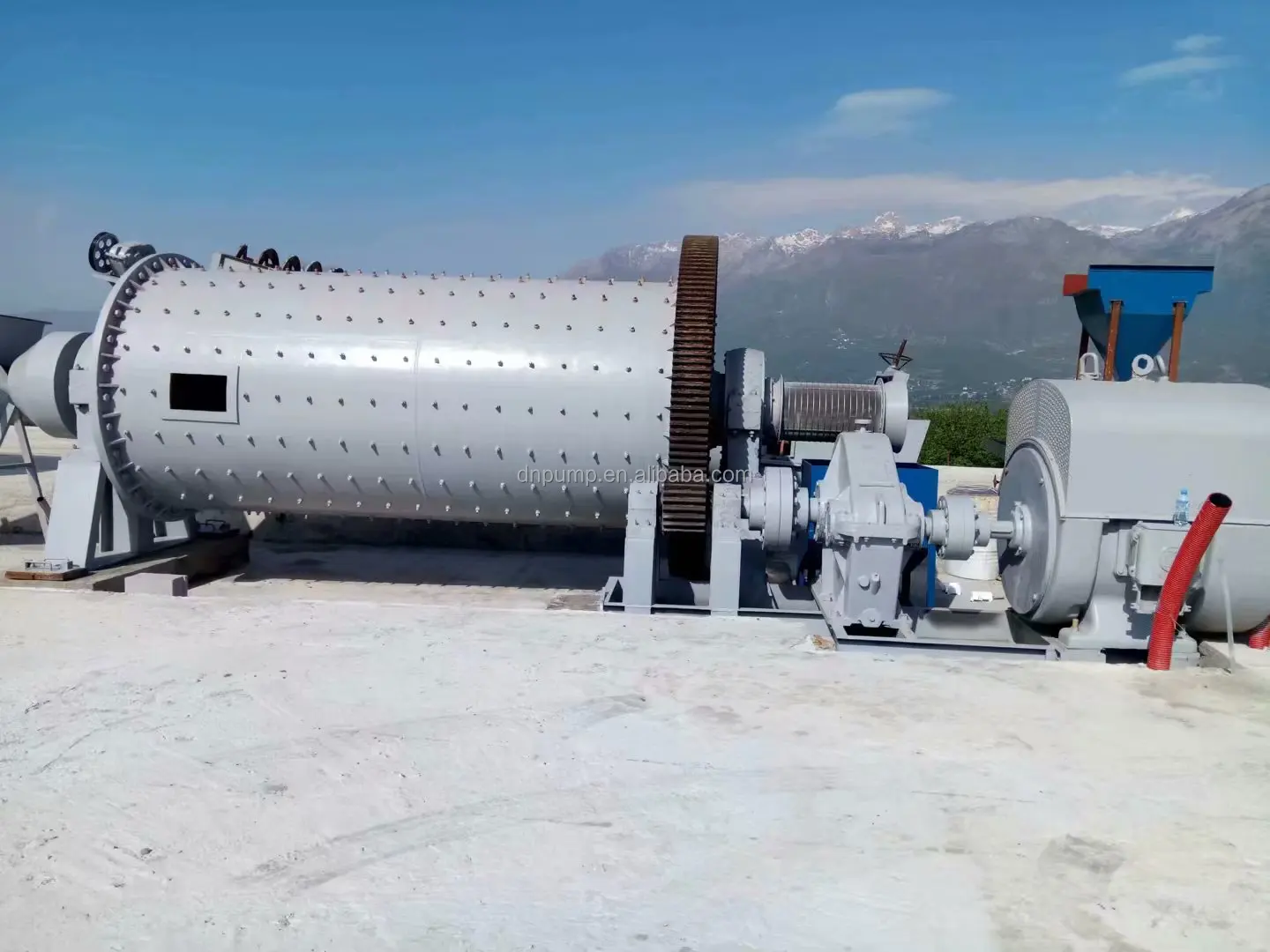

Eastman use a three phase motor to drive the ball mill, usually it is a adjustable-speed motor, the motor connects to a gearbox, this gearbox drive the small gear, will cause the small gear to rotate, small gear rotates the big gear. The big gear is a circular gear, and it connects to the ball mill drum.
The drum rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.
Inside the drum there are wear-resisting lining board which has great abrasion performance. Its function is to protect the ball mill drum, this inner lining can be dismantled and replaced.
Eastman use a three phase motor to drive the ball mill, usually it is a adjustable-speed motor, the motor connects to a gearbox, this gearbox drive the small gear, will cause the small gear to rotate, small gear rotates the big gear. The big gear is a circular gear, and it connects to the ball mill drum.
The drum rotates and produces eccentric force to bring the steel balls to a certain height, and then the steel balls will fall down to impact and grind the materials. Finally the powdery materials will be discharged from the discharging grating bar to complete the powder grinding process.
Inside the drum there are wear-resisting lining board which has great abrasion performance. Its function is to protect the ball mill drum, this inner lining can be dismantled and replaced.

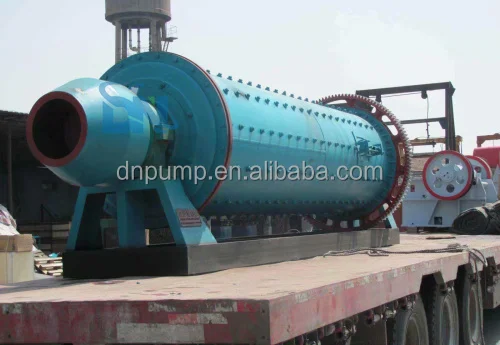

Package and delivery
1.Standard Parts Packed in the Wooden Cases |
2.Big Parts Packed by Plastic Membrane |
3.The Whole Machine is Loaded in the Container |

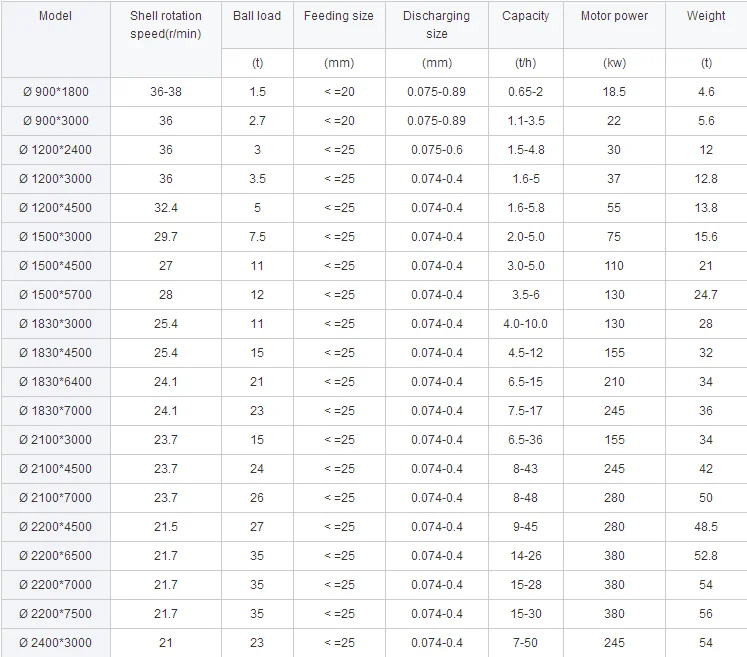

Specifications

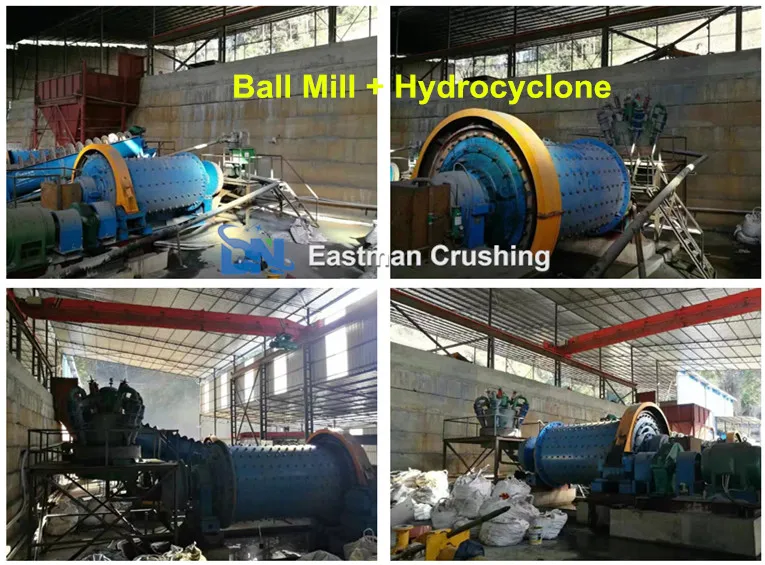

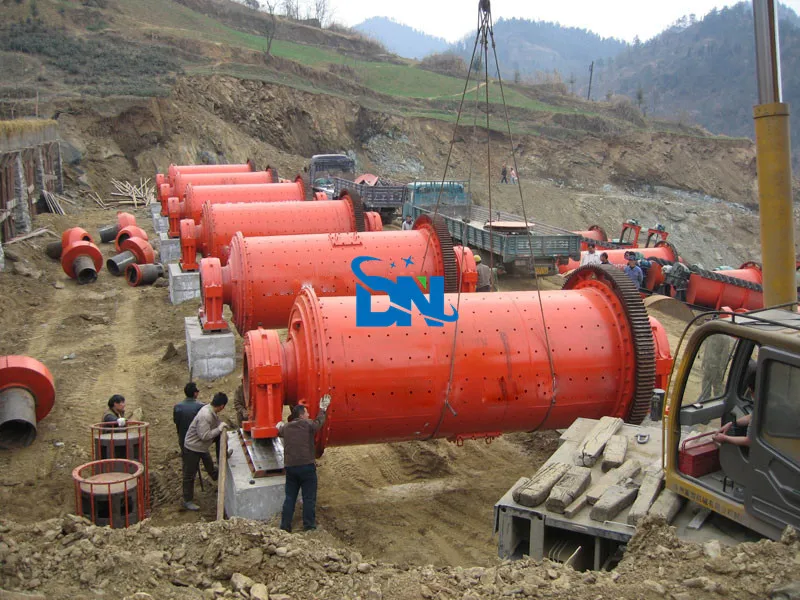

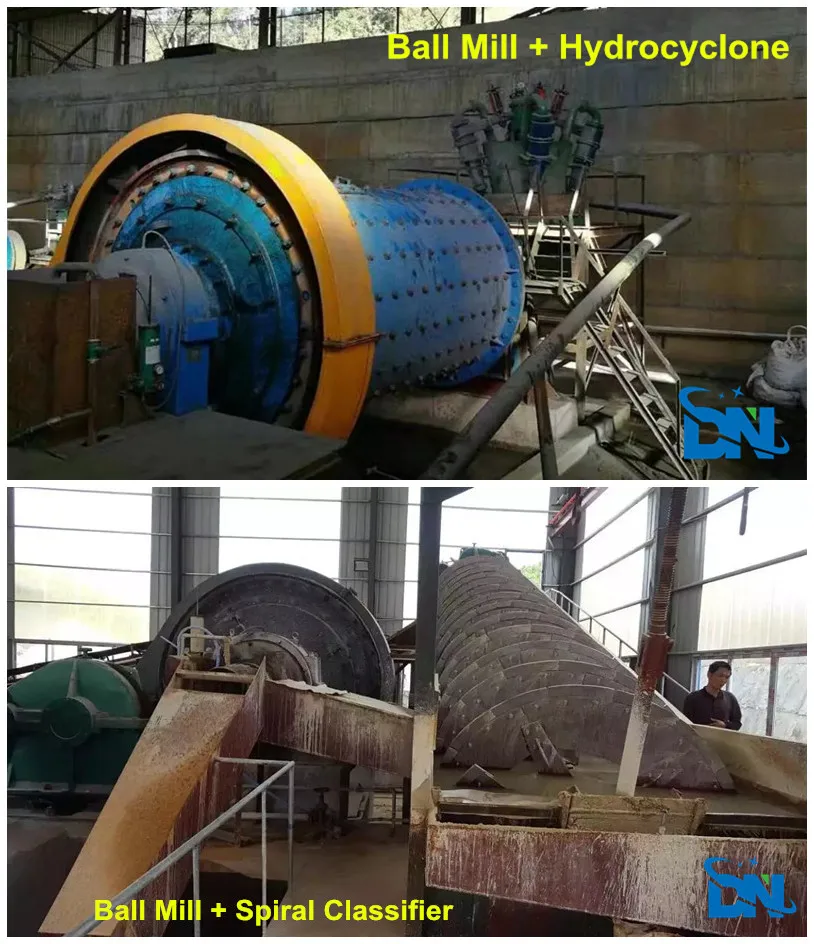

Successful cases
Company Introduction
Our Services & Strength
1. 40 years history FACTORY at industrial pumps2. Provide engineer team after sales service
3. Provide spare parts for long-term
4. Provide solutions that are easy to maintain and service
5. With a wide range of pump kinds and models, can meet your specific needs

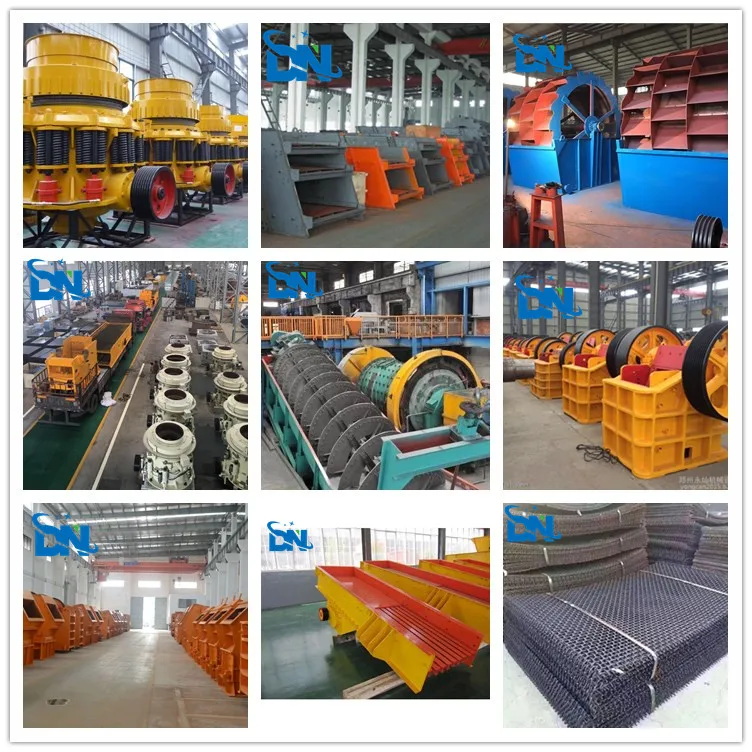

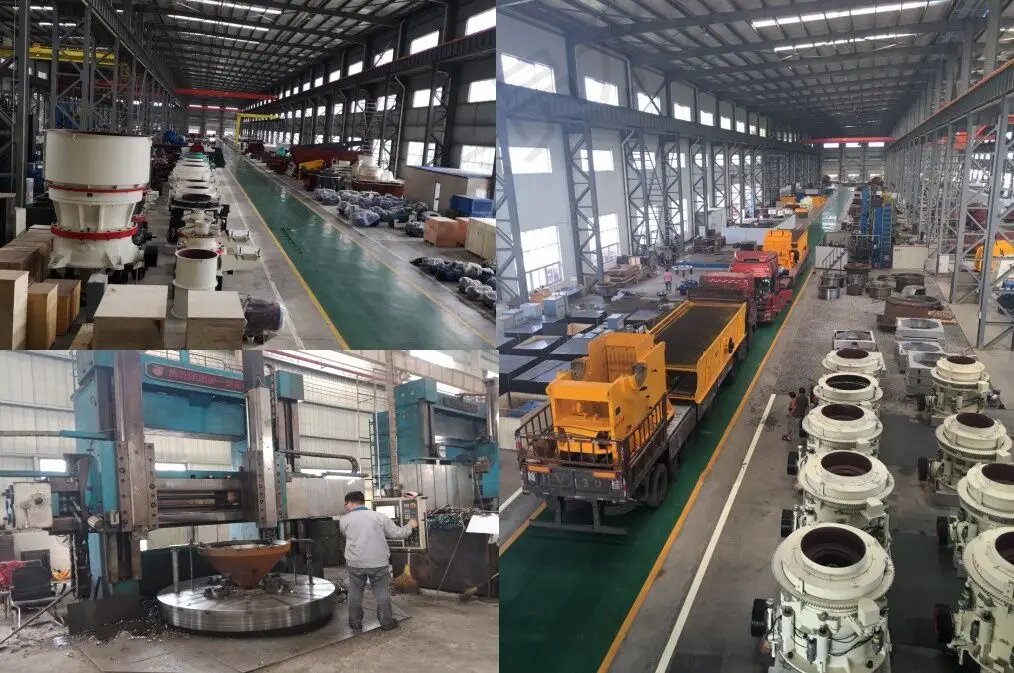

Our Workshop
FAQ
● How is the quality of your products?
Answer : Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
● How about the Guaranteed?
Answer : All of our products are guaranteed for one year. If products quality is not consistent with the description as we Described or the promise before you place order, we promise 100% refund.
● How about price?
Answer : For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
● How about the service and payment terms?
Answer : We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
Answer : Our products are manufactured strictly according to national and international standard, and we will take a test on every grinder before delivery.
● How about the Guaranteed?
Answer : All of our products are guaranteed for one year. If products quality is not consistent with the description as we Described or the promise before you place order, we promise 100% refund.
● How about price?
Answer : For the complete same machine, we can promise our quality is the best when the price same as other competitors, and our price can be lowest when the quality at standard level.
● How about the service and payment terms?
Answer : We can accept T/T or other payment ways you request; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
