SMS blaster modem gsm send receive sms 256 slots sim bank

    The GSM Modem sim bank is actually a kind of equipment used in conjunction with sms modem . It has 128  card slots and 256 card  slots . It needs a mobile phone SIM card to support just the same as we use cellphone. In the need to send Bulk SMS, put sim card into the device, link power and connect a pc through the USB cable. Then we can realize the function of the sending and receiving SMS by using the relevant computer management softwarewe.

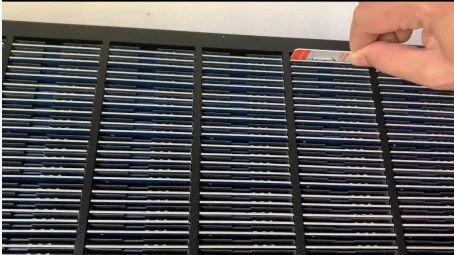

Sms modem work with the modem pool, you need to insert a bulk sim card into the sim card Slot.
There are two sim bank models as shown below. support  SIM cards(big or small )

Model A: SIM256 sim bank which can insert 256 large sim cards( big or small)
Model B: SIM128 sim bank which can insert 128 small sim cards (big or small)

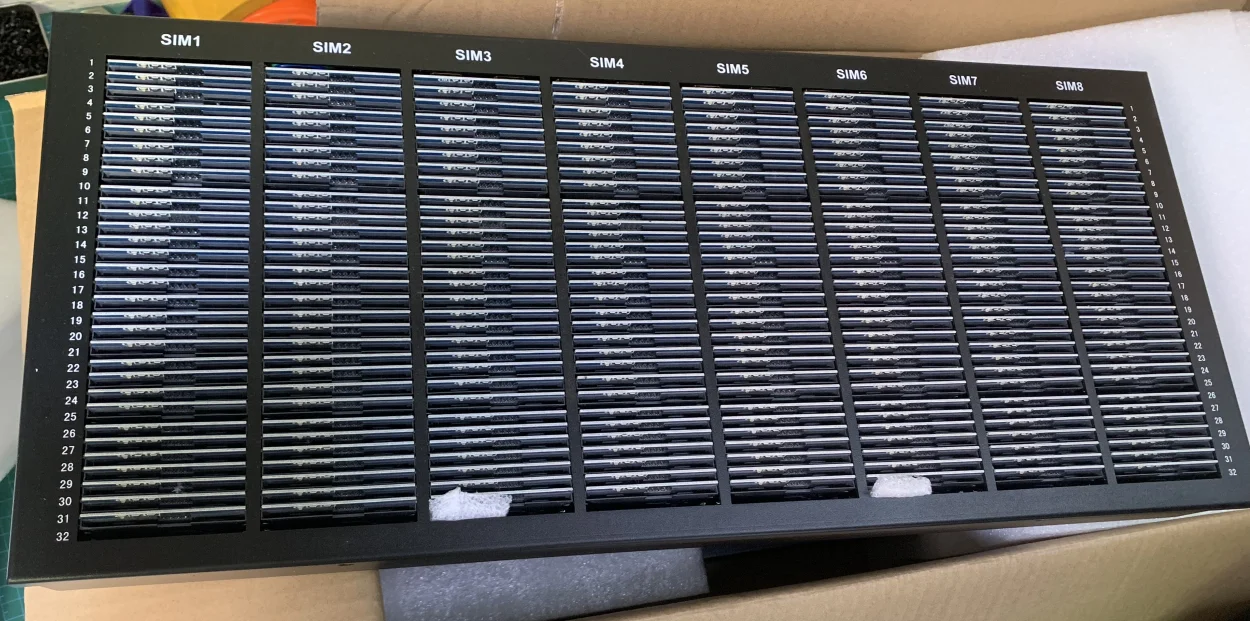

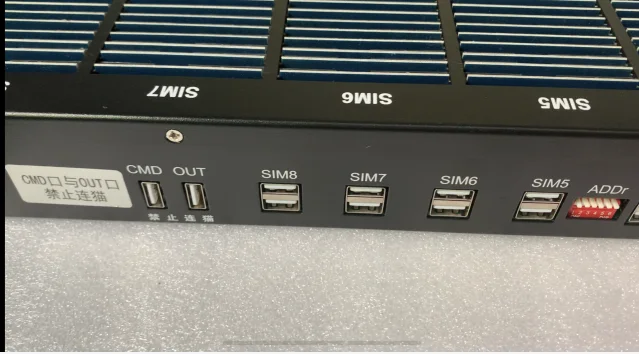

SIM256 sim bank has 8 channels, each channel can be inserted 32 Big SIM cards
SIM128 sim bank has 8 channels, each channel can be inserted into 16 small SIM cards.



Each channel works with one port of the modem pool.
8 port modem pool can work with 1 sim bank, 16 port modem pool can work with 2 sim banks.

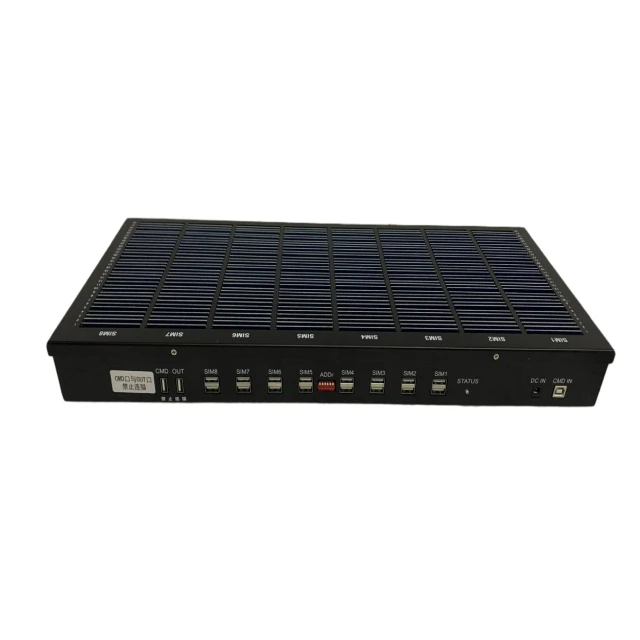

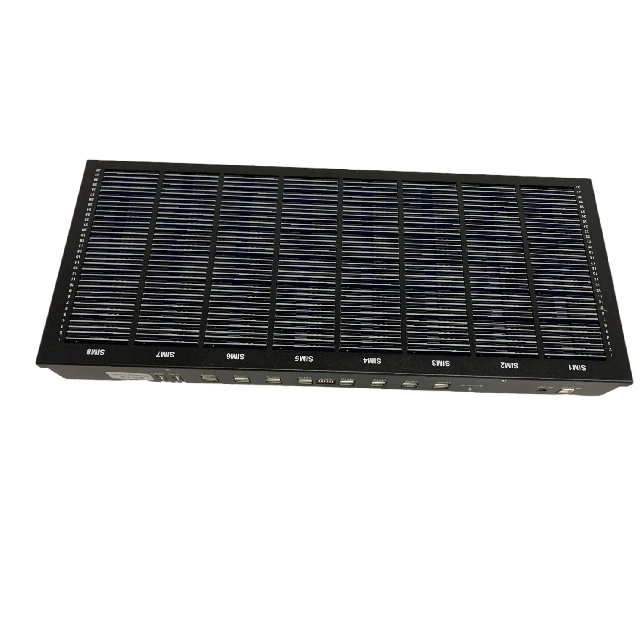

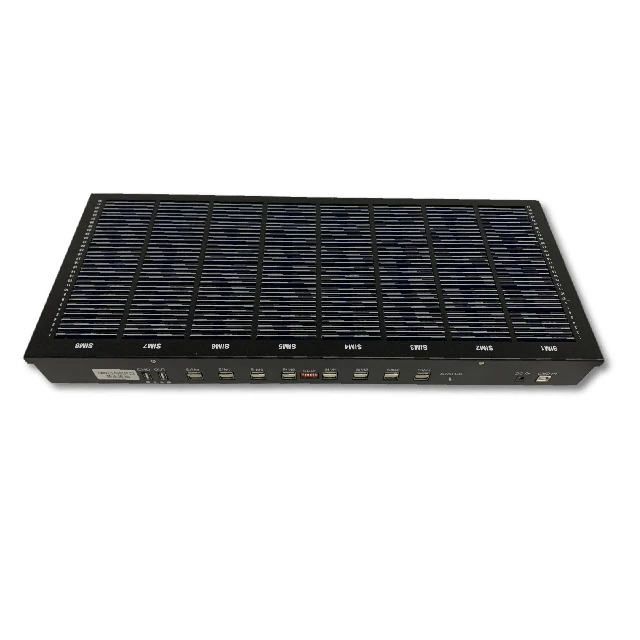

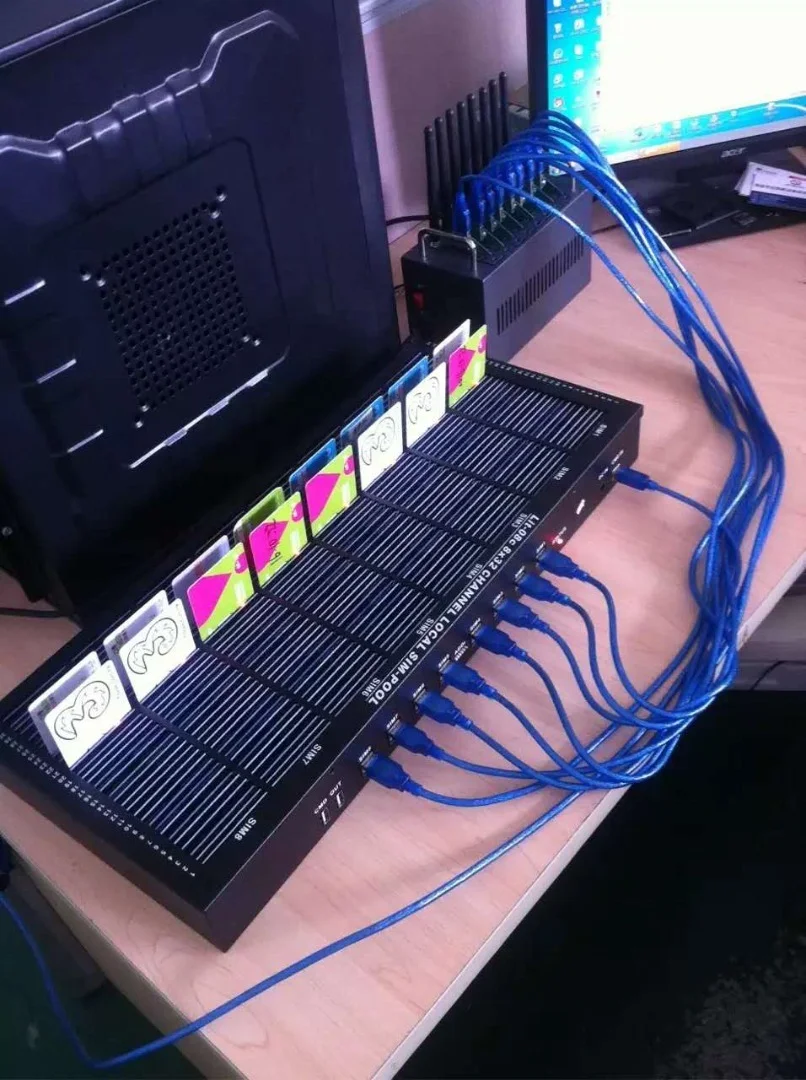

Below is the modem pool with sim bank pictures for your reference:

SMS blaster/ 16 ports SMS blaster/ bulk sms sending device

 S

blaster/ 16 ports SMS blaster/ bulk sms sending device

SMS

SMS blaster/ 16 ports SMS blaster/ bulk sms sending device



Specifications:
1. 128 /256 sim pool
2. Module : connect with sms modem
3. Frequency: GSM 900/1800/850/1900Mhz also support 3G 4G
4. IMEI Change
5. USB optional
6. Functions:Bulk Text Messenge, MMS, USSD Command, AT Command, Calling
7. Free software
8. SMS Transfer Speed 2G 800-1200 piecesSMS Per SIM Card an Hour ,3G 2500-3000/ sms/hour/1port /



Product Feature
can insert 128/256 SIM cards(big or small)

Can be used with SMS modem
connection with the computer through a data line can be integrated with USB
Each channel with separate power switch
Each individual module can be demolished
industrial chassis, elegant shell
IMEI CHANGE
support API and AT
dual/quad band

Supported Operating Systems:

Windows 7/ Windows Vista/ Windows XP/ Windows Server 2003/ Windows 2000/..ect

SMS blaster/ 16 ports SMS blaster/ bulk sms sending devicSMS blaster/ 16 ports SMS blaster/ bulk sms sending
Technical parameter



16 ports sms modem pool/gsm sms sending device

Model	256,128 ports SMS Blaster
Module	sim bank sim pool
Ports	128/256
Frequency	2g/3g/4g
SMS	MT, MO, CB, Text and PDU mode
Functions	SMS; MMS; USSD; IMEI Change; At Command; Make and Answer Call; GPRS
Headset	Support, u can use it to make a call and answer a call through AT Command
Transmit-Receive Rate	800-1200 SMS/SIM/Hour
AT command control standards	GSM 07.07, 07.05
GPRS Class 12 Rate	85.6 kbps ( Uplink & Downlink)
Antenna	50 Ohm, 3db
Input	AC 110-220V, 50-60Hz
Output	DC 12-24V
Operating Condition	- 20°C to +55°C  working  - 25°C to +70°C  conserving
Accessories	AC/DC adapter, USB cable, Antennas and CD Driver

SMS blaster/ 16 ports SMS blaster/ bulk sms sending device

SMS blaster/ 16 ports SMS blaster/ bulk sms sending device

1. Large shopping malls, supermarkets

2.Professional market, large wholesalers

3.Large hotels, large-scale entertainment

4.Large agencies

5.Transport, logistics industry

6.Large enterprises, and institutions

7.Large hospitals, large bookstore

8.Newspaper, television and radio stations

9.Oil Company ( other chain business model)

10.Government agencies or large township

SMS blaster/ 16 ports SMS blaster/ bulk sms sending device

How to change the module imei
1. Use putty to login the module
2. Input the at command ATE1 to echo display
3. //WRITE:AT+EGMR=1, 7, "359231033480797" this at command will change the module imei to
359231033480797, and pls notice that you have to use the correct imei number if not the imei will be
changed back to factory after reboot.

3. How to make a call
1. Login the module and plugin the earphone in the module.
2. Input the at command ATE1 to echo display
3. Use at command ATD to make a call. Such as you want to dial 10086 then you need fill at command
ATD10086; then you can hear the ring from the earphone. You can use at command ATH to handup a call

 Packaging & Shipping

   Our Services

--we are manufacturer and can give you factory price.

 --we can give you professional free support services with the help of our technology support engineers.

 --Our modem supports API interface.

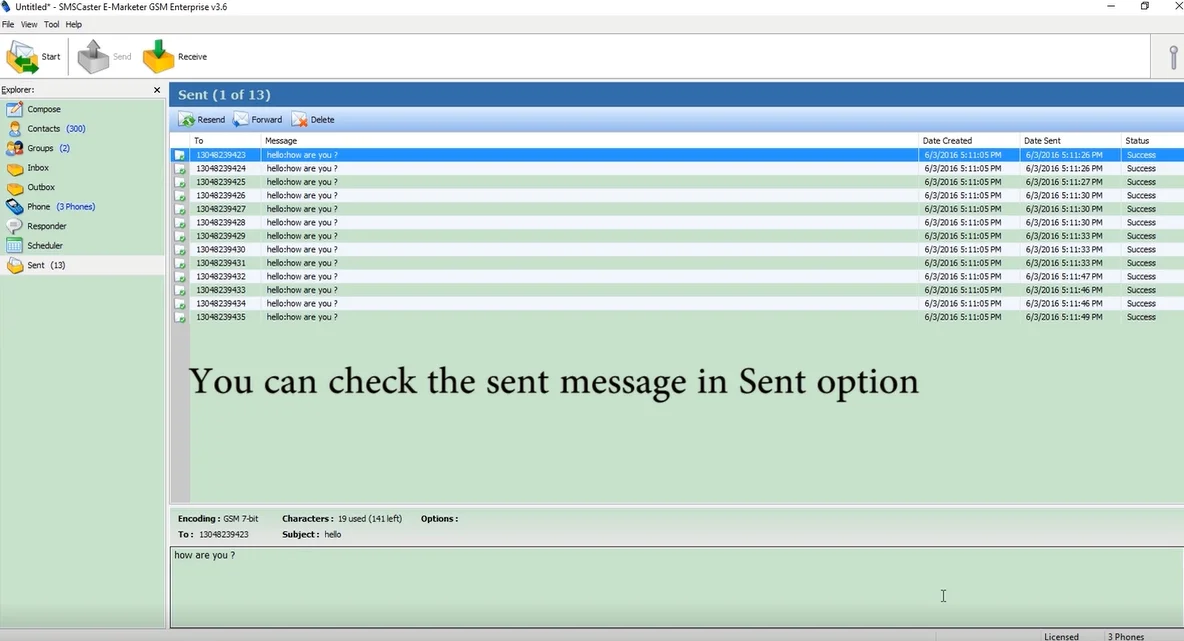

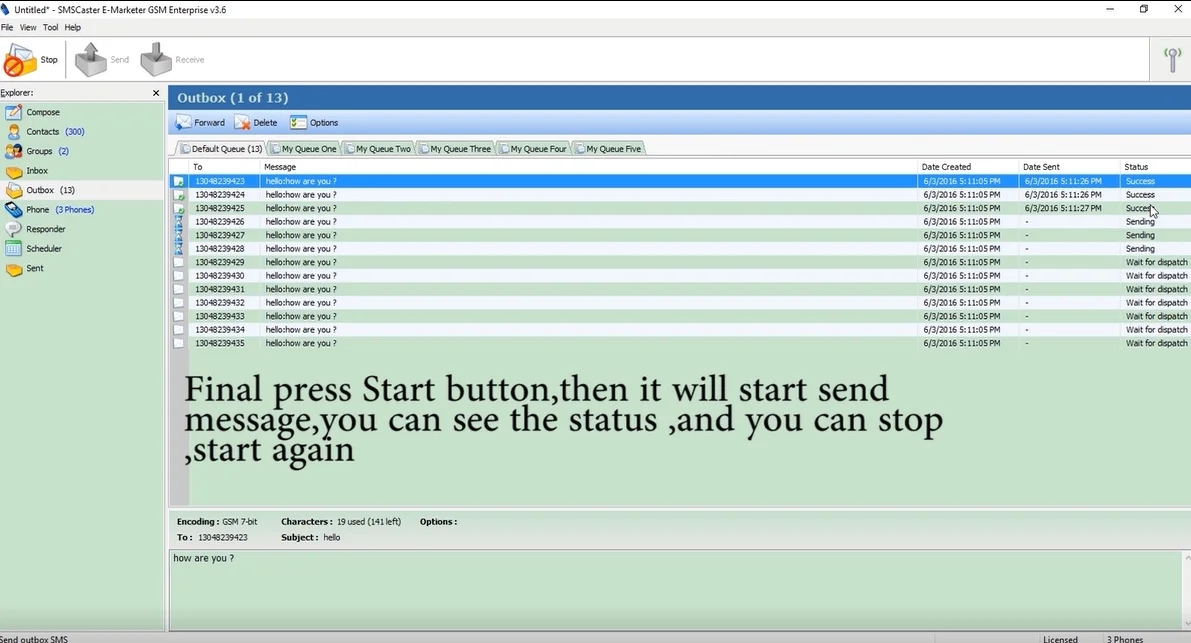

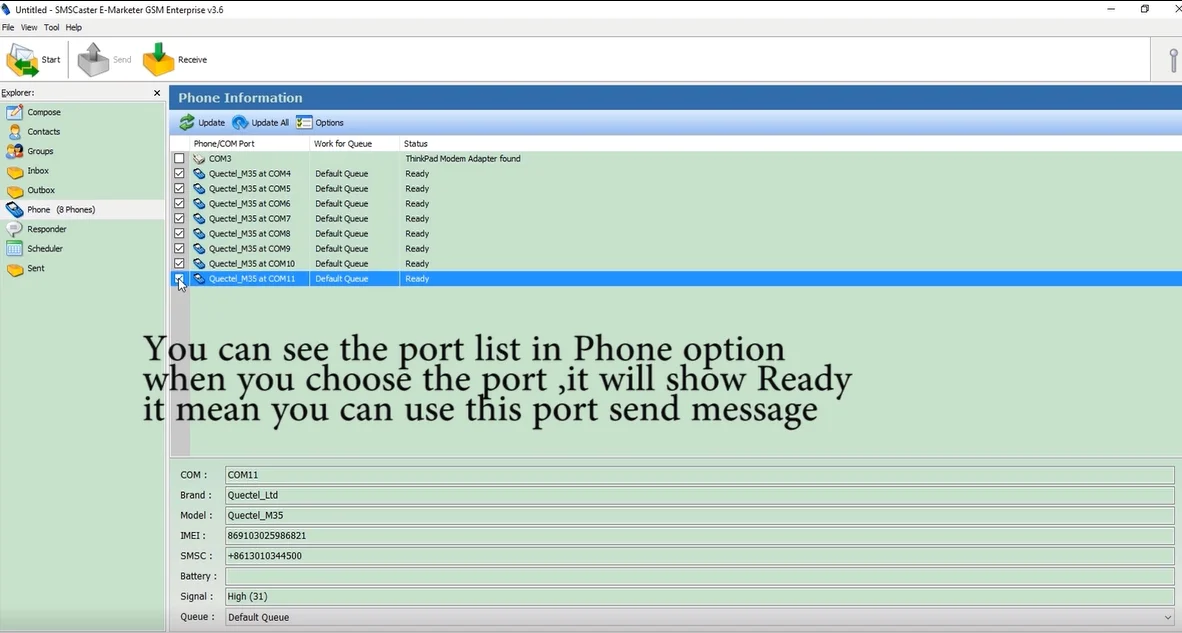

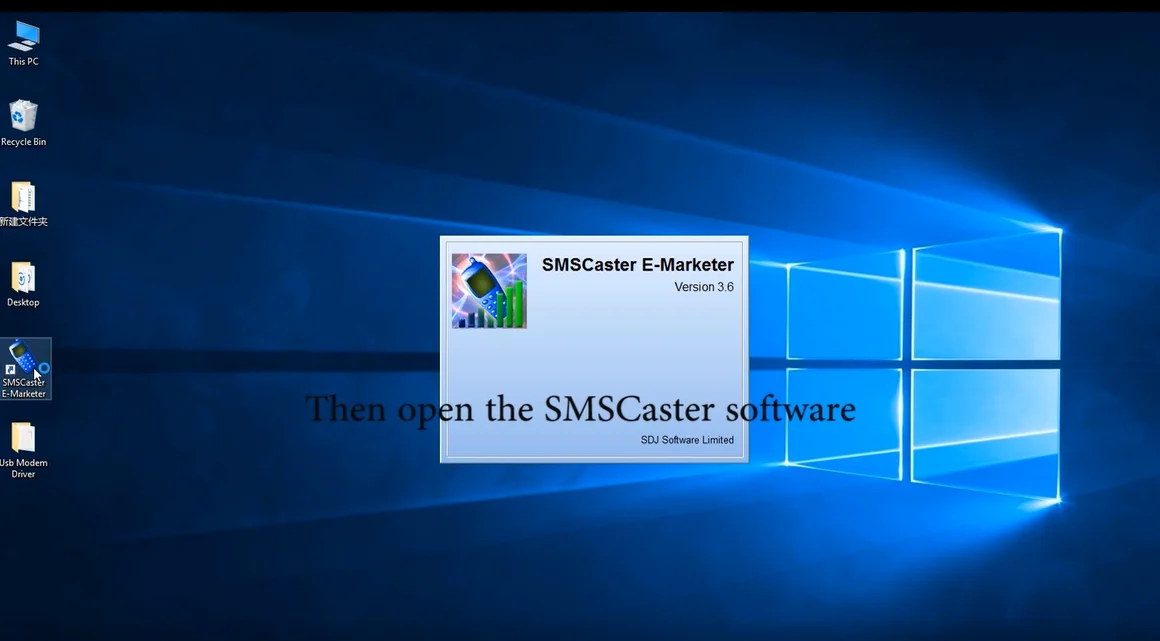

 --We provide free sms software(sms caster)

 --we have 2G/3G/4G models.



FAQ

1. Q: What frequency do this SMS Modem support?

        2G 3G 4G

 2. Q: Can you tell me the functions of SMS Modem?

   A: It can be used to send SMS, MMS in bulk. It also support GPRS, USSD, DAILING, AT command.

3. Q: Where can the SMS Modem used?

   A: The main function of SMS Modem is sending SMS in bulk, so it can be used to send notification, such as market promotion, Notification of Government, school, agent...

4. Q: I’m a freshman to this device, is there any User Manual or Technician can help me when i first set up the device?

   A: We have PDF User Manual for our device, and our technician is 24 hours on duty, they would help u to set device up, and install free software SMS Caster 3.6 for u. And teach u how to use it hand by hand. If u have any doubt about it, u can contact our

5. Q: When can I get the goods?

   A: We’ll deliver the product within 1-2 days after received payment. Besides, we have several delivery company you can choose. Usually, you can receive the product within a week.

6. Q: How is the quality and after-sale service?

   A: The warranty of all our products last 12 months. Were there any problems about our products quality, we could change a new product for you in any circumstance.
