AD2000 is modem gsm sms, DB9 interface, that can conveniently and transparently connect one device to a cellular network, allowing to connect to your existing serial I devices with only basic configuration.

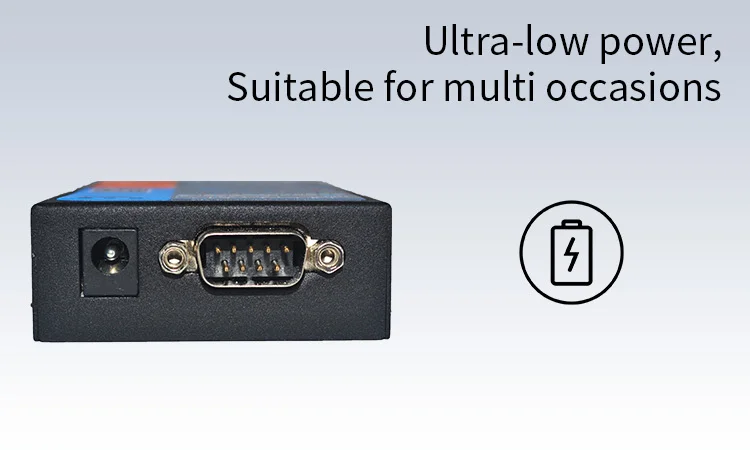

Ultra low power, suitable for multi occasions.

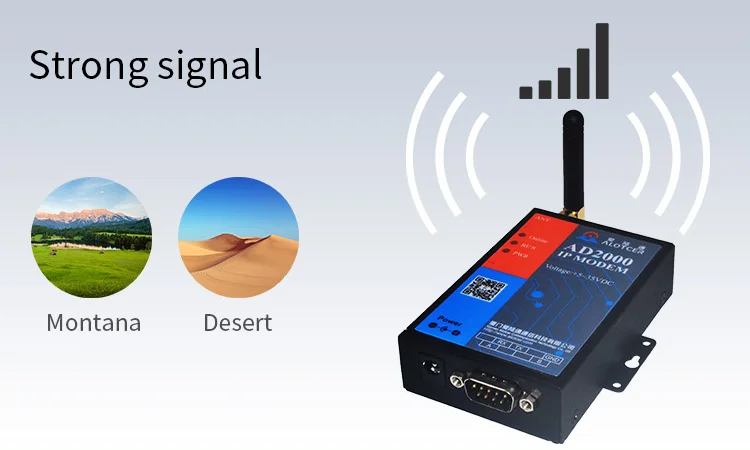

Strong signal, cellular antenna with 7dbi High gain.

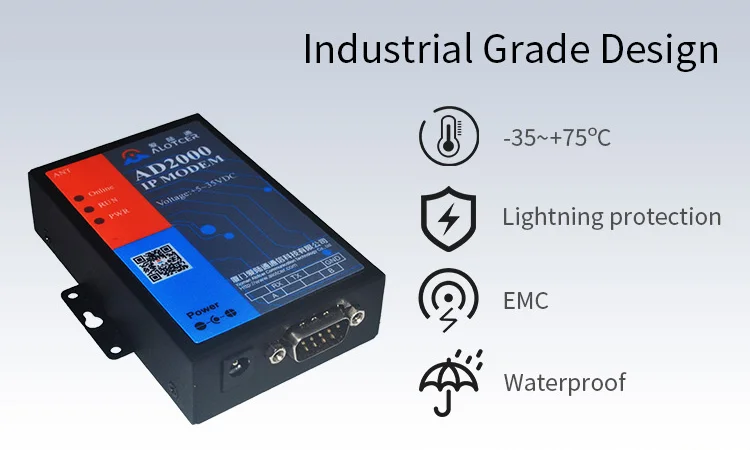

Industrial Grade Design with Electronic components, Core Modules, structural design, operating system, ect. Easily cope with -35 ℃ to 75 ℃.

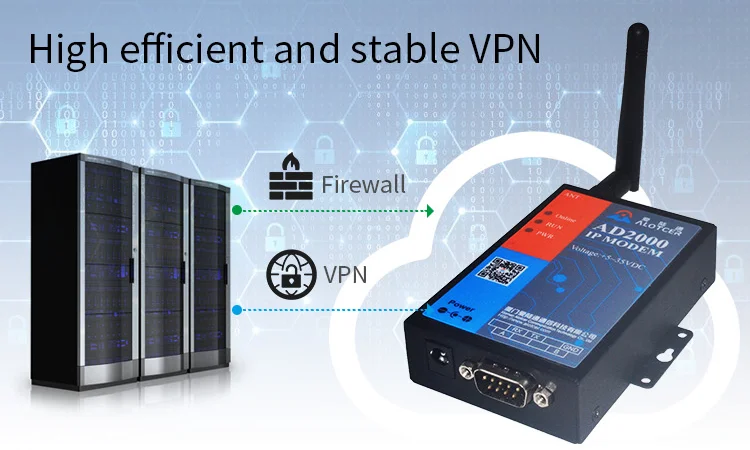

High efficient and stable. To ensure that users enjoy data services anywhere, anytime.

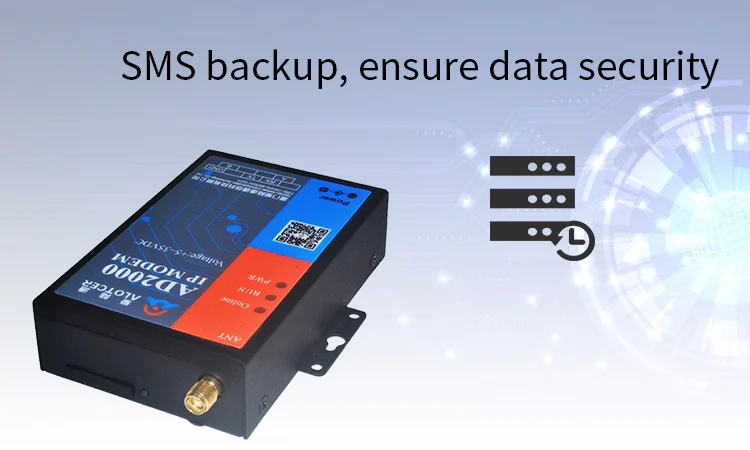

SMS backup, ensure data security.

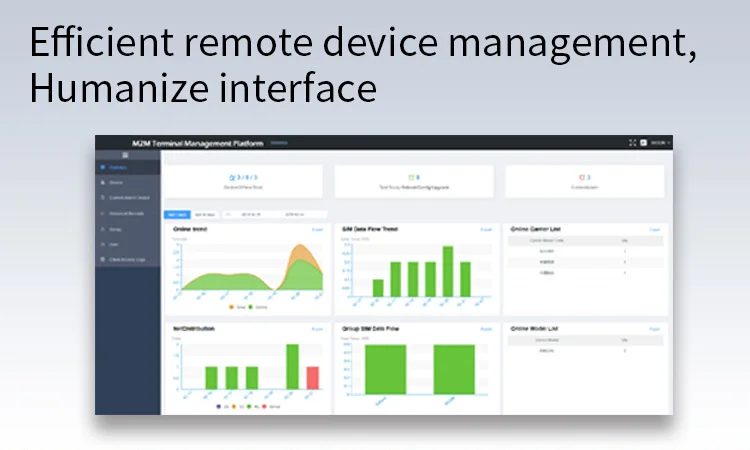

Efficient remote device management, humanize interface.
24 hours of uninterruptible work, online rate about 99.99%.
Items | Contents | |
Hardware System | CPU | Industrial 32 bits CPU |
FLASH | 1MB (Extendable to 8MB) | |
SDRAM | 256KB(Extendable to 1MB) | |
Interface | Serial | 1 RS232 port and 1 RS485 |
Antenna | Cellular: Standard SMA female GPS(optional):Standard SMA female | |
Network | GSM/GPRS/EDGE: 850/900/1800/1900MHz WCDMA/HSUPA/HSPA+: 850/900/1900/2100MHz TDD-LTE: Band 38/39/40/41& Band 61/62 FDD-LTE: Band 1/2/3/4/5/7/8/13/17/20/25/28/66 | |
GPS (optional) | Receiver Type | GPS L1(1575.42MHz)C/A code SBAS: WAAS,EGNOS,MSAS,GAGAN |
Max. update rate | 5 Hz | |
Accuracy | Position: 2.5m CPE SBAS: 2.0m CPE | |
Standard Power | DC 12V/1.5A | |
Power range | DC 5~35V | |
Physical | Dimensions | 91x59x23mm |
Weight | 175g | |
Temperature | Operating Temperature | -35~+75ºC (-31~+167℉) |
Xiamen Alotcer Communication Technology Co., Ltd. is a leading provider of M2M, IOT communication products and solutions. Deep rooted in Networking Wireless Communications for 5 years, both from the product quality and the company's scale are in the industry-leading level. We have obtained SGS certification and are ISO9001 certified, along with CE, FCC, EMC, ROHS, RED National Network Center certifications. There are more than 200 employers in Alotcer, R & D personnel is about 30%, and with 3000 square meters of office space. Because focused, so specialized. Our products are sold all over the world and well received by customers.
Please feel free to contact us anytime when you have a nice idea for 3g industrial modem.
