Products Description

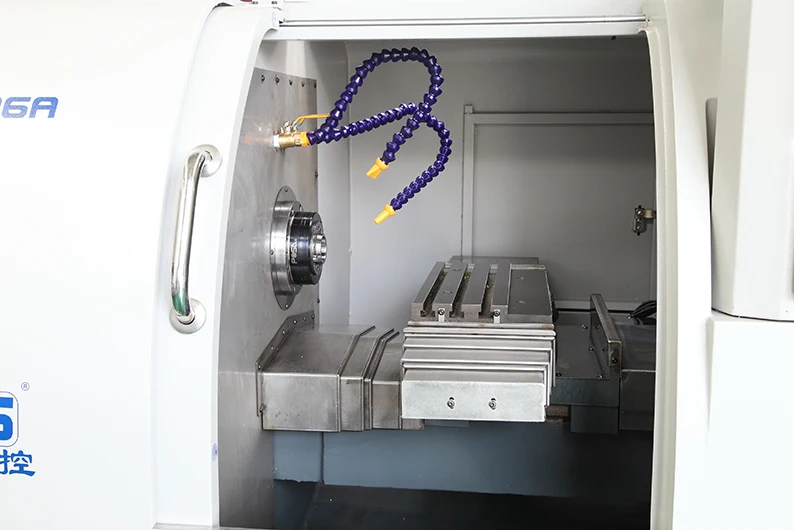

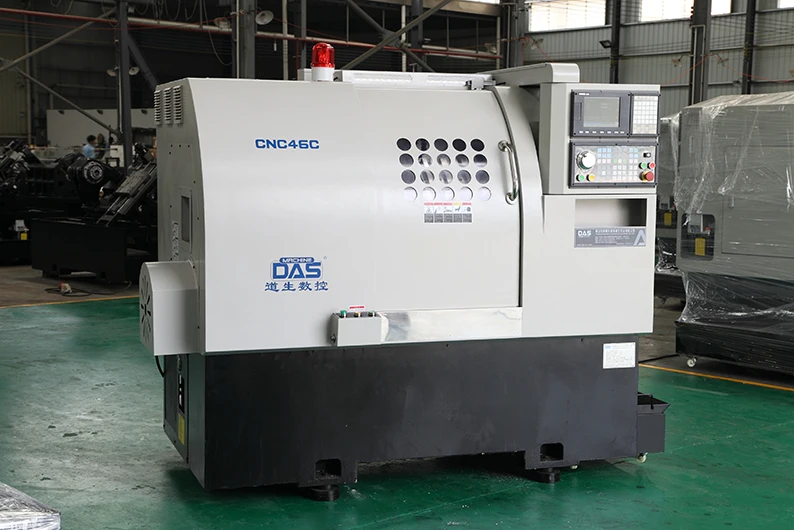

Series-Slant bed gang type CNC Lathe

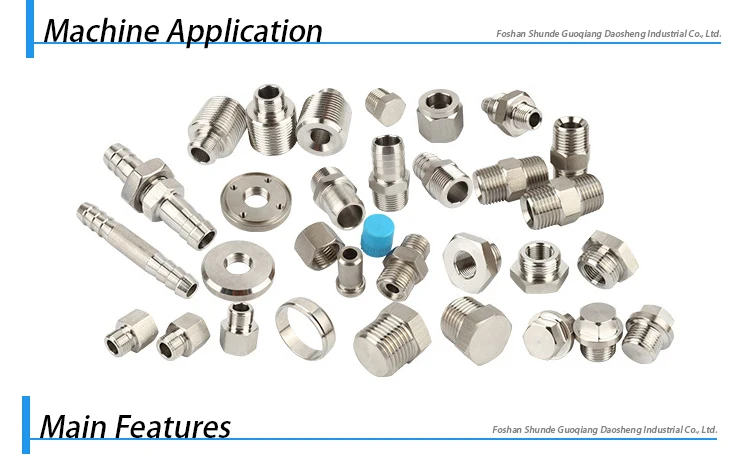

Application:
Machine can automatically process the inside cylinder surface ,cone surface, circular arc surface ,end face ,such as processing,and also can process the single and multiple threads in metric ,inch and other standards.
Features:
1. A high strength ,widening the carriage ,suitable for heavy cutting
2.Frequency conversion stepless speed regulation
3. Standard configuration: manual chuck
4. Optional configuration: hydraulic chuck
Machine can automatically process the inside cylinder surface ,cone surface, circular arc surface ,end face ,such as processing,and also can process the single and multiple threads in metric ,inch and other standards.
Features:
1. A high strength ,widening the carriage ,suitable for heavy cutting
2.Frequency conversion stepless speed regulation
3. Standard configuration: manual chuck
4. Optional configuration: hydraulic chuck
Model | CNC46c |
Max.swing diameter(mm) | 400 |
Max.cutting length(mm) | 100/200 |
Max.Processing length(mm) | 250 |
Chuck size(inch) | 5 inch |
Spindle speed(r/min) | 0-4500 |
Spindle power(kw) | 3.7 |
Spindle bore(mm) | Φ46 |
Auto feeding rod max.diameter(mm) | Φ35 |
Min. resolution(mm) | 0.001 |
X/Z axis travel(mm) | 340/250 |
X/Z axis fast moving speed(r/min) | 18 |
X/Z axis repeatability(mm) | 0.003/0.003 |
Cutting feed speed(mm/min) | 0-5000 |
Taper(mm) | ≤0.003/100 |
Circle processing precision(mm) | ≤0.003 |
Spindle speed(r/min) | 8 |
Shank tool size(mm) | 20*20 |
Boring tool size(mm) | φ20 |
Blade replacement way | Random |
Adjacent tool change time (s) | 0.2 |
Machine Power (kw) | 5.7 |
Net Weight(KG) | 2300 |

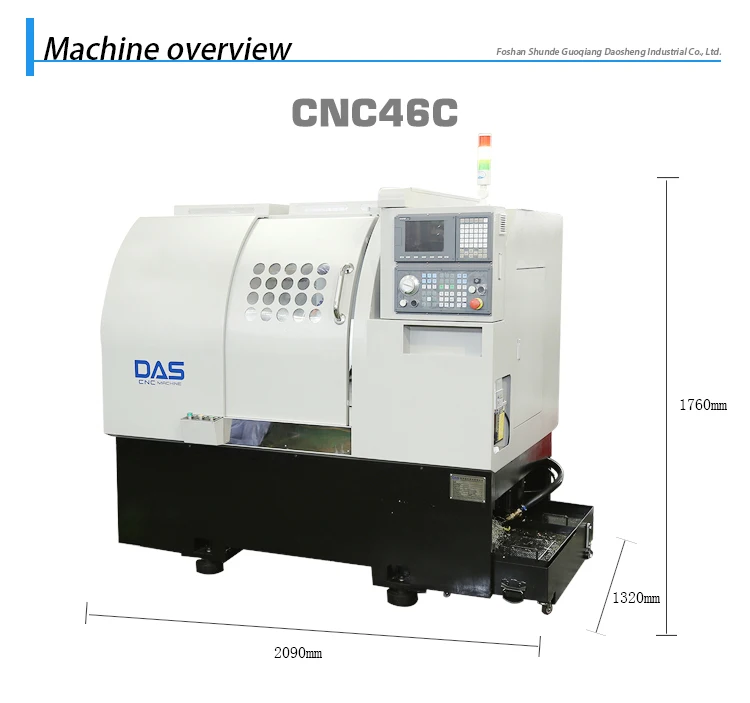

Machine Dimensions(LxWxH)(mm) | 2090*1430*1555 |

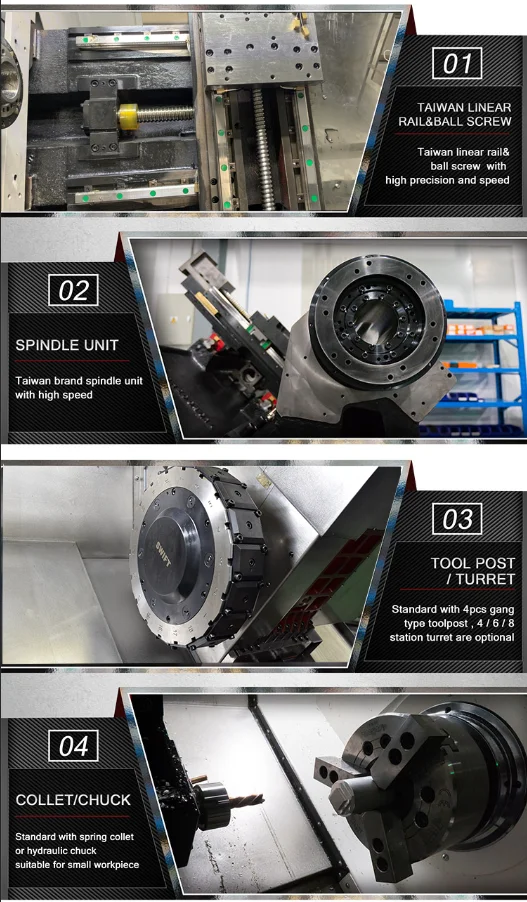

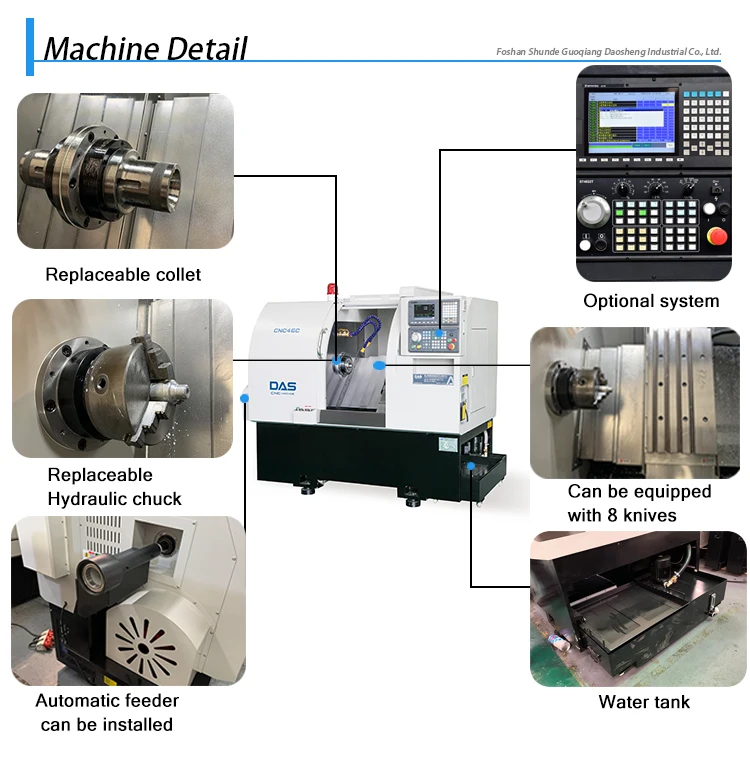

1.The inclined placement of lathe carriage adn tool holder makes machine tool operation and chip removal more convenient.CNC36C/46C pleasant design appearance and less space occupation
2.160 three-jaw hydraulic chuck or other elastic clamp can be driectly fitted on the main shaft flang

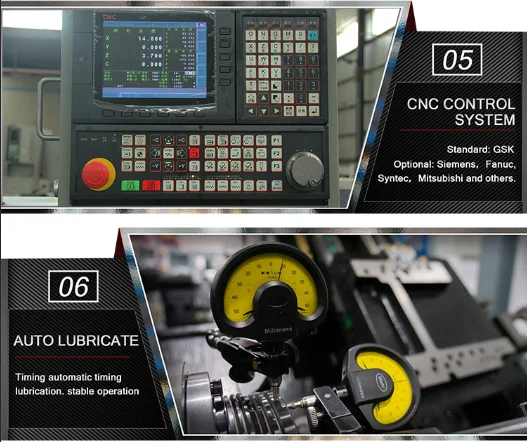

3.The drive part of machine tool uses HIWIN/PMI high precision P3 class ball bearing screw and high speed linear side rail,a famous brand from Taiwan and is provide with computer automatic lubrication system for forced lubrication of linear guide rail and ball bearing screw.for X axis and Z axis,high rigidity linear slide rail is adoped with optimum span between rails through calculation.with low resistance,high rigidity and high precision,the displacement speed can reach up to 30M/min so as to improve working efficiency and reduce peocessing time.

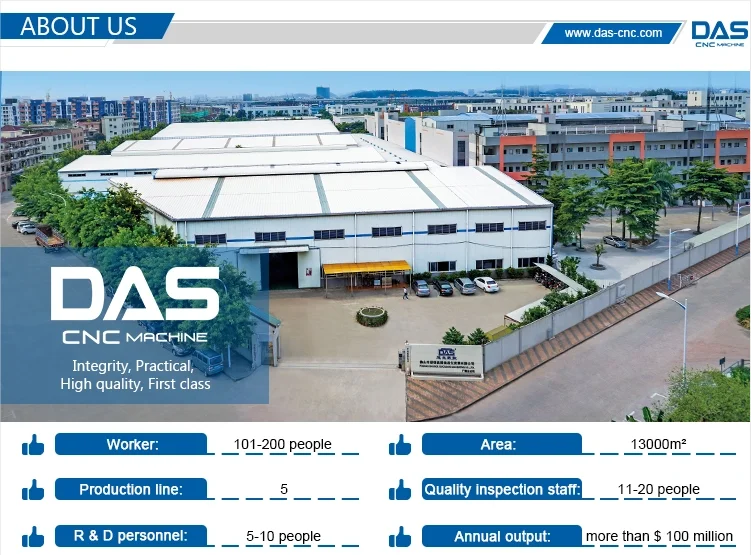

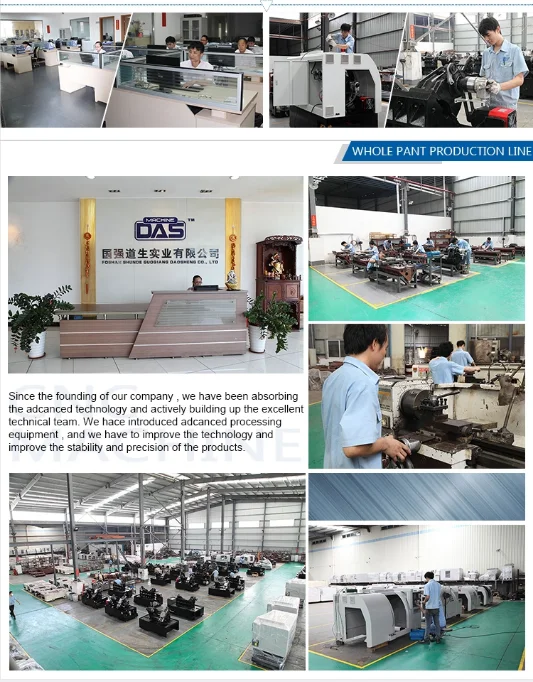

Our Company

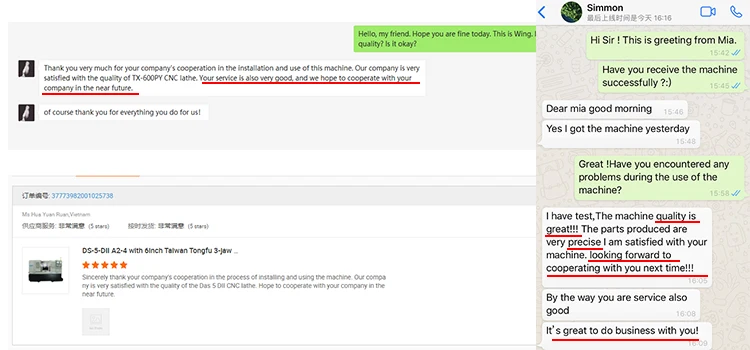

Good Feedback
Customer Photos
Packing and Shipping
FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). -If you arevery urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samplesplacing orders?
-Yes. Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the seasonyou place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What isyour payment term?
-T/T,Western Union,MoneyGram,and Paypal. This is negotiable.
5.What is the shipping method?
-It could beshipped by sea, by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.
6.How do youmake our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit
-2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they comefrom.
