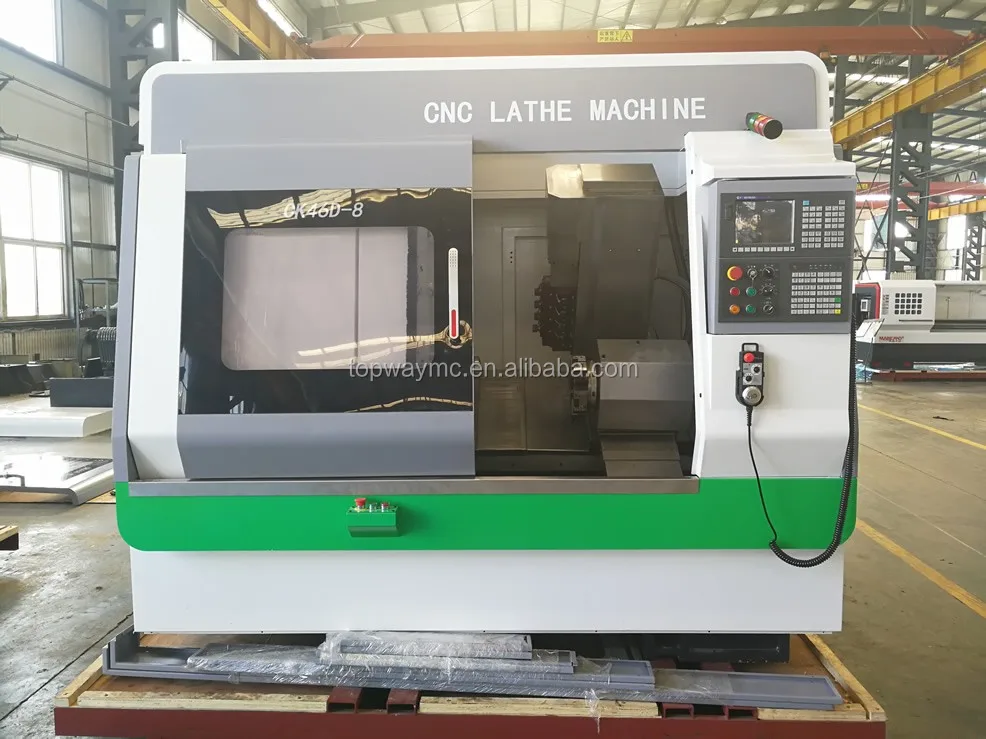

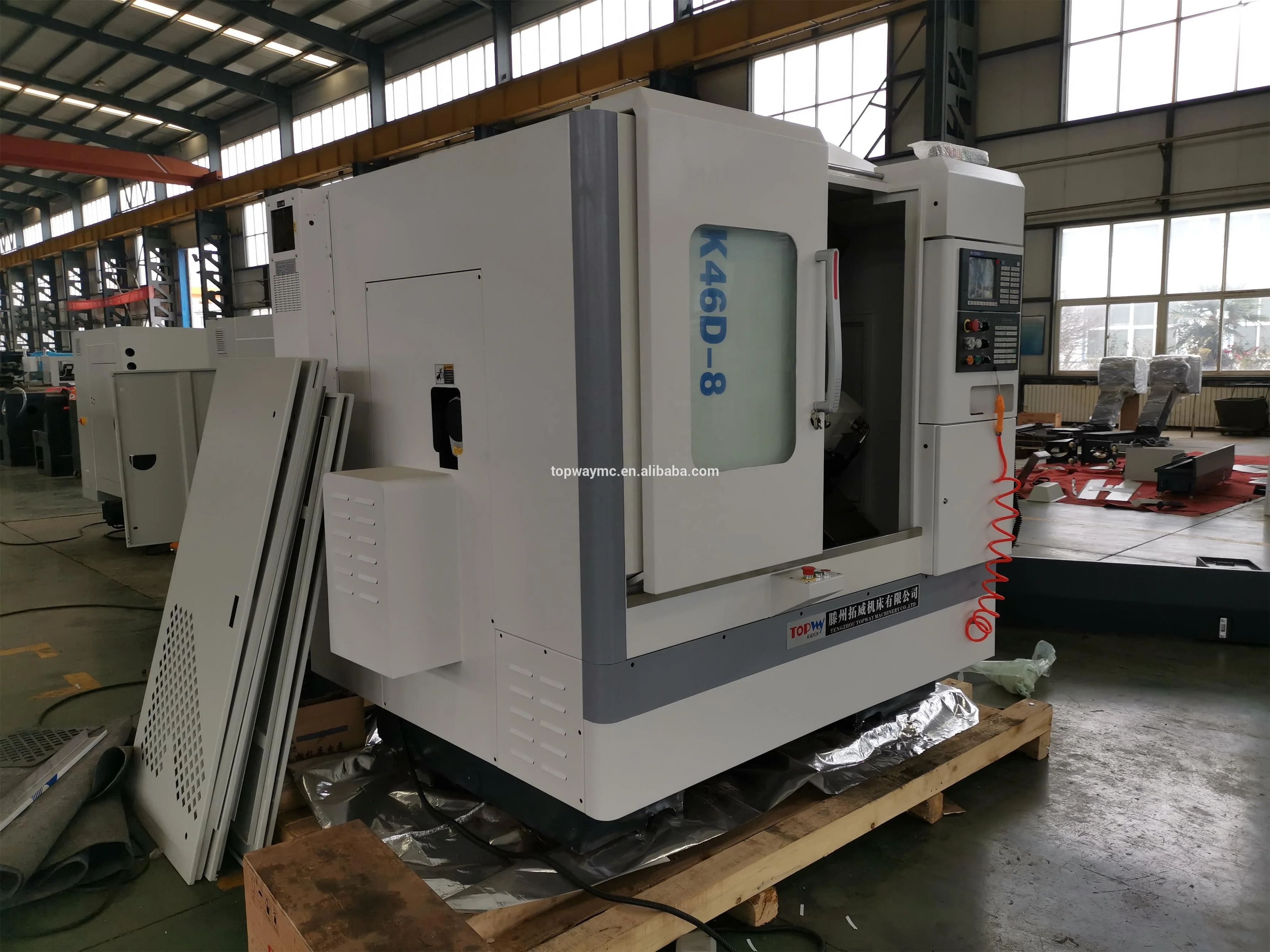

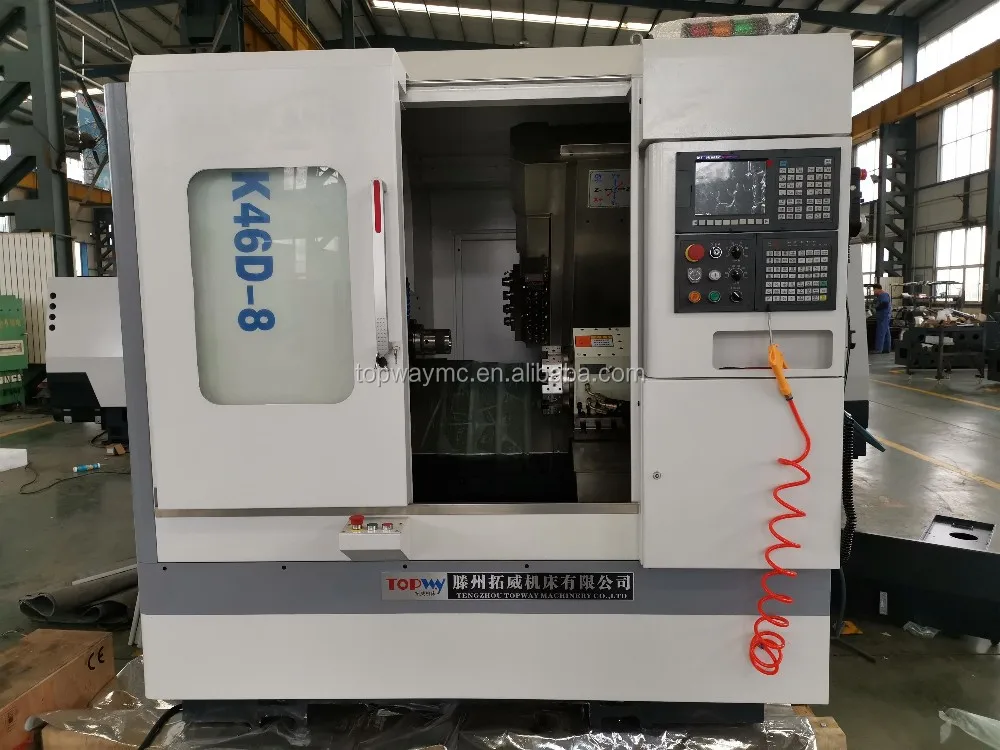

CK46D-8 CNC Turning-Milling Machine

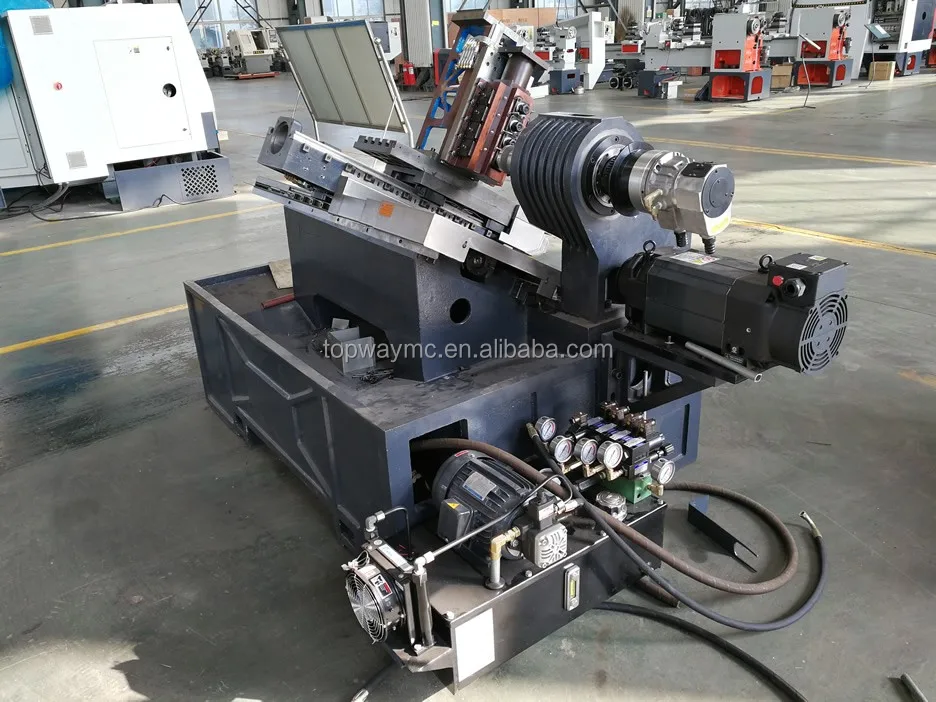

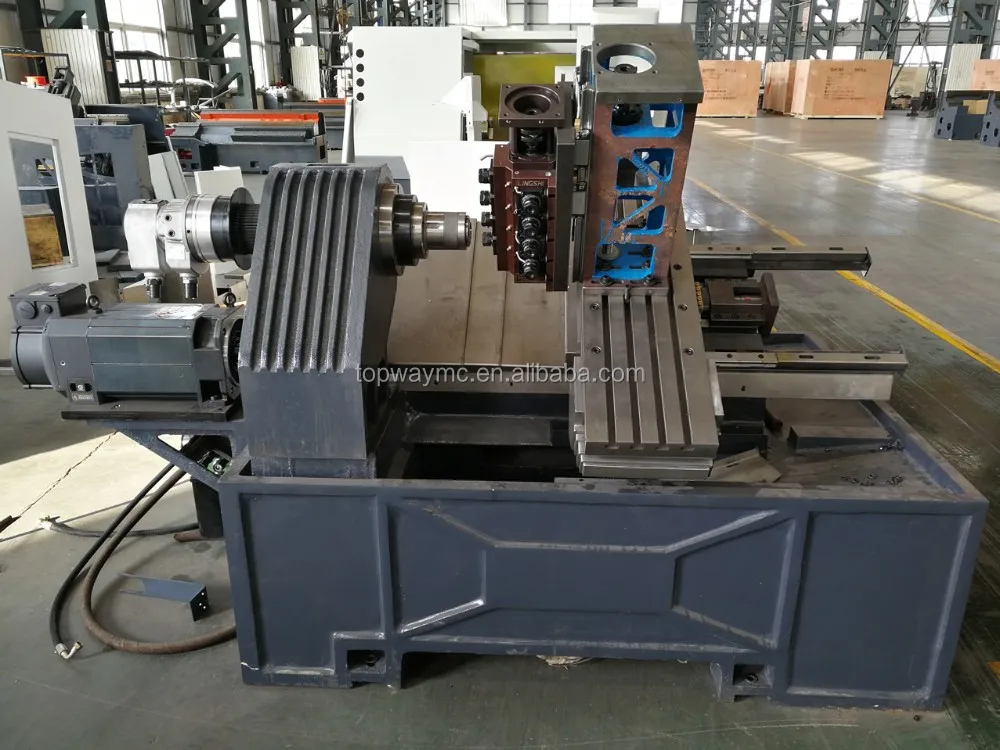

The Machine Tool is slant bed Turn-Milling Machine, which has X, Y, Z, C axis, and controlled by servo motor. It has a compact and reasonable structure, the spindle (C axis) driven by servo motor. This machine not only can turn excircle, end face, thread of Rod type and Plate type work piece in kinds of material, but also can mill, drill kinds of radial and axial hook face, etc. many kinks processes. This machine is suitable to process small work piece in a high efficient.

Standard Accessories:

X/Y/Z/A/B axis servo motor
Spindle (C axis) motor

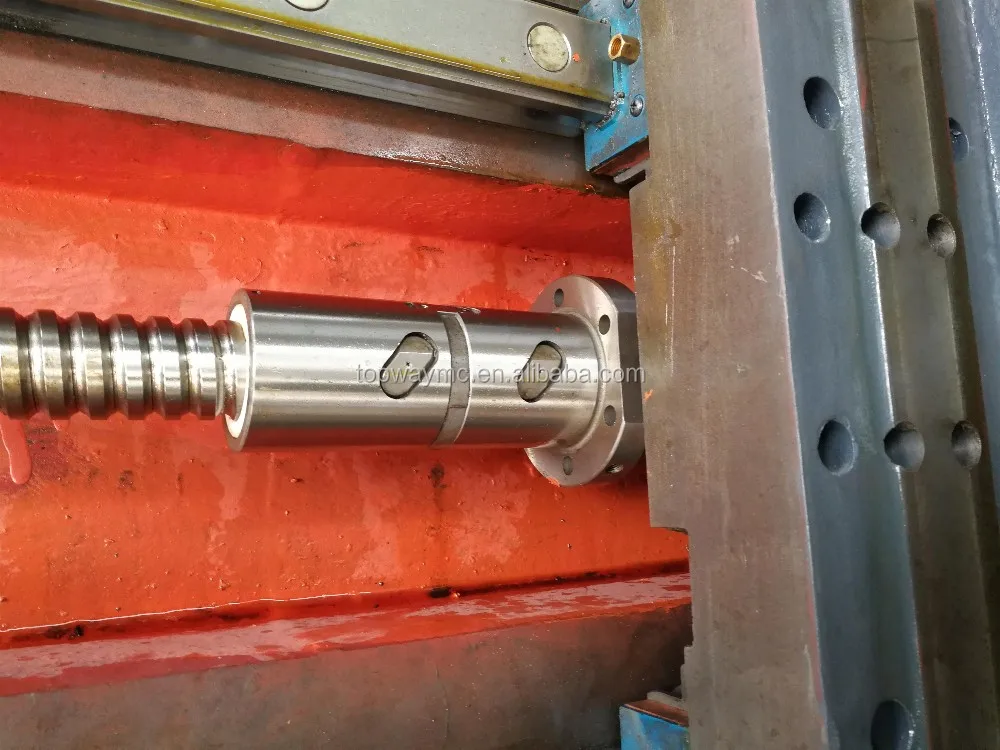

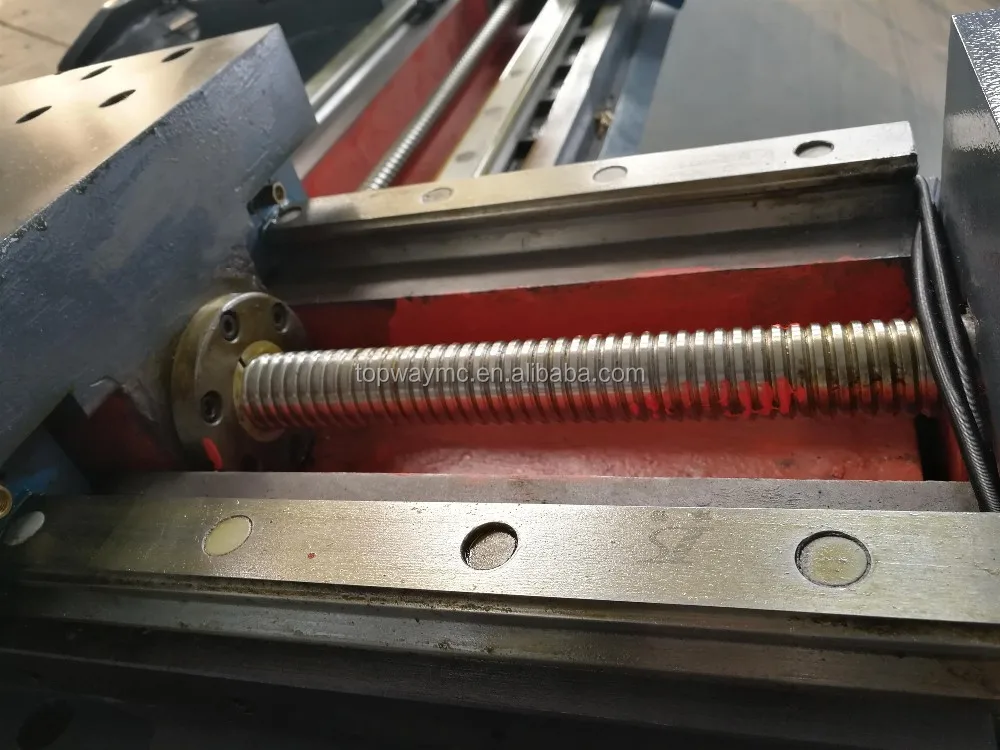

X/Z axis screw adopts HIWIN or PMI 4010-C3 Ball screw;
X/Z axis linear guide way adopts HIWIN or PMI 30 linear guide way;
Spindle: Sleeve type spindle adopts NTN or NACHI spindle bearing;

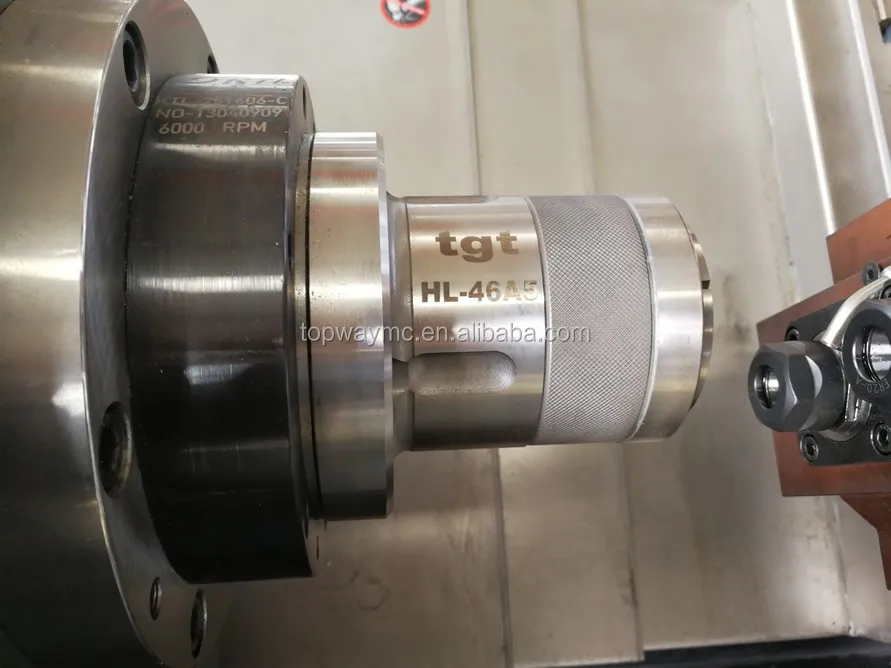

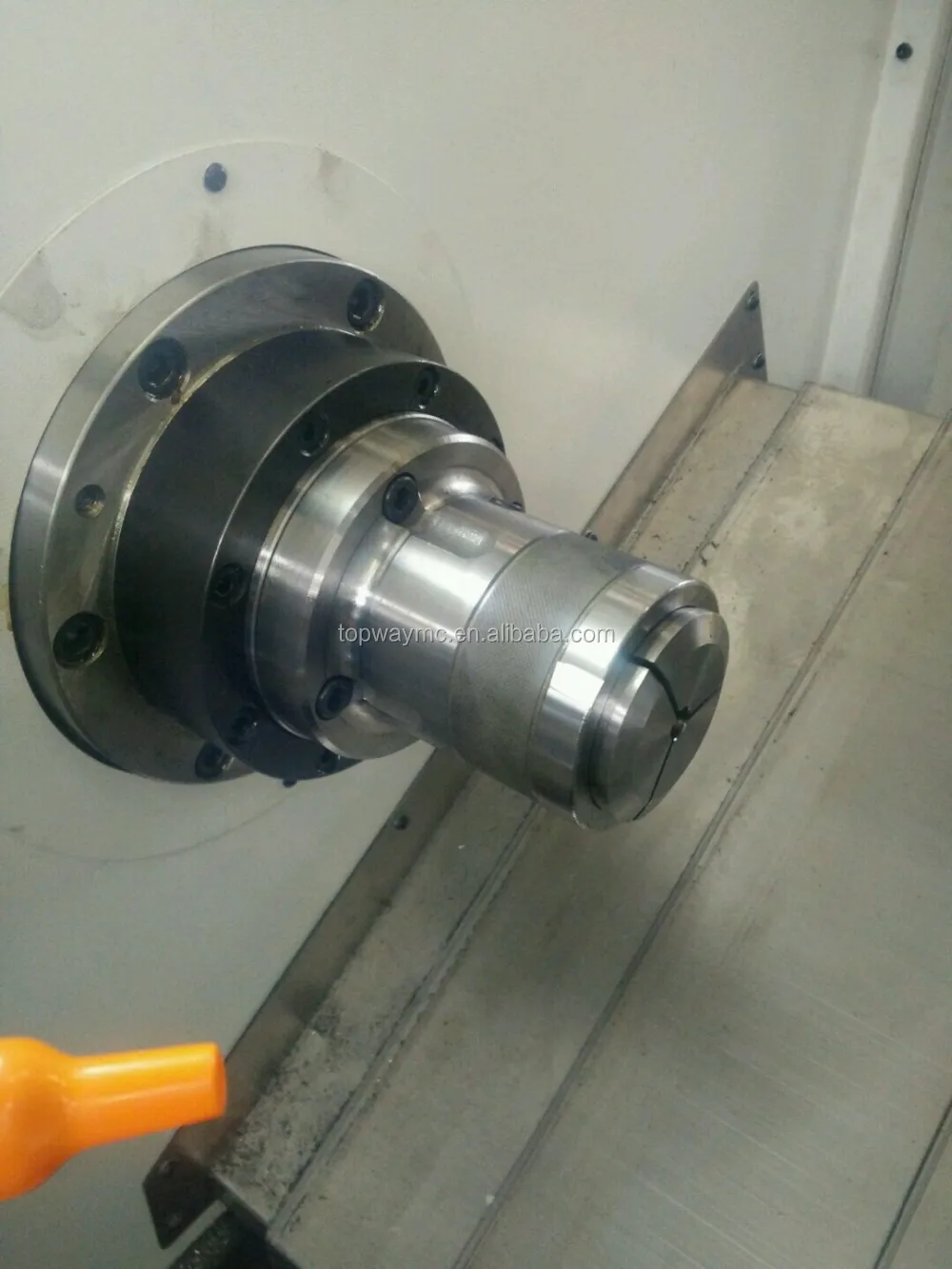

Spindle clamping type: 42 mm collet chuck
Hydraulic cylinder: Taiwan;
Screw bearing:NTN or NACHI;

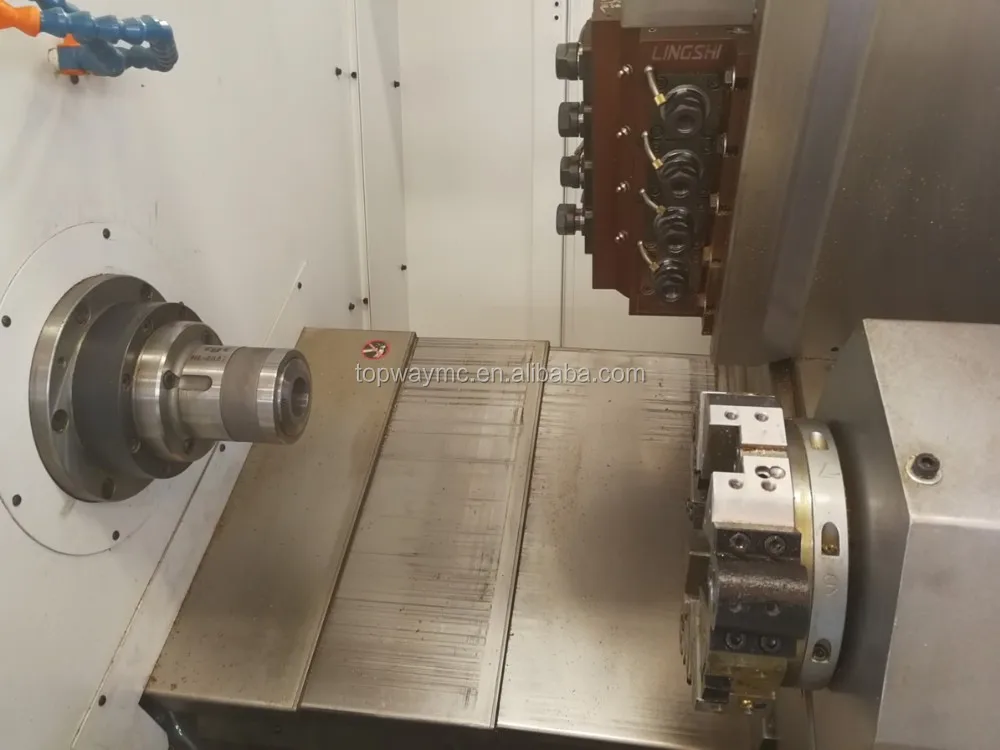

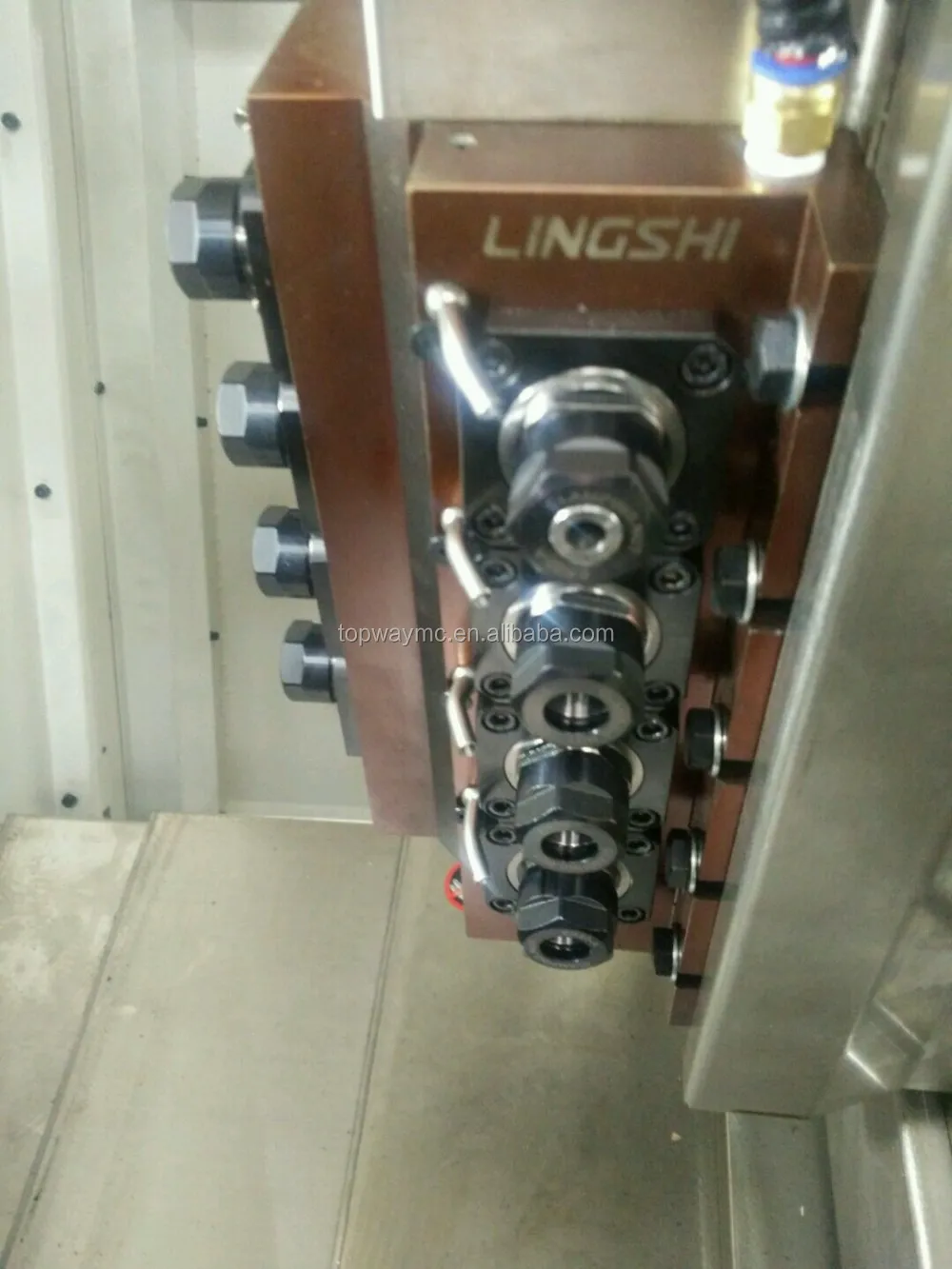

Living Tool: Side 4 living tools + End 4 living tools

Y axis living tool;

Optional Accessories

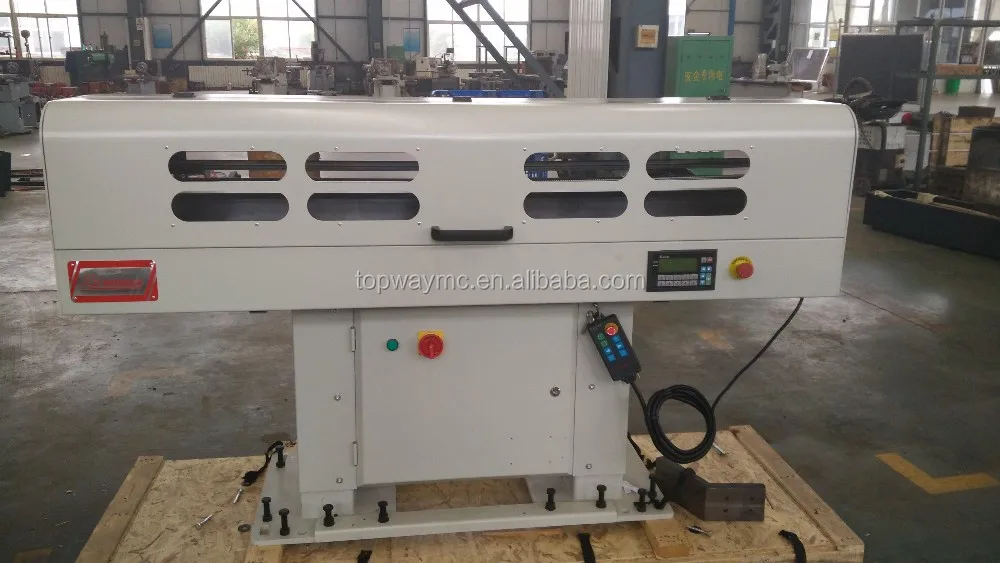

Feeding device

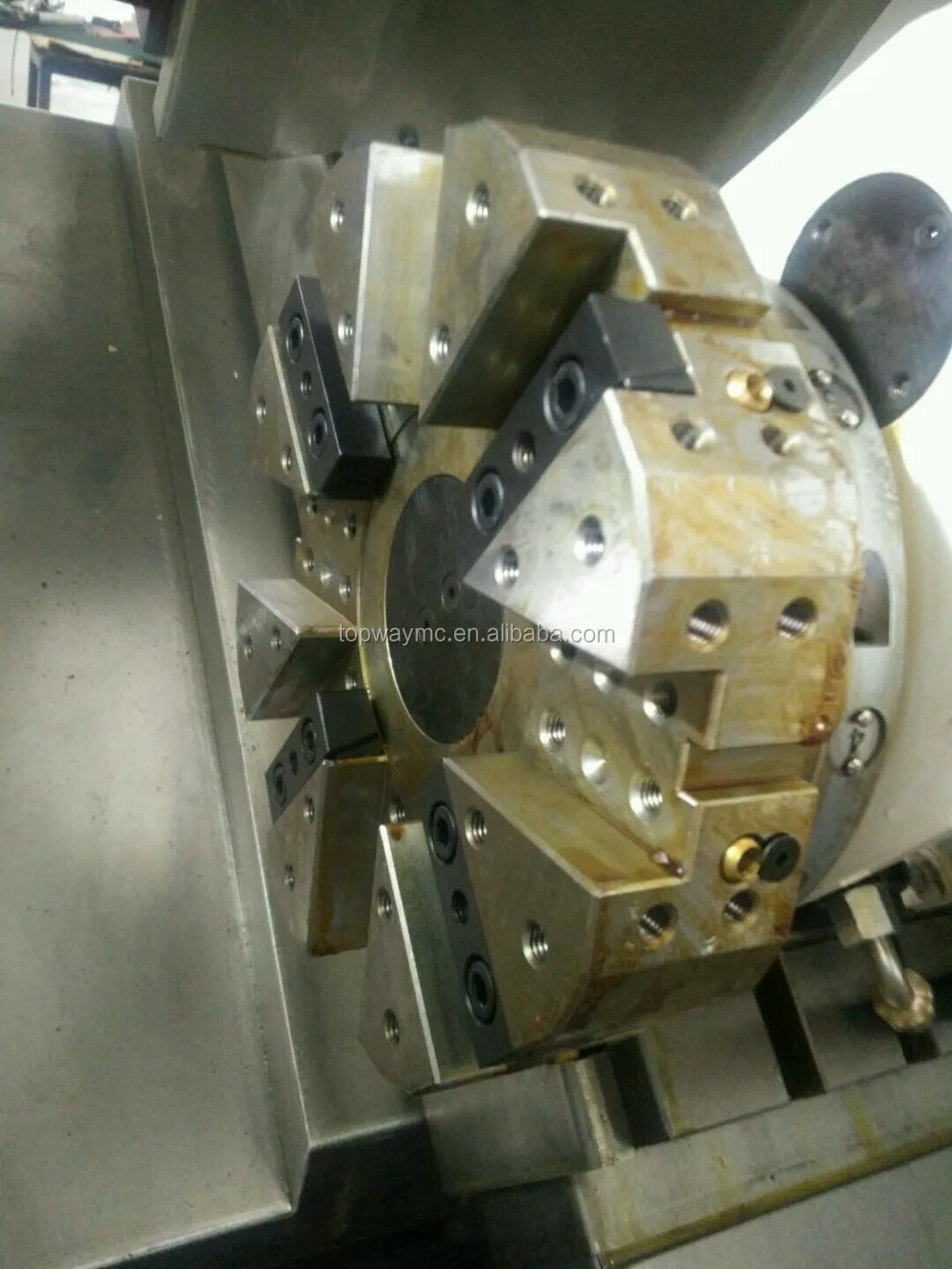

Taiwan 8-pcs Hydraulic Turret

Taiwan 8-pcs Servo Turret
Chip conveyor

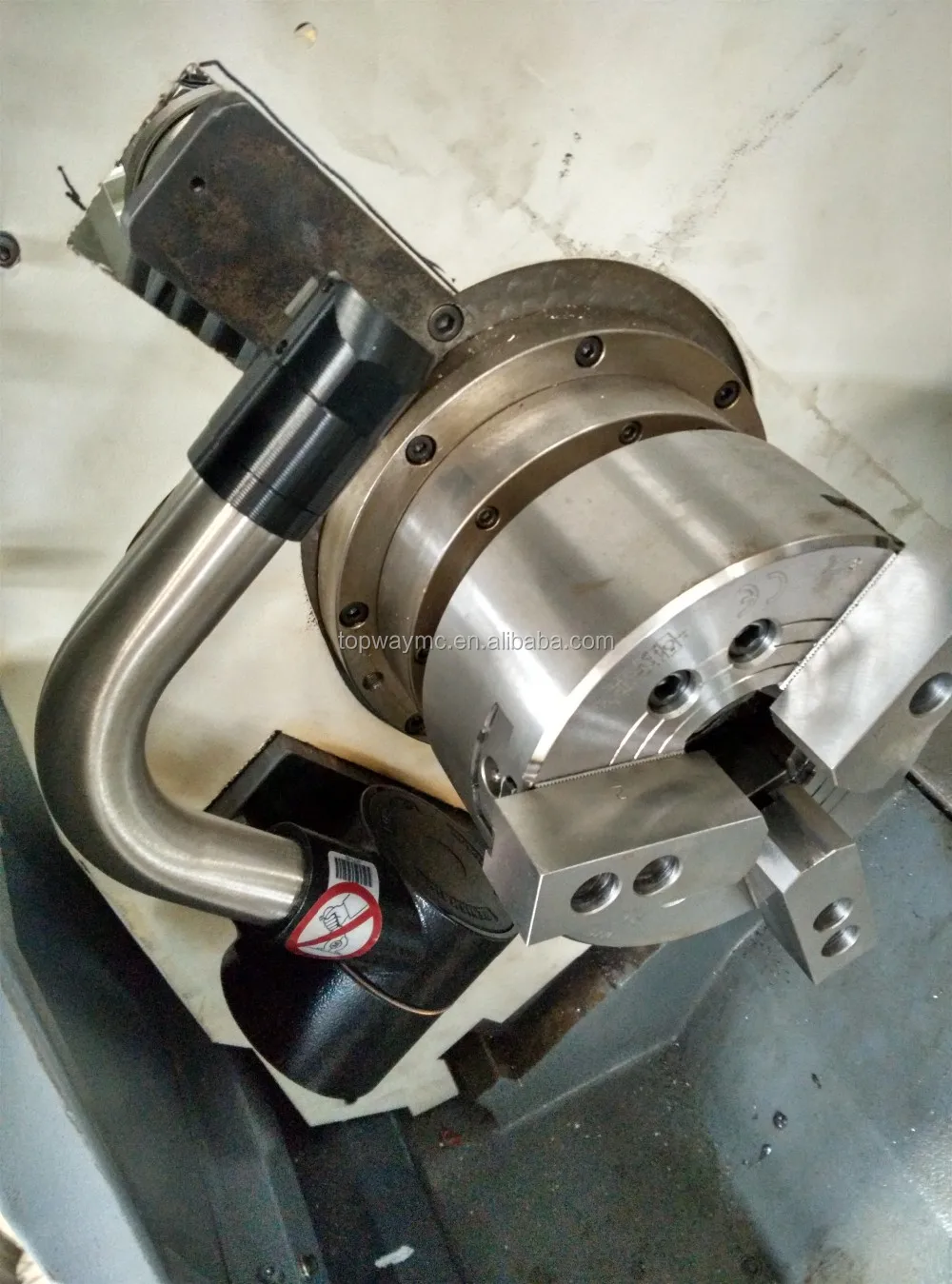

Taiwan 6" hydraulic 3-jaw chuck

CNC Controller system:

GSK;  FANUC; Siemens

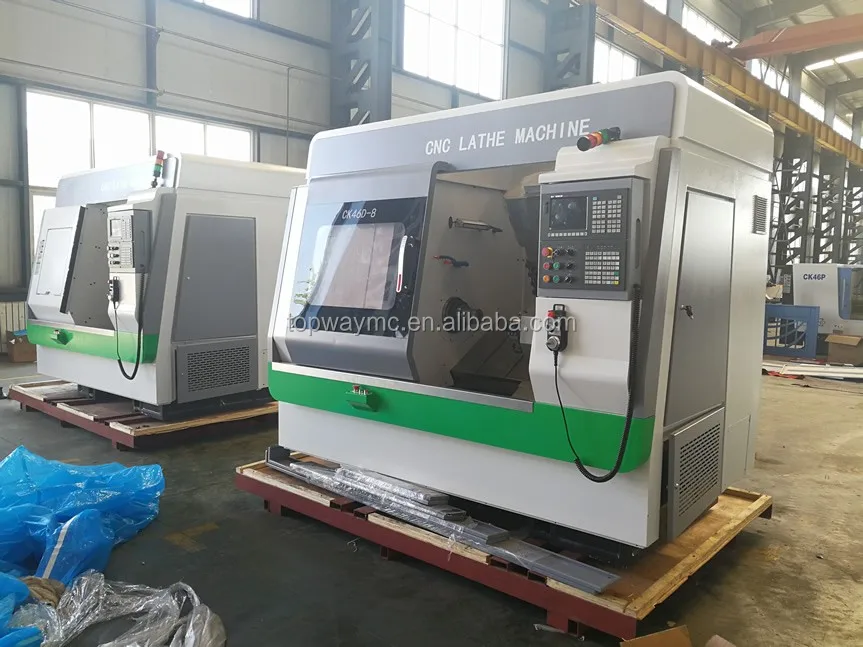

All Machine are packed in export standard package PLYWOOD CASE
