Машина для выпрямления и резки

Цена:6 800,00 $*

Стоимость в USD (на сегодня):Узнать

Количество:

Product Description

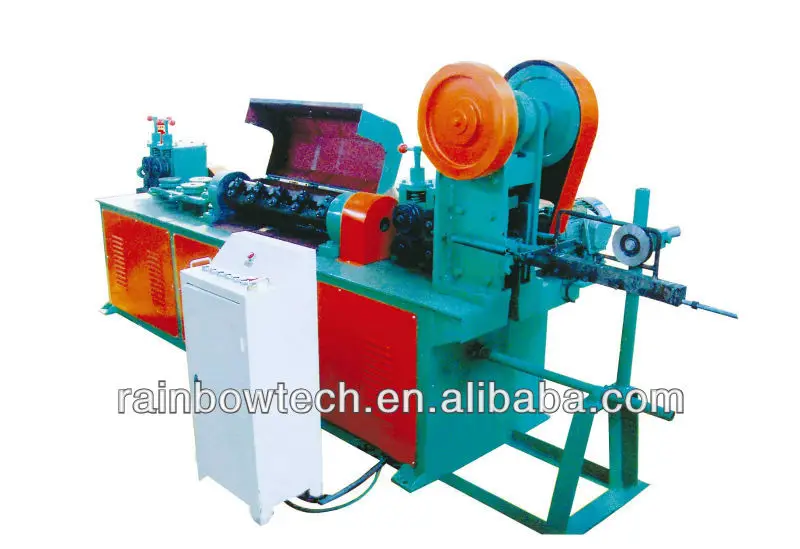

Steel Bar Straightening and Cutting Machine

Specification

Type	Straightening Diameter (mm)	Cutting length (m)	Straightening Speed (m/min)	Motor power (kw)	Dimension (length x width x height	Weight (kg)
W58-0.8-2	0.8-2	0.5-2	12-20	1.1+0.75	900x310x850	200
W58-2-4	2-4	2	22	1.5+0.75	1100x310x1200	250
W58-3-6	3-6	2	25	4+1.1	1300x400x950	400
W58-4-8	4-8	4	30	5.5+1.1	1450x450x950	550
W58-6-12	6-12	6	30	7.5(11)+1.5	1750x580x1000	820
W58-8-16	8-16	6	25	11+5.5+2.2	2650x600x1200	1100
W58-14-20	14-20	6	25	18.5+7.5+4	3000x650x1500	1700
W58-18-25	18-25	6	25	22+11+7.5	3200x650x1600	2500
W58-2-6.3	2-7	4	35	3+2.2	1100x680x1100	1500

Description of goods

Exhibition of abroad

.jpg .jpg

Function & Feature
By adjusting the pressure or pressure wheel, wire in straightening curve of reaches a certain extent from the box to put wire straightening.
About us
1 Our company comes from China National Machinery Import and Export Co.,Ltd.Harbin branch. 2 The main business is manufacturing Thread Rolling Machine. 3We have established reputation in countries such as India,US, Europe. 4We have experience in the mechanical business.
Contact
Harbin Rainbow Technology Co.,Ltd. ADD No.61 Ande Str.Daoli Distr.,Harbin,China 150016 Tel: 86-451-84211375 Fax: 86-451-84211375 We chat:+86-18704610523

Function & Feature

By adjusting the pressure or pressure wheel, wire in straightening curve of reaches a certain extent from the box to put wire straightening.
