Светильник С килем для дома манометр стальная рама машина
- Категории: Обрешечивающие машины и машины для стальной рамы >>>
- Поставщик: Botou,Huayang,Roll,Forming,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

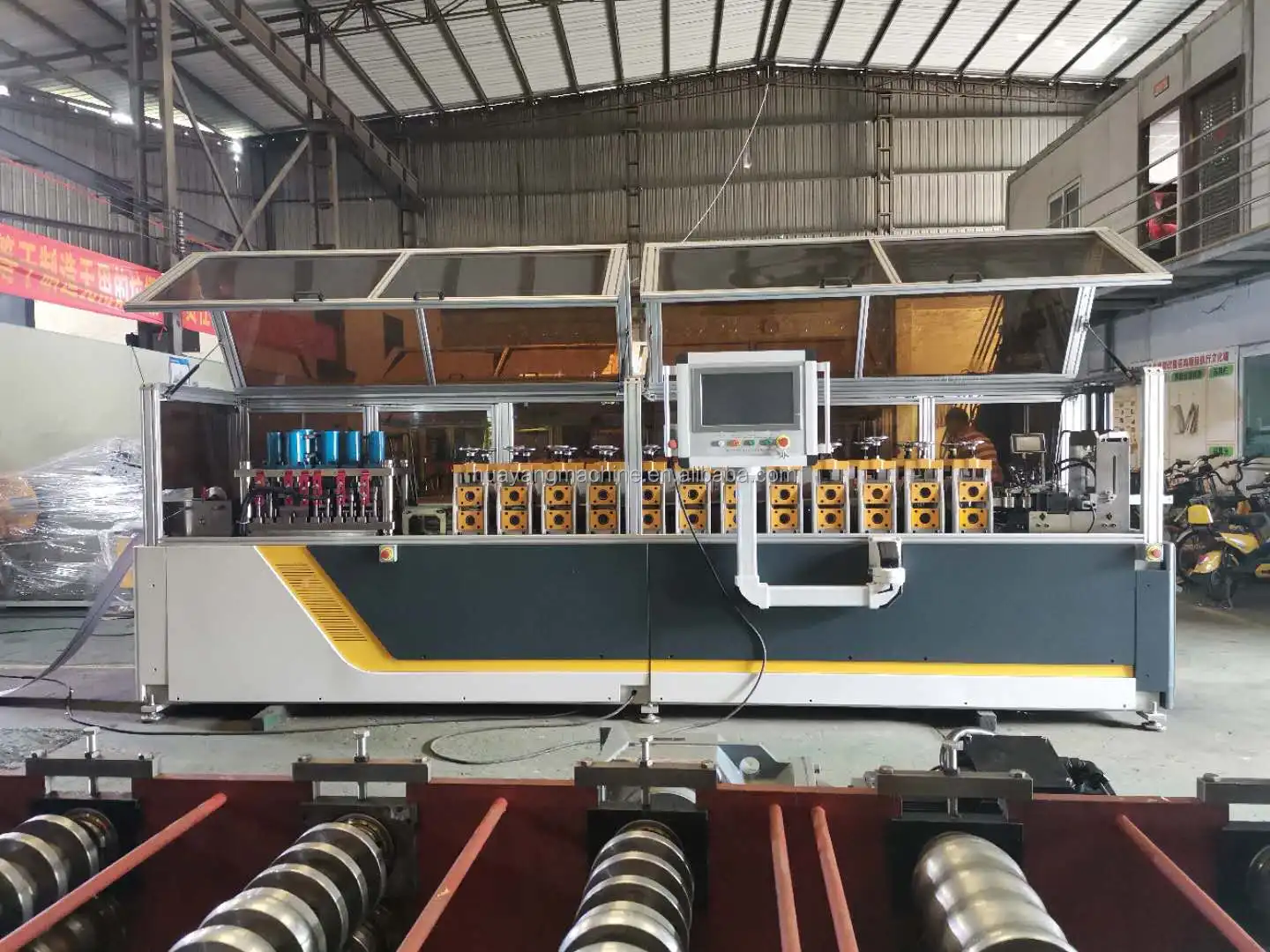

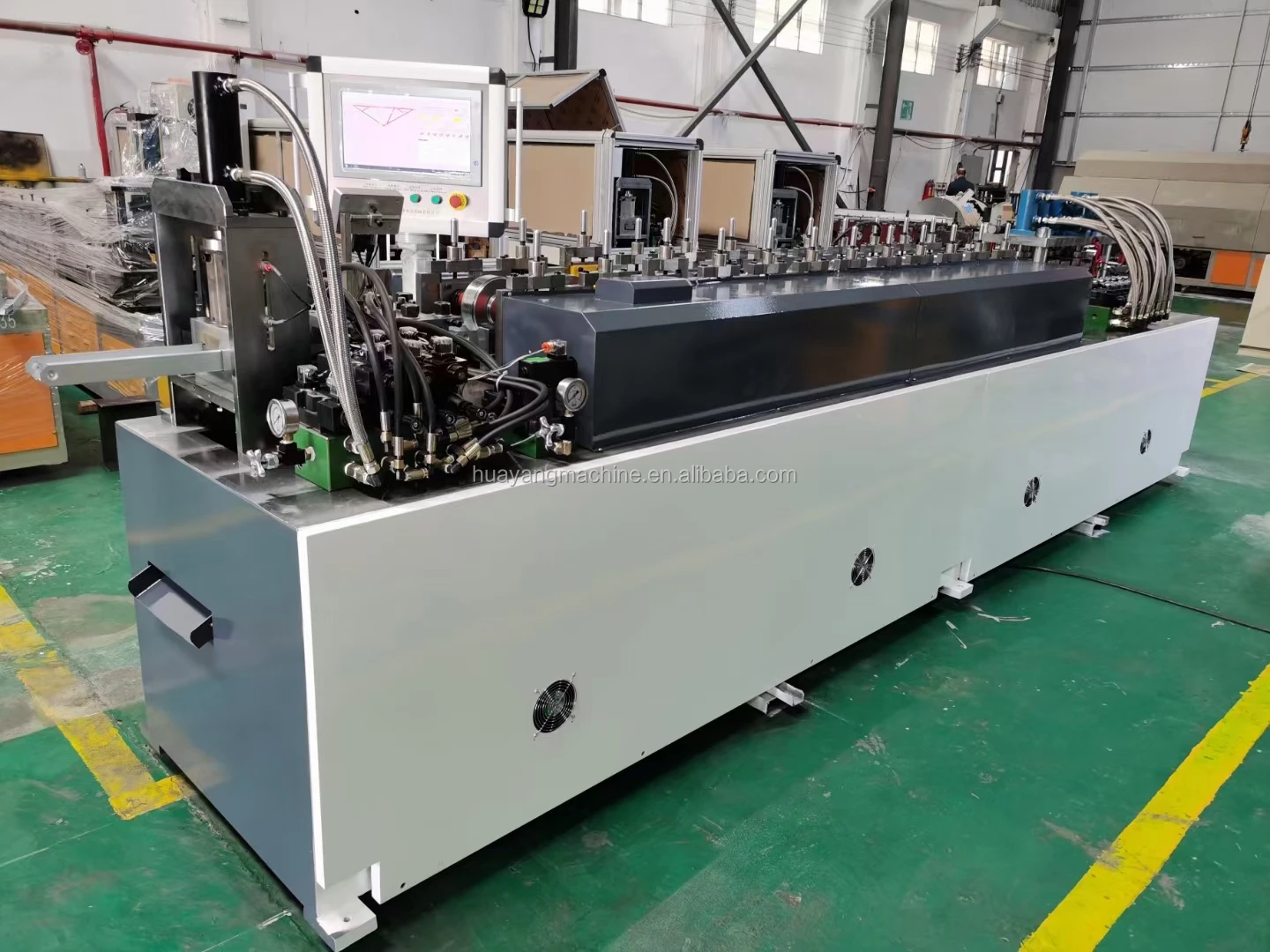

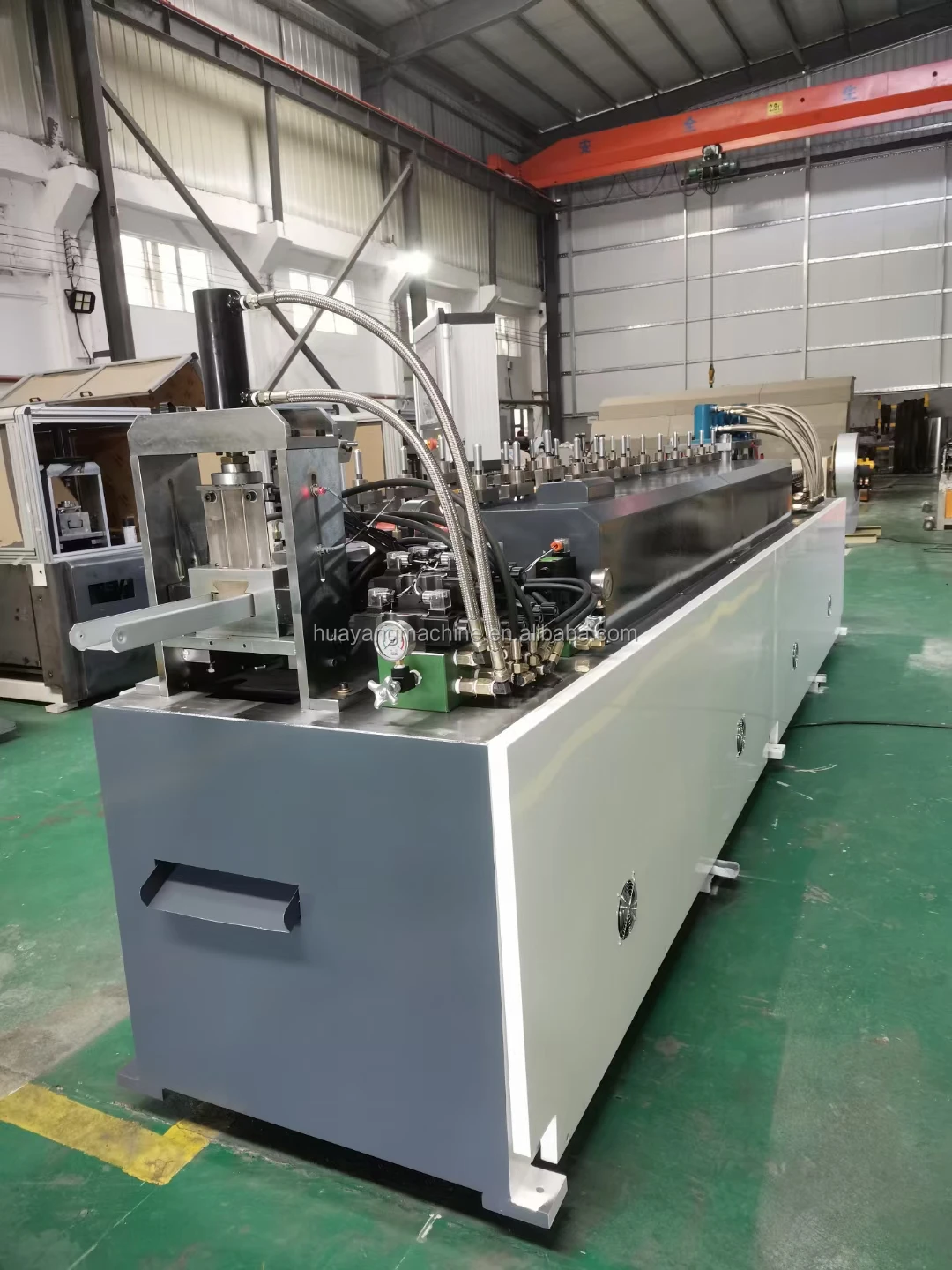

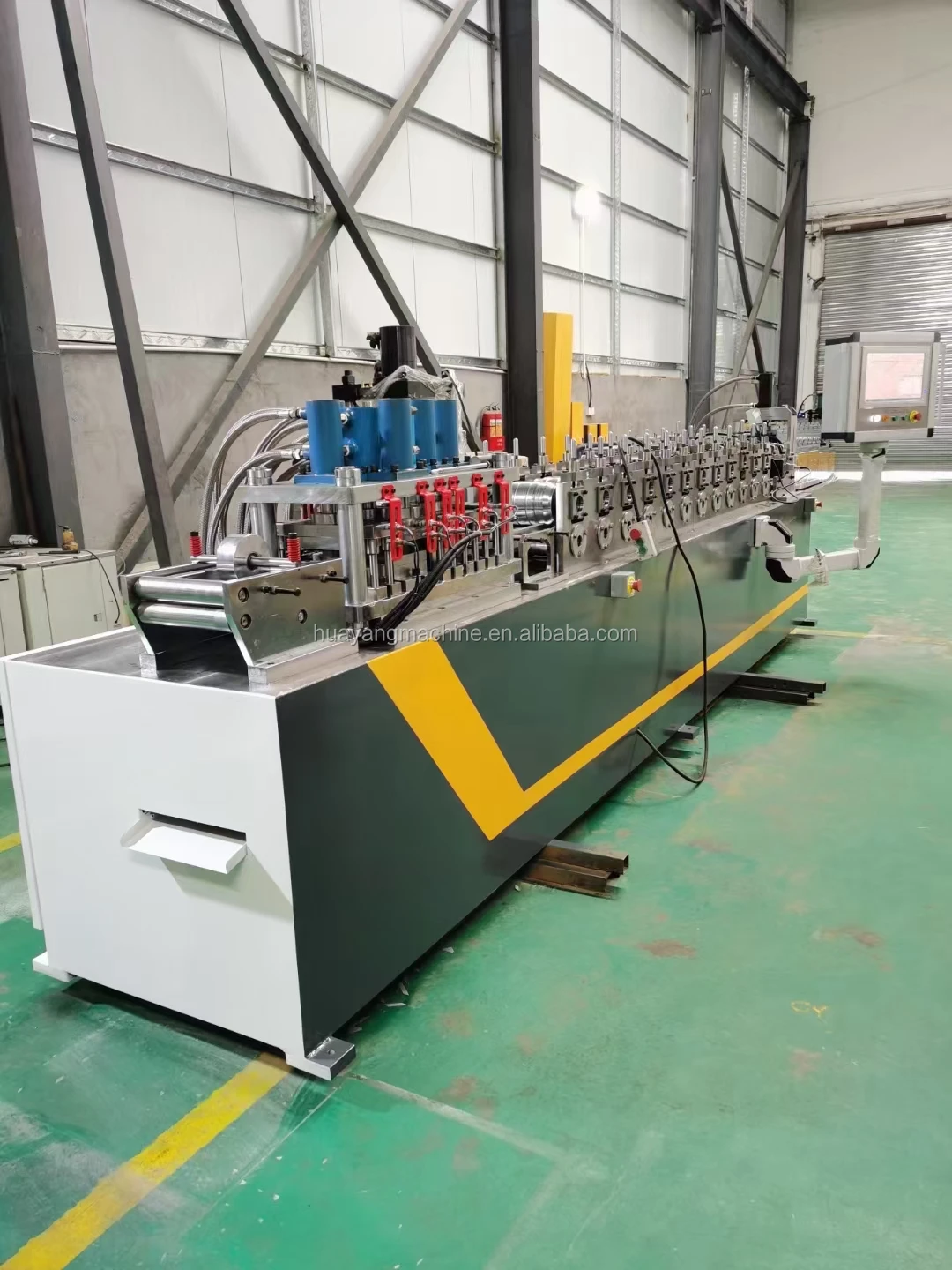

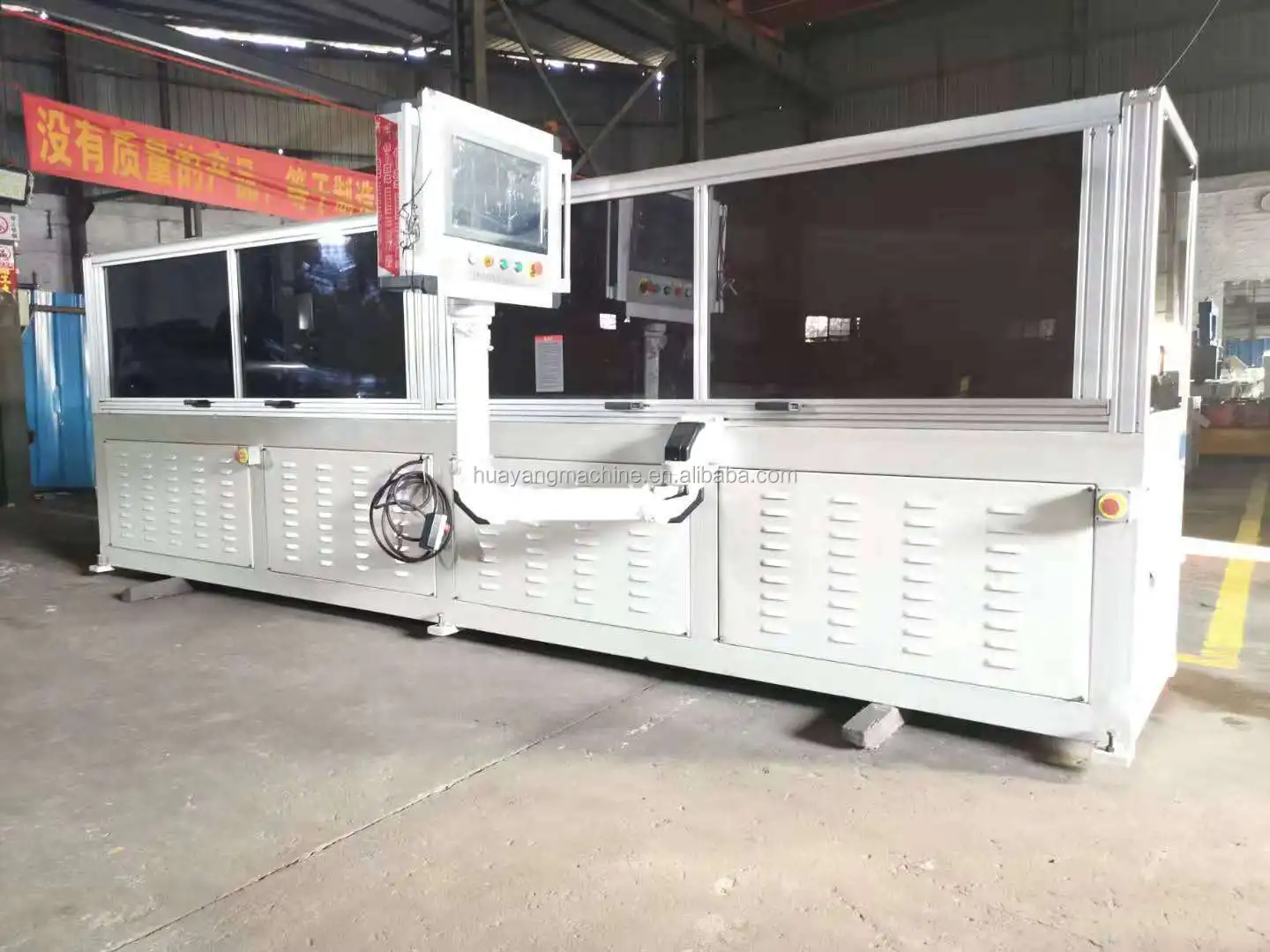

Our Machine Details
Our Machine parameters
Our professional engineer will choose suit and high quality parameters for each machine ,which can let the machine run well and have longer life time .We try our best to deal with every details .
No. | Name | Unit | Qty |
1 | Manual decoiler | set | 1 |
2 | Main forming machine | set | 1 |
3 | PLC control system | Set | 1 |
4 | Hydraulic pump station | set | 1 |
5 | punching system | set | 1 |
6 | electric motor | set | 1 |
7 | output table | set | 1 |
hydraulic decoiler with servo feeding
adjustable roll forming
hydraulic cutting
punching
Main functions and parameters:
1. Forming host (forming, punching and grooving, inkjet printing)
01)Sheet metal rolling forming part: used to roll and bend the steel strips in a certain order and gradually forming. 02)Structure: Steel plate structure on both sides.
03)Weight of themachine: 3.5T

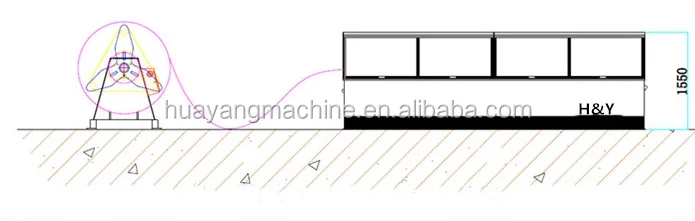

04)Total length of the machine: (length) 5.4m x (width) 1.1m x (height) 1.6m.
05)Molding pass: 14 components
06)Main drive mode: servo motor (7.5KW) + precision planetary gear reducer.
07)Production speed: High speed: 48m / min (according to the number of holes and cutting length).
08)Equipment color: main body blue, rack gray black
2. Function of unwinder: carrying steel coil, rotating steel coil. It has a micro-braking device to prevent the inertia from
running forward in an emergency stop. Drive mode: electric drive Carrying weight: 3.0T 01) Inner diameter range: 430-590mm 02)Outer diameter requirement: 1300mm
3. Control System Function: directly transfer the design parameters to the control computer through the USB interface or network,and install it from the computer The NC control software is imported and the BOM document is automatically read.
4. Transmission and hydraulic system Function: The main forming power is driven by the uniform,
2. Function of unwinder: carrying steel coil, rotating steel coil. It has a micro-braking device to prevent the inertia from
running forward in an emergency stop. Drive mode: electric drive Carrying weight: 3.0T 01) Inner diameter range: 430-590mm 02)Outer diameter requirement: 1300mm
3. Control System Function: directly transfer the design parameters to the control computer through the USB interface or network,and install it from the computer The NC control software is imported and the BOM document is automatically read.
4. Transmission and hydraulic system Function: The main forming power is driven by the uniform,

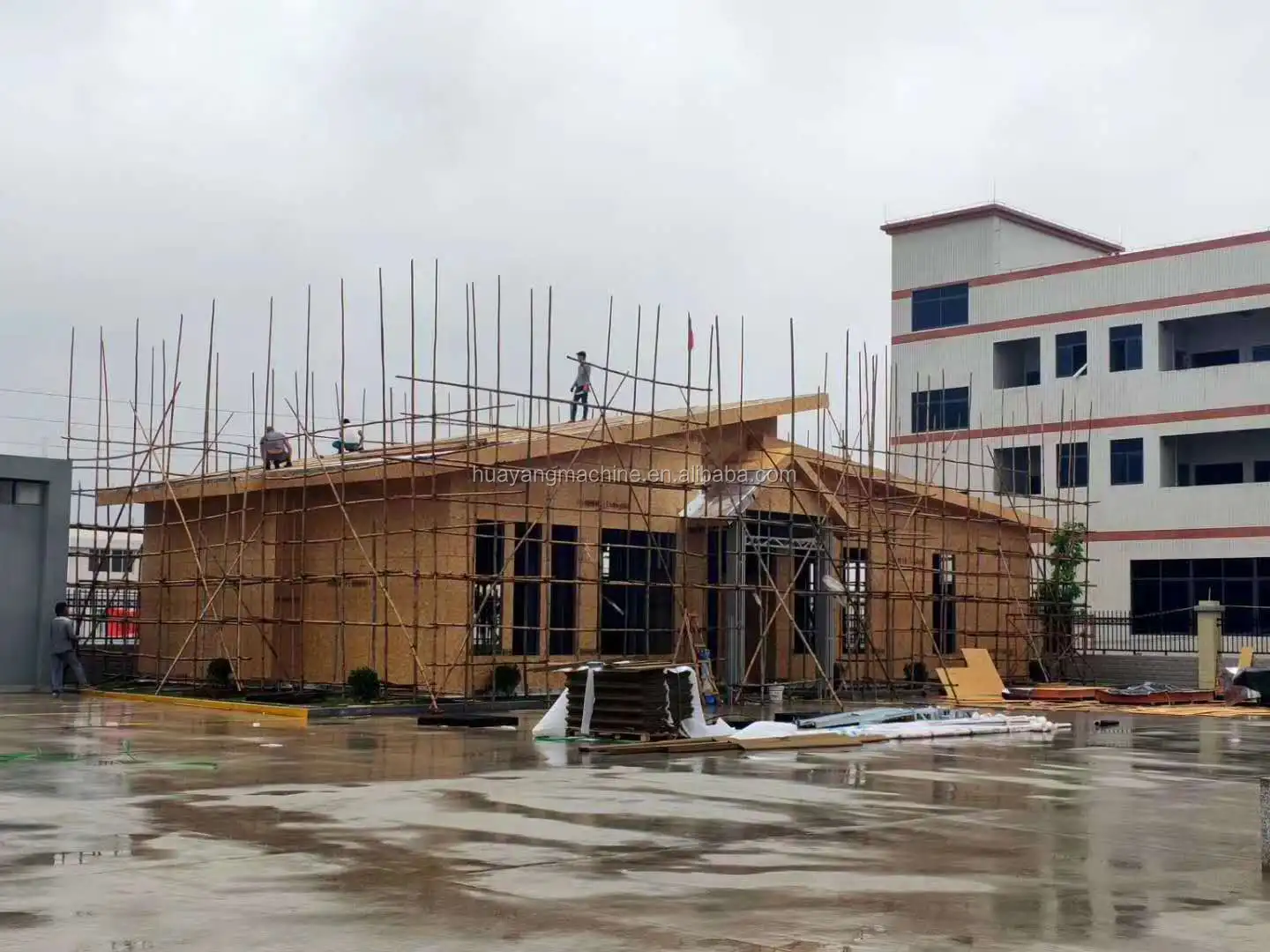

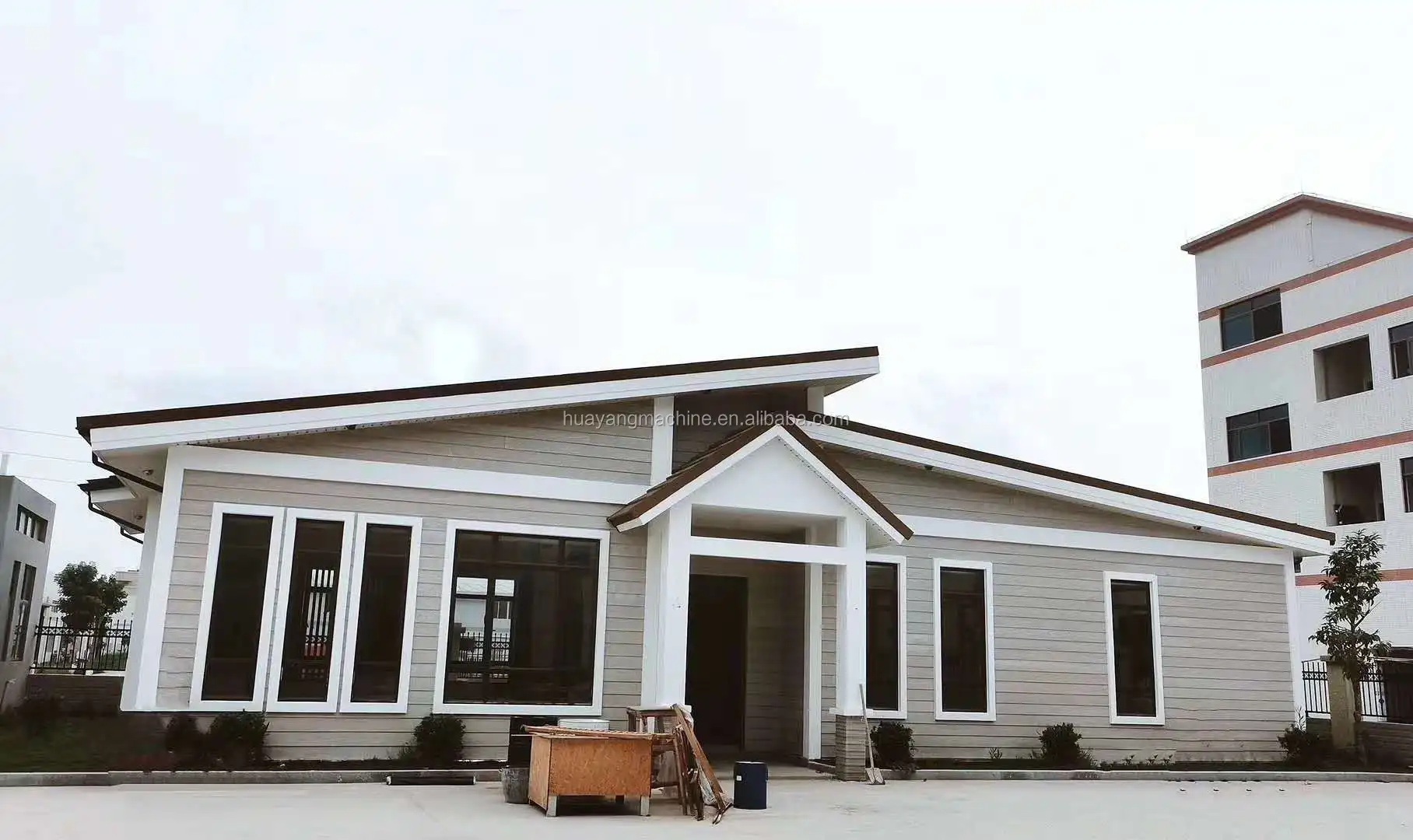

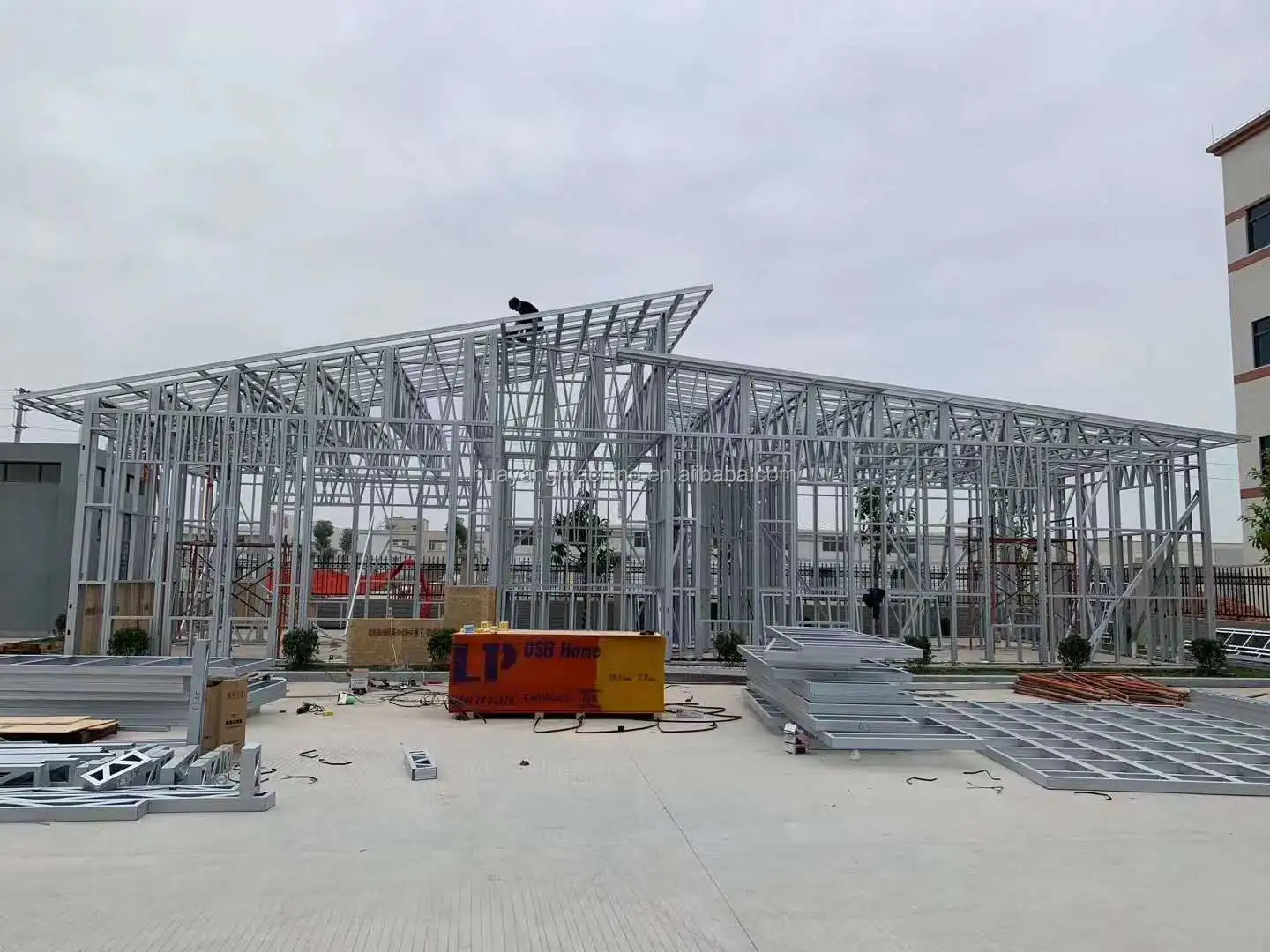

The Final Products And Application
Advantages of light steel villa: time saving, labor saving, money saving, earthquake resistance
now the light villa house is more and more popular in the market .Light steel structure is the industrialization of prefabricated low-rise housing designated by the Ministry of Housing and
Urban-Rural Development of China. The business involves new wall materials, energy-saving building structures, a new overall
energy-saving housing system, light steel housing equipment, and production and production equipment for energy-saving
environmental protection building materials Business.
Urban-Rural Development of China. The business involves new wall materials, energy-saving building structures, a new overall
energy-saving housing system, light steel housing equipment, and production and production equipment for energy-saving
environmental protection building materials Business.
Package and Delivery
Huayang Company
We have professional team to design kinds of roll forming machines according to our customers requirement.We can send our technicians to customer's factory for installation, and teach customer's workers how to use the machines. If there is any problems happened to the machine, we will provide solution at once.Hope we could establish win-win business relations in the soon future!
We treat all customers as friend ,before purchasing ,we guide our customer to choose suit machine .after purchase,we supply effective after-sale service .We still try our best to let all customers satisfied not only our machine quality but also our service .
Our Certifications
Related products
FAQ
1. Can you make the machine according to my design or photo type?
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warranty?
A: Within the TWO-YEARS period, we could supply you the replacement parts for free .
A: Yes. We have an experienced engineers to work out the most suitable design and production plan for the machine.
2: How can we be assured that you will deliver us quality machine with spare parts?
A:1. Customers to send the technical people to our factory for checking the quality.
2.We can send the technicians to the buyer`s factory for the installation and trainning .
3.What about your warranty?
A: Within the TWO-YEARS period, we could supply you the replacement parts for free .
