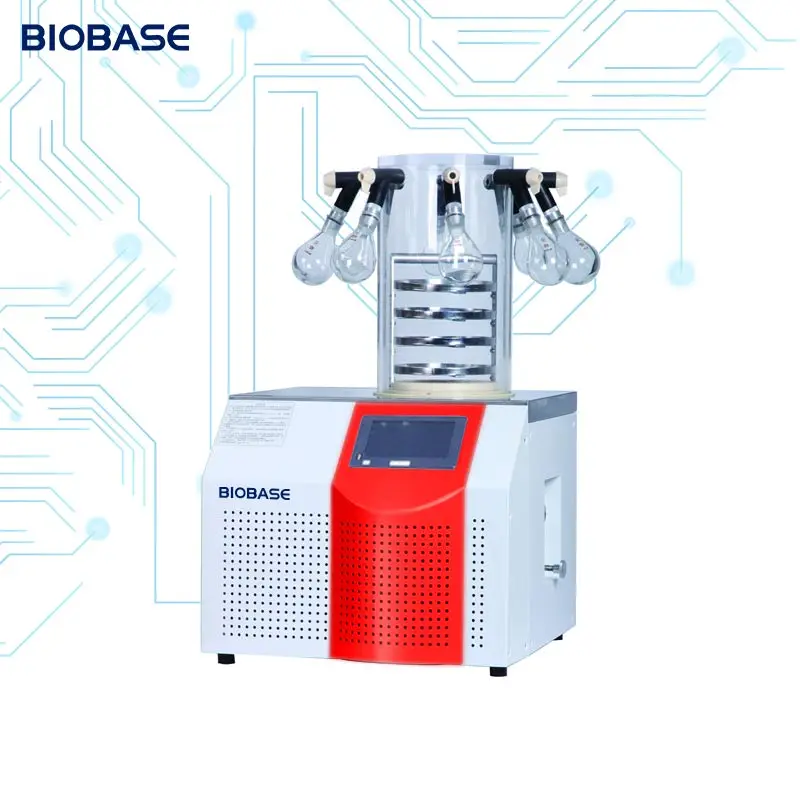

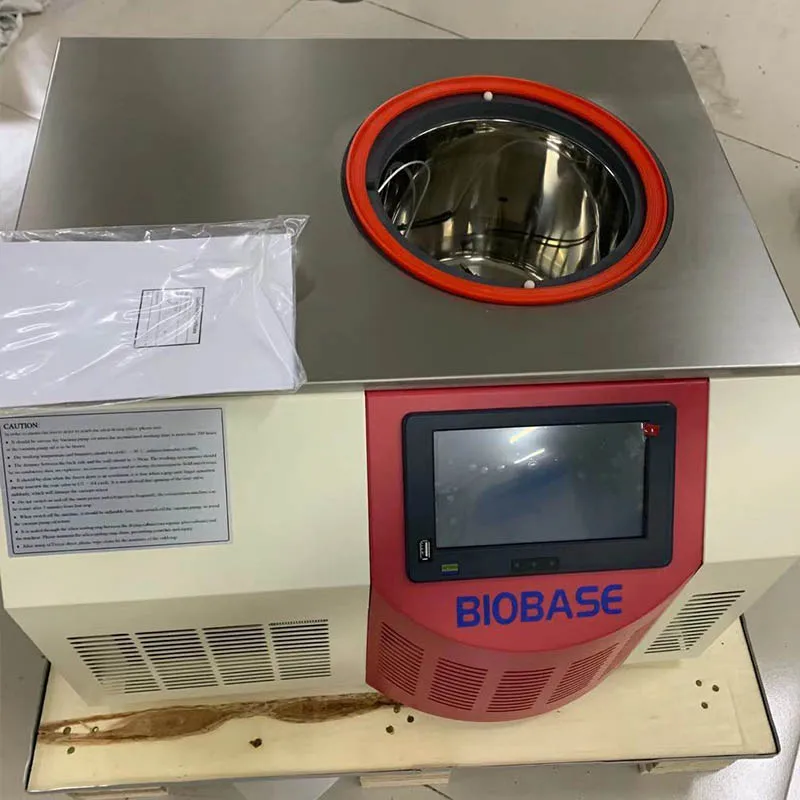

Tabletop Freeze Dryer
Product Description
The lab series freeze dryer is suitable for freeze drying test of laboratory biomedical samples.
Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics,
vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.
Widely used in drugs, biological products, chemical and food industries. On the heat-sensitive substances such as antibiotics,
vaccines, blood products, hormones and other biological tissue enzymes, freeze-drying technology is applied.

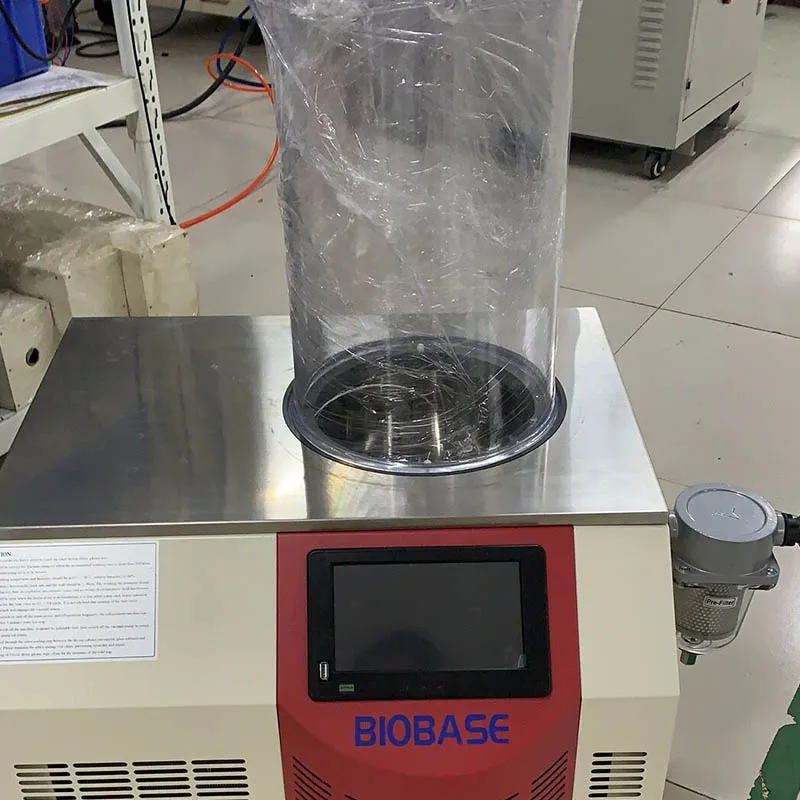

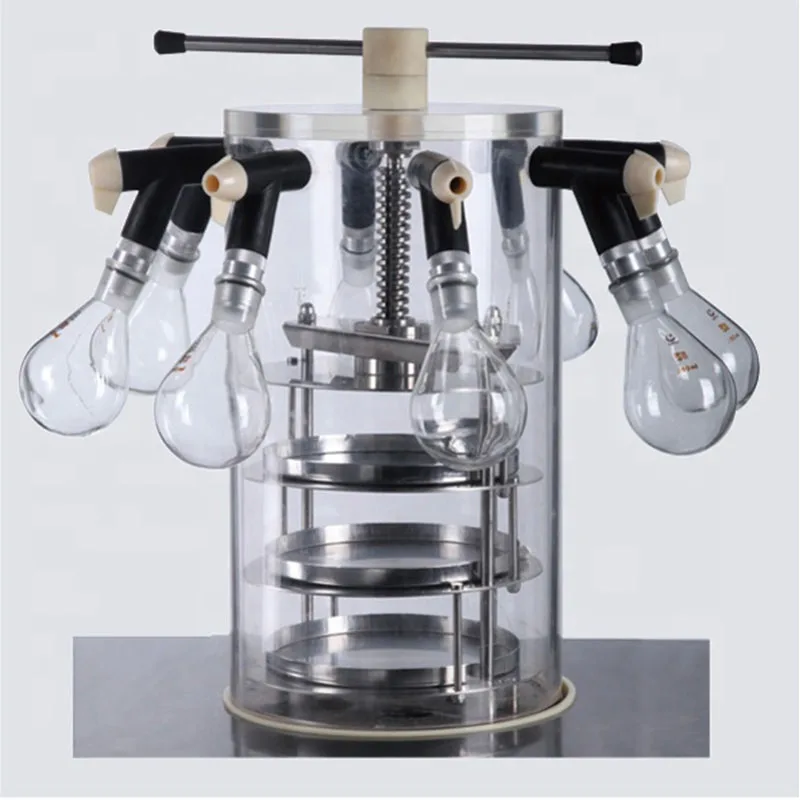

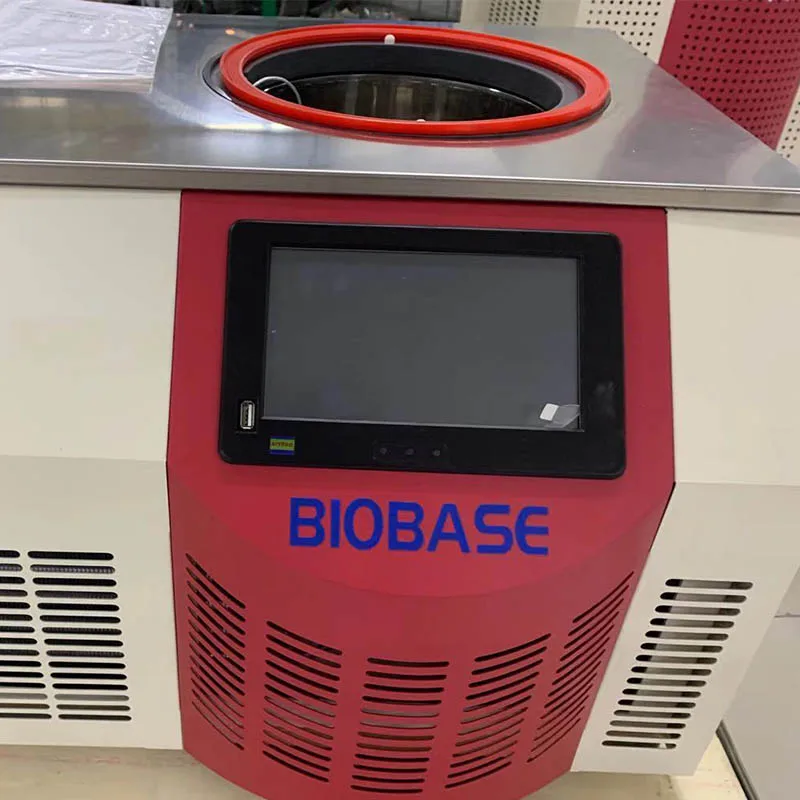

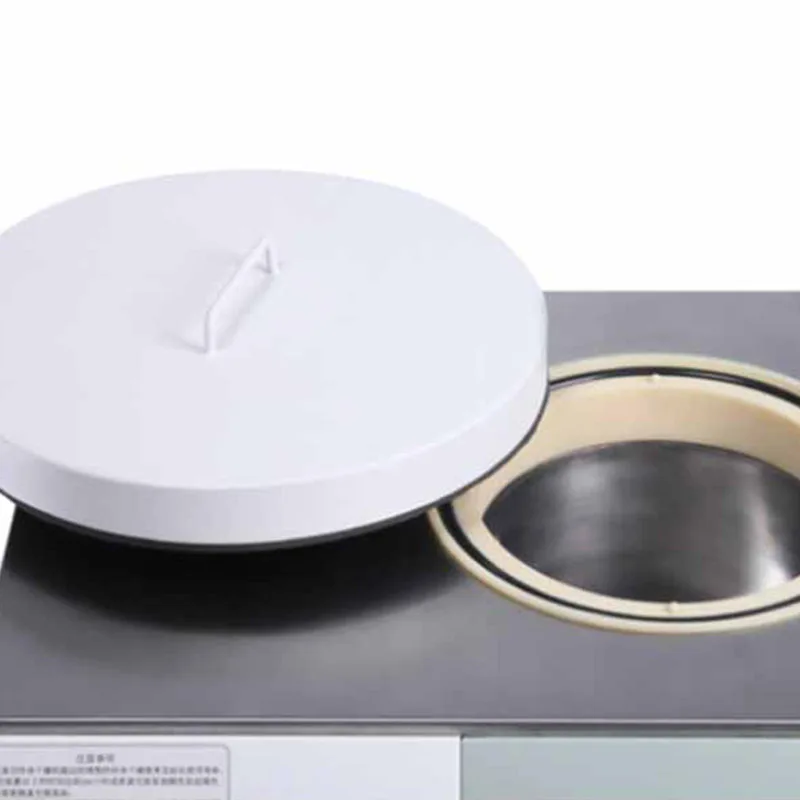

Detail display
Detail display
Specification
Model | BK-FD10S | BK-FD10P | BK-FD10T | BK-FD10PT | |||||
Type | Standard chamber | Standard chamber with 8 port manifold | Stoppering chamber | Stoppering chamber with 8 port manifold | |||||
Freeze Drying Area | 0.12 m2 | 0.09 m2 | |||||||
Tray | 4 pcs | 3 pcs | |||||||
Height Between Trays | 50mm | 68mm | |||||||
Cold Trap Temperature | ≤-60℃ | ||||||||
Cold Trap Capacity | 9.5L | ||||||||
Cold Trap Size (Diameter*H) | Φ215*260mm | ||||||||
Vacuum Degree | <10 Pa | ||||||||
Water Capture Capacity | 3kg/24h | ||||||||
Tray Size (D*H) | Φ200*20mm | Φ180*20mm | |||||||
Freeze Drying Time | 24h | ||||||||
Loading Capacity/Shelf (Liquid) | 0.3L | ||||||||
Total Loading Capacity (Liquid) | 1.2L | 0.9L | |||||||
Drying Chamber Size (Diameter*H) | Φ260*310mm | Φ260*450mm | |||||||
Total Qty. Of Vial Φ22 | 260 | 195 | |||||||
Total Qty. Of Vial Φ16 | 480 | 360 | |||||||
Total Qty. Of Vial Φ12 | 920 | 690 | |||||||
Refrigerant | R600a+R290+R23 | ||||||||
Cooling System | Air cooling | ||||||||
Power Supply | 220V/50Hz,60Hz (single phase) 110V/60Hz (single phase) | ||||||||
Power Consumption | 1.3KW | ||||||||
Power Supply | AC220V, 50/60Hz (single phase); 110V, 60Hz (single phase) | ||||||||

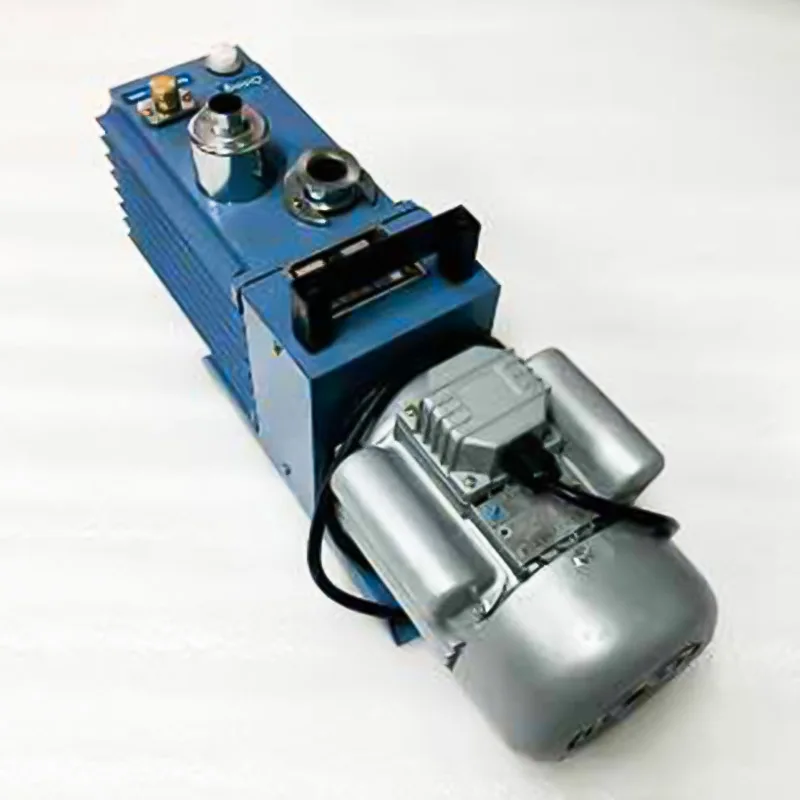

Standard Accessory | Vacuum pump 2L/S, 8m3/h (for all models) Conical-mouth flask 500ml*8 pcs (only for model BK-FD10P/PT) | ||||||||
Optional Function & Accessory | Conical-mouth flask and wide-mouth flask(for BK-FD10P/PT) Import vacuum pump | ||||||||
External Size (W*D*H) | 640*610*550/810mm | 640*610*550/950mm | 640*610*550/990mm | ||||||
Package Size (W*D*H)mm/ Gross Weight | Main Body | 720*705*730(85kg) | |||||||
Drying Chamber /Vacuum Pump | 705*590*530 (50kg) | 705*590*530 (55kg) | 705*590*530 (60kg) | 720*705*730 (65kg) | |||||
You May Also Like
If you want to know more, please click here...
Our Service
* Top Quality: We have strict quality control system and enjoy good reputation in the market.
* Excellent Service: We treat clients as friend and aim at building long term business relatiionship.
* OEM Accepted : We Can print your own logo on the products.
* Unbeatable Price: We always ensure high price performance to benefit our customers.
* Timely Delivery: Your order shall be shipped once finished .
* After-Sale Service:All Products Have One Year Warranty.
* Excellent Service: We treat clients as friend and aim at building long term business relatiionship.
* OEM Accepted : We Can print your own logo on the products.
* Unbeatable Price: We always ensure high price performance to benefit our customers.
* Timely Delivery: Your order shall be shipped once finished .
* After-Sale Service:All Products Have One Year Warranty.
After Sale Service
* After-sales engineers come to customers for training.
* Let customer satisfaction, let customer rest assured, is our first purpose.

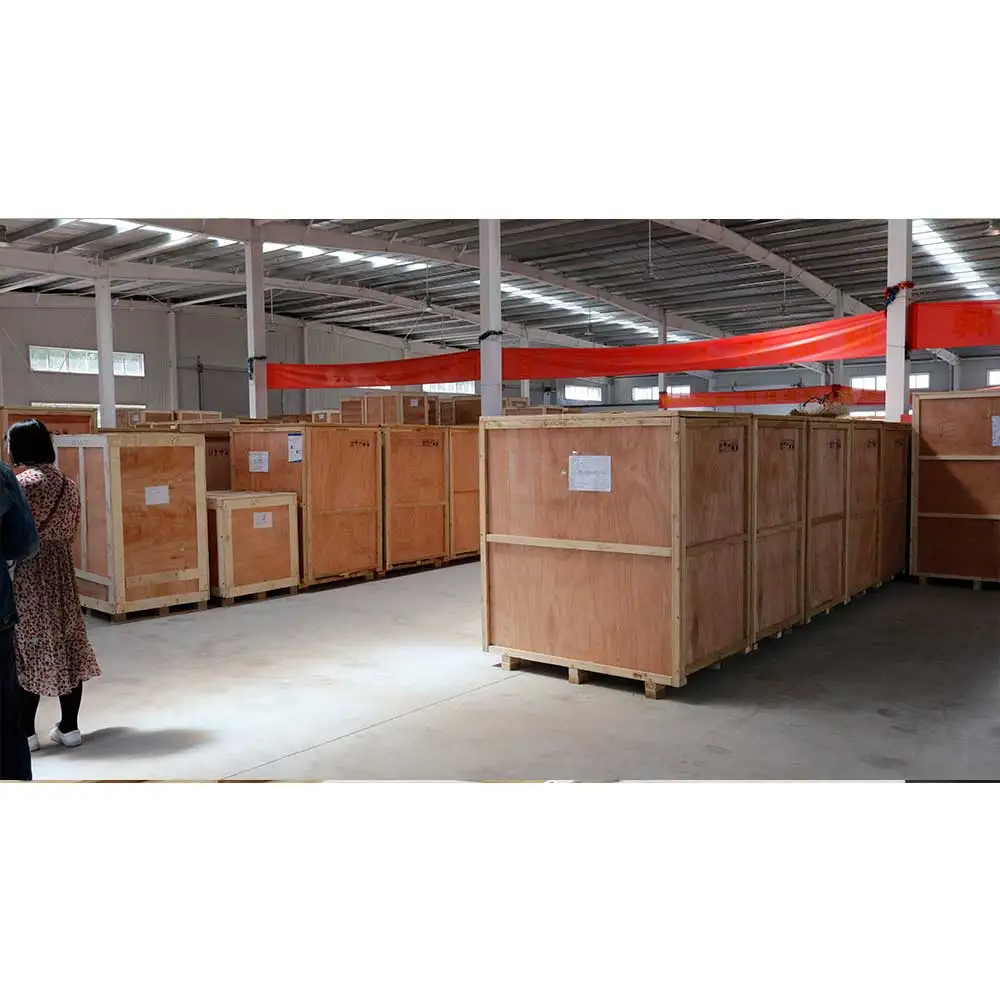

Packing & Delivery
