Zoomlion 60m3/h Concrete Asphalt Mixing Plants HZS60P

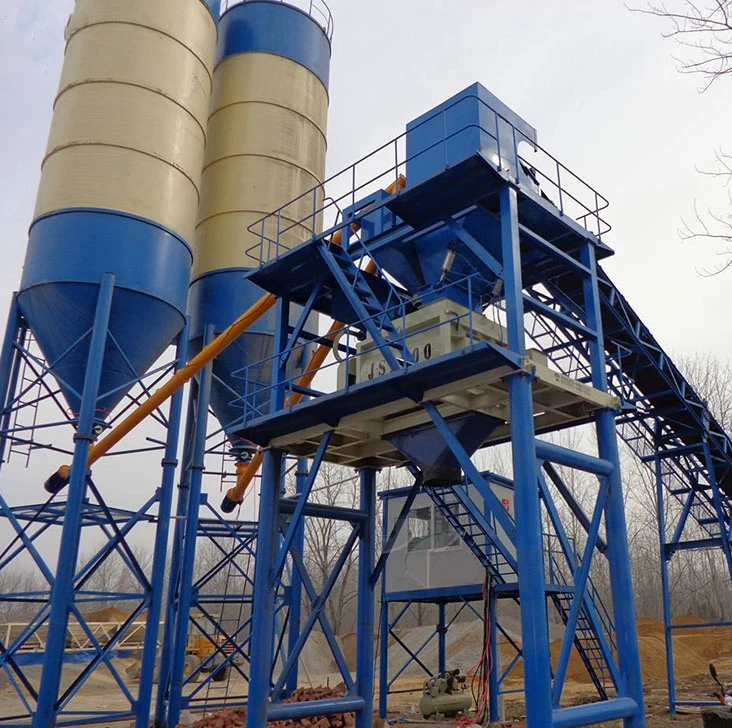

This mixer is perfect for concrete construction thanks to its excellent mixing performance, accurate and stable measuring, high dependability and its high degree of modularity. It is also easy to maintain and simple to transport.It can be used for various construction projects, for example, roads, railways, ports, bridges and airports etc., as well as in commercial concrete production.

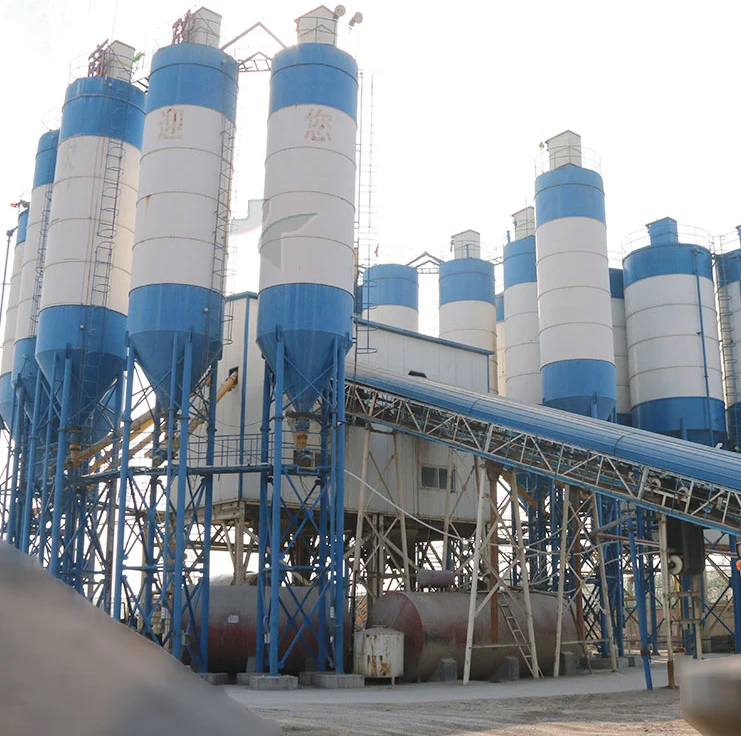

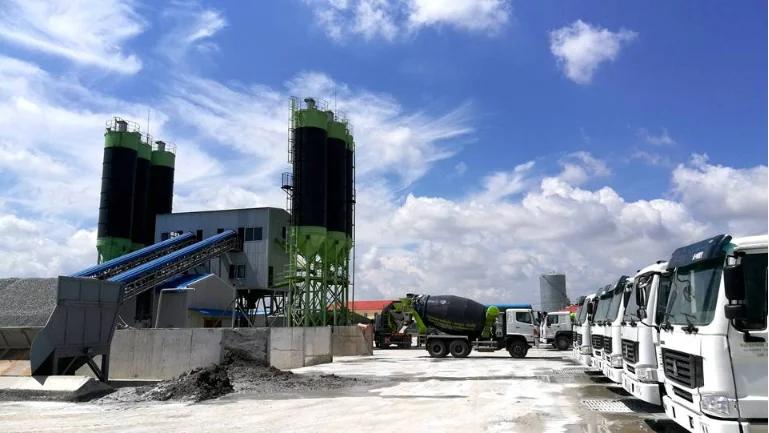

Zoomlion concrete batching plants’ production capacity ranges from 60m³/h to 300m³/h. Tailor-made design can be provided to customers in accordance with regulations and requirements of different countries and regions. The product types include project concrete batching plant, container concrete batching plant, environmental friendly concrete batching plant, etc. With its high efficiency, reliability, intelligence, fineness and green technology, Zoomlion concrete batching plant is trusted and favored by customers around the world.





Model
Theoretical Output Capacity (m³/h)	270
Discharge Height (m)	≥4
Mixer	JS4500
Theoretical Production Periods (s)	60
Aggregate Storage (m³)	4×30
Max. Weighing Value of Slant Belt Conveyor (kg)	1500
The Conveying Capacity of Screw Conveyor (t/h)	180
Total Installed Power (kW) for Reference	355
Max. Batching Value and Accuracy of Aggregate (kg)	5000±2%
Max. Batching Value and Accuracy of Cement (kg)	2250±1%
Max. Batching Value and Accuracy of Powder Admixtures (kg)	900±1%
Max. Batching Value and Accuracy of Water (kg)	1000±1%
Max. Batching Value and Accuracy of Liquid Additive (kg)	90±1%
