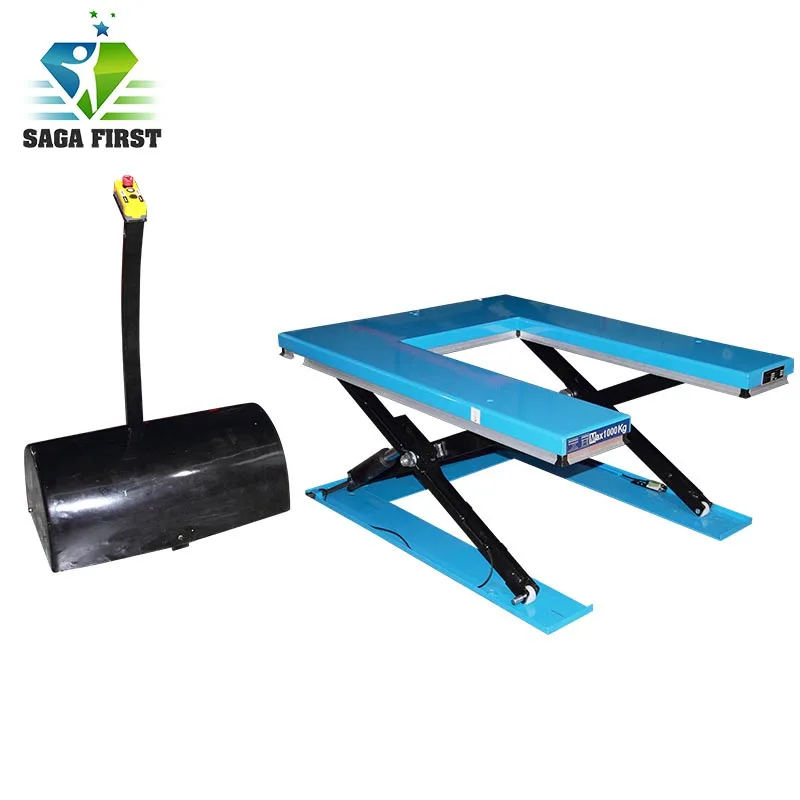

electric E shape pallet scissor lift Hydraulic Low Profile Scissor Lift Tables
- OEM & ODM Service -
SAGAFIRST Brand Low Profile Scissor Lift Tables are equipped with ramp with extremely low self height,easy for trolly enter.Its pump station and electric system are placed in metal box independently to save the minimum lifting height.Loading capacities from 1,000KG to 2,000KG, and lifting heights up to 870mm. We also accept customized platform size,load capacity and lifting height.
Model
Loading Capacity(kg)
Platform Size (mm)
Base Size (mm)
Self Height (mm)
Max Platform Height (mm)
Lifting Time(s)
Net Weight(kg)
HL1001
1000
1450x1140
1325x1074
85
860
25
357
HL1002
1000
1600x1140
1325x1074
85
860
25
364
HL1003
1000
1450x800
1325x734
85
860
25
326
HL1004
1000
1600x800
1325x734
85
860
25
332
HL1005
1000
1600x1000
1325x734
85
860
25
352
HL1501
1500
1600x800
1325x734
105
870
30
302
HL1502
1500
1600x1000
1325x734
105
870
30
401
HL1503
1500
1600x1200
1325x734
105
870
30
415
HL2001
2000
1600x1200
1427x1114
105
870
35
419
HL2002
2000
1600x1000
1427x734
105
870
35
405

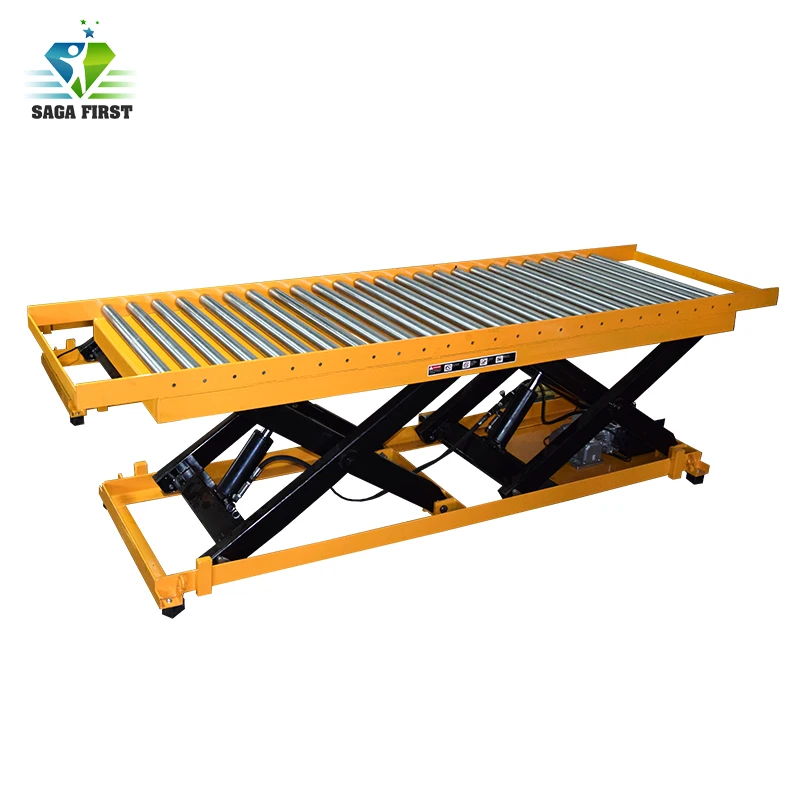

Heavy Duty Custom Scissor Lift Platform adopts much stronger material and parts to improve the load capacity and lifting height.We will make the platform size, max platform height and load capacity as per your request.
Product Description
Hydraulic scissor lift table is an important component in material handling area, it is one of professional high-altitude operation equipment.Scissor lift table is mainly used to convey goods from one working level to another.
SAGA FIRST can also provide customer many options likewireless controller, footstep control, roller, safety bellows and so on, customer can provide their need to SINOFIRST, and we will try to fulfill all customers’ need.
1. Sagafirst scissor lift tables are dealt with shot blasting and stoving varnish, high anti-corrosion function. 2. High quality pump station make the scissor lift table lifts and falls very stably. 3. Anti-pinch scissor design, main pin-roll place adopts self-lubricating design which prolong life span. 4. Removable lifting eye can help to lift the table and install. 5. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst. 6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable. 7. Brief structure make it much easier to operate and maintain. 8. Up to American standard ANSI/ASME and Europe standard EN1570.

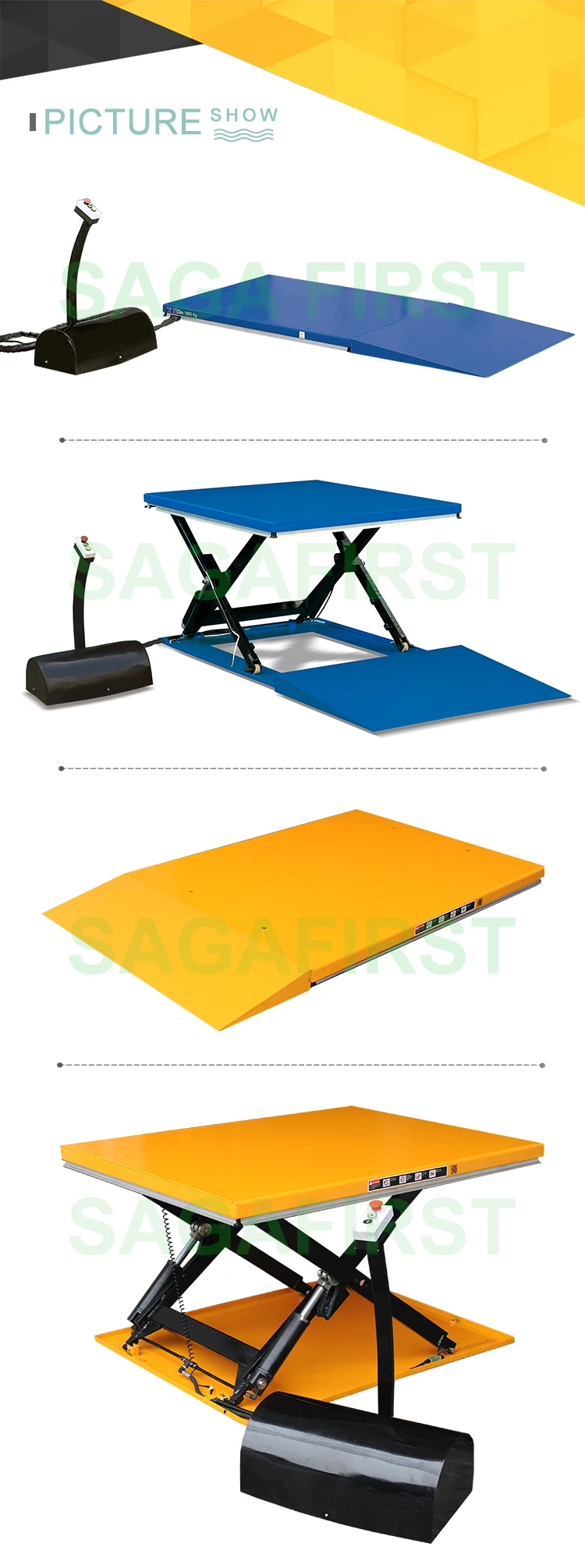

Detailed Images
Safety Precautions: 1. Explosion-proof valves 2. Spillover valve 3. Emergency decline valve 4. Overload protection locking device. 5. Emergency decline valve 6. Automatic Safety sensor:stop when come across barriers.
Applications
Stationary scissor lift table is mainly used in workshop, warehouse and factory .And it can load cars just as parking lot and automobile showrooms. Also the lift can use in electric and building roof maintenance and many industrial application.
Packaging & Shipping
Standard Scissor Lift Tablewill be packed in wooden carton.Shipped by sea.
Saga Firstwelcome to visit us to negotiate business and inspect the production.
Certifications
All of sagafirst scissor lift tables are approved by European certificates and meet the international standards.
Questions
Answers
Are you a factory or trading company?
We're factory with over 12years exporting experience.
What's the MOQ?
1UNIT,the more,the better.
What's the payment terms?
<USD4999: 100%TT in advance.
>USD5000: 30%TT in advance,balance before shipment.
>USD100,00: TT or Irrevocable L/C At Sight.
Do you offer OEM&ODM service?
Yes,like lifting capacity, lifting height, size of platform,painting color,logo,manual etc.
What's the delivery time?
15~20days after down payment
What's the quality warranty?
24 months.Offer free parts for replacement.
How can I get the after-sales service?
We offer videos,pictures and technical guidance immediately.
What's your QA&QC policy?
3times 100% inspection before shipping.
Can you tell me your clients in my country?
Of course. But only after the permittance of customers.
