Best price portable ultrasonic digital 4-20ma output clamp on flow

Category

Performance and parameters

Host

Theory

Ultrasonic transit time theory

Accuracy

±1%

Display

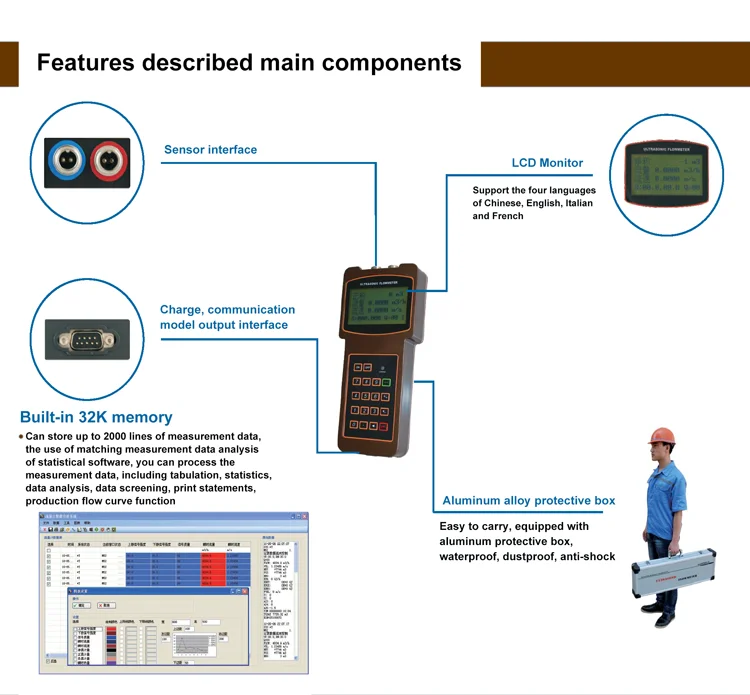

4×8Chinese or 4×16 English dot-matrix back LCD display, support four languages: Chinese, English, Italian and French.

Signal output

1 route pulse output(width:6-1000ms,default:200ms)

Data interfaces

Isolate RS 232 serial interfaces. Flow meter updated by PC computer

Pipe situation

Pipe material

Steel, stainless steel, cast iron, copper,PVC, aluminum, FRP and  all the compact pipeline,liner allowed.

Inter diameter of pipe

15-6000mm

Straight pipe

Best satisfication of the point installation of pipeline: Upstream 10D, downstream 5D, distance from pipe exit 30D( D is nominal diameter of sensor.

Medium

Types

Water, sea water, industrial sewage, acid and alkaili, alcohol, beer and verious oils with a single, homogeneous liquid capable of conducting ultrasonic waves.

Temperature

-30~160℃.

Turbidity

10000ppm with low bubble content

Velocity

0-±10m/s

Working condition

Temperature

Host:-20-60℃; sensor: -30-160℃

Humidity

Host: 85\RH; protection of sensor: IP67

Power supply

3*1.2V built-in battery with the capacity of 2000maH Ni-MH accumulator, continuous working hours more than 12 hours, adopt AC90-260V power adapter,can be measured without interuption

Power consumption

1W

Housing material

FABS

Host weight

390g
