Сплав колеса тележка с четырьмя осями и живых инструментов Токарный токарный станок
- Категории: CNC Lathe >>>
- Поставщик: SJR,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Recommend Products

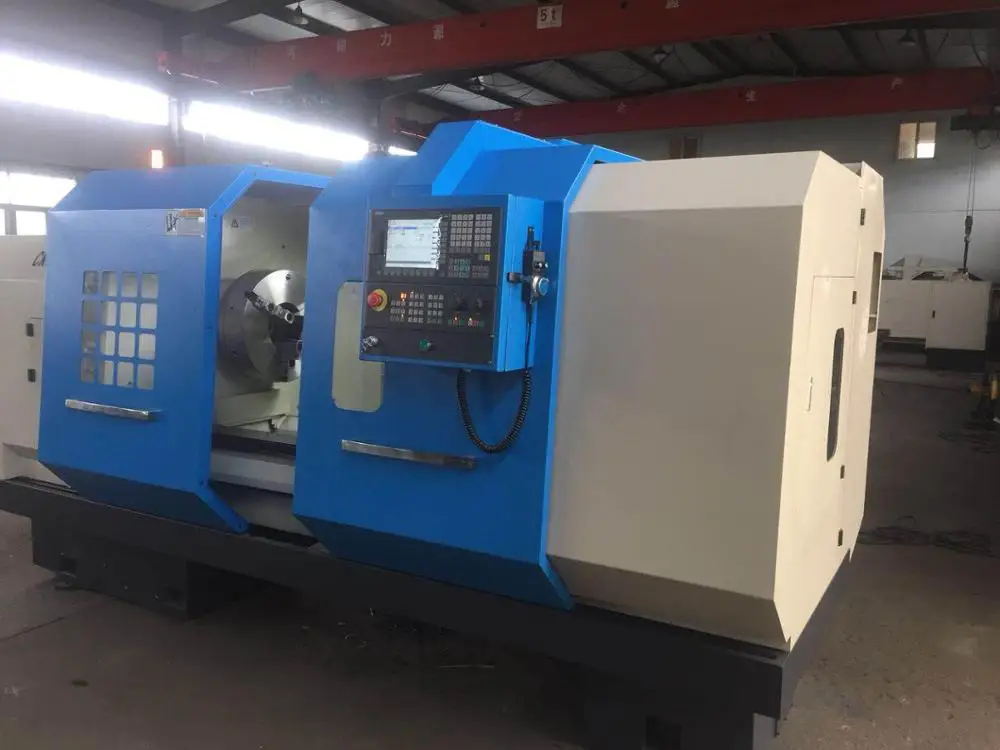

Products Description
The machine adopts ISO international Code,Keyboard Manual Data Input, it is also provided with program of power cut-off protectionand the functions of automatic diagnosis, and with RS232 interface.
Characteristic
Longitudinal and cross feeds are effected by ball leadscrews driven by servo motors
Product parameter
Main Specifications:
MODELS | CK6130S | CK6136S | CK6140S | |||
CAPACITY | ||||||
Max.cutting dia. for disc parts | 300mm | 360mm | 400mm | |||
Max.cutting dia. for axle parts | 135mm | 180mm | 225mm | |||
Max. length of workpiece | 500mm | 500/ 750/ 1000mm | 500/ 750/ 1000mm | |||
Max turning length | 390mm | 450/ 700/ 950mm | 450/ 700/ 950mm | |||
6-way turret max turning length | 340mm | 340/ 590/ 850mm | 340/ 590/ 850mm | |||
6-way turret max turning diameter | 185mm | 255mm | 300mm | |||
SPINDLE | ||||||
Spindle nose | D4 or A2-5 | C5 | C6 | |||
Spindle bore | 38 or 43mm | 40mm | 52mm | |||
Taper bore of spindle | M.T.NO.5 or 40° tapper | M.T.NO.5 | M.T.NO.6 | |||
Steps of spindle speed (manual) | Variable | |||||
Range of spindle speed | 200~3500rpm | 200~2800rpm | ||||
FEED | ||||||
Rapid feed for axis X | 8m/min | |||||
Rapid feed for axis Z | 10m/min | |||||
TRAVEL | ||||||
Max.cross travel(X) | 165mm | 215mm | 235mm | |||
Max.longitudinal travel(Z) | 460mm(18″) | 490/ 740/ 990mm | ||||
TOOL POST | ||||||
Tool post stations | 4-way or gang tool | 4-way, 6-way, gang tools | ||||
Tool cross section | 16×16mm | 20×20mm | ||||
TAILSTOCK | ||||||
External diameter of tailstock sleeve | 50mm | 60mm | ||||
Taper bore of tailstock sleeve | M.T.NO.3 | M.T.NO.4 | ||||
Max.traverl of tailstock sleeve | 130mm | 120mm | ||||
OTHERS | ||||||
Min. input | 0.001mm | |||||
Main motor power | 3kw | 3.7kw | 3.7kw(specific 5.5kw) | |||
Coolant pump power | 75w | |||||
Overall dimensions(L×W×H) | 1500×945×1380mm | (1870/ 2120/ 2370)×1200×1415mm | ||||
