LEYO 5 Оси cnc Вертикальный центр машины


Поделиться:

Цена:2 548 229,13 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Specification
Product name

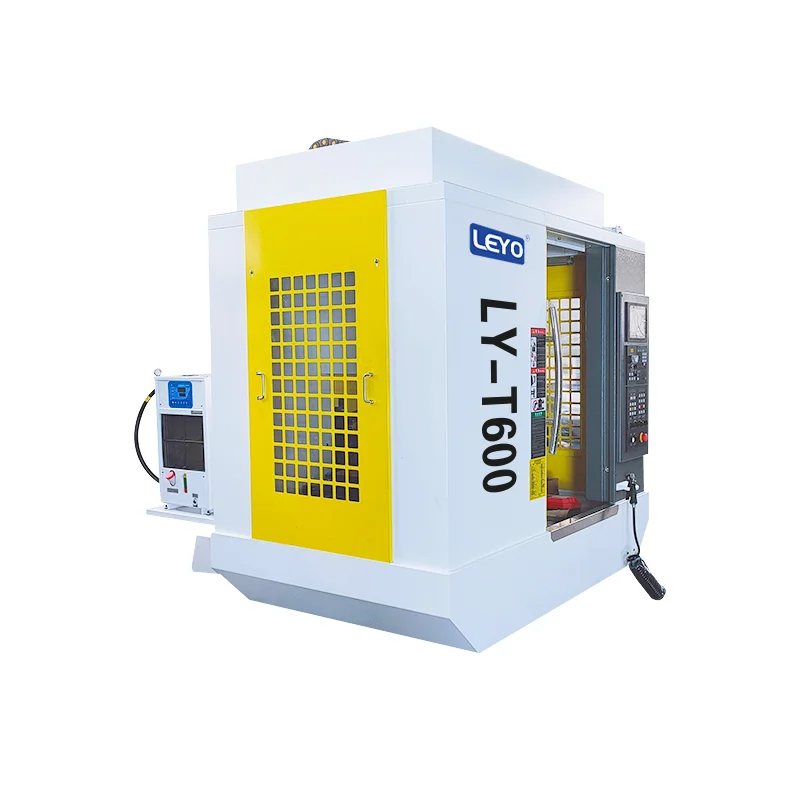

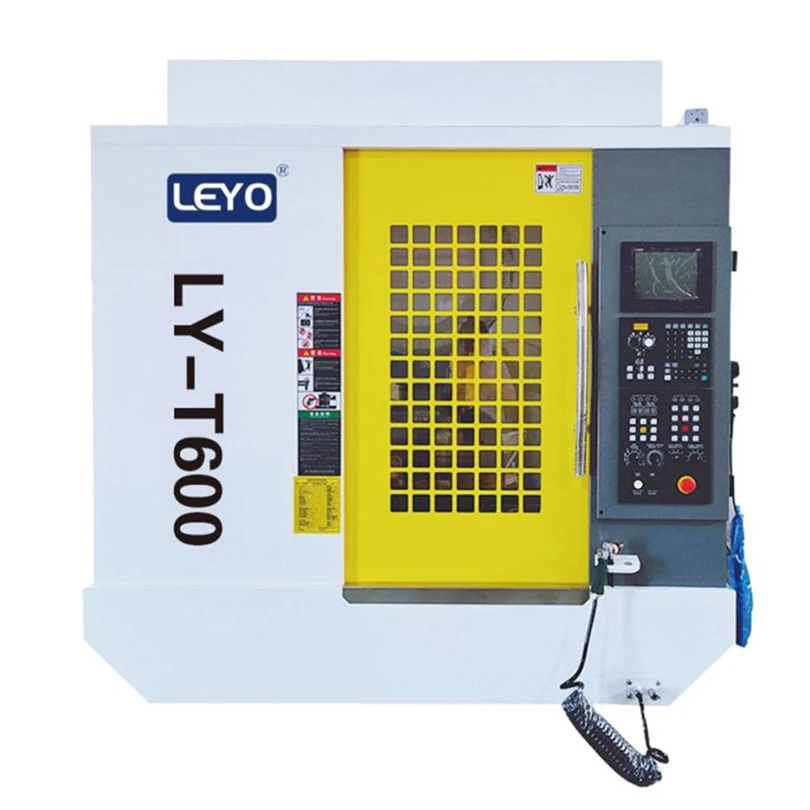

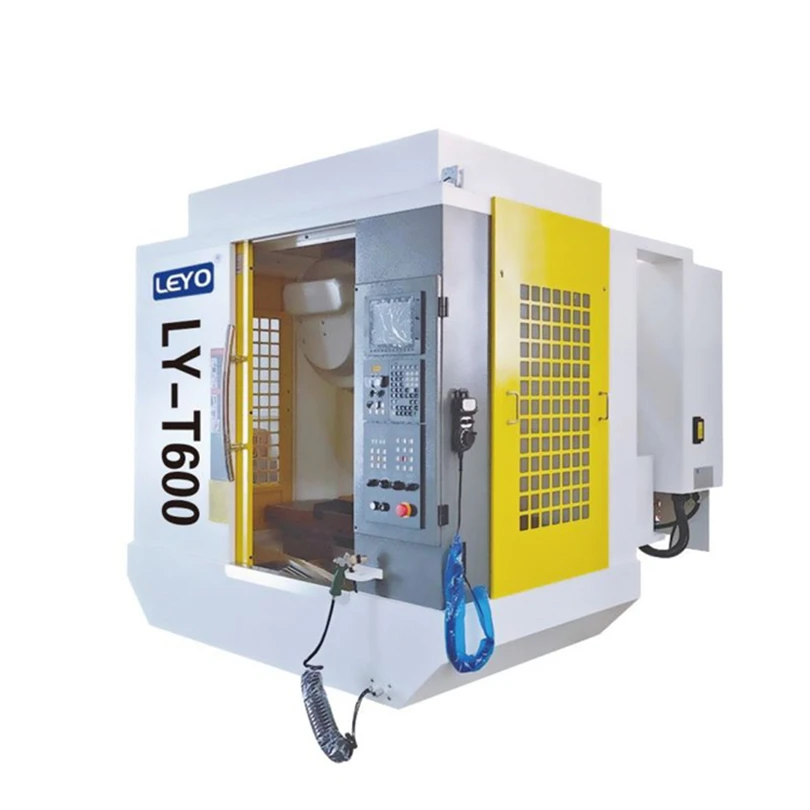

LY-T600 CNC high speed drilling and tapping center
Place of Origin
Dongguan
Brand Name
LEYO
Model Number
LY-T600
X/Y/Z axis travel
600/400/350 mm
X/Y/Z maximum moving speed
48 m/min
X/Y/Z maximum cutting feed rate
20m/min
X/Y/Z servo motor power
1.5/1.5/3kw with brake
X/Y/Z lead screw
0.008mm
Spindle speed
20000rpm
Spindle motor power
5.5kw
Spindle taper hole (model /installation size)
BT30
Positioning/Re-positioning accuracy
±0.005/±0.003 mm
Table size (L x W)
700*420 mm
Maximum payload
300kg
Machine size (L*w*h)
1900*2070*2300 mm
Machine weight
3500 kg

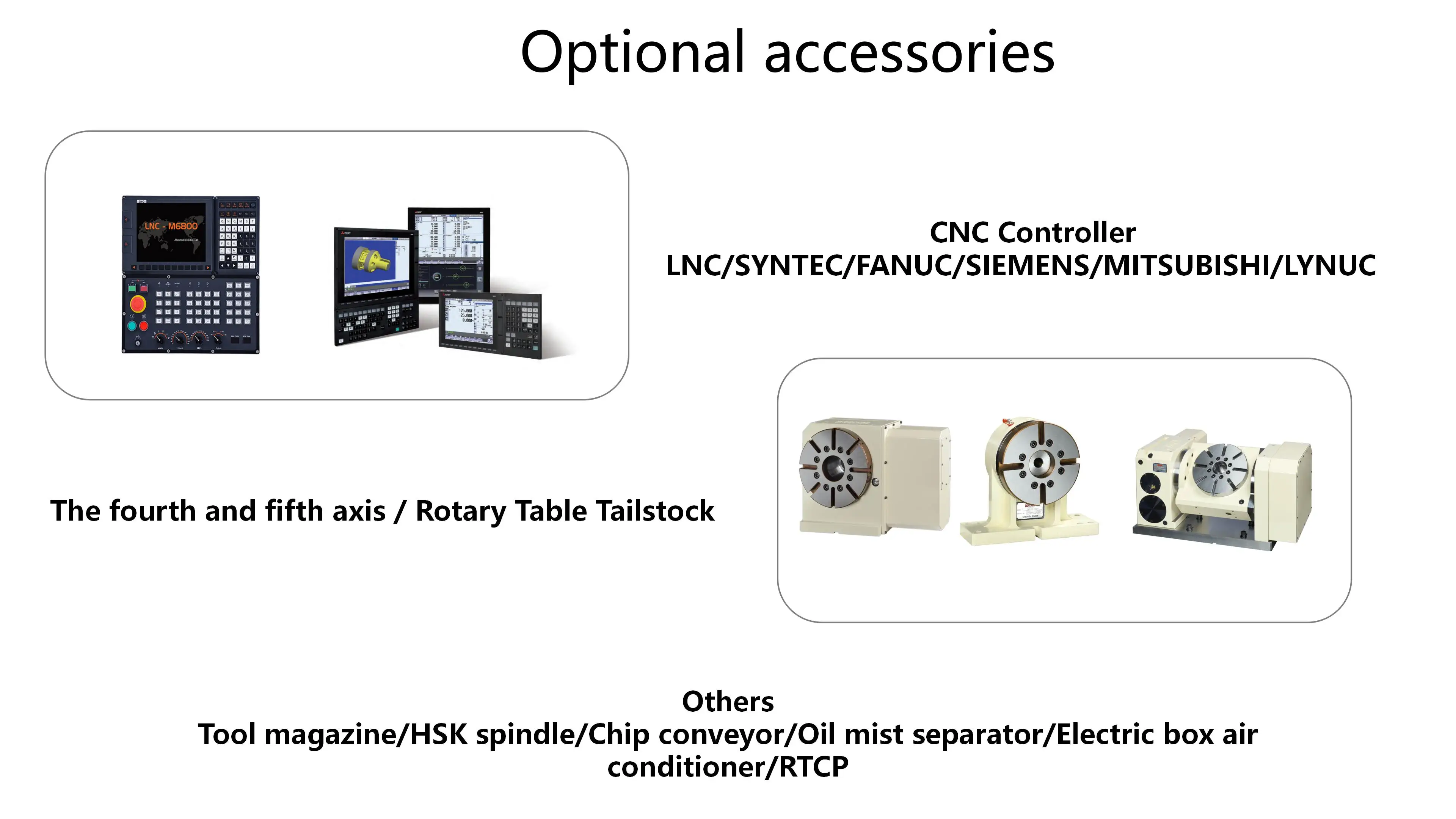

CNC Controller
SIEMENS
Function
automatic tool change 16 servo tool magazine
guarantee
1year
Application
Consumer electronics, automobiles and locomotives, instruments and meters, electronic and electrical appliances, aerospace and
machinery manufacturing industries such as box, cover, plate, shell, plate and other parts.
Advantage
reasonable structure,good anti-seismic ability

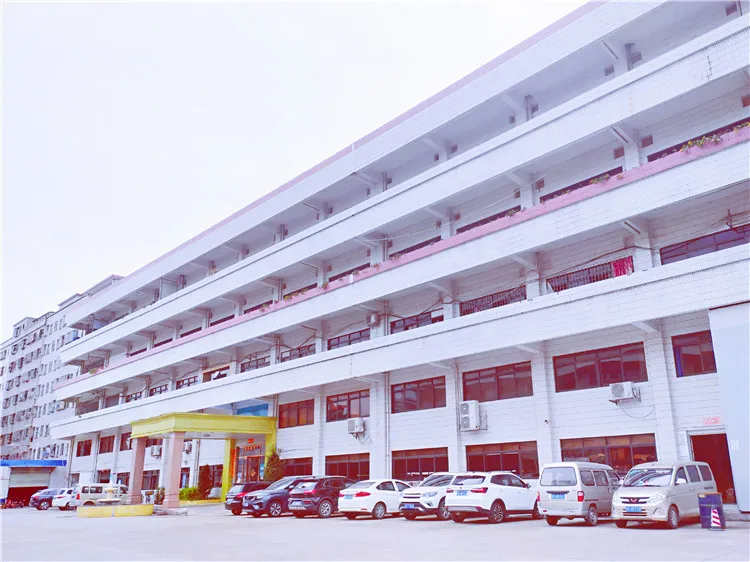

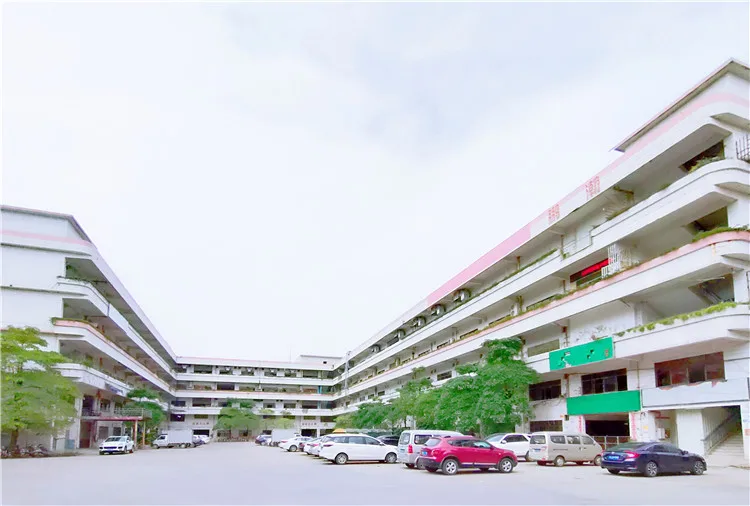

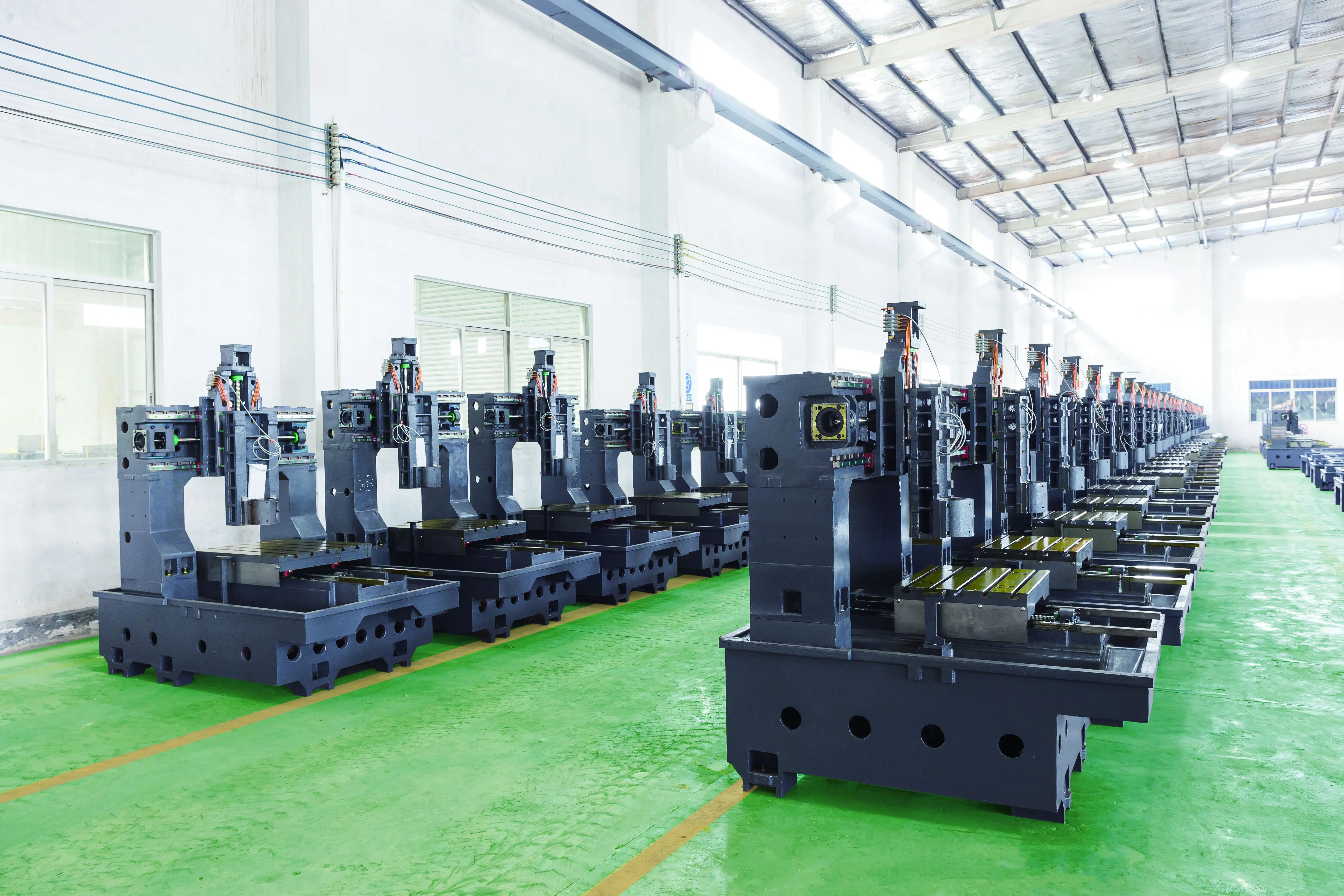

Company Profile

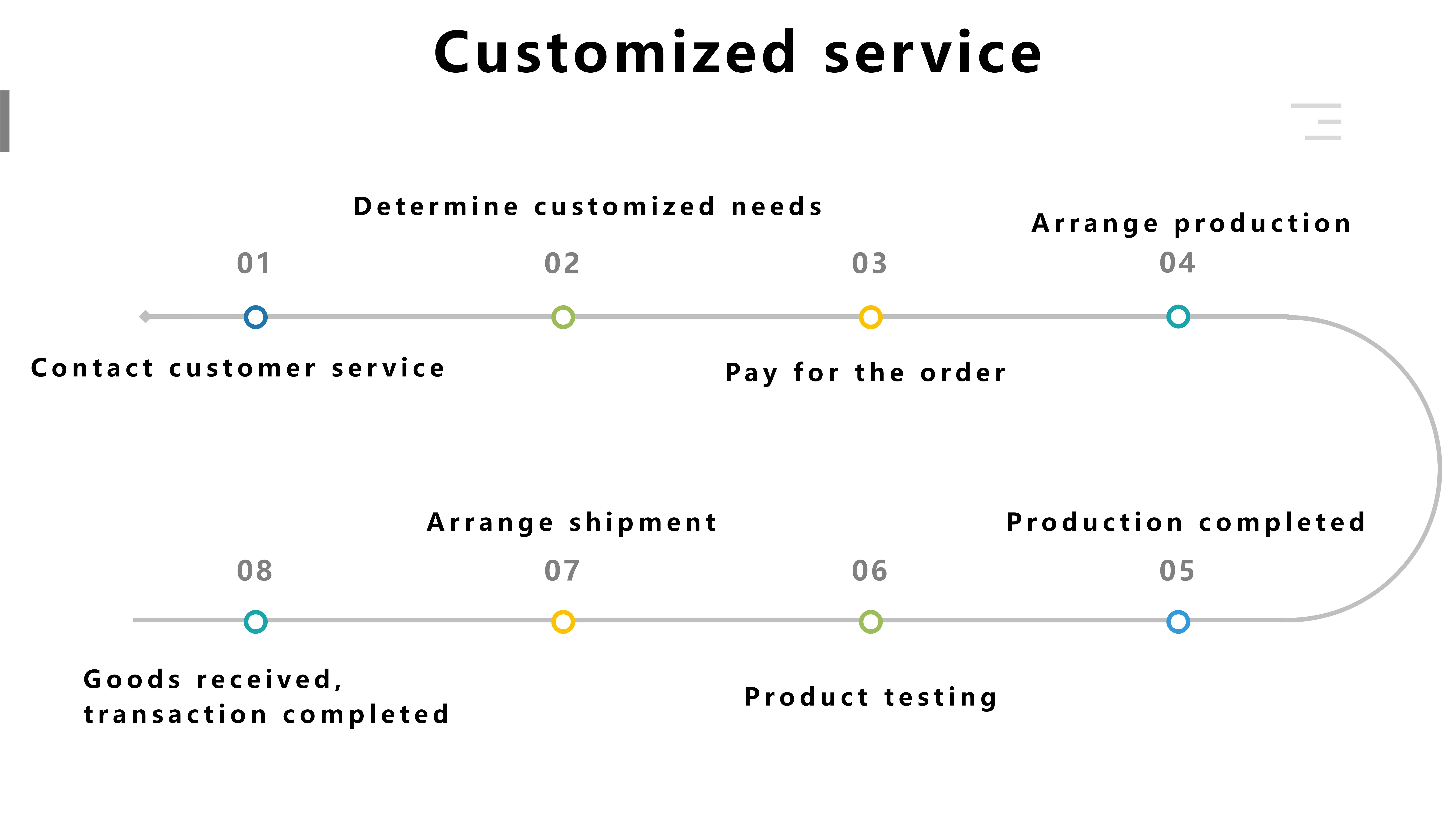

Dongguan Liyang Intelligent Technology Co., Ltd is a CNC machine manufacturer, whic is dedicated to the design, production and sales of CNC machine. We have a number of high-level professional and technical personnel engaged in the production and research and development of CNC machine for a long time, and have more than ten years of professional CNC machine manufacturing experience. We have established close cooperation with world-class CNC system manufacturers such as Siemens, Mitsubishi, FANUC, Taiwan Baoyuan, Taiwan Xindai, etc. And our main products are engraving machine, multi head engraving machine, CNC precision high-speed engraving and milling machine,carving and milling machine, five axis precision high-speed engraving and milling machine, CNC high-speed drilling and tapping center machine, five axis high-speed drilling and tapping center machine, etc. It is widely used in aviation, electrical, electronic, communication, automobile, medical, handicraft, mold, mechanical parts, clothing, hand decoration and other fields. And they have the advantages of high rigidity, high precision and high efficiency. We have a rich supply chain system, so we also provide customized services, we can customize different models according to customer demand. Our company has superior geographical location , we are located in the "word factory" dongguan, 2 km away from Humen high speed railway station and 1 km from Dongguan International Convention and Exhibition Center. We sincerely welcome foreign friends to visit and cooperate with us.
Packing & Delivery
wooden case
FAQ
1. who are we?
We are based in Guangdong, China, start from 2020,sell to Southeast Asia(20.00%),North America(10.00%),South America(10.00%),Eastern Europe(5.00%). There are total about 11-50 people in our office.

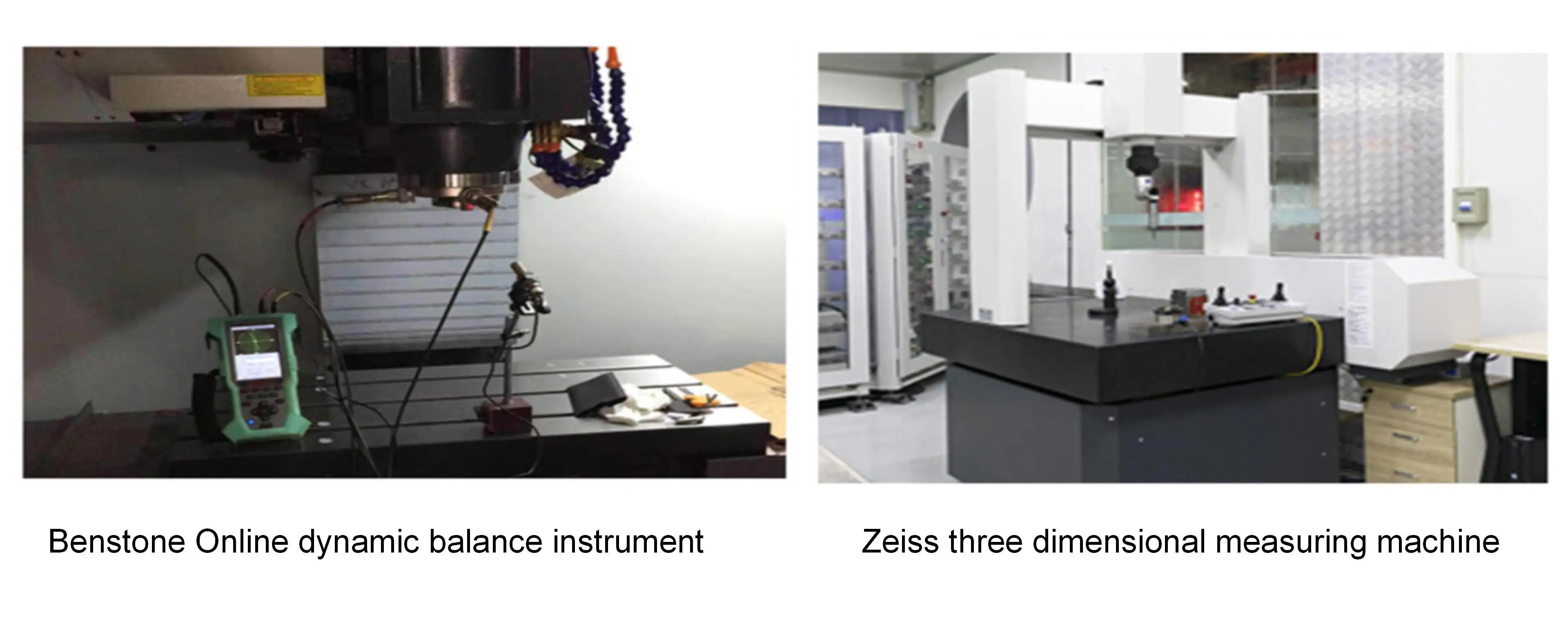

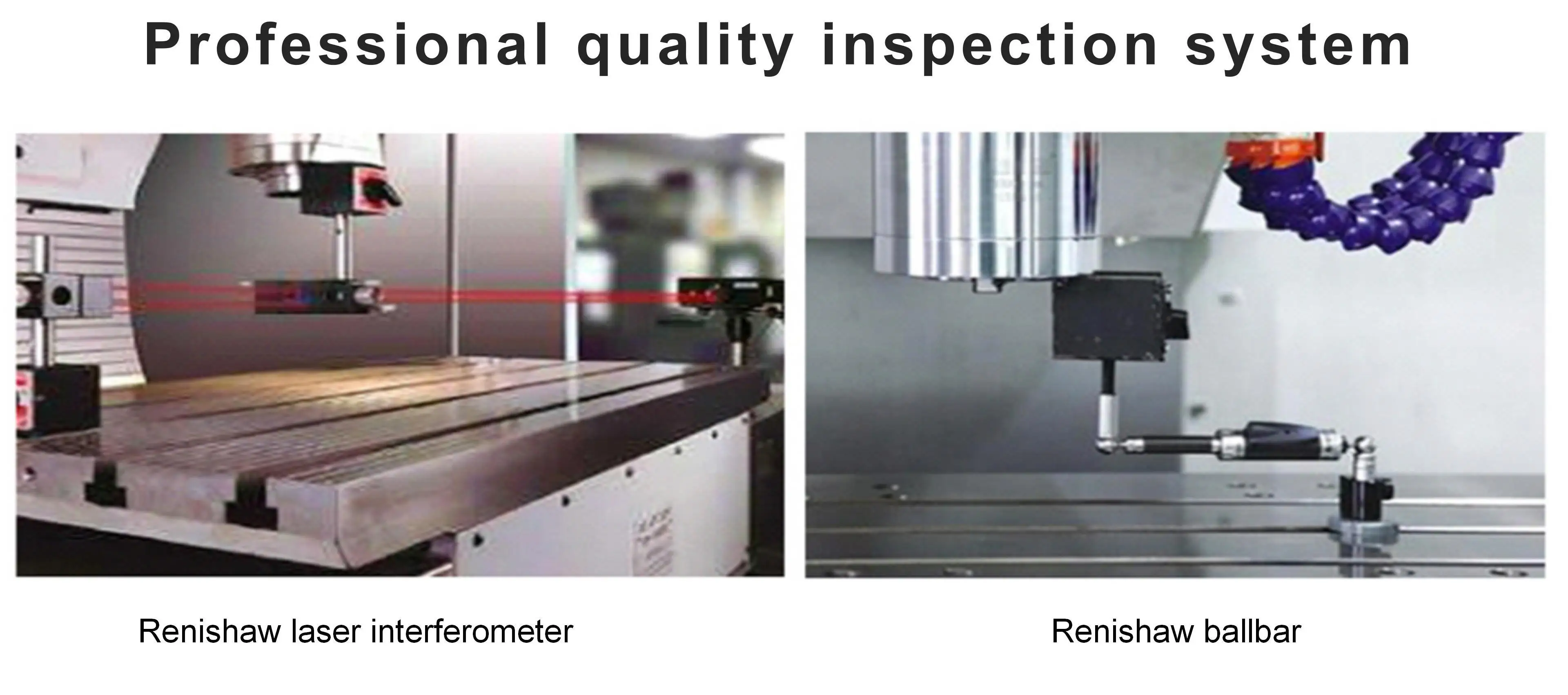

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
CNC machine,carving and milling machine,engraving and milling machine,drilling and tapping center machine,CNC machining center

4. why should you buy from us not from other suppliers?
Professional CNC machine manufacturer

5. what services can we provide?
Accepted Delivery Terms: FOB;
Accepted Payment Currency:USD;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,Western Union;
Language Spoken:English,Chinese
