Токарный станок с ЧПУ VMC
US $9600-$10000
VMC1270 фрезерный станок с ЧПУ Centro De Mecanizado
- Категории: Machine Centre & Parts >>>
- Поставщик: Zaozhuang,No.1,CNC,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
VMC series vertical CNC milling machine adopts vertical frame layout, the column is fixed on the bed body, the headstock moves up and down along the column (Z direction), the slide moves longitudinally along the bed (Y direction), and the table moves laterally along the slide (X To) the structure.
The large parts such as bed, workbench, sliding seat, column and headstock are made of resin sand castings, and after two aging treatments, the stress is eliminated, the stability is good, the strength is high, and the stability of the long-term use precision of the machine tool is ensured. It provides a guarantee for the stability of machine performance. These large pieces are optimized by Soldworks and Ansys to improve the rigidity and stability of the large parts and the whole machine, effectively suppressing the deformation and vibration of the machine tool caused by the cutting force.
The large parts such as bed, workbench, sliding seat, column and headstock are made of resin sand castings, and after two aging treatments, the stress is eliminated, the stability is good, the strength is high, and the stability of the long-term use precision of the machine tool is ensured. It provides a guarantee for the stability of machine performance. These large pieces are optimized by Soldworks and Ansys to improve the rigidity and stability of the large parts and the whole machine, effectively suppressing the deformation and vibration of the machine tool caused by the cutting force.
Specifications
Model | VMC1270 |
Condition | New |
Spindle Taper | BT40 |
No. of Spindles | Single |
Type | VERTICAL |
Dimension(L*W*H) | 3400*2480*2960 |
Weight (T) | 9.5T |
Table Size (mm) | 1300*700 |
CNC Control System | GSK, FANUC, MITSUBISHI, KND, Siemens, DELEM |
Number of Axes | 3 |
Table Travel (X) (mm) | 1200 |
Table Travel (Y) (mm) | 700 |
Table Travel (Z) (mm) | 600 |
Positioning Accuracy (mm) | ±0.002 |
Repeatability (X/Y/Z) (mm) | ±0.001 |
Range of Spindle Speed(r.p.m) | 50r.p.m - 8000r.p.m |
Spindle Motor Power(kW) | 11 |
Max. Table Load(kg) | 1200kg |
Feed Speed(mm/min) | 1mm/min - 5000mm/min |
Rapid Feed Speed(m/min) | 5 |
Min. Time of Tool Change(s) | 6 |
Tool Magazine Capacity | 24 |
Key Selling Points | Competitive Price |
Warranty | 1 Year |
Online support, Video technical support | |
Place of Origin | China |
Shandong | |
Brand Name | No.1 machine |
Certification | CE;ISO9001 |
Voltage | 220V/380V/440V |
After Warranty Service | Video technical support, Online support |
Local Service Location | China |
Showroom Location | China |
Marketing Type | Ordinary Product |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor |
Product name | CNC Machining Center |
X/Y/Z travel | 1200*700*600 |
Table size | 1300*700 |
T-slot | 5-18-125 |
Spindle taper | BT40 |
Spindle nose to table | 140-700 |
Max.tool diameter | 780 |
Max.tool weight | 18 |
Machine weight | 9500 |
Dimensions | 3400*2480*2960 |

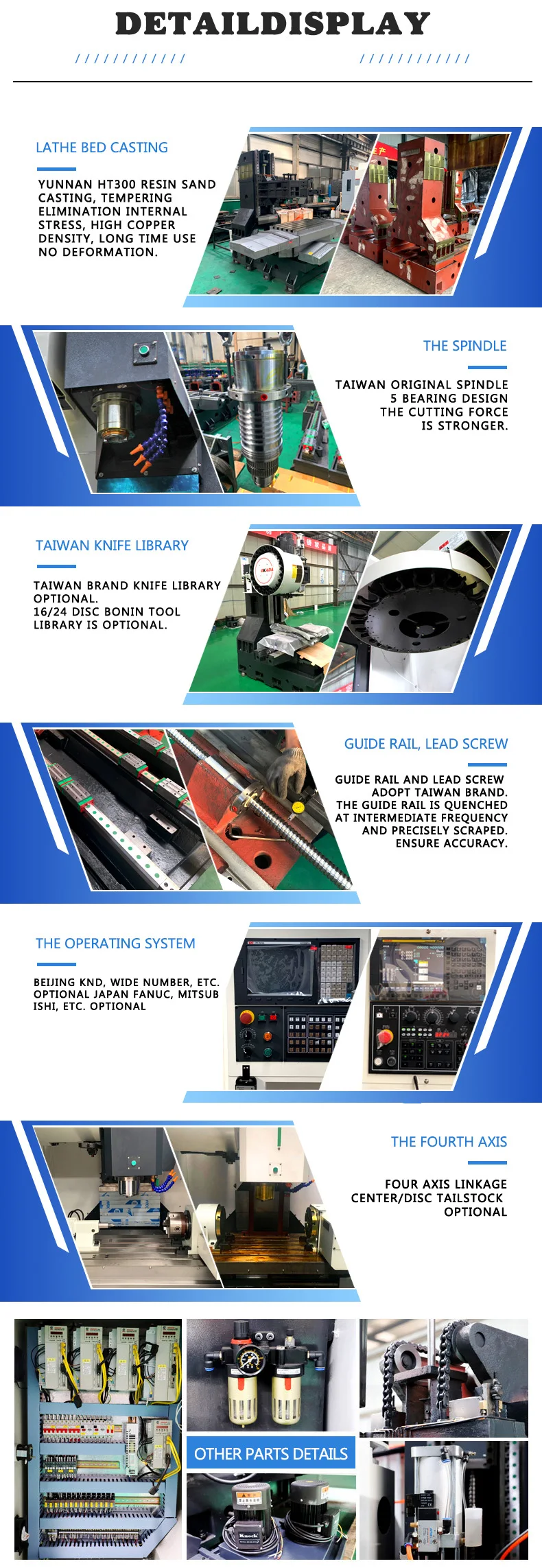

Details Display
Recommend Products

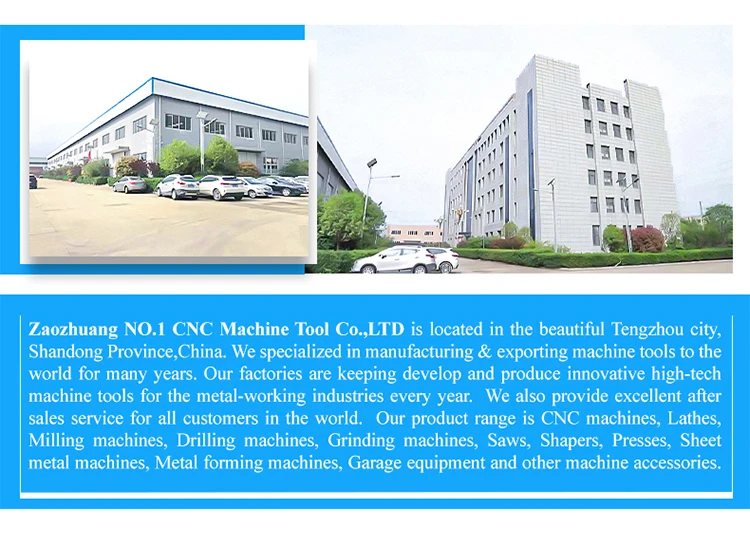

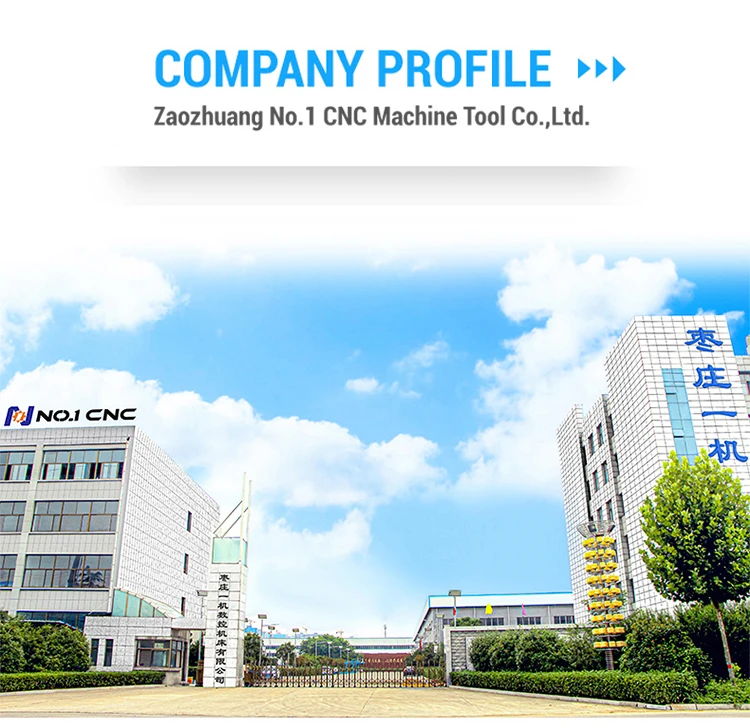

Company Profile
