2.Equipped with an electric PTC regeneration heating;
3.Strong and robust construction with 1.2mm thickness;
4.Double layers heater box,Armstrong insulation is used to avoid heat loss and condesation;
5.SCR(silicon controlled rectifier) constant temperature controling system ensures inside temperature constant and promise the reliable and stable performance ;
6.Front & Back access door design for easier maintenance and troubleshooting;
7.Process air inlet and dry air outlet located at the same side for easier installation;
8.Customized filters,G4 efficiency;
9.Auto stop protection function for Rotor;
10.ABB,OMRON and Schneider electrical accessories;
11.Delay time protection circuit & fault locater system;
12.Humidistat is used,a better way to control humidity
Model Number
CLR-400
Dehumidifying Capacity
2.5L/Hour (20℃,60%RH)
Voltage
220V/50Hz/60Hz
Process air volume
420m3/h
Inlet Size
100mm
Reactivation Air Flow
130m3/h
Outlet Size
80mm
Operating Temperature
-10-50ºC
Max Power
2.3KW
Power Rating
2KW
Current
7A
Packing Size
590*420*900mm
Application
Wood drying, pharmaceutical industry, power plant, comestic industry, food processing, big greenhouse, warehouse, etc.

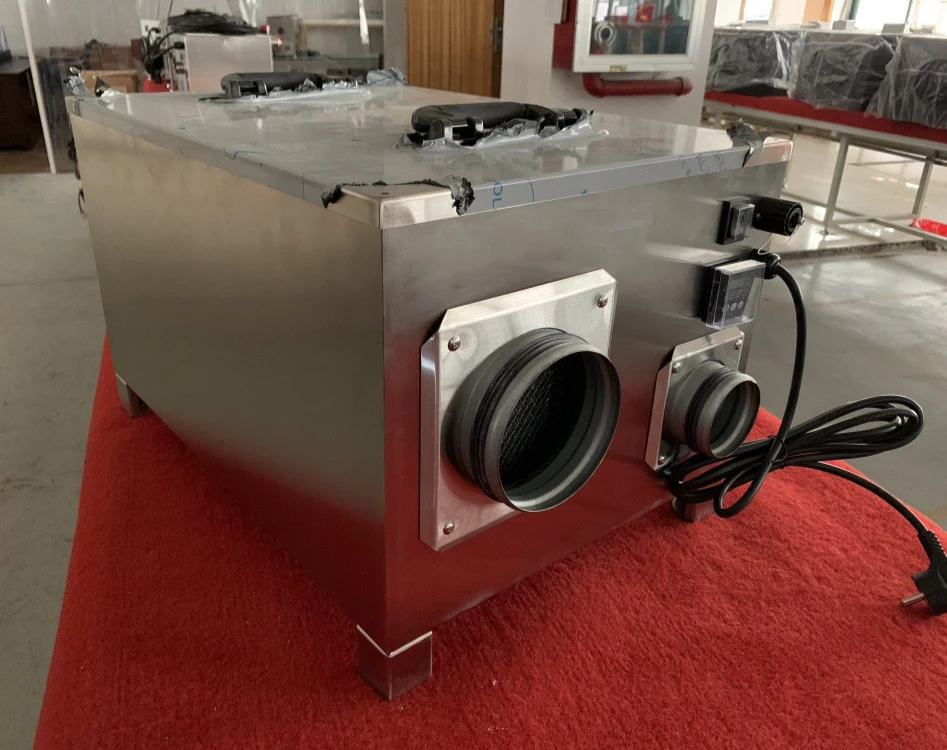

Products Show
Packing & Delivery
Packing Details : One unit in one standard export wooden case.
Delivery Details : 7days for sample, 15-20days for bulk order.
