Фабрика производитель умный мульти-импульсный кабель тестер
Фабрика производитель умный мульти-импульсный кабель тестер
Фабрика производитель умный мульти-импульсный кабель тестер
Фабрика производитель умный мульти-импульсный кабель тестер
Фабрика производитель умный мульти-импульсный кабель тестер
Фабрика производитель умный мульти-импульсный кабель тестер
Фабрика производитель умный мульти-импульсный кабель тестер

Фабрика производитель умный мульти-импульсный кабель тестер


Поделиться:

Цена:743 196,68 ₽*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики

Product Description




Modle

VS-2088A

Display method

12.1inch industrial grade lCD screen(XP  Operating platform)

Measuring distance

Not less than  60km  Storage :Fixed8G

Measurement methods

Low-voltage pulse method,Flash charging method,Multiple pulse method

Operation method

Touch mouse operation The shortest test distance(blind spot):0~5 meter or no blind spots

resolution

V/fm;V transmission speed m/μs

Software cursor

0.10 m precise point error:±0.2m

Test error

System error < ±1%

Sampling frequency

6.25MHz,12.5MHz,25MHz,50MHz,100MHz

Pulse width

80 ns,100ns,200 ns,1μs,2μs(software automatic matching)

Standby time

Can be used continuously for 6 hours

weight

7kg

size

180mm×300mm×400mm

Ambient temperature

-20℃~ +40℃,relative humidity:80%

Power and power consumption

AC220V±10%≤15W



DC12V(7AH≤20W)

Features:

Can test different voltage levels below 35KV,different sections,various faults of power cables of different media and materials.

Can test railway communication control cables,street light cable,various failures of airport signal cables.

Can measure the propagation speed of radio waves in any cable with a known length.

Can measure the buried path and depth of power cables.

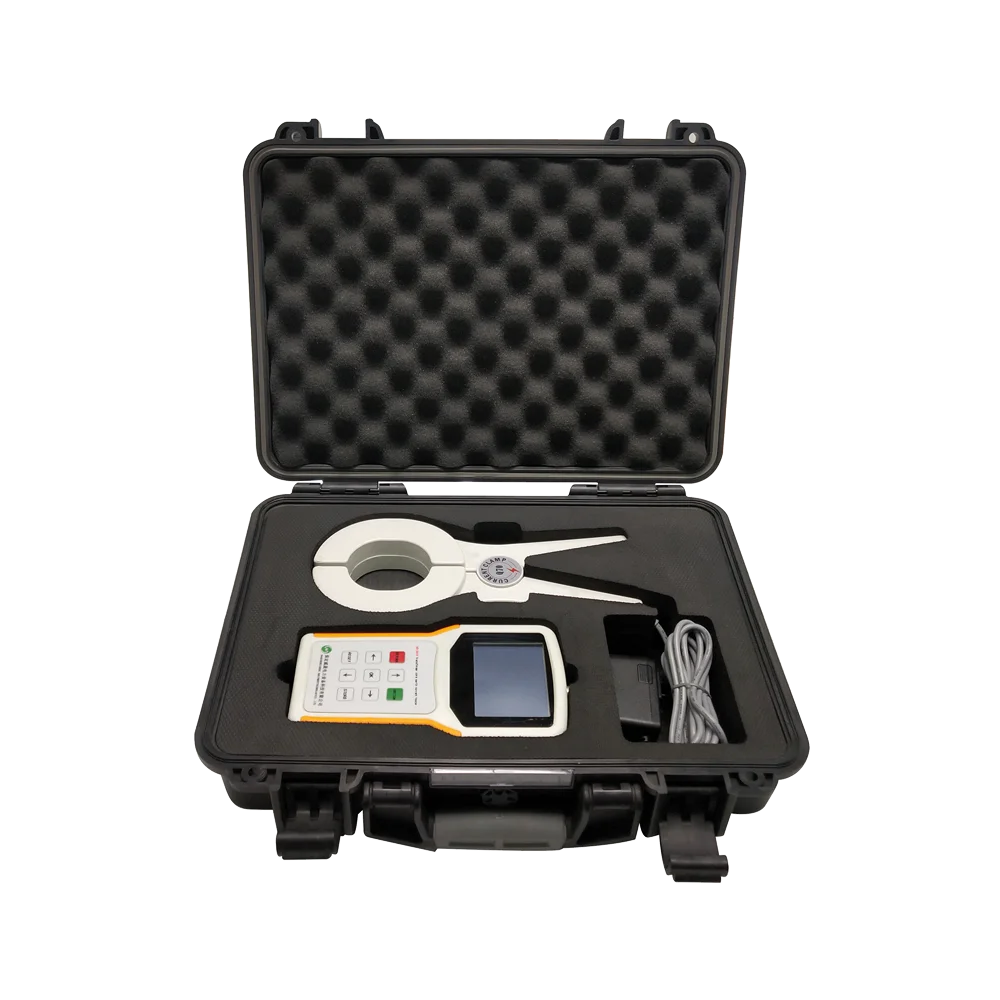

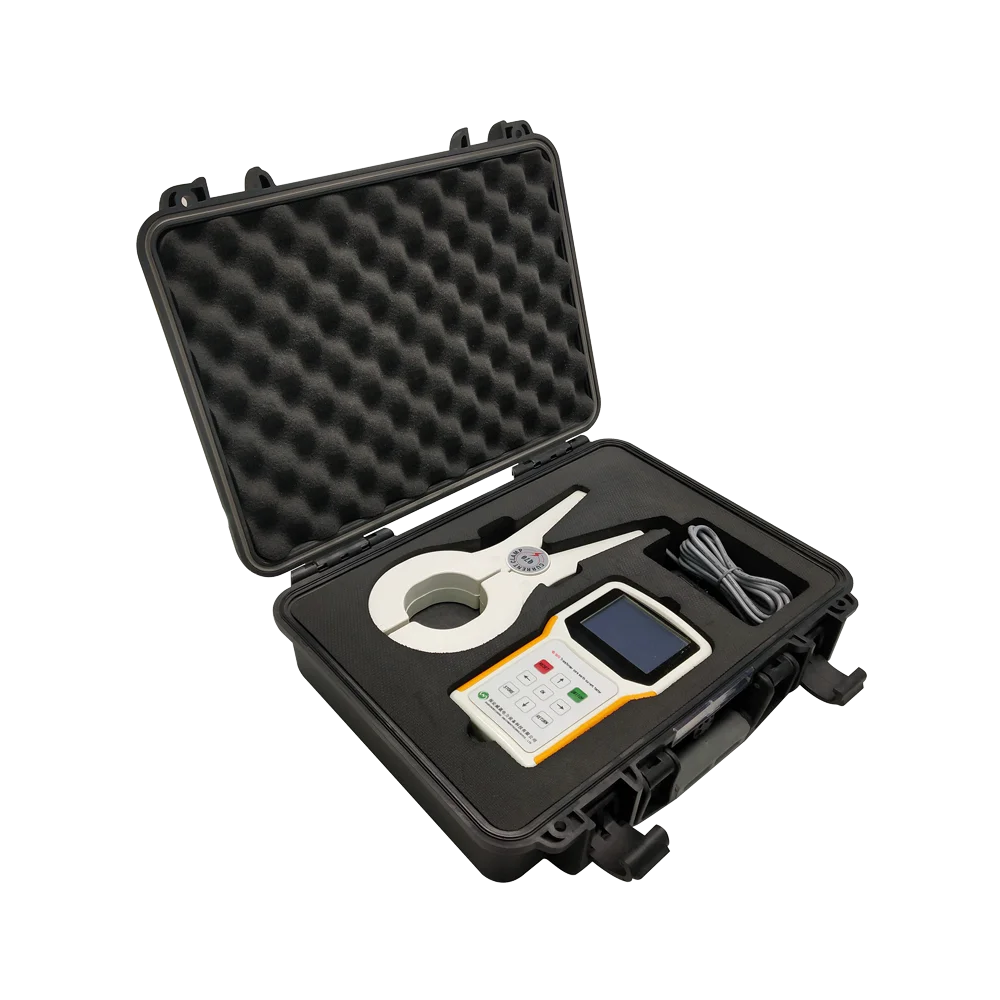

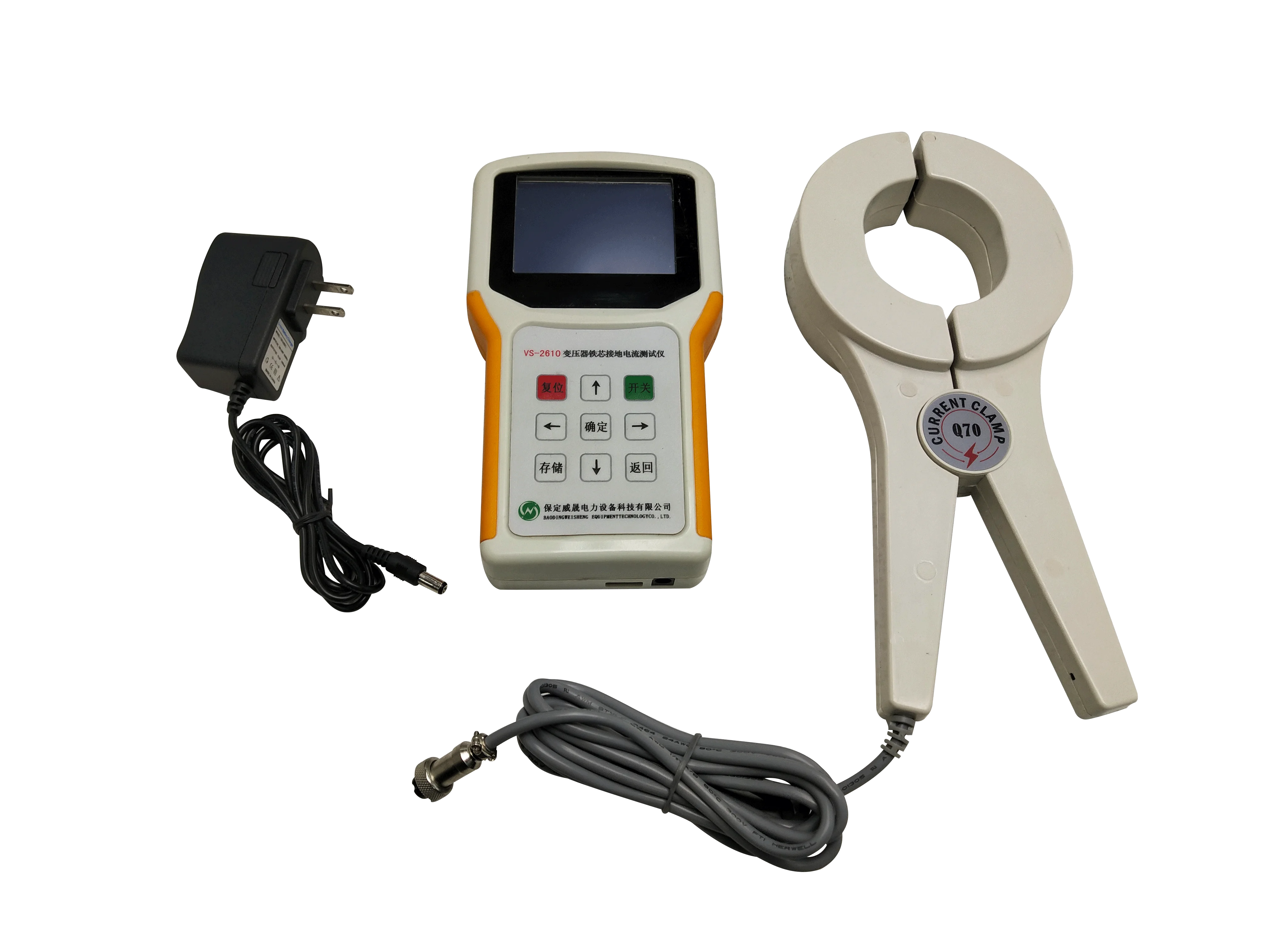

VS-2610_0001 IMG_20201212_120123

VS-2610_0002

Company Profile




FAQ




1. who are we?
We are based in Hebei, China, start from 2013,sell to South Asia(15.00%),North America(10.00%),Domestic Market(10.00%),Southeast Asia(10.00%),Western Europe(10.00%),Africa(5.00%),Eastern Asia(5.00%),Northern Europe(5.00%),Central America(5.00%),South America(5.00%),Mid East(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Southern Europe(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Hand Held Winding Resistance Tester,Oil Acid Value Automatic Tester,Loop Resistance Meter,Variable Frequency Mutual Inductor Transformer Tester,Zinc Oxide (ZnO) Lightning Charged Arrester Tester,Insulation Resistance Meter

4. why should you buy from us not from other suppliers?
Our company is a modern high-tech enterprise specializing in the research and development, production, sales and service of power system automation devices and test instruments.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,EXW;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal,Cash;
Language Spoken:English,Chinese
