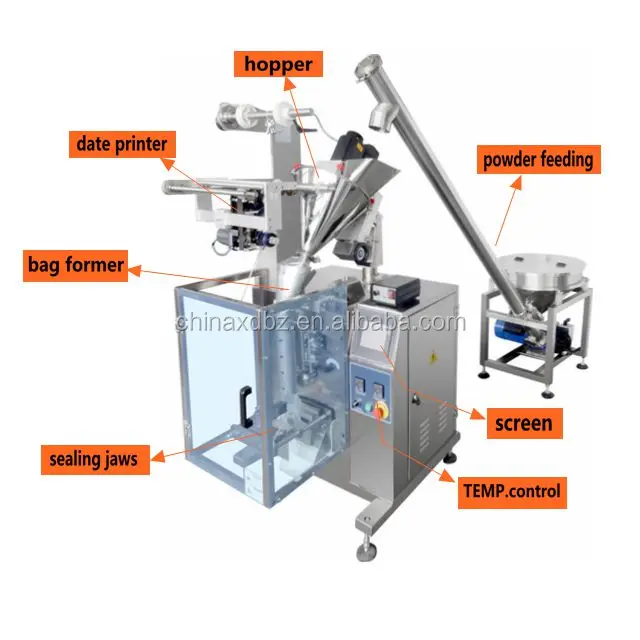

Automatic Vertical Small Sachet Coffee Powder Bag Filling and Sealing
- Категории: >>>
- Поставщик: Wenzhou,JOIE,Machinery,Co.,Ltd
Поделиться:
Описание и отзывы
Характеристики
Product Description

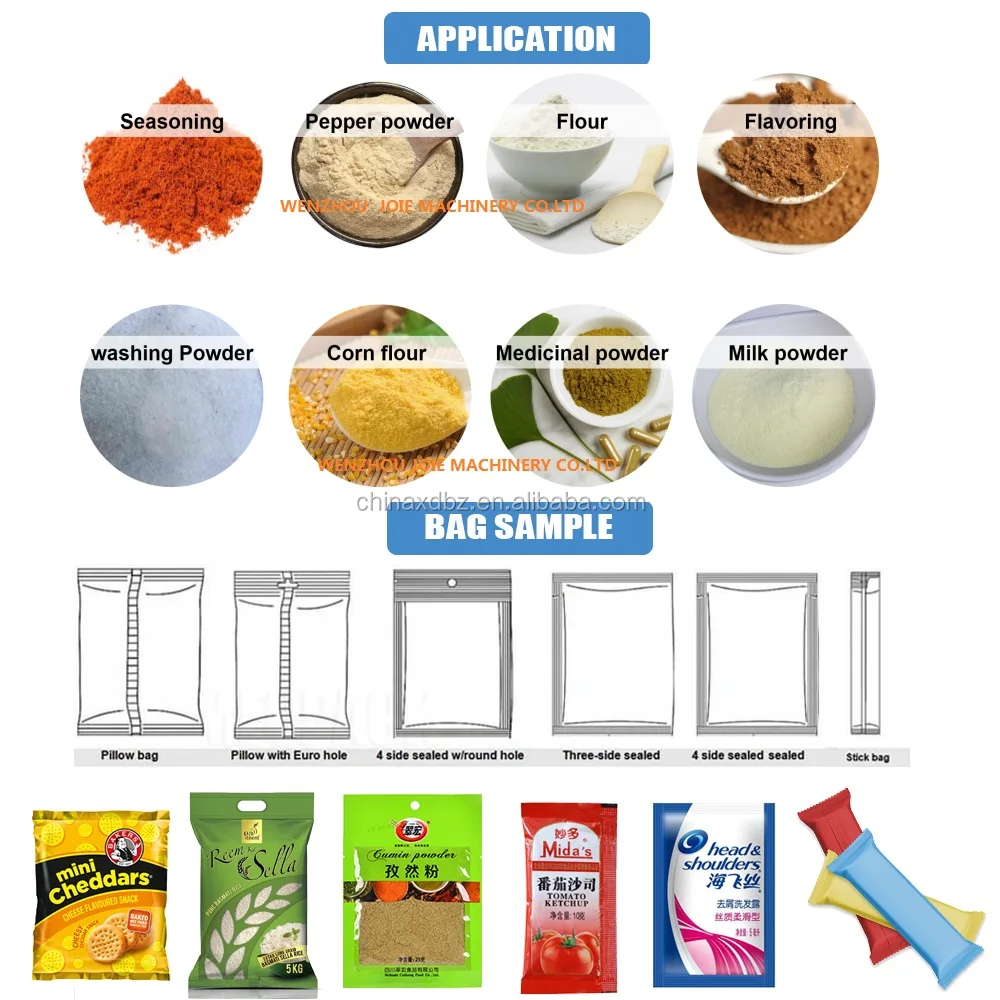

Product Application
This machine is suitable for the packing of foodstuff, chemical products, medicinal, milk powder, soy milk powder, oatmeal, sesame paste, sugar, flavoring, seasoning and all kinds of medicine taken with water.
Product Paramenters
Model | JEV-300G | JEV-300L | JEV-300P | JEV-400G | JEV-400P | JEV-420G/420P | JEV-52G0/520P | ||||||
Control system | PLC control+ servo motor control | ||||||||||||
Product range | Granule | Liquid/paste | Powder | Granule | Powder | Granule/Powder | Granule/Powder | ||||||
Filling system | Volume cup | Piston pump | Auger feed | Volume cup /Multi weigher | Auger feed | Volume cup/Auger feed | Volume cup/Auger feed | ||||||
Weight range | 5-250g | 5-250ml | 5-250g | 10-1000g | 10-1000g | 2500g | 2500g | ||||||
Max. Film Width | 30mm | 300mm | 300mm | 400mm | 400mm | 420mm | 520mm | ||||||
Bag making length | 40-250 mm | 40-250 mm | 40-250 mm | 40-300mm | 40-300mm | 300mm | 400mm | ||||||
Bag making width | 20-150mm | 20-150mm | 20-150mm | 20-195mm | 20-195mm | 20-210mm | 50-260mm | ||||||
Packing speed | 30-50pcs/min | 300pcs/min | 250pcs/min | 200pcs/min | 200pcs/min | 160pcs/min | |||||||
Machine construction | Stainless steel 304 | ||||||||||||
Quality standard | CE Certificate/Food standard | ||||||||||||
Main Features
1.304 Stainless steel cover meets to GMP standard.
2.Adjustable packaging speed and specified range, flexible packing.
3. Automatically bag making— code printing--measuring--filling—sealing—cutting --counting--- conveying finished products--sorting finished products.
3. Automatically bag making— code printing--measuring--filling—sealing—cutting --counting--- conveying finished products--sorting finished products.

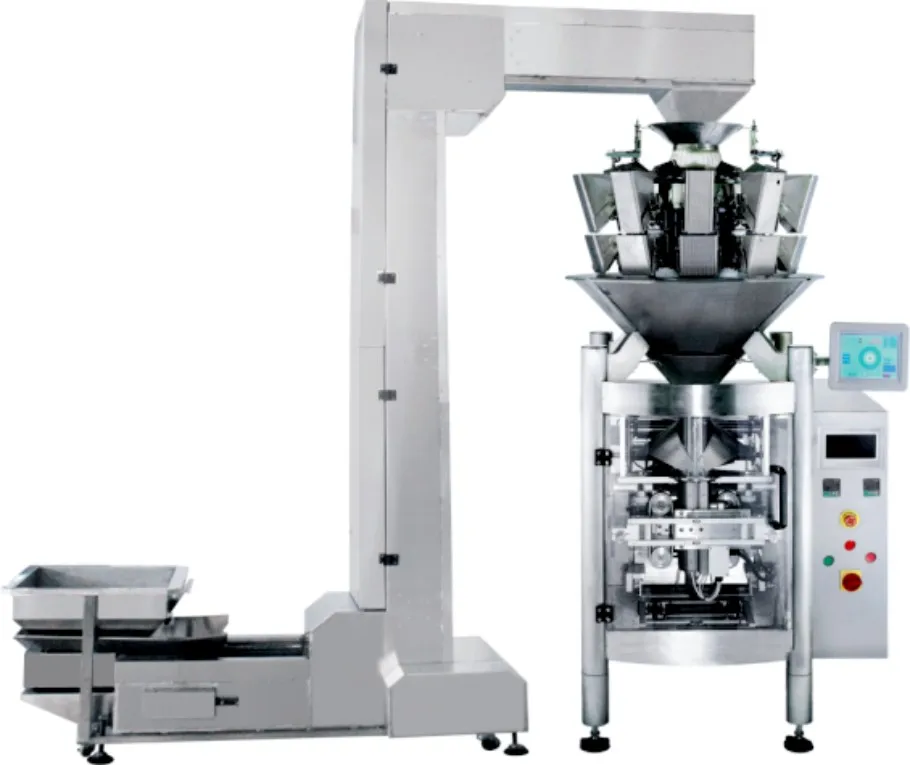

4.The measuring system adopts adjustable volume cups to adjust the volume of materials, can also equip with multi head electric weigher measuring.
5.Big controller Panel , Siemens touch screen,can store a variety of different product packaging process parameters, whenre placing product, it can be used at any time without resetting.
5.Big controller Panel , Siemens touch screen,can store a variety of different product packaging process parameters, whenre placing product, it can be used at any time without resetting.
6.Digital and separate PID temperature controllers,suitable for various packing materials.
7.Photoelectric color mark tracking and orientation ,digital input,sealing and cutting more accurate.
8. Low noise, quiet working condition.
7.Photoelectric color mark tracking and orientation ,digital input,sealing and cutting more accurate.
8. Low noise, quiet working condition.
9.With safety switch,protectioncover ,more safety .

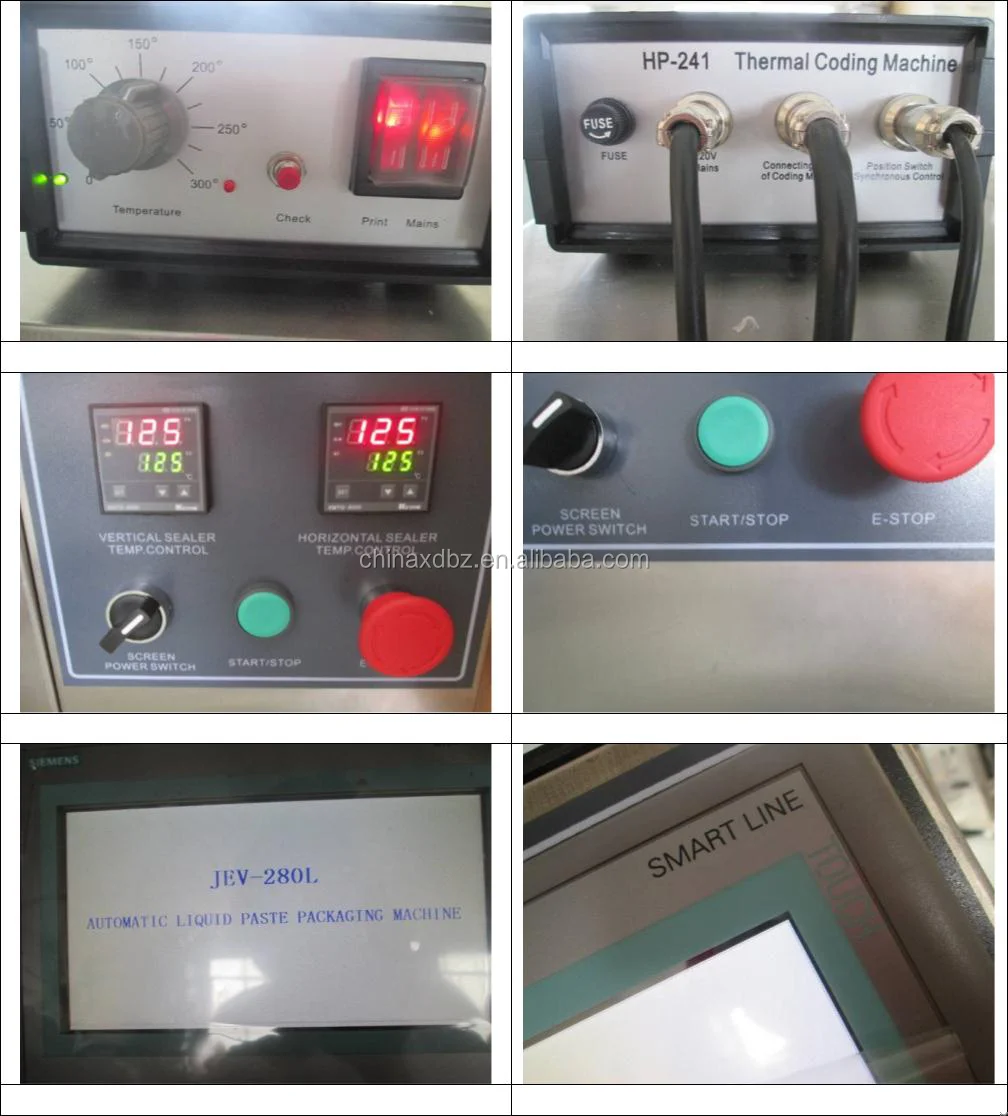

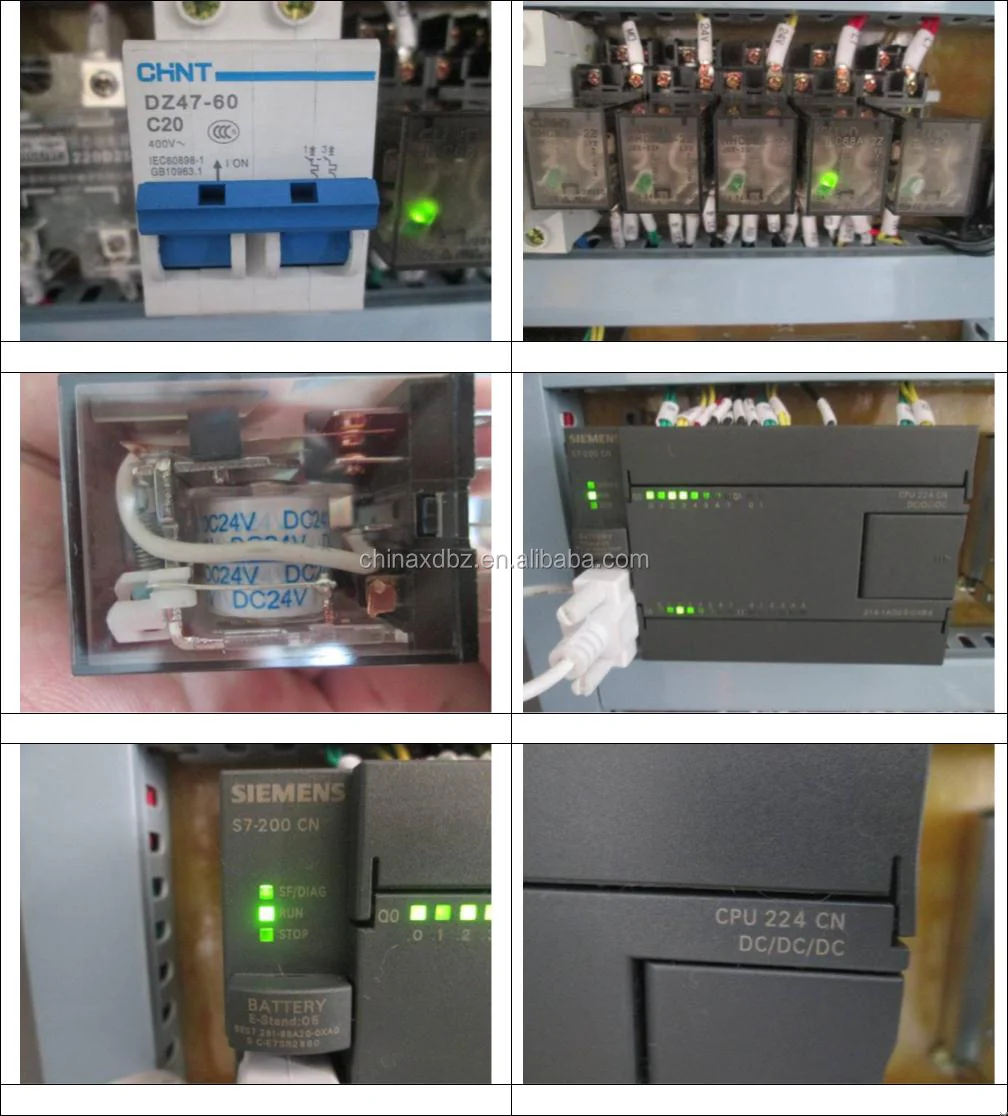

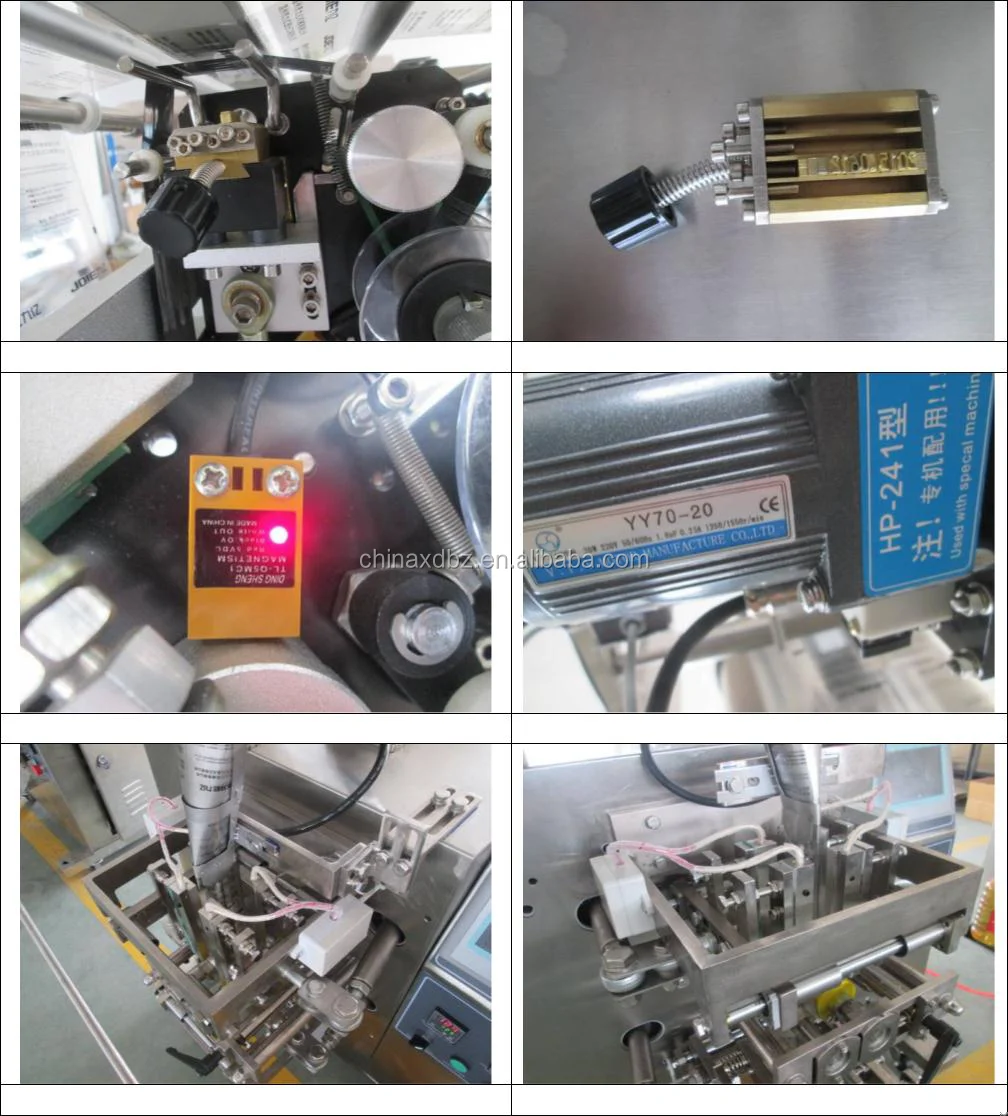

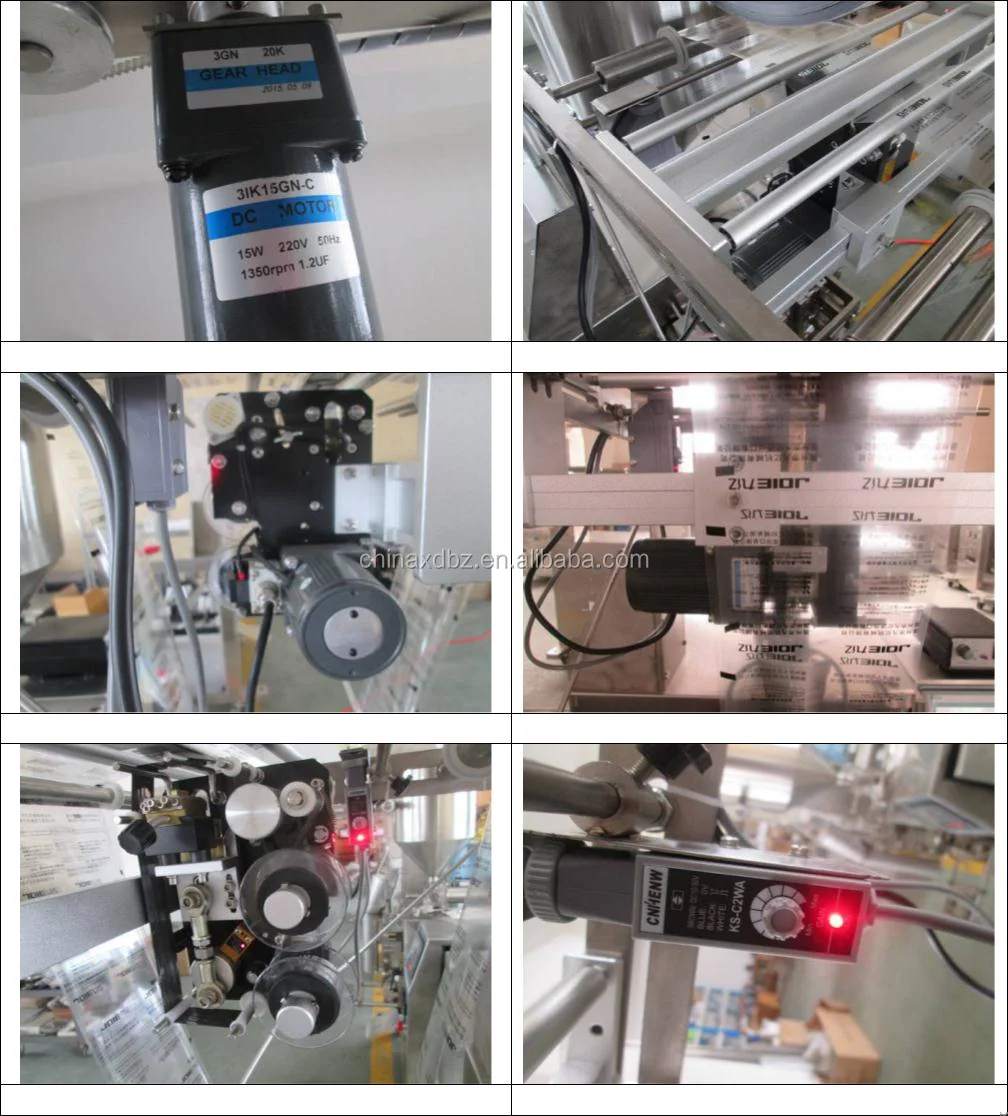

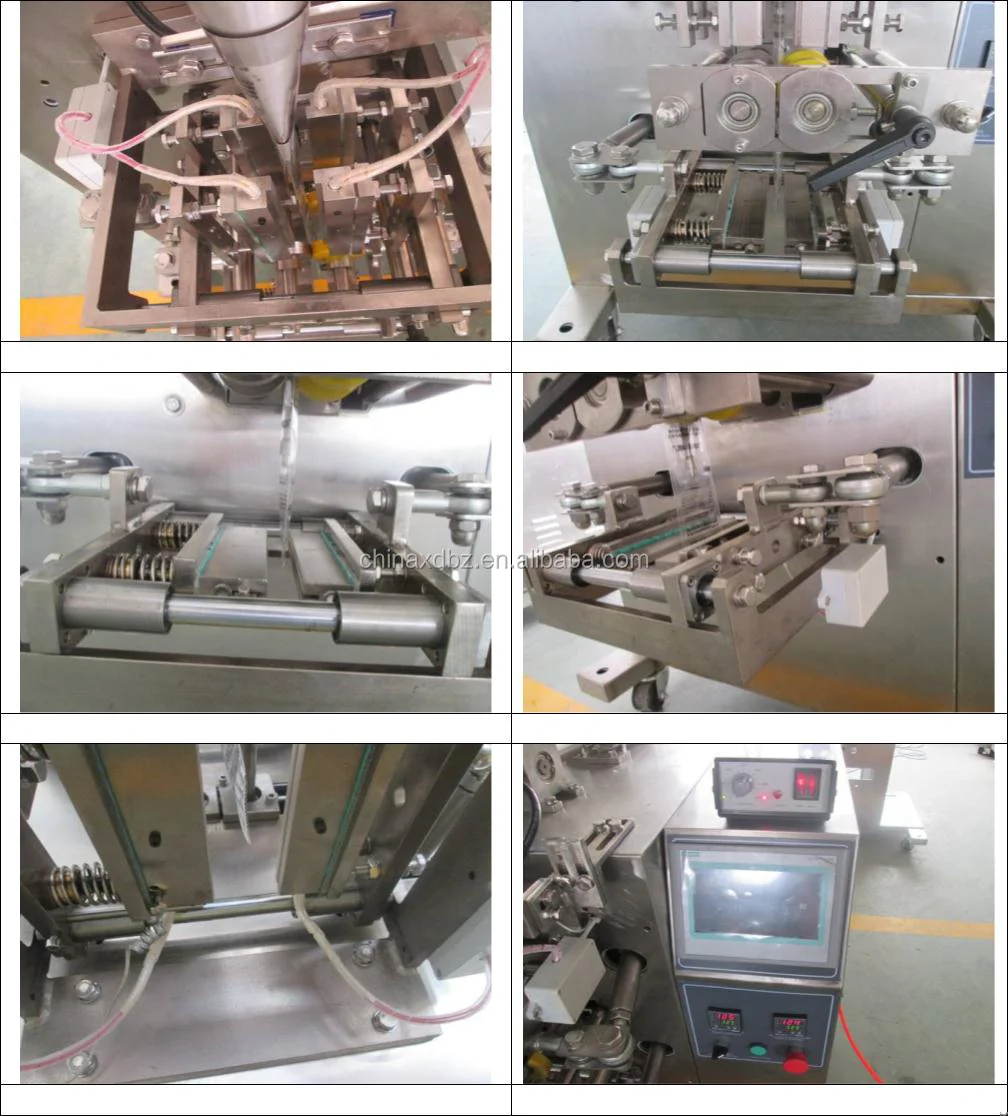

Detailed Images

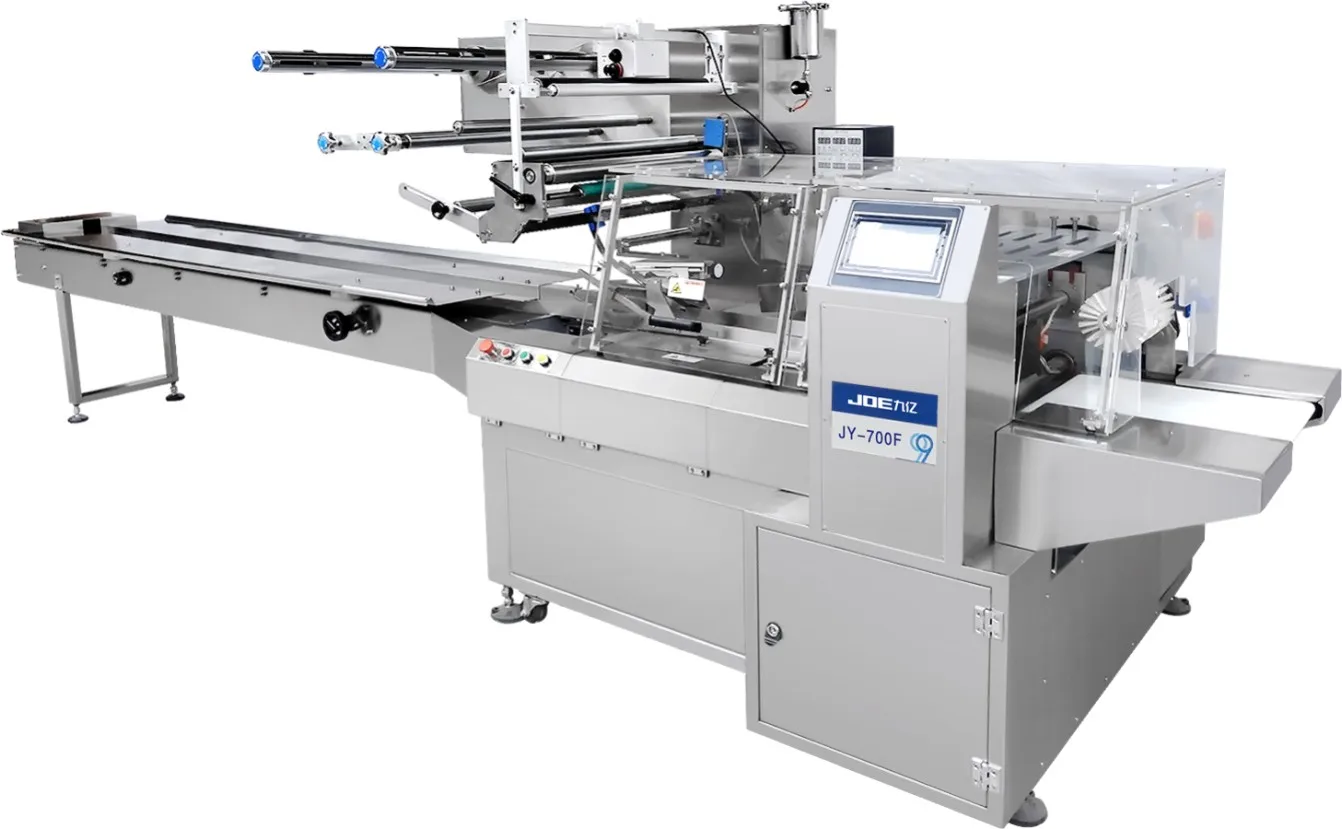

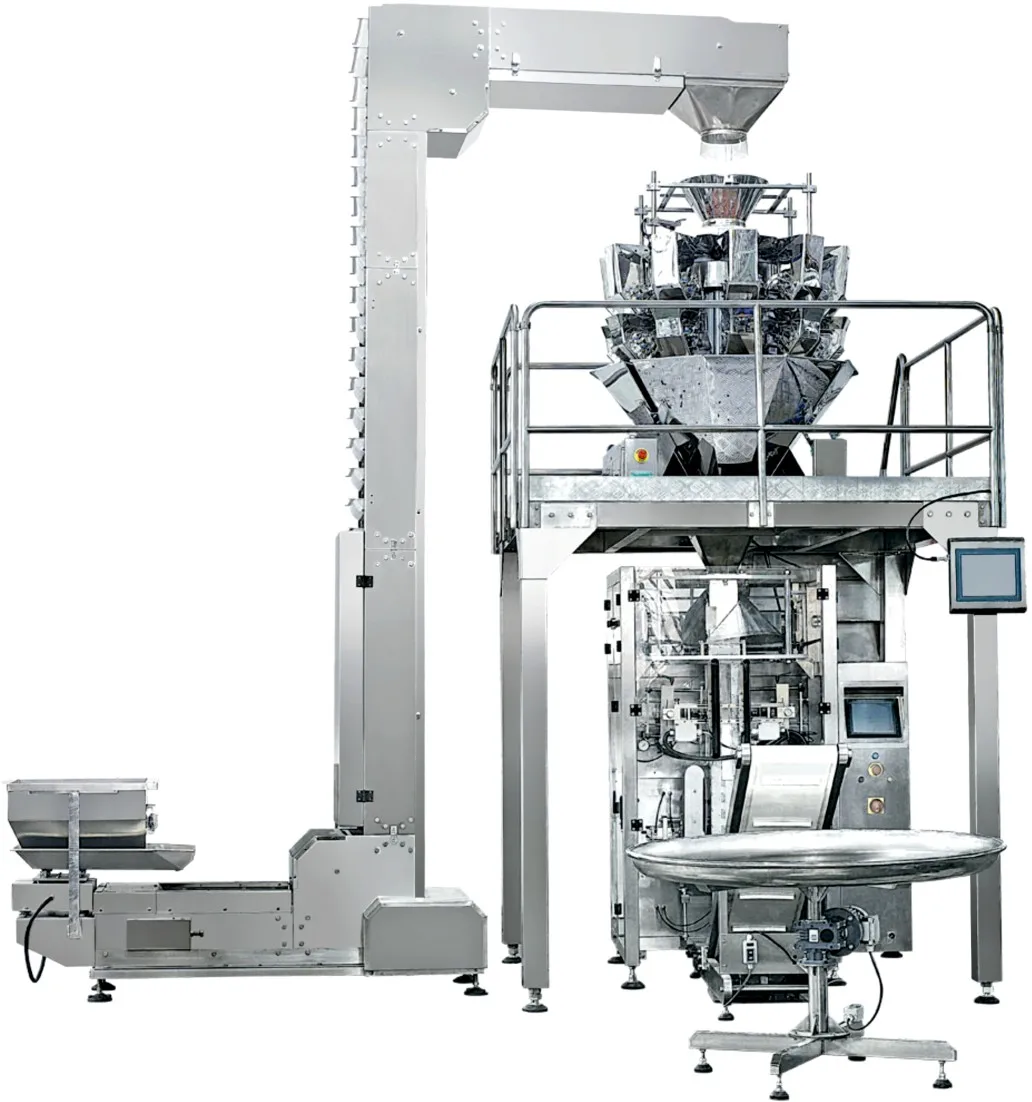

Recommend Products
