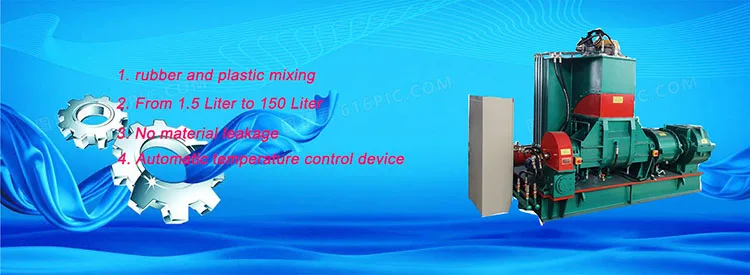

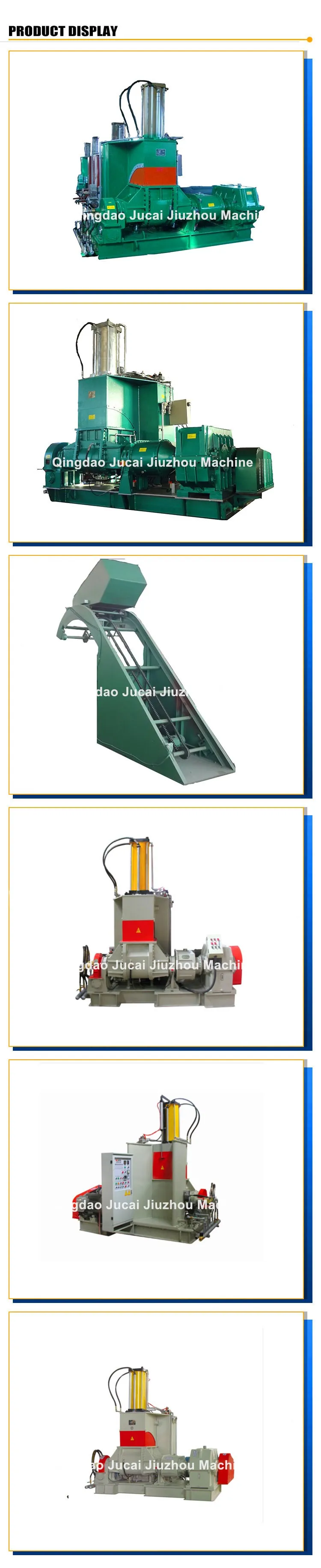

rubber kneader machine

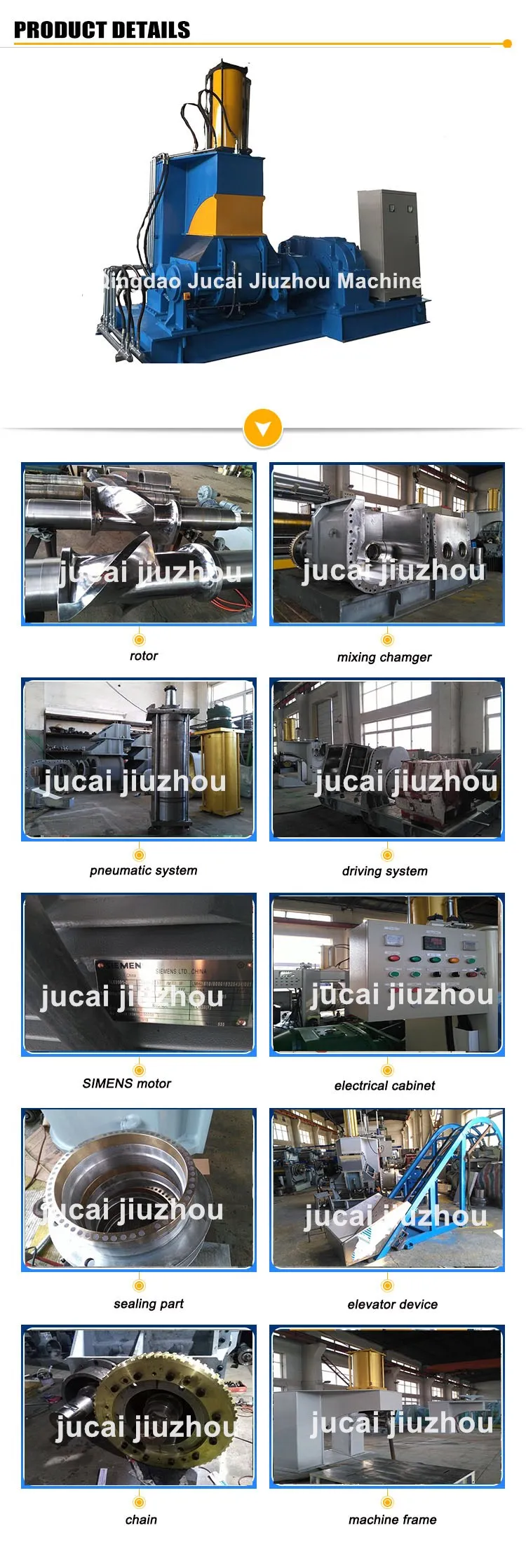

The series of rubber kneader machine is a type of dispersion kneader, consist of pneumatic control system, electric control system, tilting mechanism, mixing chamber, main driving system, dust sealing device, thermal resistance, rotor and cooling/heating system. You can choose the right model according to your needs.


Model
X(S)N-1.5*4
X(S)N-3*8
X(S)N-5*11
X(S)N-10*15
total volume of mixing chamber
4 L
8L
11L
15L
working volume of mixing chamber
1.5L
3L
5L
10L
Main motor power
4 kw
7.5KW
7.5KW
15KW
Tilting motor power
0.55 kw
0.55 KW
0.75 KW
1.1kw
Tilting angel
135
135
135
135
rotor rotated speed (front/rear)
32/24.5r/min
32/24.5r/min
32/24.5r/min
32/24.5r/min
pressure of compressed air
0.6-0.8Mpa
0.6-0.8Mpa
0.6-0.8Mpa
0.6-0.8Mpa
flow of compression air
≧0.2m3/h
≧0.3m3/h
≧0.4m3/h
≧0.5m3/h
cooling water pressure
0.3-0.4Mpa
0.3-0.4Mpa
0.3-0.4Mpa
0.3-0.4Mpa
Weight
about 1500 kg
about 2000 kg
about 2300 kg
about 3300 kg


Model
X(S)N-20*45
X(S)N-35*75
X(S)N-55*125
X(S)N-75*180
total volume of mixing chamber
45L
75L
125L
180L
working volume of mixing chamber
25L
35L
55L
75L
Main motor power
30KW
55kw
75kw
110kw
Tilting motor power
1.5KW
2.2kw
3kw
4kw
Tilting angel
140
140
140
140
rotor rotated speed (front/rear)
32/25r/min
32/25r/min
32/25r/min
32/25r/min
pressure of compressed air
0.6-0.8Mpa
0.6-0.8Mpa
0.6-0.8Mpa
0.6-0.8Mpa
flow of compression air
≧0.6m3/h
≧0.8m3/h
≧0.9m3/h
≧1.0m3/h
cooling water pressure
0.3-0.4Mpa
0.4-0.5Mpa
0.4-0.5Mpa
0.4-0.5Mpa
Weight
about 4200g
about 6500kg
about 7500kg
about 10300 kg




















1.Are your company a trading one or a factory?

Factory + trade (integration), 30 years focusing on rubber machine design and production .
OEM is also acceptable for us.

2.How to choose the most suitable products?

Our professional team will give you the best suggestion as long as you tell us what kind of product you need to do and the required specification.

3.Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.

4.How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change,
necessarily, our engineers may go to your place for better service.

5.How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden box, it won’t be damaged. We’ve delivered many testing machines abroad by sea or by air without damage.

6.What is the order process?

Inquiry - quotation - communication - order confirming - deposit payment - production - testing and debugging - balance payment -packing - delivery - customer receiving - after service.
