ASLONG завод JGA25-370 12В высокий крутящий момент на низких оборотах микро 370 двигатель постоянного тока с
- Категории: DC Motor >>>
- Поставщик: Shenzhen,Jinshunlaite,Motor,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Description
JGA25-370 DC GEAR MOTOR
1.Standard Operating Conditions:
1-9Rated Voltage: 12v 24v.
1-10Direction of Rotation:CW when viewed from output shaft side
1-11Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.
1-12Storage Temperature:Temperature range of -20C~+60C
2.Measuring Conditions:
2-1 Motor Position:To be place t horizontally when measuring
2-2 Power Supply: Regulated DC power supply
--No load speed:2-160rpm.
--Robotics, Small Appliance, Fanner, Electric Curtain;
--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
--Electric motor,low noise,low current and no spark.
Ratio: 4.4 9.6 16 21.3 26 34 45 78 59 103 171 130 226 286 378 500
--- 370 Motor information : 6v 6000RPM 8500RPM 12v 6000rpm 8500rpm 24v 6000rpm 8500rpm
Remark:
Please confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering, we will random send one for this type, hope your kindly understanding.
If you want to need other speed , please contact us , we will make it for you
1-9Rated Voltage: 12v 24v.
1-10Direction of Rotation:CW when viewed from output shaft side
1-11Operating Temperature and Humidity:Temperature range of -10C~+50C,Humidity range of 30%~80%.
1-12Storage Temperature:Temperature range of -20C~+60C
2.Measuring Conditions:
2-1 Motor Position:To be place t horizontally when measuring
2-2 Power Supply: Regulated DC power supply
--No load speed:2-160rpm.
--Robotics, Small Appliance, Fanner, Electric Curtain;
--Medical Pump, Surgery Tools, Medical Stirrer, centrifugal Machine; Electric Valve, Actuator, medical device
--Electric motor,low noise,low current and no spark.
Ratio: 4.4 9.6 16 21.3 26 34 45 78 59 103 171 130 226 286 378 500
--- 370 Motor information : 6v 6000RPM 8500RPM 12v 6000rpm 8500rpm 24v 6000rpm 8500rpm
Remark:
Please confirm the voltage and speed before ordering,if you don't reply within 8 hours after ordering, we will random send one for this type, hope your kindly understanding.
If you want to need other speed , please contact us , we will make it for you
shaft : DIA 4mm DIA 5mm
Install hole distance : 17mm
sahft lenght
Red point for Motor +, another for Motor -
Brushed 370 dc motor with Magnetic tile
Product Drawing
370 dc gear motor.
shaft length and motor speed can be customized ;

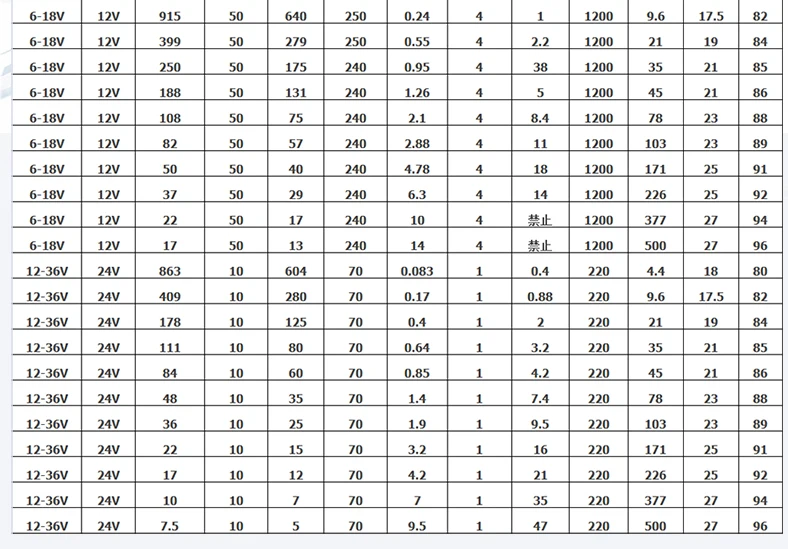

Product Paramenters
JGA25-370 DC gear motor
Above data for your reference , any question , you can ask us at any time .
Motor shaft and speed customized
Recommend Products
Micro dc geared motor
Motor model :JGA25-310
Shaft dia :4mm 5mm
370 dc encoder motor
Motor Model: JGA25-370B
370 DC Gear motor with Hall sensor encoder 11PPR 370 DC encoder motor with Cover
JGA25-370GB Encoder motor
Hall sensor 13PPR
