LA-32

Features

l 12/24V/36/48VDC permanent magnet motor

l Max load 1500N

l Max speed: 30mm/sec

l Standard protection class: IP65

l 50,000 life cycles

l Built in limit switch

l Aluminum Alloy housing



Options

limit switch feedback, Hall sensor, Brush less  motor.



Usage

l Duty cycle:   Max 25%

l Working  temperature:  -26°C~+65°C

l The unit can be used in any where the space is limited

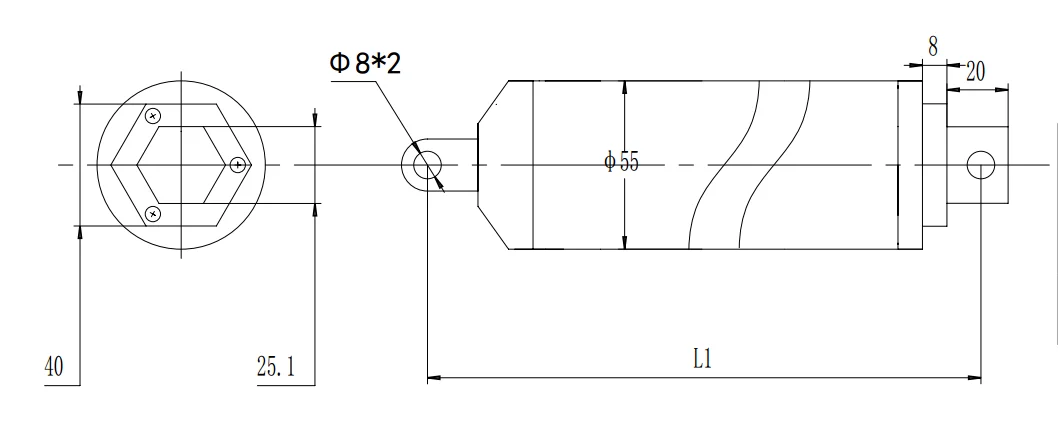

Drawing:









Installation dimensions

L1=retracted length



stroke(±2 mm)	50	100	150	200	250	300
Retracted length (L1)(±2 mm)	300	350	400	450	500	550
Weight(kg)	1.02	1.15	1.26	1.37	1.48	1.6







Q:  Are you a manufacture or trading company?
A: We are a manufacturer, and we have got permit of import and export as well.

Q: Where is your factory located? How can I visit it?
A: Our factory is located in Ningbo, China. 25 Minutes by car from Ningbo Airport.

Q: How can I get the sample? What's the lead time?
A: Samples could be sent within one week, the lead time is 35-45 days.

Q: Do you provide ODM/OEM service?
A: OEM/ODM is welcome,  From the concept to finished goods, we do all (design, prototype reviewing, tooling and production) in the factory.

Q.Warranty
A: We have warranty for our clients,we will ship out the new replacements if clients get the item with defect or broken frame

Q. What’s payment terms ?
A: Bank T/T, PayPal

Q. Which method of transport would be better?
A: enerally, we suggest to make shipment by air which is faster and riskless for transportation. We also can follow other transportation method you ask
