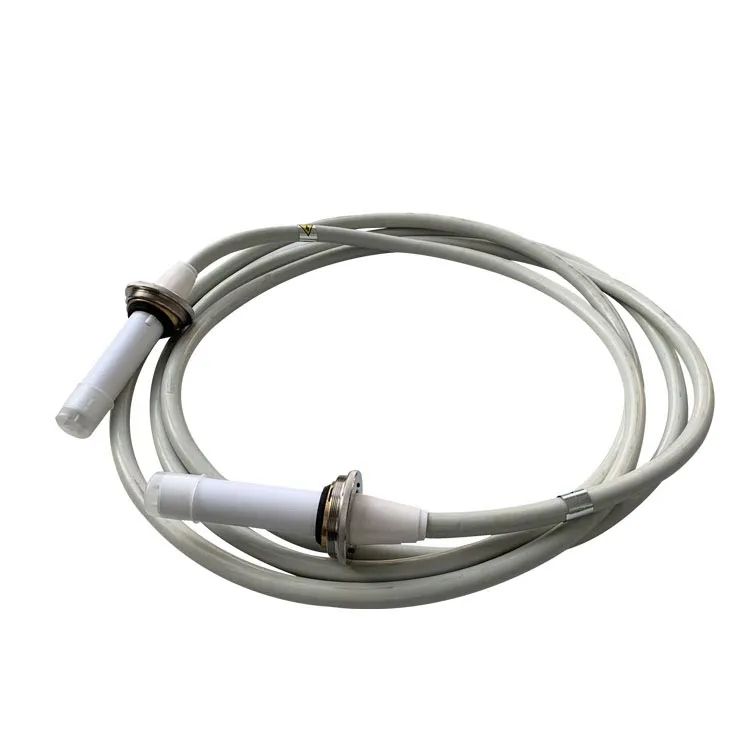

Factory direct sales medical 75kv high voltage cable for x ray equipment


Products Description



NK75kVDC
X-Ray High Voltage Cables

Application:

√ Medical x ray machine such as mobile x ray, portable x ray, standard x ray, DR, diagnostic x ray, C-arm, U-arm etc. As well as computer tomography (CT) and angiography equipment.

√ Industrial and scientific x ray device or electron beam equipment, such as electron microscopy and x-ray diffraction equipment.

√ Low power high voltage test and measuring equipment.


Product Paramenters


Electrical Data
Rated Voltage
90kVdc
Shield Resistance
0.010 Ohm/m
Coverage Shielding Braid
> 95%
Cable Capacity
< 120pF/m
Test Voltages
High Voltage Insulation
90kVdc
Low Voltage Insulation
500 Vac


Mechanical Data: Cable
Mechanical Data: Plug
Outer Diameter
16.5 mm +0.5
Multiple Contact Pin
8 point contact
Bending Radius
> 150mm
Max. Temperature
110°C
Low Voltage Conductor
2*1.5mm²
Flanges
Demountable
Common Conductor
2x0.75mm²
Extremely Short Sleeve
34 mm
Conductor Resistance
0.013 0hm/m
Small Plug Diameter
40 mm
Cable Sheat Colour
Light grey
Solderless Connection
(EMC grounding)


Details Images




Product advantages




Cable sheath appearance should be smooth, uniform diameter, with no joint, bubble, bumps and other undesirable phenomena.
Weave shield density is not less than 90%.
The minimum thickness of the cable insulation and sheath must be 85% more than the nominal thickness.
Insulation between the core and the insulated wire, insulation between the core and the ground cable should be able to withstand the AC 1.5KV and keep 10 minutes can not been broken down.
Insulation between the core and the shield should be able to withstand the DC 90 KV and keep 15 minutes can not been broken down.
The DC resistance of the conductor and ground cable not more than 11.4 + 5%Ω/m.
The insulation resistance of the insulation core wire not less than 1000MΩ·Km.
The plug body should be able to withstand not less than 1000 times fallen off experiments with no damage.
The surface of each plating should be clean and bright.
The high voltage cable and each part should meet Rohs 3.0 relative requirement. Brass is below 0.1wt.
The high voltage cable and each part should meet Reach relative requirement.


Craft

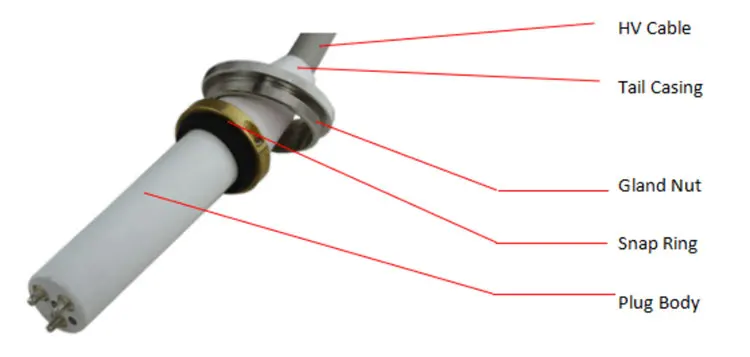

1. HV Cable Connector Diagram

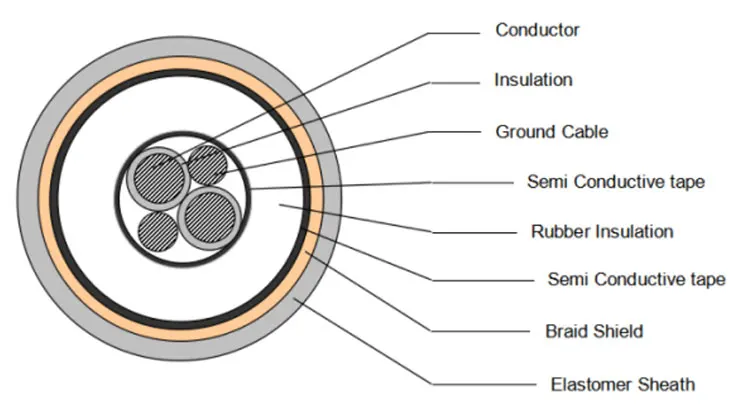

2. HV Cable Section Plan Diagram

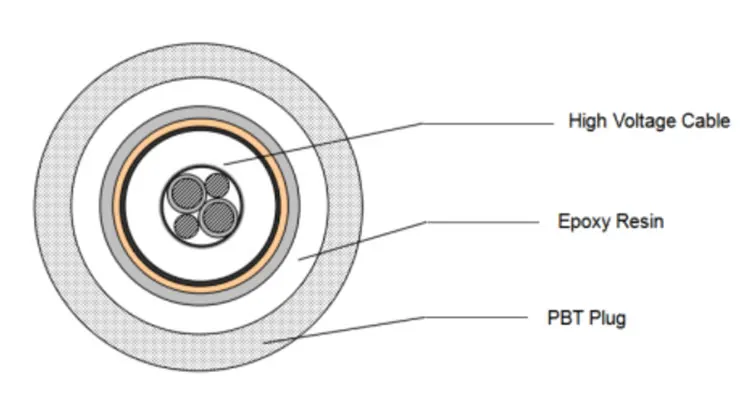

3. Plug Body Section Plan Diagram

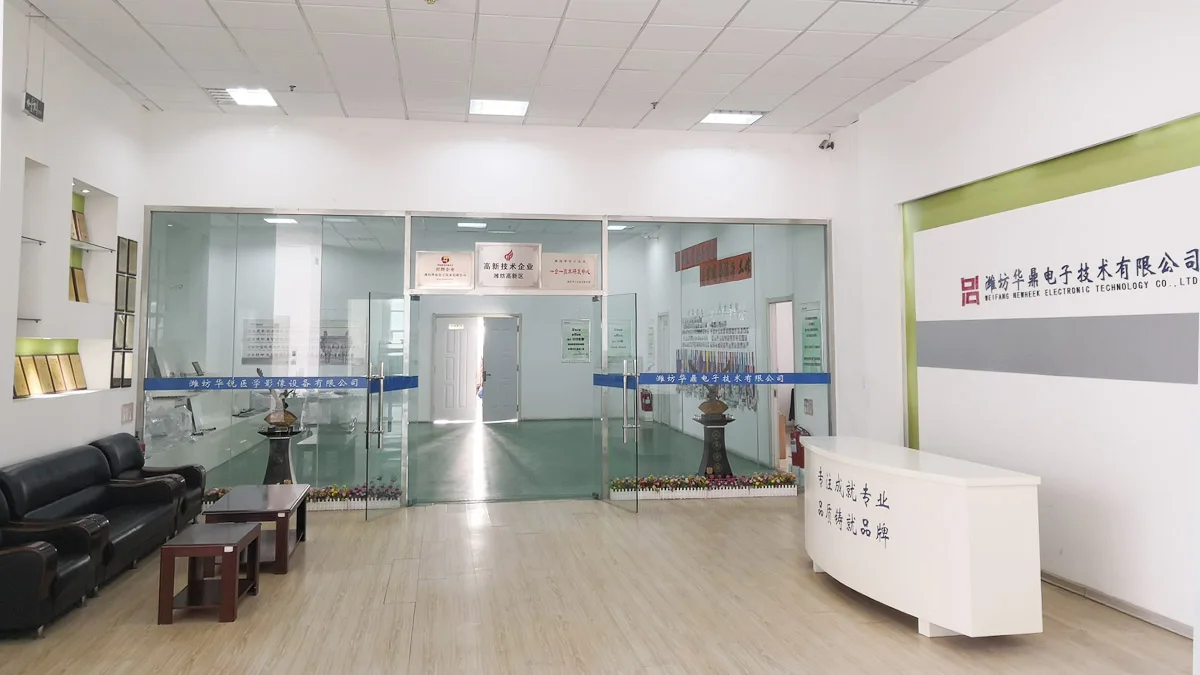

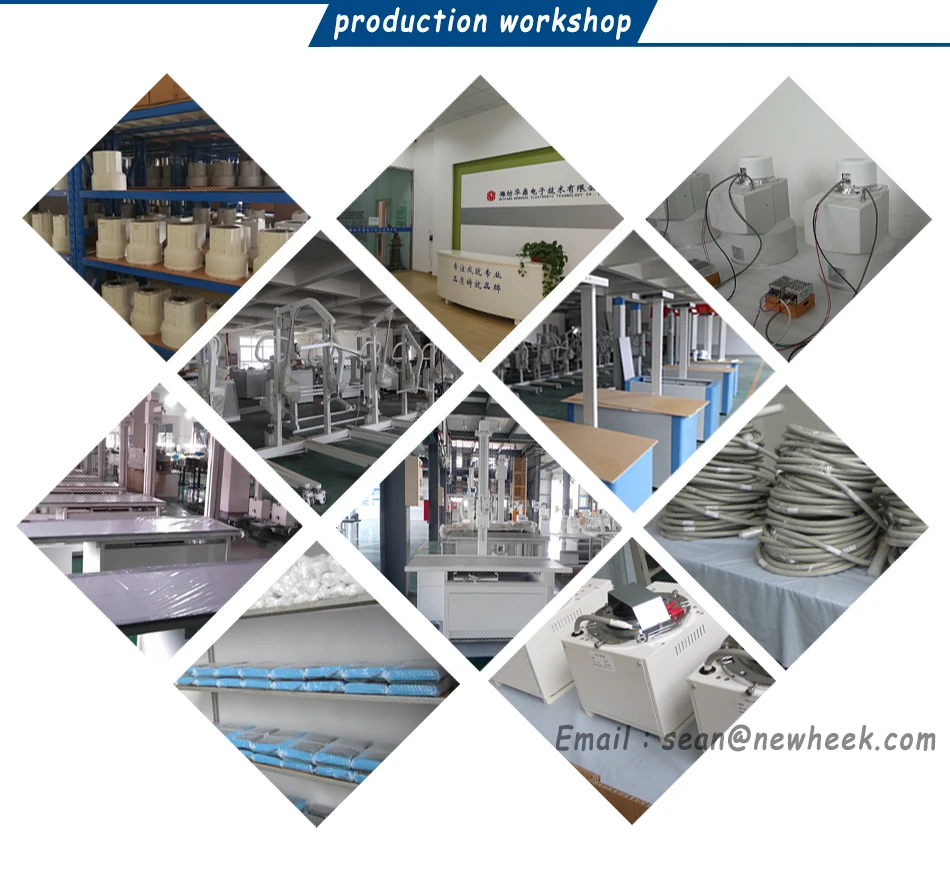

Company Profile



Newheek is the manufacturer of x ray hand switch, foot switch, x ray chest bucky stand, x ray mobile radiography table, x ray image intensifier TV system, high voltage power supply, high voltage cable, collimator,U-arm, portable x ray device,mobile DR etc x ray machine machine and components.
Contact Email： service@newheek.com










FAQ


Q1. What is our main product?
A1: We are the original manufacturer of X- ray machine and accessories for more than 16 years. Our main products are Bucky Stand , Mobile X-ray Table , Mobile X-ray machine, X-ray Detector, Exposure Hand Switch , etc.

Q2. What is the Payment Method ?
A2: We could accept payment by TT, Western Union, Visa Credit Card, etc.

Q3. How long is the Lead Time?
A3: Within 15 workdays for X-ray machine accessories after receipt of payment.

Q4. Can our products be customized?
A4: If our product specifications can not meet your needs, we can also customize products for you.We accept OEM or ODM items. We could print your logo during production.
