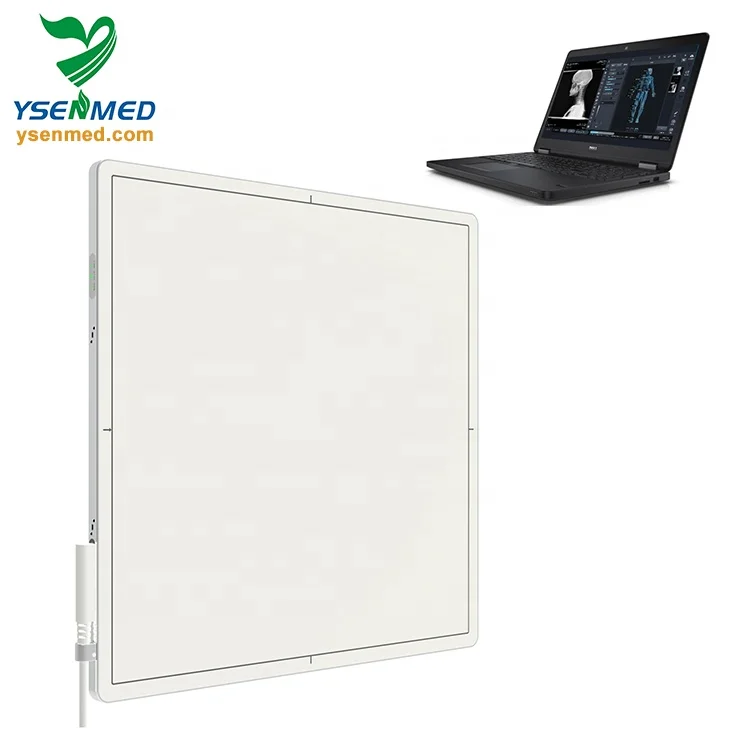

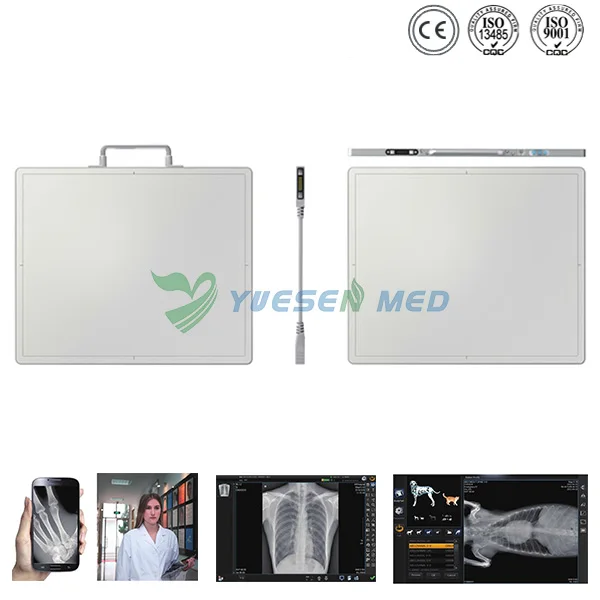

Wireless Digital X Ray Equipment Flat Panel Detector on Discount
High quality medical equipment digital x ray flat panel detector wire or wireless
Model:YSFPD4343A
High performance, cassette-sized flat panel detector which has both wired and wireless version. Battery stands by for at least 8 hours. YSFPD4343A supports IEEE 802.11ac with transmission speed up to 1300M bps. The detector acquires outstanding images with high DQE and high resolution. Equipped with highly sensitive AED function, the detector can be easily connected to and synchronized with any kind of generators.

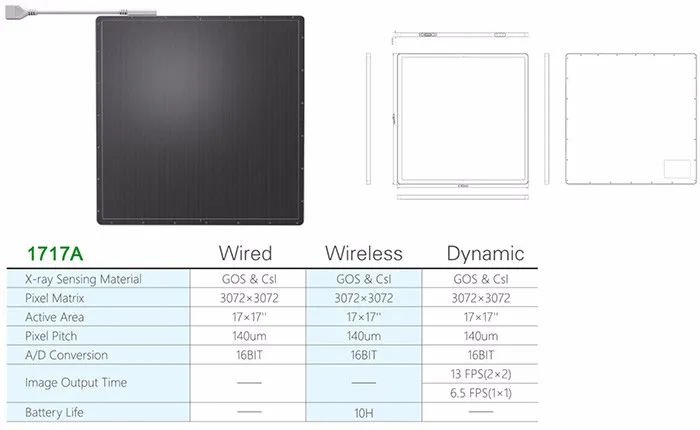

Description | Specification | Specification |
Detector Technology | a-Si | a-Si |
Scintillator | GOS | CsI |
Image Size | 43×43 cm | 43×43 cm |
Pixels Matrix | 3072×3072 | 3072×3072 |
Pixel Pitch | 140µm | 140µm |
A/D Conversion | 16bit | 16bit |
Minimum Detectable Dose (RQA5) | 20nGy | 14nGy |
Maximum Linear Dose (RQA5) | 150µGy | 110µGy |
MTF @ 1.0 LP/mm | 0.51/0.56/- | 0.60/0.65/- |
MTF @ 2.0 LP/mm | 0.22/0.24/- | 0.30/0.33/- |
MTF @ 3.0 LP/mm | 0.09/0.11/- | 0.15/0.18/- |
DQE @ 0.0 LP/mm (2.5µGy RQA5) | 0.48/0.50/- | 0.62/0.66/- |
DQE @ 1.0 LP/mm (2.5µGy RQA5) | 0.30/0.32/- | 0.43/0.45/- |
DQE@ 2.0 LP/mm (2.5µGy RQA5) | 0.14/0.15/- | 0.30/0.32/- |
Xray flat panels digital radiography
Medical Radiography digital wireless flat panel x ray detector

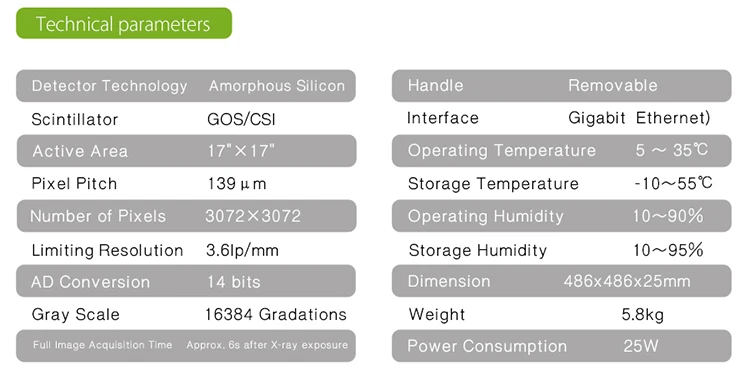

Specificaition
X-ray sensing Material GOS and a-Si
Effectice Area 14X17in or 17*17in
Pixel Pitch 140μm
Acquisition Time (end of x-ray window to end of image transmission) Wireless≤2s, Wired≤1s
A/D Resolution 16Bit
Line Pair Rssolution ≥3.6Lp/mm
Pixel Matrix 2560x3072 or 3072*3072
DQE 50%
Dynamic Range 84db
Operating Temperature 5~35℃
Operating Humidity 0~75%(non-condensing)
Battery Life 12Hours (wireless)
FP Housing Carbon Fiber,Magnesium Alloy
FP Size 460mmx383mmX15mm or 460mmx460mmX15mm
FP Weight 3.2kg
Waterproof Rating IPX3
Communication Standard 802.11n, 802.11ac
Docunment Standard DICOM3.0
