Product Overview

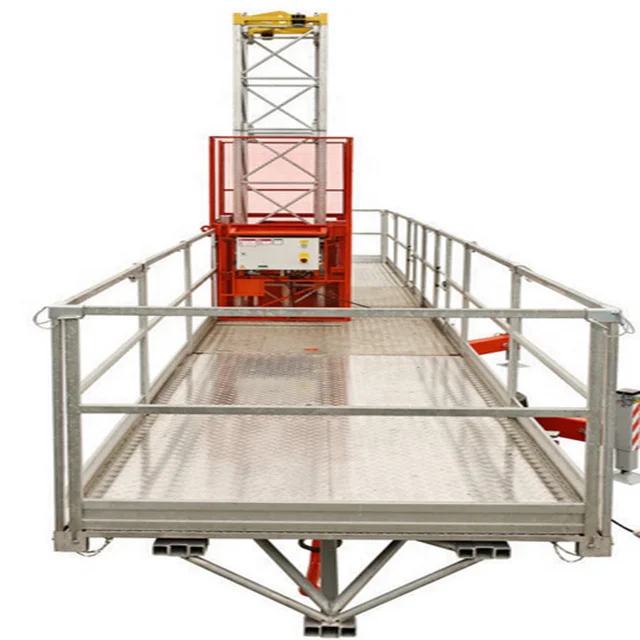

MCWP200-30D Mast Climbing Work Platform

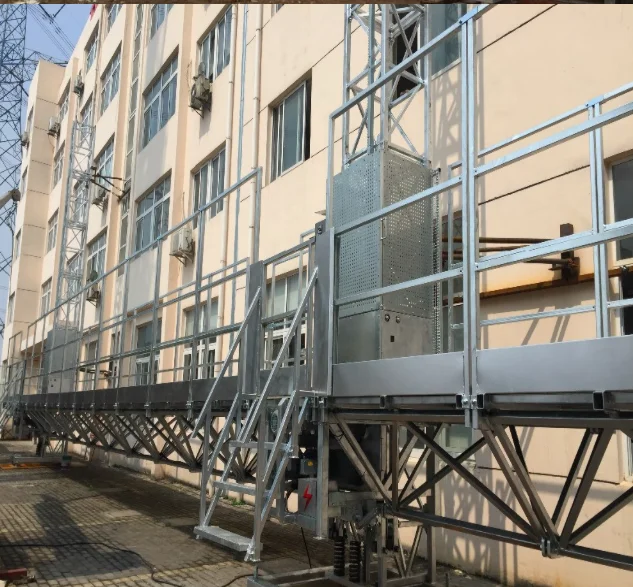

Mast Climbing Work Platform MCWP200-30D Mast Climbing Work Platform, adopting rack & pinion driving system, is used for external decoration and cleaning of buildings, glass curtain wall construction and maintenance and so on. With maximum length of 30m long platform, there is enough space for materials and workers ,so the working efficiency is greatly improved.There is also telescopic platform available to adapt different shape of facade. Also the length of platform can be adjusted as required at project sites. It adopts rack & pinion transmission with complete set of safety devices to ensure the security of workers. The installation and dismantling of our platform is very easy. The driving unit are complete system without installation at site. Equipped with mobile chassis, it is very easy to transfer project sites and convenient to transport
PRODUCT SPECIFICATIONS
Single Mast | Double Mast | |
Min/Min Platform Length | 4/10m | 11/30m |
Max Load Capacity | 2000/1500 kg | 3600/2000kg |
Lifting Speed | 0~6m/min | 0~6m/min |
Maximum Lifting Height | 200m | 200m |
Free Standing Height when working | 6 m | 6 m |
Platform Section Size | 1.5m×1.35m×0.65m | 1.5m×1.35m×0.65m |
Mast Section Size | 0.5m×0.5m×1.508m | 0.5m×0.5m×1.508m |
Driving System | 2.2kw×2 | 2.2 kw×2 +2.2 kw×2 |
FEATURES AT A GLANCE
Safety devices
a. Fall arrest device
b. Loading capacity limiter
c. Limit switch
d. Upper limit protection device
e. Lower limit protection device
f. Door limit protection device
g. Escaping window limit protection device
h. Bell warning device
i. Emergency stop protection device
j. Buffering protection device
k. Motor overload protector
l. Transformer short-circuit protection device
m. Phase sequence protection device
a. Fall arrest device
b. Loading capacity limiter
c. Limit switch
d. Upper limit protection device
e. Lower limit protection device
f. Door limit protection device
g. Escaping window limit protection device
h. Bell warning device
i. Emergency stop protection device
j. Buffering protection device
k. Motor overload protector
l. Transformer short-circuit protection device
m. Phase sequence protection device
