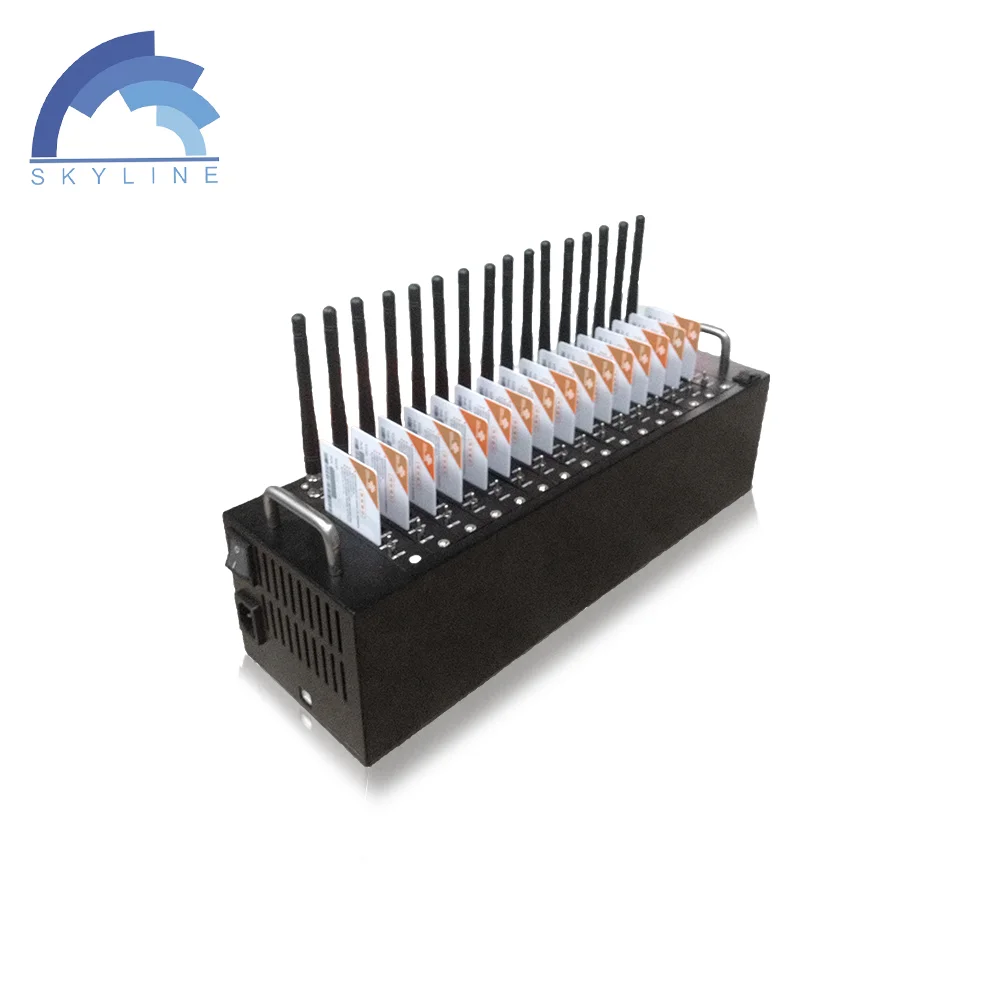

WCDMA 32port SIM GSM Modem Pool for Sending Receiving Bulk SMS modem 3G Support IMEI change



  The GSM Modem is actually a kind of equipment used for sending and receiving SMS. It needs a mobile phone SIM card to support just the same as we use cellphone. In the need to send Bulk SMS, put sim card into the device, link power and connect a pc through the USB cable. Then we can realize the function of the sending and receiving SMS by using the relevant computer management softwarewe.

Highlights

• 32 x SIM card (big/small) slots
• Receive/ Send Bulk SMS
• IMEI Changeable
• AT Command, Voice Call via AT Command
• 2G/3G/4G network Optional, 1/8/16/32/64 Ports Optional
• Free Bulk SMS Software (SMS Caster)



Product Feature

  1, can insert 32 SIM cards(big or small)

  2, connection with the computer through a data line can be integrated with USB
 3, Each channel with separate power switch
 4, Each individual module can be demolished
 5, industrial chassis, elegant shell

6.IMEI CHANGE
7, support  API and AT
8,dual/quad band

Application:
1. Large shopping malls, supermarkets

2.Professional market, large wholesalers

3.Large hotels, large-scale entertainment

4.Large agencies

5.Transport, logistics industry

6.Large enterprises, and institutions

7.Large hospitals, large bookstore

8.Newspaper, television and radio stations

9.Oil Company ( other chain business model)

10.Government agencies or large township

Model	SIM Slots	Sending Speed	Function
32 ports sms modem	32	32000 SMS/hour	SMS/MMS/IMEI/VOICE

Specifications

Product Name	Multi Ports SMS Modem Pool
support	2G 3G 4G
Function	Send SMS/MMS  Receive SMS  IMEI Change  Voice call  AT Command
SMS Software	SMS Caster (Free)
Port Choice	1 port, 8 port, 16 port, 32 port, 64 port
Hourly SMS Sending Speed	Bulk Send 1000 SMS Per Port Per Hour   (1) 1 port= 1000 SMS     (2) 8 port= 8000 SMS (3) 16 port= 16000 SMS   (4) 32 port= 32000 SMS (5) 64 port= 64000 SMS
Optional Other Model	2G: M26, M35 3G: UG96, UC20 4G: EC25
Power Input	110~240VAC/ 50~60HZ
Interface	USB 2.0 & USB 3.0
Operation System	Windows/Vista/XP/Win7/Win8/Win9/Win10/Linux/Mac OS X



How to use

(1) Insert SIM Cards in Modem



(2) Install the USB deriver and SMS Caster (we will send these two free softwares to you via online email)

(3) Following is the steps of sending message via SMS Caster

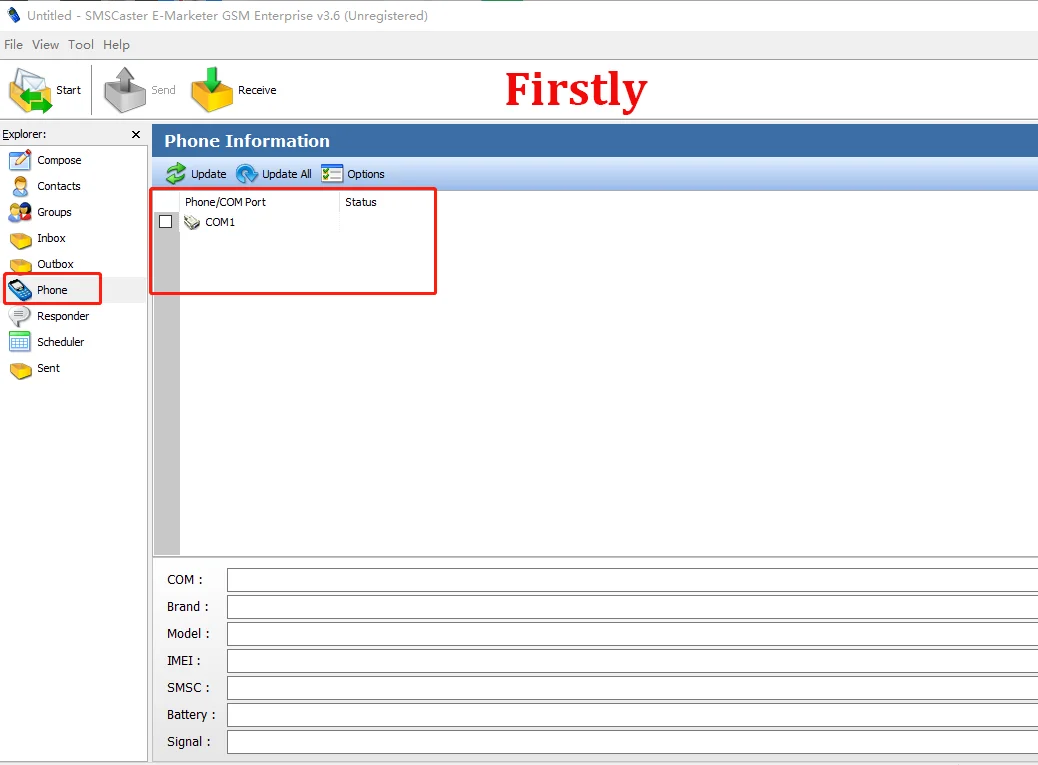

Firstly

1.Install SMS Caster like common software and close it after installing successfully
2.Connect the GSM MODEM to computer correctly, and then there will be a prompt from computer to install driver.
3.Select the driver path for every port, it will install automatically.
4.After completing the driver installation, starting SMSCaster program, all ports will be found.

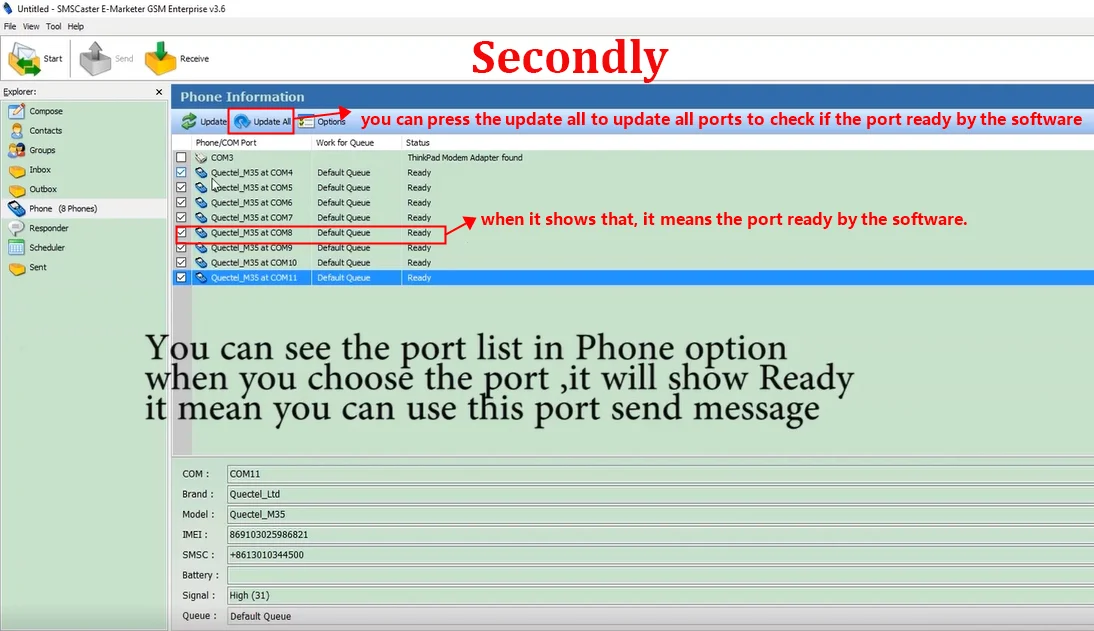

Secondly

Open the smscaster, click the Phone, then update all, then you can check how many ports can work.If some ports not shows proper, then you should check the simcards or change another simcards.When you change simcards, you should shutdown the module, when insert simcards, then start it.

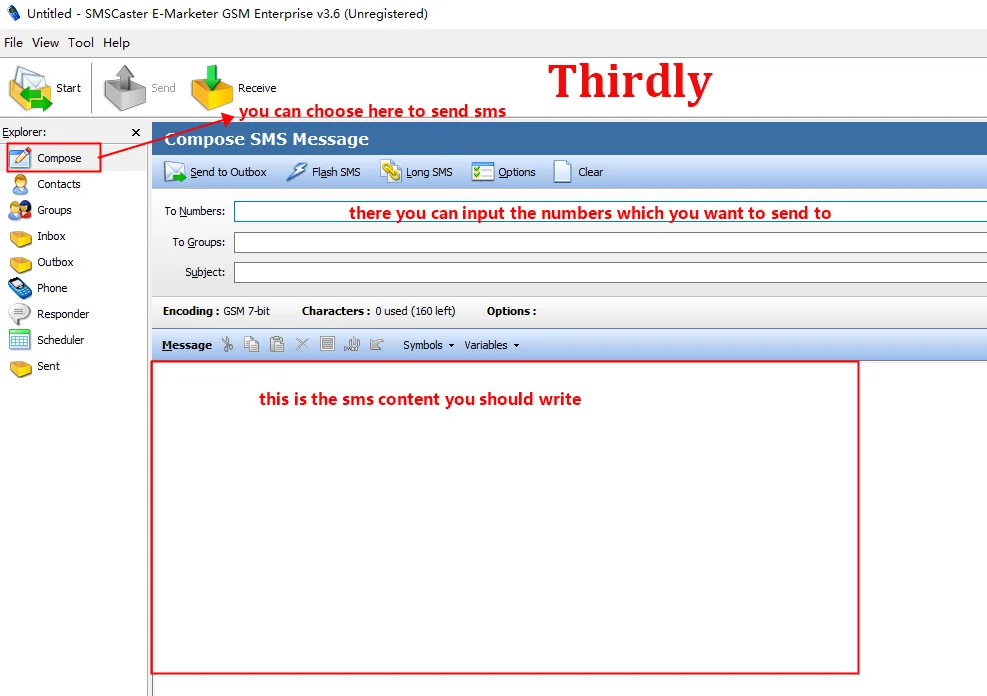

Thirdly

Compose for sending sms ,you can input receiver number in To Numbers if you just want to send few numbers,then input the content, when you finish, then press Send to Outbox, the sms will be sent to Outbox, press the Outbox ,then you can see the detail sms list, then press the Send.They will be sent out (you should firstly choose the ports which you want to send sms ).

1.Professional and factory price
2.Great customer service and fast shipment
3.One year free warranty



Detailed Pictures

evice

SMS blaster/ 16 ports SMS blaster/ bulk sms sending device



SMS blaster/ 16 ports SMS blaster/ bulk sms sending device



SMS blaster/ 16 ports SMS blaster/ bulk sms sending device

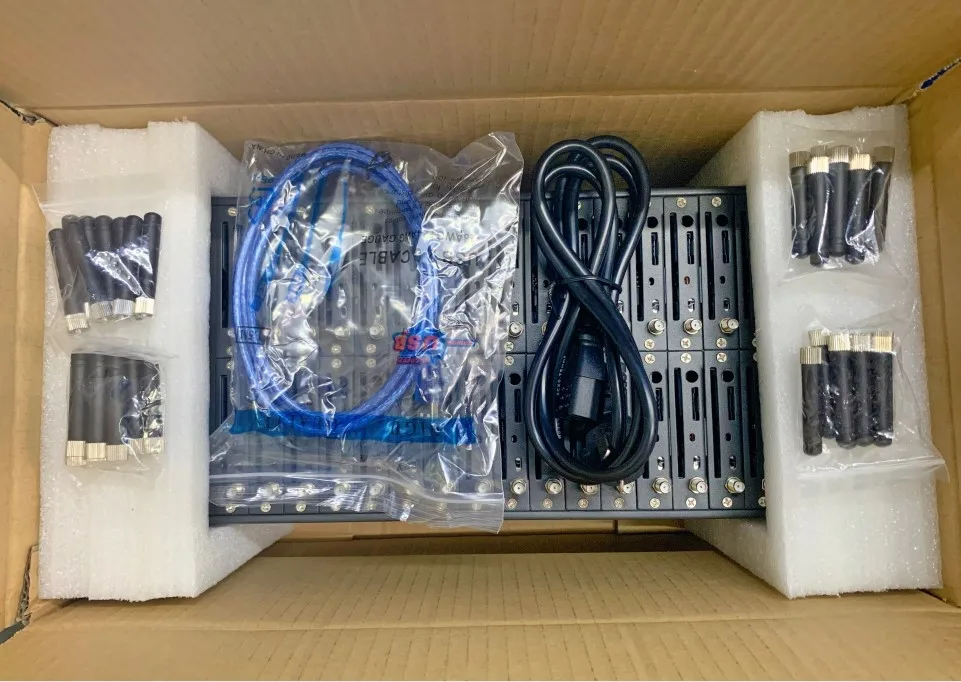

Packaging & Shipping

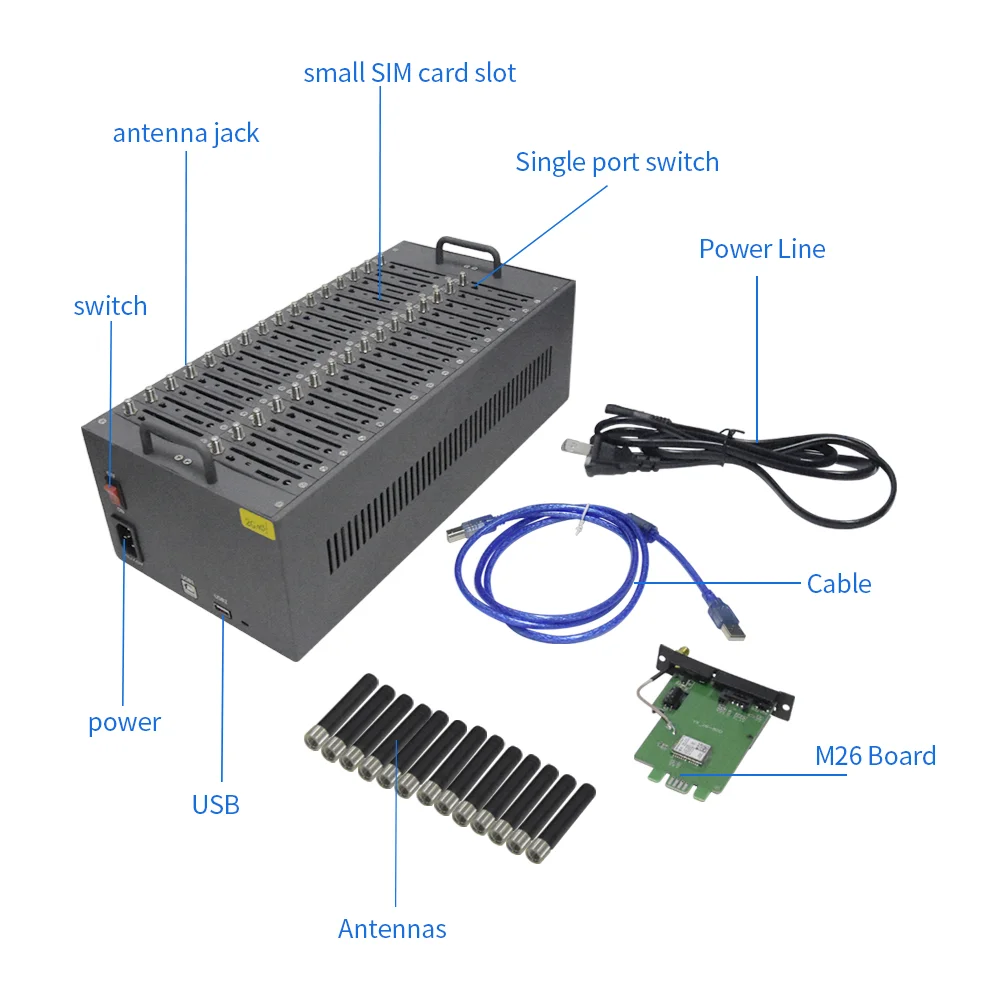

(1) SMS Modem Pool x 1

(2) USB Cable x 1

(3) Power Supply Adapter x 1

(4) Antennas x 32

Trade Terms	FOB, CFR, EXW, DAP
Payment Terms	Alibaba via Credit Card, Payonner, Payonner link via Credit Card, T/T,   Webmoney, Skrill, Western Union, Cash
Payment Condition	100% deposit in adavance
Delivery Time	1-3 days after full payment
Packing	Strong Carton Box with Water Proof
Shipping	DHL, UPS, EMS, FEDEX, ARAMEX, TNT or Other Way As You Require





FAQ

Q.1: How to change IMEI?

(1) Open Putty
(2) Click " Serial"
(3) Input the com port in "Serial line" such as COM 1
(4) PUT IN "at&f"
(5) Put in "at+cgsn"//check IMEI
(6) at+egmr=1,7,"IMEI number" change imei, for example : AT+EGMR=1,7,"453243242432134"
if you put in imei is wrong ,it will reset or keep old IMEI
(7) put in "at+cgsn"//check new IMEI



Q.2: How to make call?

(1) Open Putty
(2) Click " Serial"
(3) Input the com port in "Serial line" such as COM 1
(4) PUT IN "at&f"
(5) Put in "ate1"
(6) Put in "atd number;" for example: atd 0976006161;
(7) Put in"ATH" hung off call



Q.3: How many kinds of modem for 2G GSM, 3G and 4G module?

M26/M35 for 2G GSM, UG96/UC20 for 3G, EC25 for 4G



Q.4: How is the sending speed of 2G, 3G and 4G modem?

2G: 1000 SMS per port per hour.

3G: 2800 SMS per port per hour.

4G: 3000 SMS per port per hour.



Q.5: How about our service?

We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatest desire.



Q.6: What is our main express shipment?

DHL,UPS,FEDEX,TNT,EMS,Aramex(can ship to anywhere all over the world)



Q.7: How long we're warranty ?

1 year.



Q.8: During warranty time,if have problem,how to do?

We'll test by teamview or send back, we'll exchange new in free.



Q.9: How long about our techinical support?

Free in life.
