Цифровой толщиномер WH92 0-1500 мкм датчик толщины покрытия типа Fe и NFe с
Цифровой толщиномер WH92 0-1500 мкм датчик толщины покрытия типа Fe и NFe с
Цифровой толщиномер WH92 0-1500 мкм датчик толщины покрытия типа Fe и NFe с
Цифровой толщиномер WH92 0-1500 мкм датчик толщины покрытия типа Fe и NFe с
Цифровой толщиномер WH92 0-1500 мкм датчик толщины покрытия типа Fe и NFe с

Цифровой толщиномер WH92 0-1500 мкм датчик толщины покрытия типа Fe и NFe с


Поделиться:

Цена:170,00 $ - 190,00 $*
Стоимость в USD (на сегодня):Узнать

Количество:

Описание и отзывы

Характеристики



Products Display




Product Description

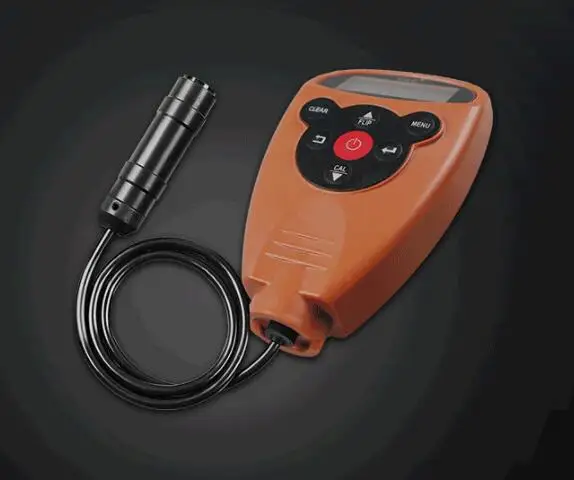

This device is a portable meter. It is capable of measuring coating thickness quickly, precisely and without injury, both for the laboratory and engineering environment.

This device is a split-type colorimeter and our latest launched. Its more smart and suitable for small part or inconvenient place testing.The device use both Magnetic Method to measure the non-magnetic coating on a magnetic metal substrate and Eddy Current Method to measure the non-conductive coating on a non-magnetic metal substrate.

Magnetic Method (F-type probe)

When the probe contacts the cover layer, the probe and magnetic substrate forms a closed magnetic circuit; Due to the presence of non-magnetic coating, magnetic resistance changes. The thickness of the cover layer can be derived by measuring the change.

Eddy Current Method (NF-type probe)

When the probe contacts the cover layer, the probe and non-magnetic substrate forms Eddy Current and gives feedback to the coil inside the probe.

The thickness of the cover layer can be derived by measuring the feedback.



Main Feature
1. Thickness measurement using both Magnetic Method to measure the non-magnetic coating on a magnetic metal substrate and Eddy Current Method to measure the non-conductive coating on a non-magnetic metal substrate.

2. Single-point or two-point method could be used to correct probe system deviation, in order to ensure the accuracy of the device in the process of measuring.

3. Automatic identify ferrous and non-ferrous substrate quickly.

4. Power voltage indicator.

5. Speaker beep while operating.

6. Power-off automatically when idle; manually power-off available.

7. Negative display function to ensure the accuracy of zero point calibration.


Technical Data


Model
WH92(Bluetooth)
Principle
Magnetic Method (F-type probe)& Eddy Current Method (NF-type probe)
Range
0-1500um

Accuracy error
zero calibration ± (1 + 3% H);
two-point calibration ± [(1% ~ 3% H)] H + 1.5
Power
2 * AA battery
Unit
Um/mil
Temperature
0-40 ℃
humidity
≤85%
Minimumsubstrate
10 * 10mm
Minimum curvature
5mm convex; 5mm concave
Thinnest substrate
0.4mm
Weight
99g
Size
110mm * 65mm * 30mm


FAQ


If you want to know more details, welcome to contact us.
Lin Gao
Zibo Senyuan Electric Co., Ltd.
Email:senyuan@zbsywm.com
Mobile/WhatsApp: ( 0086) 13869301972


Q: Is there an OEM service?
A: As the trusted and professional supplier, we accept the sample order, even for one piece. Also provide the OEM service, sample order is OK.


Q: Which payment methods are supported?
A: As the trusted and professional supplier, we accept the sample order, even for one piece. Also provide the OEM service, sample order is OK.


Q: Do you support after sales service?
A: Most products we provide warranty of 12months, some with the longer warranty of 24months.
