Горячее надувательство YT-600B для геолого-мониторинг в месте

-Introduction

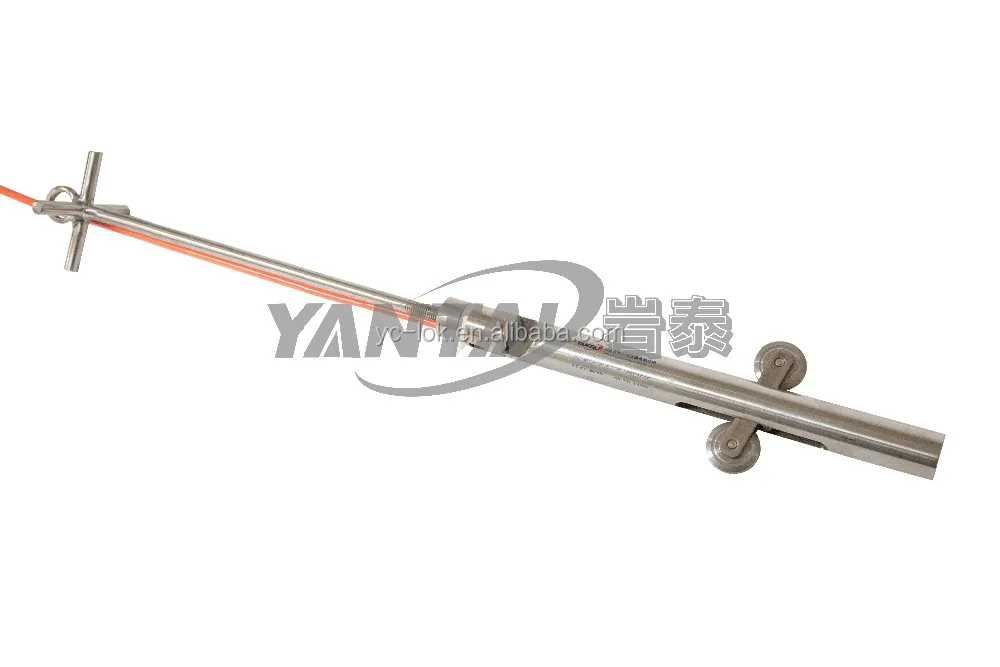

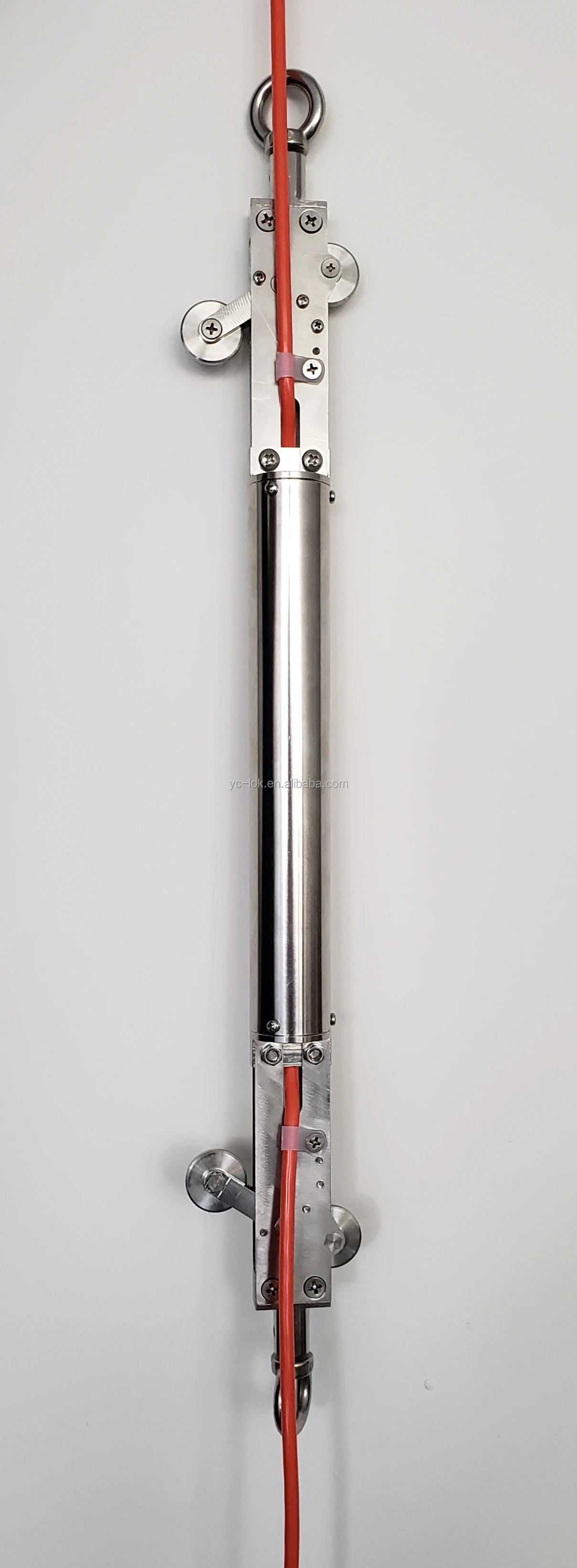

YT-600B fixed hole mounted inclinometer is widely used for the inclination measurement of horizontal and vertical surfaces of hydraulic structures and rock such as concrete dams, rockfill dams, earth-rock dams, etc. It is also applicable to monitoring of foundation deformation or structural deformation for industrial/civil buildings, roads, bridges, tunnels, etc. YT-600B differential inclinometer can measure the change of the tilt angle of the measured object, and can also measure the angular displacement change with the instrument gauge length as the reference length. If the mechanical interface of the sensor is slightly changed, it can be used for drilling layered or pre-embedded, or for hanging installation in the inclined tube.



-Main Specifications



Specification\tYT-600B

Measuring Range\t±10°/ ±30°

Resolution\t≤0.015%F•S

Accuracy\t≤0.5%F•S

Working Temp\t-25℃~+60℃

Temp. Measure Range\t-40 °C~+80°C (Need to install temperature sensor)

Temp. Measure Accuracy\t±0.5℃ (Need to install temperature sensor)

Number of Sensor Shafts\tUniaxial/Biaxial

Factory

Our Factory

Workshop

Our Workshop

Warehouse.

Our Warehouse

Team

Our Team

Packing Details  : Packing, solid bicycle saddle, 50pcs/carton

Delivery Details : 3-30 days after order

A: We are factory.

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
