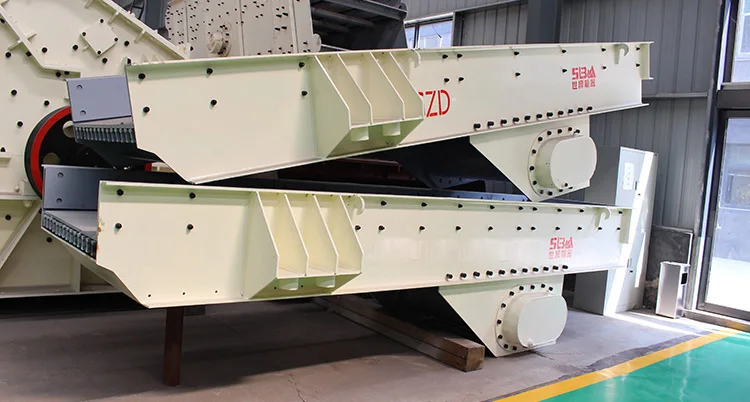

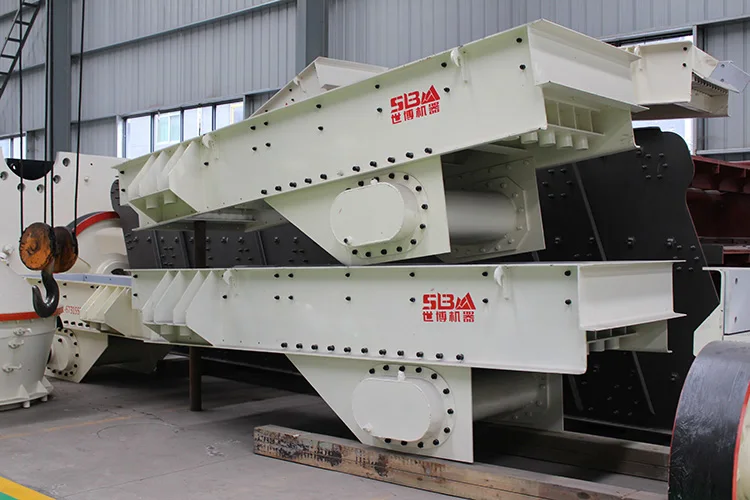

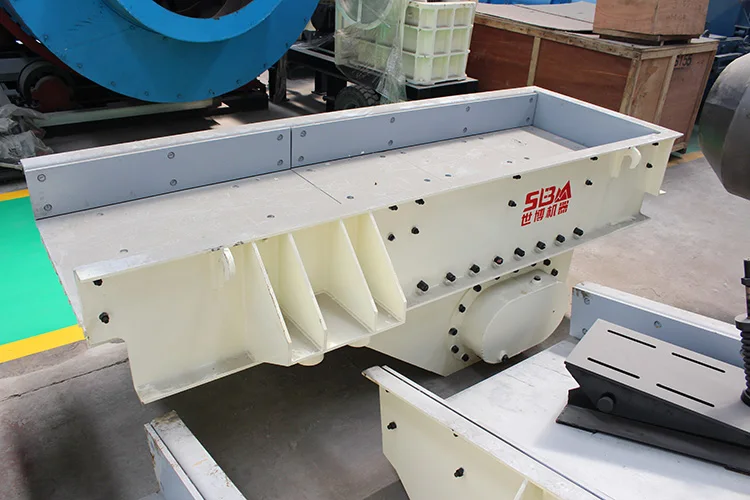

Small vibrating feeder magnetic gravel vibrating feeder for sale
Product Description
The vibrating feeder can feed materials to the receiving equipment evenly and continuously during the production process. In the sand and gravel production line, it can continuously and uniformly feed the crushing machinery and coarsely screen the materials. Widely used in the crushing and screening joint equipment in metallurgy, coal mines, mineral processing, building materials, milling and other industries.
Vibrating feeder working principle
GZD and ZSW serial of vibrating feeder is composed of feeder groove, exciter, spring bearing, gear etc. the vibration source of the groove feeding vibration is exciter, exciter is composed of two eccentric shaft and gear, the motor through the triangle to drive the active axis. the up gear of the active axis drives the passive-axis with rotating, active and passive axis reverse rotation at the same time, make the body vibrate and continuous flow of materials, to achieve the purpose of conveying materials.
GZD and ZSW serial of vibrating feeder is composed of feeder groove, exciter, spring bearing, gear etc. the vibration source of the groove feeding vibration is exciter, exciter is composed of two eccentric shaft and gear, the motor through the triangle to drive the active axis. the up gear of the active axis drives the passive-axis with rotating, active and passive axis reverse rotation at the same time, make the body vibrate and continuous flow of materials, to achieve the purpose of conveying materials.
1) Simple structure ;
2) Steady vibration ;
3) Exclusive vibrator technology ;
4) Easy maintenance and low operating costs .
2) Steady vibration ;
3) Exclusive vibrator technology ;
4) Easy maintenance and low operating costs .
Size Information
Model | Size of trough (mm) | Max. feeding size (mm) | Capacity (t/h) | Motor power (kw) |
GZD-650x2300 | 650x2300 | 300 | 80 | 1.1x2 |
ZSW-850x3000 | 850x3000 | 400 | 80-120 | 7.5 |
ZSW-960x3800 | 960x3800 | 500 | 120-210 | 11 |
ZSW-1100x4200 | 1100x4200 | 580 | 200-430 | 15 |
ZSW-1100x4900 | 1100x4900 | 580 | 280-500 | 15 |
ZSW-1300x4900 | 1300x4900 | 650 | 350-600 | 22 |
ZSW-1500x6000 | 1500x6000 | 750 | 400-750 | 37 |

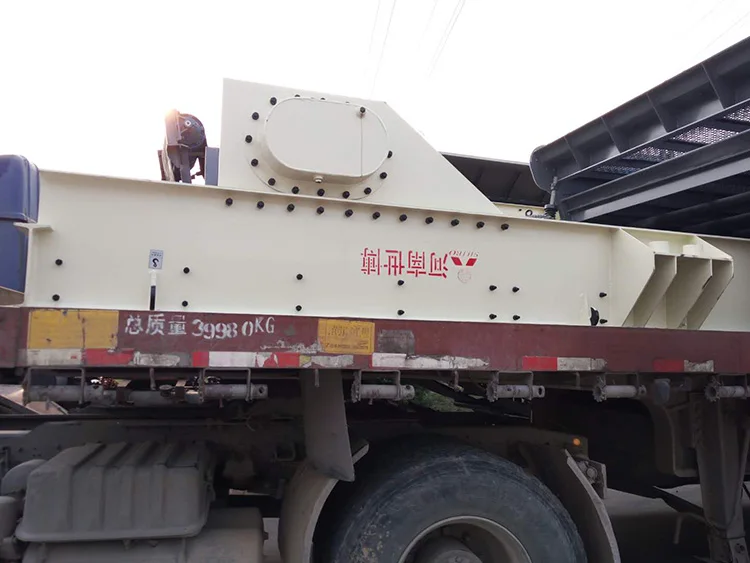

Packing&Shipping
Company Introduction
Zhengzhou Shibo Machinery Manufacturing Co., Ltd. is committed to the research, development, production and sales of technical equipment in the mining industry. It mainly produces large-scale crushing, grinding and sand production lines.
Our company has 11 service outlets in China, and also exported products to Europe, America, Asia, Africa etc. more than 30 Country and region. Our company owns an experienced and skilled sales and service team which compose a perfect service network. We will professional engineers to the installation sites and provide guidance for the installation, commissioning and initial run as well as planning administration of the equipment after purchase. And welcome all our client to visit our factory in Zhengzhou.

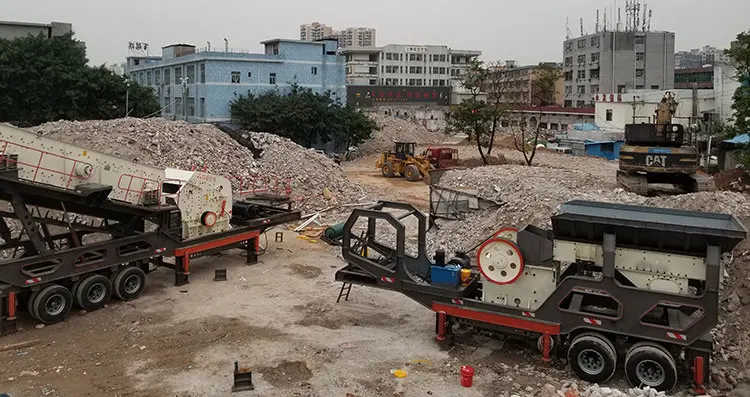

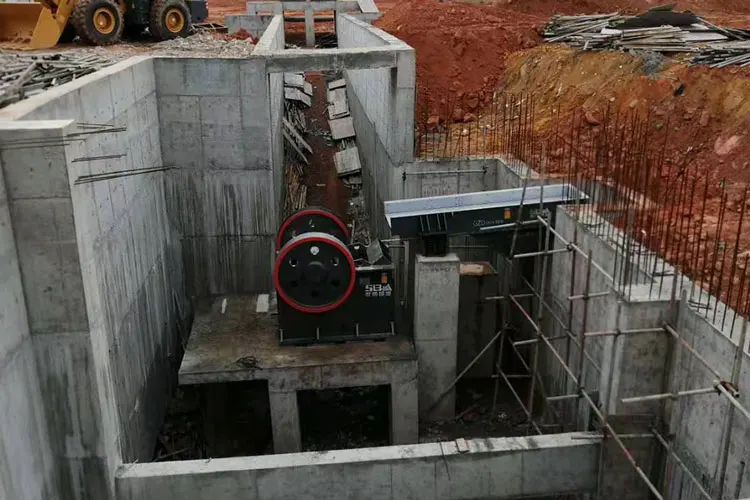

Customer Photos

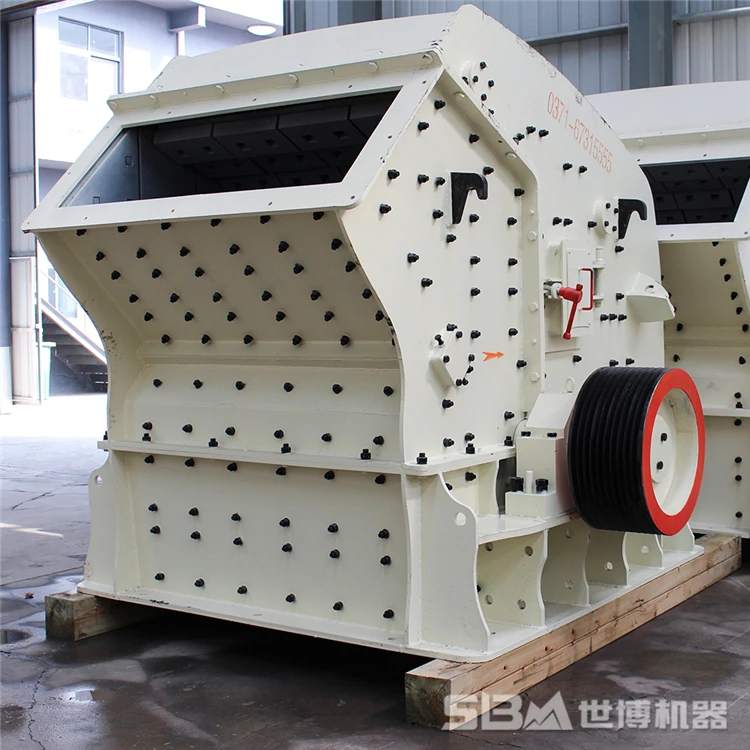

Recommend Products
Deeding size: 250-700 mm
Capacity: 15-500 tons per hour
Generally as secondary crushing, discharge is smaller
Feeding size: 130-900 mm
Discharge size: 15-180 mm
Capacity: 1-500 tons per hour

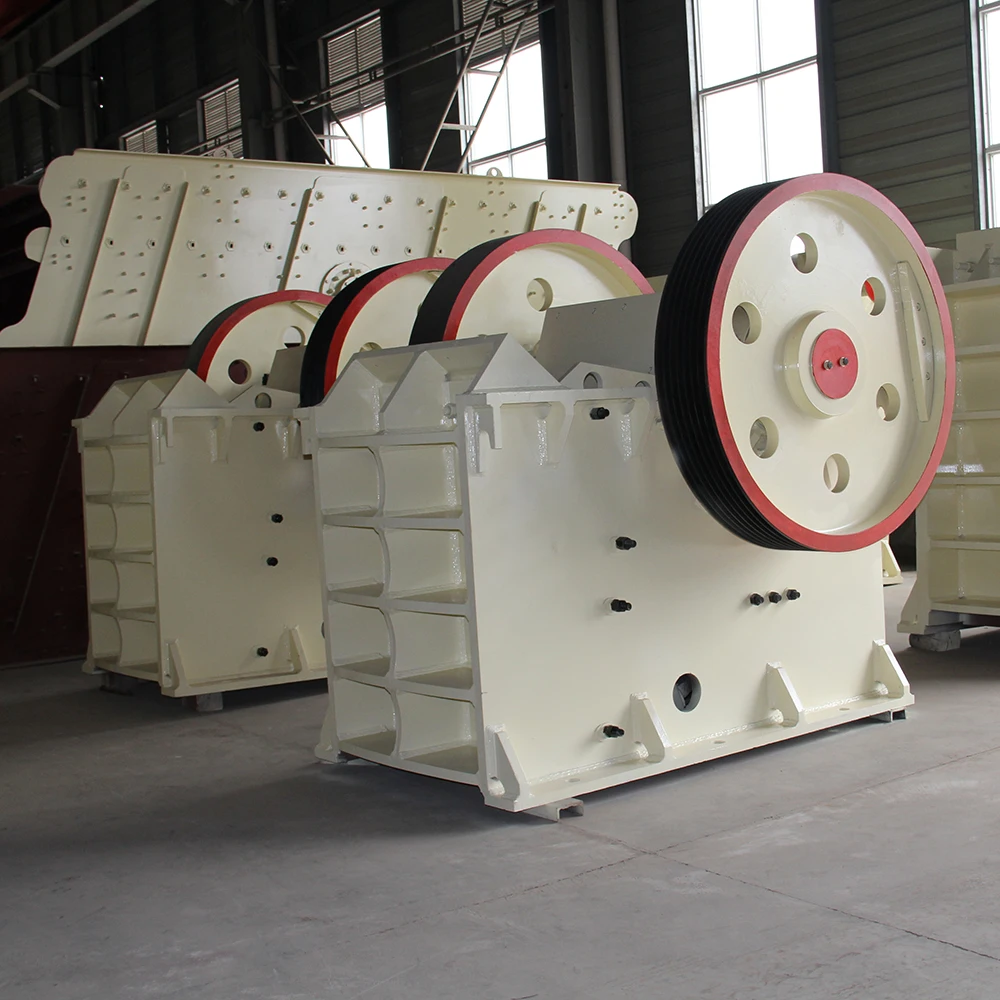

We have small jaw crusher and big jaw crusher.
Big jaw crusher usually as first crushing machine, small jaw crusher could be used as first and second crushing machine.

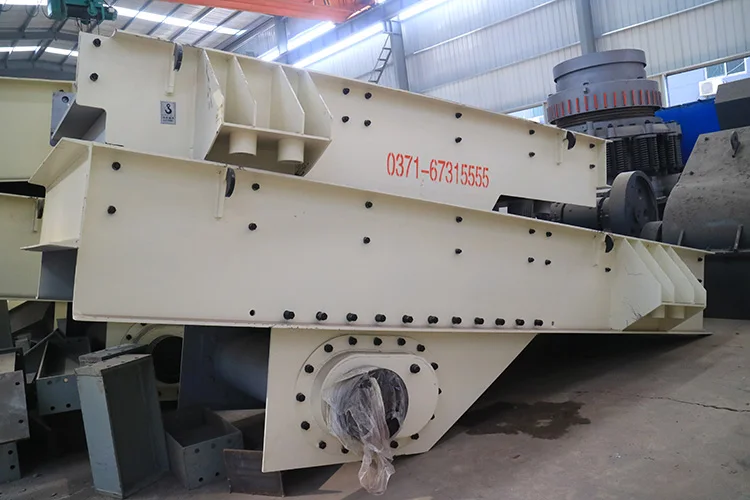

Vibrating feeder
Vibrating screen

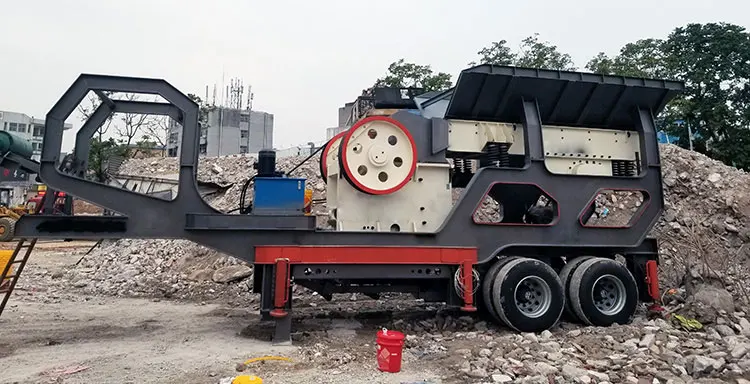

Wheel mobile jaw crusher with vibrating feeder.
Capacity:50-300 tons per hour
Feeding size: 300-750 mm
Discharge size: 60-250 mm
