3-сторонний выход латунь моторизованный шаровой клапан 1/2 '-1'inch с сертификатом
- Категории: Solenoid Valves >>>
- Поставщик: Zhejiang,Huibo,Valve,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
3-Way Brass Motorized Ball Valve 1/2''-1''Inch with CE Certificate

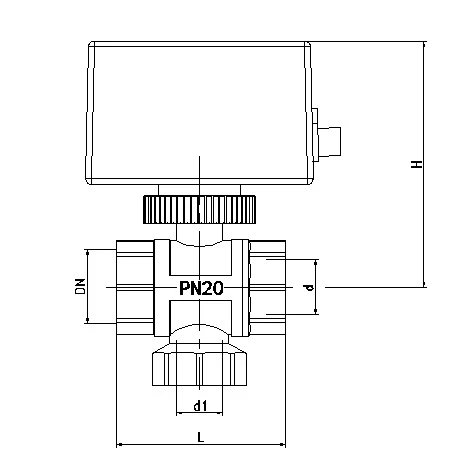

Dimensions
| DN(mm) | SIZE(inch) | L(mm) | d(mm) | d1(mm) | H(mm) |
| 15 | 1/2 | 53 | φ14 | φ12 | 87 |
| 20 | 3/4 | 62 | φ18 | φ16 | 92 |
| 52 | 1 | 69.5 | φ22 | φ20 | 96 |
Description
| No. | Part Name | Material |
| 1 | Body | Brass |
| 2 | Bonnet | Brass |
| 3 | Seat | PTFE |
| 5 | Stem | Brass |
| 6 | Packing | PTFE |
| 7 | Electric actuator | Small electric actuator |
Introduction
3-Way brass motorized ball valve offer a simple solution for diverting applications like a bypass line or input or output line selectors. 3-Way brass motorized ball valve has nice appearance, tight configuration, non-aging and good sealing property. When 3-way brass motorized ball valve fully opened or fully closed, the sealing surface of the ball and valve seat is separated from the medium. It will not cause the erosion of the sealing surface of the valve when the medium passes. 3-Way brass motorized ball valve is widely used in pipeline automation control of corrosive medium such as gas, liquid, steam and oil.

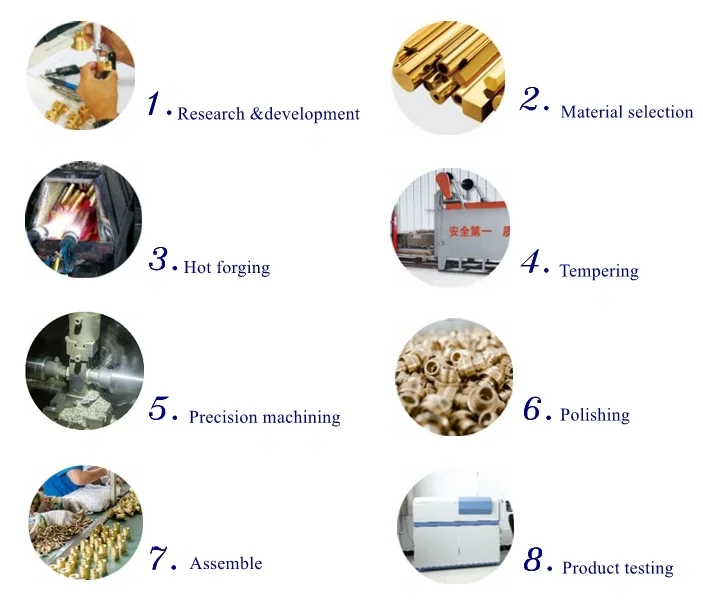

Our technological process
Our factory
Certificate
FAQ:
Q1: Can I have a sample before placing the order?
A: Yes, we would like to provide you samples for testing and checking before quantity purchasing
Q2: What is your MOQ order?
A: Usually 3000 for ordinary products, and 5000pcs for product needs new mold.
Q3.How to proceed an order for your products?
A: Firstly, pls let us know your requirments and application
Seconly, we provide quotation accordingly or suggestion
Thirdly, samples confirmation
Forth, place order and deposit and production arrangement.
