Partial Filled Pipe Flow Meter Sewage  flow meters for open channel

 Partial filled pipe mechanical flow meter

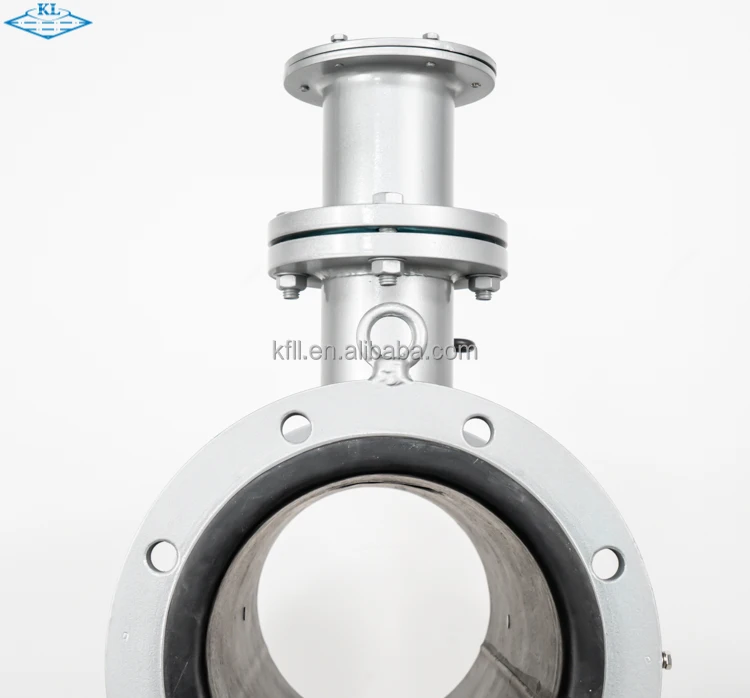

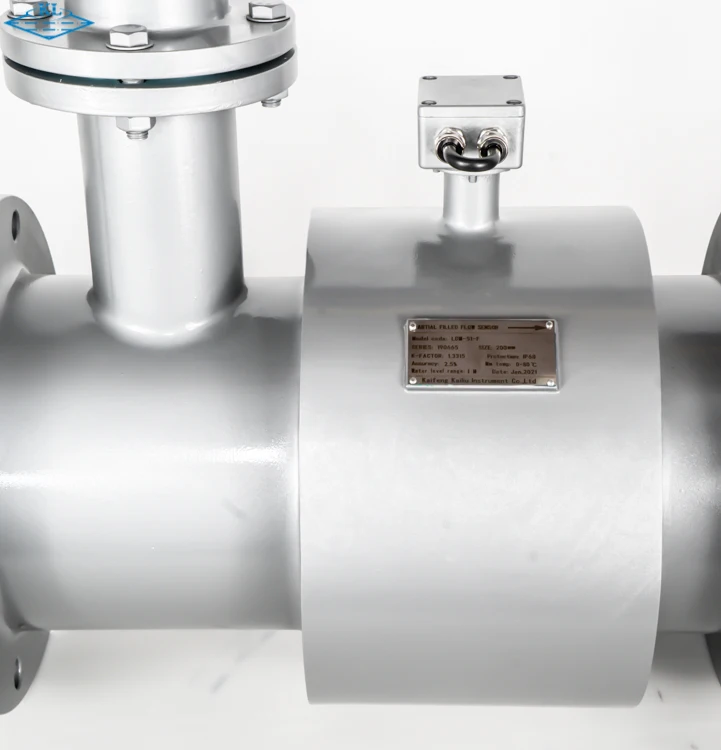

Partial filled pipe electromagnetic flow meter is an automatic measuring instrument which adopts flow velocity-area method to continuously measure open pipeline (for example half sewage pipe and huge pipeline without overflow weir). It can measure and show the instantaneous flow, flow velocity, cumulative flow data and etc. Especially suitable for the city rainwater, waste water, sewage discharge and irrigation water pipes and other measurement.















Nominal diameter	DN100mm-DN3000mm
Power supply	220V/AC or 3.6V/DC, 12V/DC, 24V/DC
Electrode	SUS316L, HB, HC, Ti, Ta and etc
Accuracy	water level ±0.5%; flow velocity ±1.0%; flow ±1.5%
Measuring range	0m/s-15m/s
Conductivty of medium	≥20μs/cm
Temperature of medium	≤60℃
Protection grade	IP68
Digital communication interface	RS232, RS485
Wireless data remote transmission	GSM/GRRS
Power supply	220V/AC,12V/DC, 24V/DC
Conductivty of temperature	<=60°C
Pulse output signal	1-2000Hz
Current output	4-20mA/DC











 Product Features of mechanical flow meter

1. Apply to the open partial filled pipe

2. Apply to waste water

3. both forward and reverse

4. Long-term reliable work

5. Big screen back light LCD

6. Multi-parameters display

7. High precision
8. Timer and clock function
9.GSM and GPRS wireless data

10. Flow velocity range: 0.05-10m/s



 Why choose us
1. Over 40 years professional EMG manufacturer
2. Powerful R&D ability
3. Multiple national patents
4. Top engineers team(Doctor & Master)
5. Technical after-service team
6. No.1 measuring instrument brand
7. Quality first
8. Integrity management

Our Advantage
l Floor area 22,700m2
, Built area 11,000m2
, Investment 20 million
l International advanced production equipment
l Static mass method & Standard meter method for calibration from DN15- DN2400, max calibrated flow is 13,000M3/h, expanded uncertainty is better
than 0.25% (K=2), flow stability is better than 0.5%
l 3 EMG flowmeter production line, investment 10 million, max annual capacity is
10000 units
l Scientific research cooperation with universities and colleges
l 16 national utility model patent technology, 8 series 15 kinds of measuring
instrument products
l Approach ISO9001, ISO14001, OHS18001,CE and GOST(PCT) certificate



• Are you a factory or trading company?



  • We are a professional manufacturer.






• Can you make products with our brand?



  • Surely,we are welcome to cooperate as customized service.






• May I get a Cheaper price?



  • Cheaper price available if your quantity large .






• What's kind of electromagnetic instrument can you produce?



  • We are specializing in electromagnetic flow meter, insertion electromagnetic flow meter, electromagnetic battery power flow meter, GPRS/GSM electromagnetic flow meter, electromagnetic velocity meter, electromagnetic BTU meter, partial filled pipe electromagnetic flow meter, submersible electromagnetic flow meter, open channel flow meter, electromagnetic water meter, special agricultural irrigation water meter, solar power system flow meter,etc.You may also visit our online company introduction at www.klflow.com which includes our latest product line.
