Product Overview
Pump Flowmeter

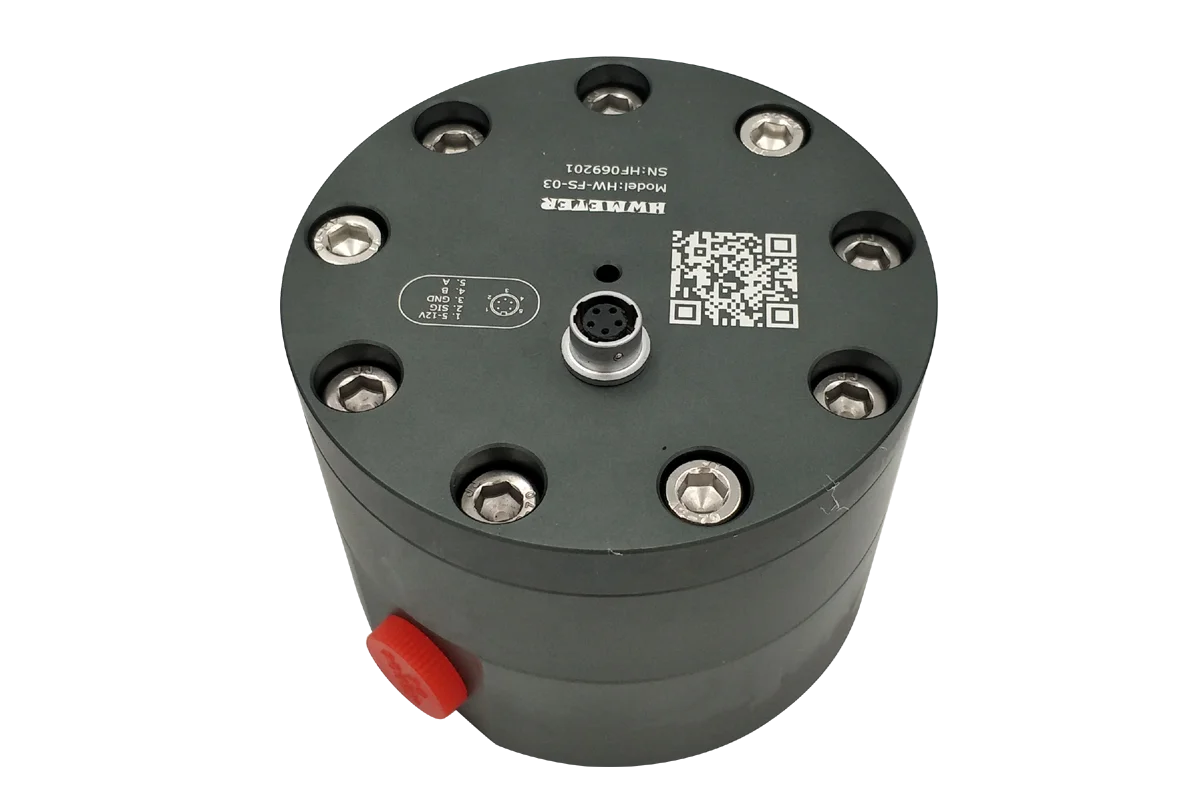

Flow Sensor HW-FS-03 Pump Flowmeter With Y Copper Filter Kit For Common Rail Test Bench Gear Oil Flow Meters
FEATURES AT A GLANCE
Product Specification:
1.Material: Housing:Aluminum Gear:Alloy
2.Seal:MVQ(Silicone rubber "o" ring)
3.Temperature:0℃~+50℃
4.Accuracy Level:±1
5.Repeatability:±1
6.Pressure Range:Max 32bar
7.Installation Method:Horizontal installation
8.Dimensions:Diameter 84mm Height 62mm
9.Power Supply:12V DC
10.Maximum Current:25mA
11.Thread:G1/4
12.Flow Range:0.05~2.5(L/Min)
13.Meter Factor:4600

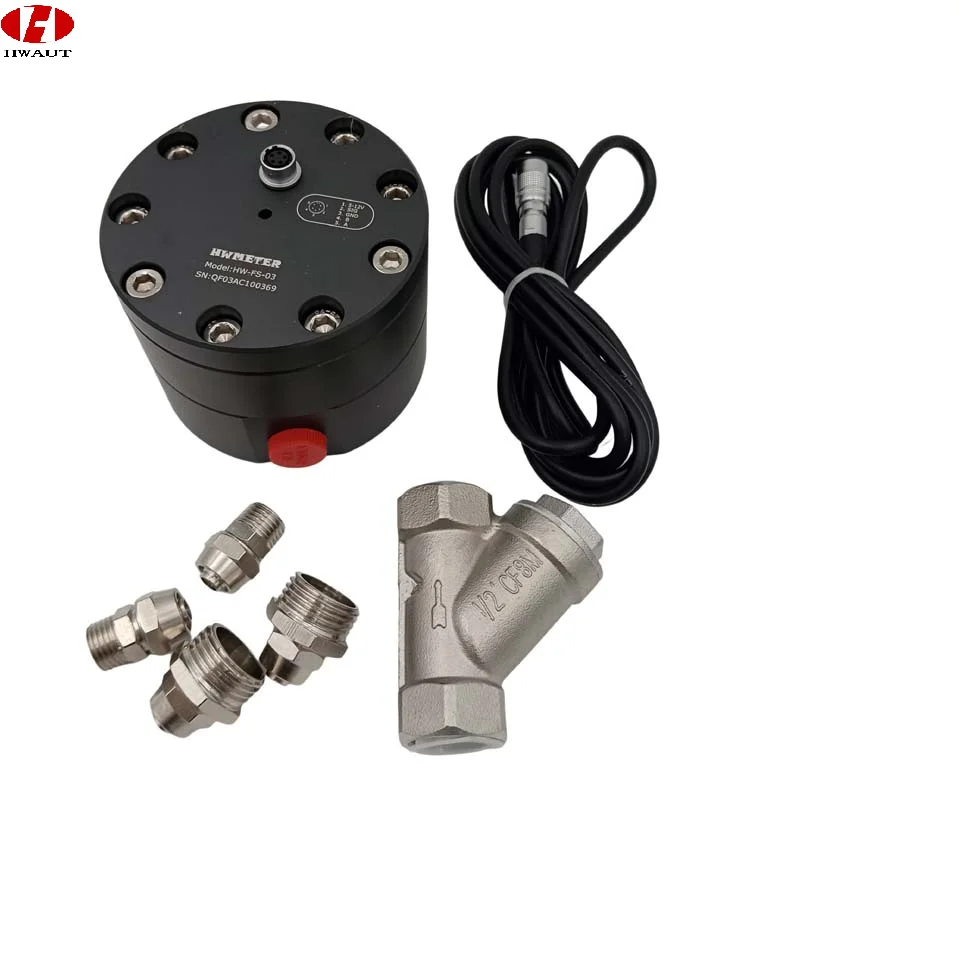

Flowmetre kit Packing list:
1. 1set Pump Flowmetre
2. . 1pcs Y Copper Filter
1.Material: Housing:Aluminum Gear:Alloy
2.Seal:MVQ(Silicone rubber "o" ring)
3.Temperature:0℃~+50℃
4.Accuracy Level:±1
5.Repeatability:±1
6.Pressure Range:Max 32bar
7.Installation Method:Horizontal installation
8.Dimensions:Diameter 84mm Height 62mm
9.Power Supply:12V DC
10.Maximum Current:25mA
11.Thread:G1/4
12.Flow Range:0.05~2.5(L/Min)
13.Meter Factor:4600
Flowmetre kit Packing list:
1. 1set Pump Flowmetre
2. . 1pcs Y Copper Filter
PRODUCT SPECIFICATIONS
No | Item | Data |
1 | Model : | Pump Flowmeter |
2 | Material: | Copper+Iron+Plastic |
3 | Work for | For common rail test bench |
4 | Product Weight: | 1.30kg/set |
5 | Package | Packing in box |
