Автоматический токарный станок с ЧПУ дас делает точный двойной шпиндель швейцарского
- Категории: CNC Lathe >>>
- Поставщик: Foshan,Shunde,Guoqiang,Daosheng,Industrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Products Description
Products Description
Series-Slant bed gang type CNC Lathe

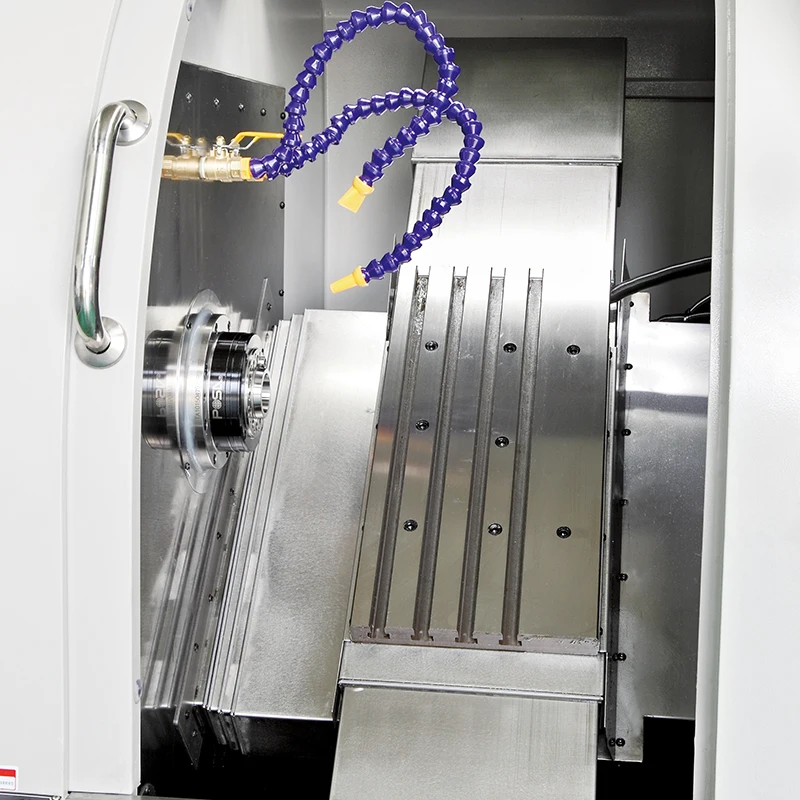

* The inclined placement of lathe carriage and tool holder makesmachine tool operation and chip removal moreconvenient. CNC36C/46C pleasant design appearance and less space occupation.
* φ160 three-jaw hydraulic chuck or other elastic clamp can be directly fitted on the main shaft flange.
* The drive part of machine tool uses HIWIN/PMI high precision P3 class ball bearing screw and high speed linear slide rail, a famous brand from Taiwan and is provided with computer automatic lubrication system for forced lubrication of linear guide rail and ball bearing screw. For X axis and Z axis, high rigidity linear slide rail is adopted with optimum span between rails through calculation. With low resistance, high rigidity and high precision, the displacement speed can reach up to 30M/min so as toimprove working efficiency and reduce processing time.
* Workpiece clamping type:hydraulic
* DAS Machine tool hydraulic supply unit, oil reservoirVolume increase,Better heat dissipation,work more stable.
* φ160 three-jaw hydraulic chuck or other elastic clamp can be directly fitted on the main shaft flange.
* The drive part of machine tool uses HIWIN/PMI high precision P3 class ball bearing screw and high speed linear slide rail, a famous brand from Taiwan and is provided with computer automatic lubrication system for forced lubrication of linear guide rail and ball bearing screw. For X axis and Z axis, high rigidity linear slide rail is adopted with optimum span between rails through calculation. With low resistance, high rigidity and high precision, the displacement speed can reach up to 30M/min so as toimprove working efficiency and reduce processing time.
* Workpiece clamping type:hydraulic
* DAS Machine tool hydraulic supply unit, oil reservoirVolume increase,Better heat dissipation,work more stable.
Model | CNC46c |
Max.swing diameter(mm) | 400 |
Max.cutting length(mm) | 100/200 |
Max.Processing length(mm) | 250 |
Chuck size(inch) | 5 inch |
Spindle speed(r/min) | 0-4500 |
Spindle power(kw) | 3.7 |
Spindle bore(mm) | Φ46 |
Auto feeding rod max.diameter(mm) | Φ35 |
Min. resolution(mm) | 0.001 |
X/Z axis travel(mm) | 340/250 |
Net Weight(KG) | 2300 |
Machine Dimensions(LxWxH)(mm) | 2090*1430*1555 |

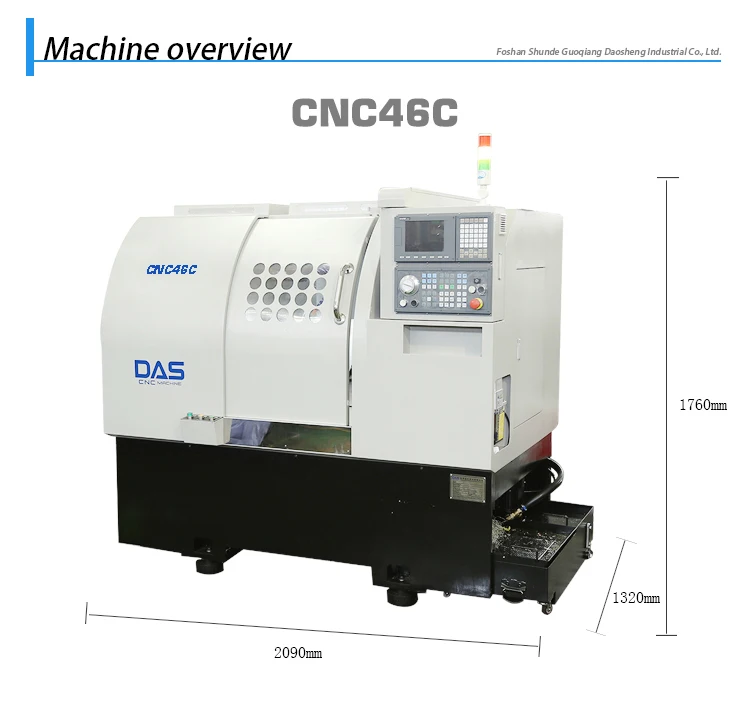

Product Overview
Product Details
Good Feedback
Our Company
Customer Photos
Packing and Shipping
FAQ
1.How can I get the price?
-We usually quote within 24 hours after we get your inquiry(Except weekend and holidays). -If you arevery urgent to get the price, please email us or contact us in other ways so that we can offer you a quote.
2. Can I buy samplesplacing orders?
-Yes. Please feel free to contact us.
3.What is your lead time?
-It depends on the order quantity and the seasonyou place the order. -Usually we can ship within 7-15 days for small quantity, and about 30 days for large quantity.
4.What isyour payment term?
-T/T,Western Union,MoneyGram,and Paypal. This is negotiable.
5.What is the shipping method?
-It could beshipped by sea, by air or by express(EMS,UPS,DHL,TNT,FEDEX and ect). Please confirm with us before placing orders.
6.How do youmake our business long-term and good relationship?
-1. We keep good quality and competitive price to ensure our customers benefit
-2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they comefrom.
