Specification

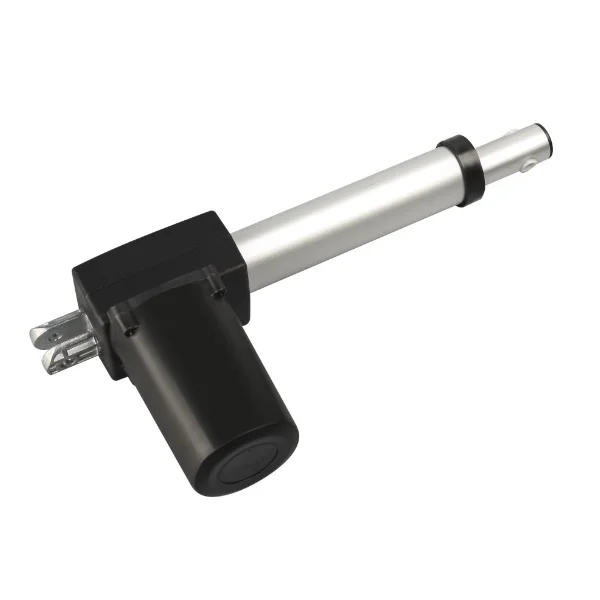

12v 24v electric bed lift mechanism linear actuator



Product Name
YLSZ08
Drive Type
Single motor drive
Type of Load
Push/pull
Limit Switch
Built-in
Voltage
12V/24VDC
Stroke
Customized (better to be under 500mm)
Mounting Dimension
Min: 150mm+stroke; Max: 150mm+stroke+stroke (see below drawing)
Speed
4-48mm/s
Load Capacity
6000N max.
Duty Cycle
Max. 10% or 2 minutes in use followed by 18 min. rest
Certificate
CE, UL, RoHS
Application
Functional bed; medical bed

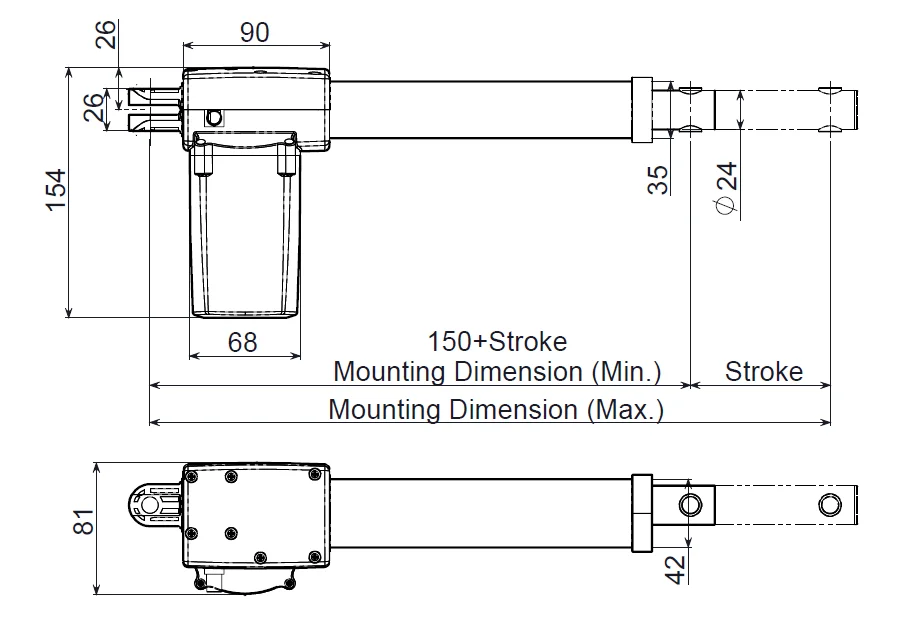

Drawing for Linear Actuator YLSZ08





Min.mounting dimension=150mm+stroke
Max.mounting dimension=150mm+stroke+stroke





Details Images


















Product Application



Our linear actuators are widely used in intelligent furniture such as sofa, electric bed, cabinet, massage chair, TV lift, coffee machine;

In medical care such as surgery bed, patient lifter, hoist equipment;

In auto industry such as car seat;

In office such as height adjustable table and projector.

















Certificate



National High-Tech Enterprise, ISO9001/ISO13485 quality management system certification, product certificate like UL, CE, RoHS, etc. Numerous national invention patents.













Company Profile



Derock was founded in 2009, located in front line of China's Reform--Shenzhen Special Economic Zone.

We specialize in research and development, production and sales of dc motor, linear actuator and control system.

We have several subsidiaries, except linear actuator factory, we have an injection mold factory, and a carbon brush (for motor) factory. All the plastic parts are produced by ourselves.














Exhibition










Product packaging




Poly bag for every actuator → Cardboard between every layer → Cartons packed into pallets






Delivery


All available shipping ways could be applied, by courier, air or sea.
Accept appointed shipping company.
Full-way tracking the cargos for you before the goods arrive.
