Огнеупорная плита из силиката кальция CCEWOOL по низкой

Item

Size and Specifications

500x500x25~120

600x300x25~120

Type

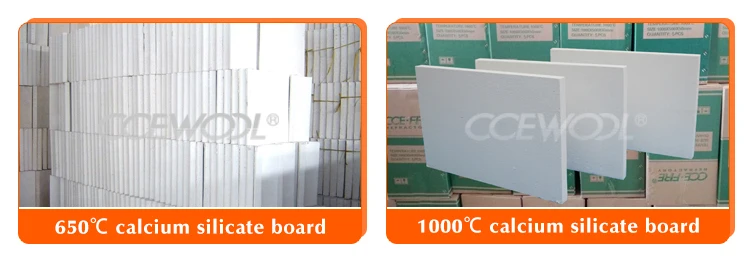

Common Calcium Silicate (650°C)

Standard Calcium Silicate (1000°C)

Characteristics

On top of light weight, low thermal conductivity, high rupture and, compressive strengths, calcium silicate won’t distort even in contact with water, with other features like long service life, sawing-worthiness, easy processing, non-toxics, non-corrosiveness to piping and equipment, etc..

 Typical Use

Mainly used as insulation for thermal equipment and piping in the power, chemical, metallurgy, petrochemical, textile and light industries, as well as insulation for building, ship and train.

Working Temp

 650 °C, 1000 °C

Service

 The size, density, chemical composition can be customized.

MOQ

 25 cubic meters

FOB price

 150-300 USD/cubic meter

Port

 Qingdao Port

Payment terms

 L/C, T/T, D/A, D/P, Western Union, MoneyGram, Cash

Delivery

 Within 15 days after received the delivery

Packing

 By carton or pallet

certificate

ISO 9001:2000, CE, REACH

Density(kg/m3)

170+10%

200+10%

230+10%

Rupture Strength(Mpa)

≥0.30

≥0.40

≥0.50

Compressive Strength(Mpa)

≥0.5

≥0.6

≥0.7

Heat Conductive Co-efficient(W/m.k.)

≤0.055

≤0.062

≤0.07

Max Operation Temperature (°C)

650

650

650

Linear Shrinkage(%)

≤1.5

(650°C,3hrs)

≤1.5

(650°C,3hrs)

≤1.5

(650°C,3hrs)

≤2

(650°C,16hrs)

≤2

(650°C,16hrs)

≤2

(650°C,16hrs)

Size(mm)

500x500x25~120; 600x300x25~120

Length(±3mm)

Width( ± 2mm)

Thickness(+3-1.5mm)

100

500

25-100

 610

400/303/300/150

25-120

 600

300

25-120

 524

400

25-120

500

500

25-120
