Product Description
Brief introduction of all-in-one refrigeration
The integrated refrigeration unit is composed of a condenser, an evaporator, a compressor, and Insulation clapboard assembly of separate the condenser and the evaporator. Its overall characteristics are small size, stability, fast and efficient cooling, low cost and no need for professional installation. Its reasons are below:
1. Before shipment, the internal and external machine
systems, piping, refrigerants, circuits, etc. were all been assembled, and what’s more it was qualified by stable running test.
systems, piping, refrigerants, circuits, etc. were all been assembled, and what’s more it was qualified by stable running test.
2.There is no need for specialized installation and commissioning at the project site to avoid unstable operation of the machine due to installation and construction factors such as environmental conditions, on-site installation techniques, and personal operations;
3. It can be modularized and flexibly combined, such as a 90-cubic cold storage, which can be designed into three
30-cubic all-in-one machines.
30-cubic all-in-one machines.

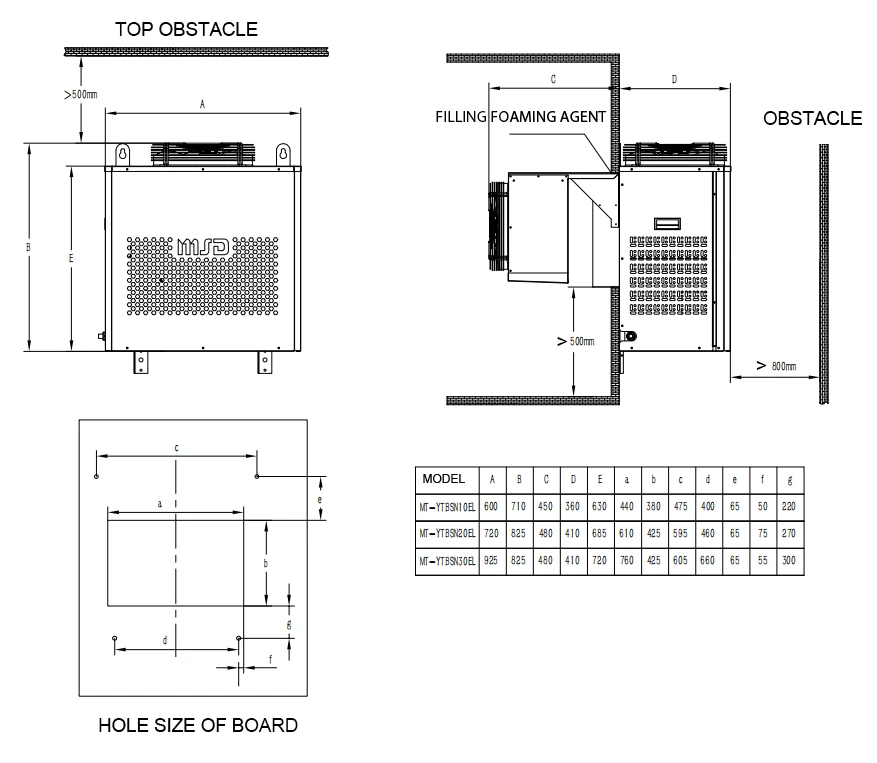

Side-embedded integrated condensing unit （R404A） | ||||||||
Model | LY--YTCN10EL | |||||||
Power Supply | 220V/60Hz | |||||||
Evaporation temperature（℃） | -40～-5℃ | |||||||
Compressor Model | C-RHN75E6A | |||||||
Maximum operating current | 5A | |||||||
Pressure control type | Diaphragm pressure control | |||||||
Condensing fan | Power | 120 | ||||||
Qty | 1 | |||||||
Evaporation fan | Power | 80 | ||||||
Qty | 1 | |||||||
Dimension（mm） | Length * Width * Height | 600*710*710 | ||||||
Cooling Capacity （W） | Low temperature working conditions: Ambient temperature 32℃, rotation speed 60Hz | |||||||
Evaporation temperature | -5℃ | 2135 | ||||||
-15℃ | 1430 | |||||||
-25℃ | 975 | |||||||
-35℃ | 655 | |||||||
Rated Power | 780 | |||||||
Features | 1. w horizontal low-temperature compressor with Sanyo brand, thermal expansion valve with Danfoss brand, integrated control panel, built-in cabinet temperature and defrosting temperature probe and LCD panel. 2. Multiple defrosting modes, timing and automatic. 3.The whole machine has multiple protections, automatic detection and reset. 4. Easy embedded installation, it can run after power on. | |||||||
Our Advantage:
1. Our company's chief technical employees have been engaged in the refrigeration industry for more than 20 years;
2. We have established a long-term cooperation with Panasonic, and designed a stable and reliable refrigeration equipment unit;
3. Our delivery time is shorter than the average of industry：5-7working days;
4. Our cold storage operation is stable, the customer after-sales complaint rate is nearly zero in recent 5 years.
5. We have cooperative after-sales service centers in several major foreign countries.
Application
Company Profile

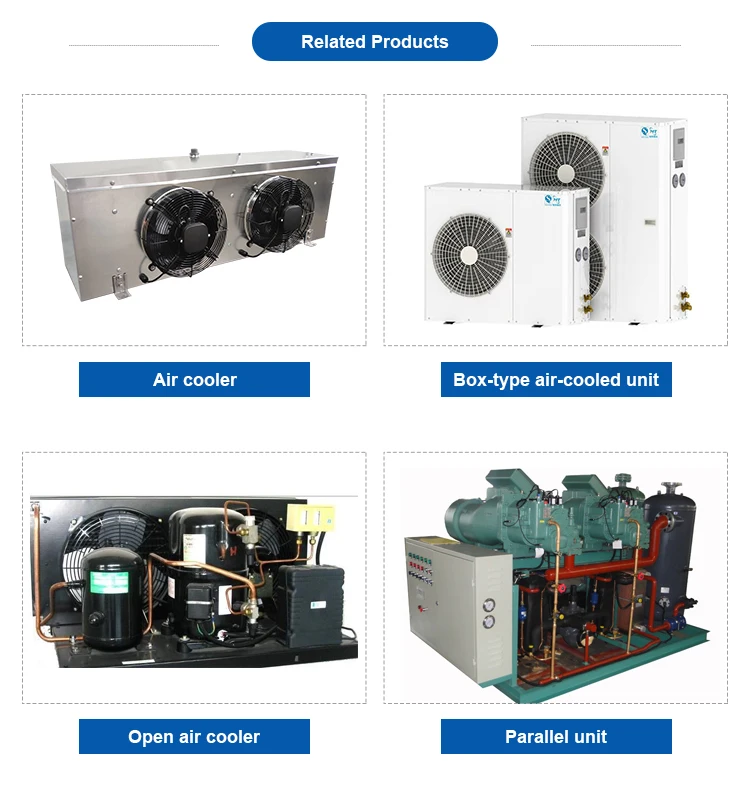

Recommend Products
Shippment
FAQ
Q1: Are you a factory or a trading company?
A1: We are one of the largest refrigeration equipment manufacturers in China.
Q2: What is your strength ?
A2: Design and manufacture.We are specialized in manufacturing a series of refrigeration equipment such as chillers, air coolers, cold storage, etc., and provide overall solutions.
Q3: Can the product be customized according to specifications?
A2: Yes, we are pretty strong on design and manufacturing of tailor made products, the drawings will be sent to our clients for approval before the samples are made.
Q4: What are the payment terms?
A3: We support 30% deposit in advance and the balance 70% T/T will be paid against copy of BL
Q5: What is your warranty?
A5: We can assure you one year against manufacturing defect.
A1: We are one of the largest refrigeration equipment manufacturers in China.
Q2: What is your strength ?
A2: Design and manufacture.We are specialized in manufacturing a series of refrigeration equipment such as chillers, air coolers, cold storage, etc., and provide overall solutions.
Q3: Can the product be customized according to specifications?
A2: Yes, we are pretty strong on design and manufacturing of tailor made products, the drawings will be sent to our clients for approval before the samples are made.
Q4: What are the payment terms?
A3: We support 30% deposit in advance and the balance 70% T/T will be paid against copy of BL
Q5: What is your warranty?
A5: We can assure you one year against manufacturing defect.
