Холодильная камера для рыб Морозильный холодильник овощи холодильной
- Категории: >>>
- Поставщик: Shandong,Shenzhou,Refrigeration,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики

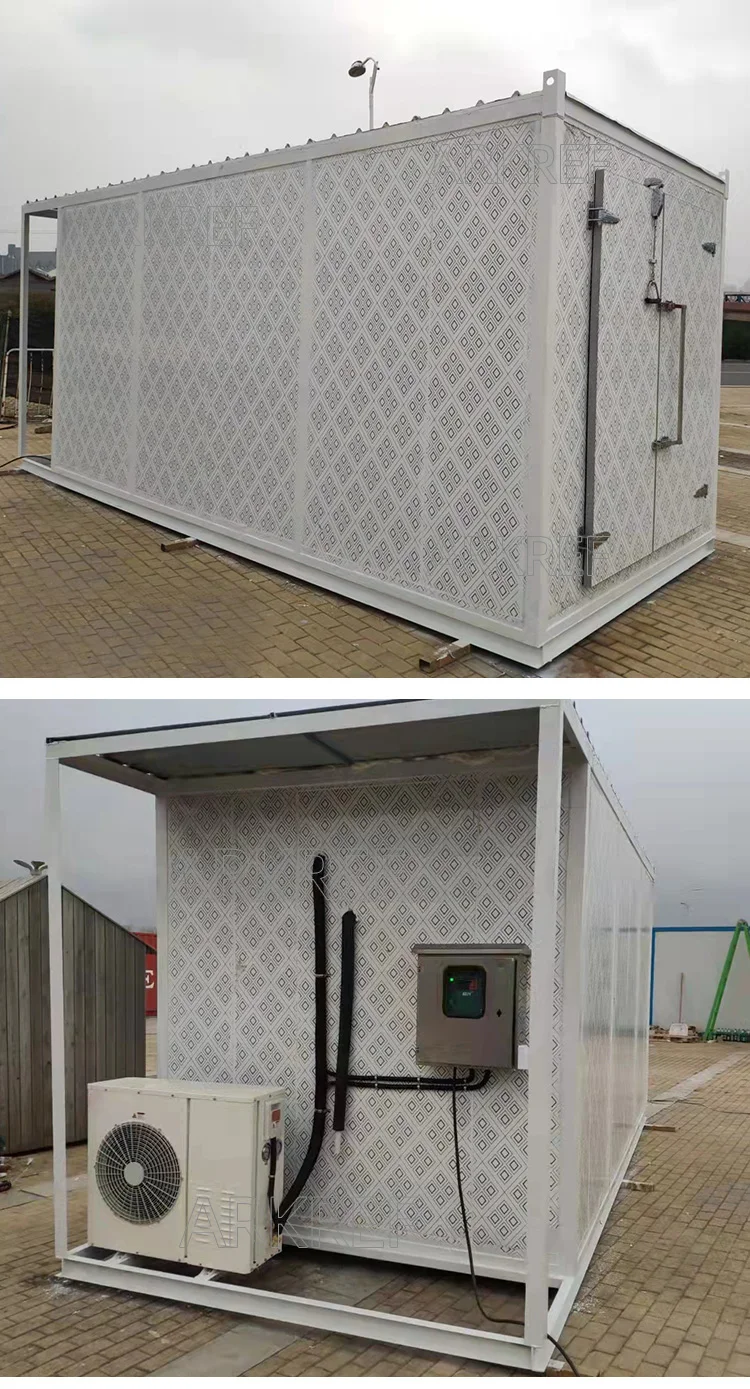

Container cold room parameters
Model | LxWxH（m） | Internal volume （m³） | External surface area （㎡） | Refrigeration unit | Voltage |
20GP | Outside: 5.898x2.352x2.393 | 24.04 | 67.23 | 3HP | 380V/220V |
40GP | Outside: 12.032x2.352x2.393 | 50.39 | 125.44 | 6HP | 380V/220V |
Cold storage container specifications | ||
Cold room dimension | 20 Feet /40 Feet | |
Core material of panel | Polyurethane | |
Panel available thickness | 50mm,75mm,100mm,120mm,150mm,200mm | |
Material of panels surface | Color plate, Stainless Steel, etc | |
Surface of panels thickness | 0.326mm, 0.376mm, 0.426mm, 0.476mm, 0.526mm | |
Door types | Sliding, swing | |
The assembly is completed in the container, and the refrigeration unit can be customized according to the requirements.
Customization process:
1. Model size
2. Temperature requirements
3. Insulation material and panel material
4. Other special requirements
Selling Point

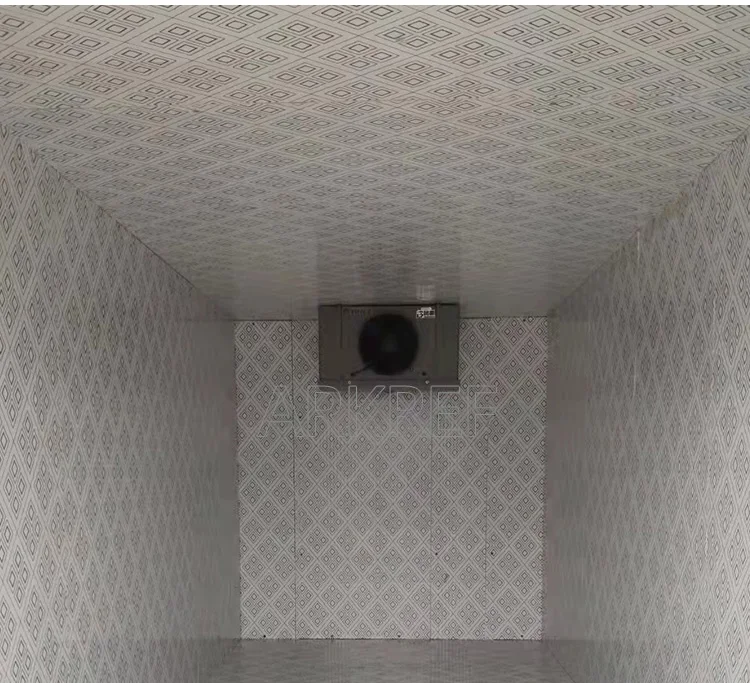

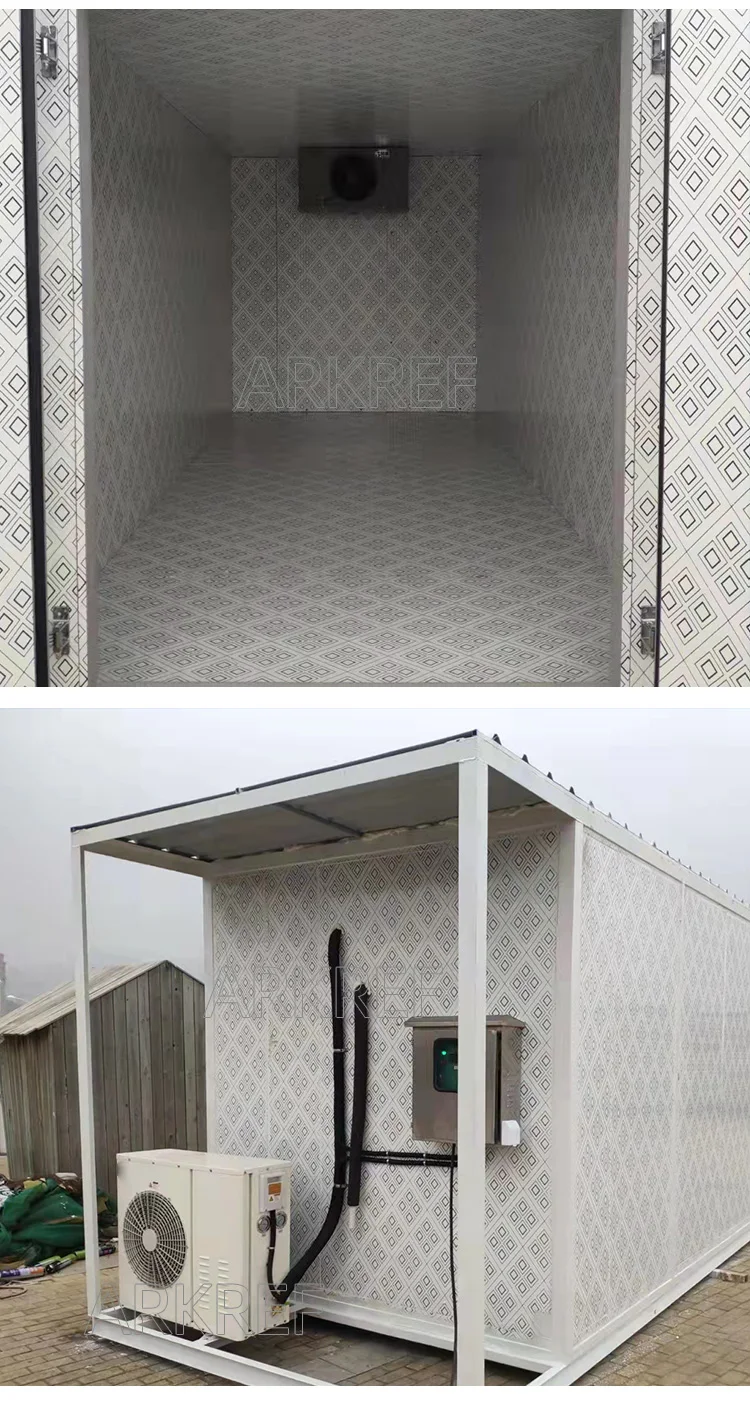

Indoor polyurethane insulation board
Good heat preservation and sealing, clean and tidy
Good heat preservation and sealing, clean and tidy
Refrigeration equipment and heat preservation warehouse body adopt integrated design, compact structure and high cooling efficiency
No civil construction requirements, flat or firm ground is enough. It can be used after power is connected.

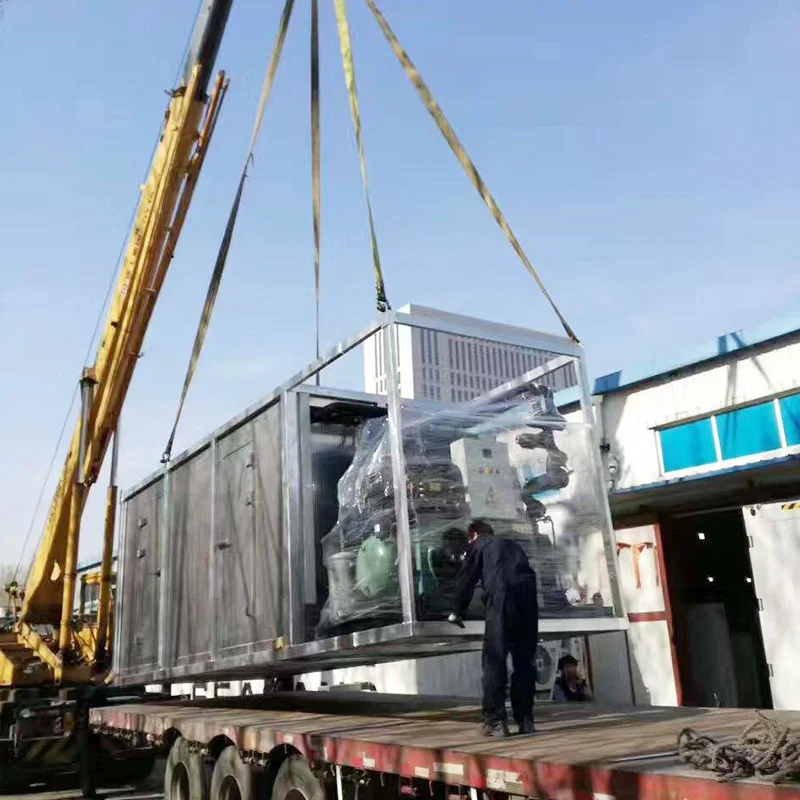

It is convenient for overall transportation and movement (it can be transported by train, truck or ship), and can be moved without disassembly and assembly.
Cold room classification
Fresh-keeping cold room (Internal Temperature 0℃~5℃)
Ordinary cold room (Internal Temperature -15℃~-18℃)
Low temperature cold room (Internal Temperature -22℃~-25℃)
Quick-freezing cold room (Internal Temperature < -30℃)
Applications

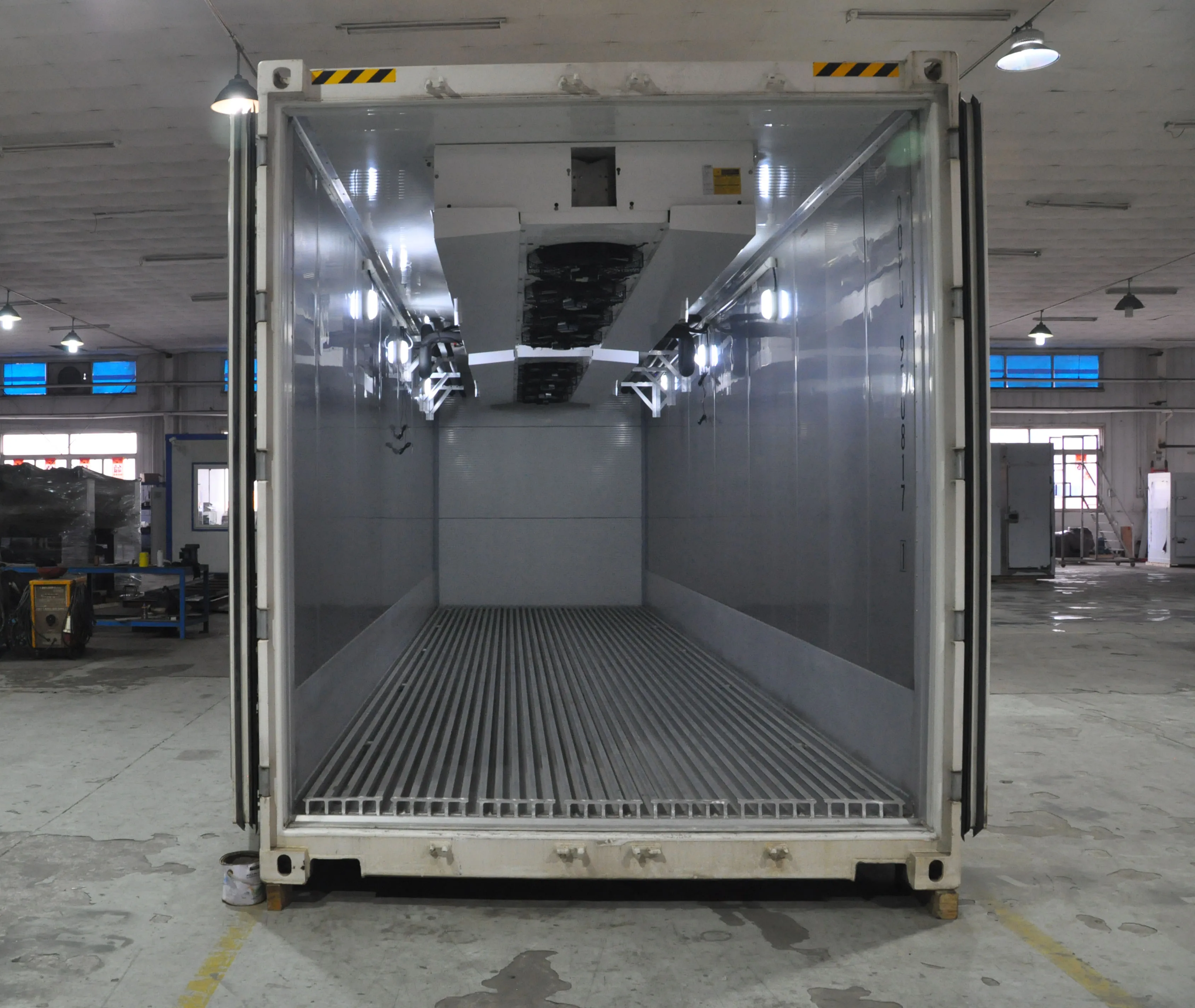

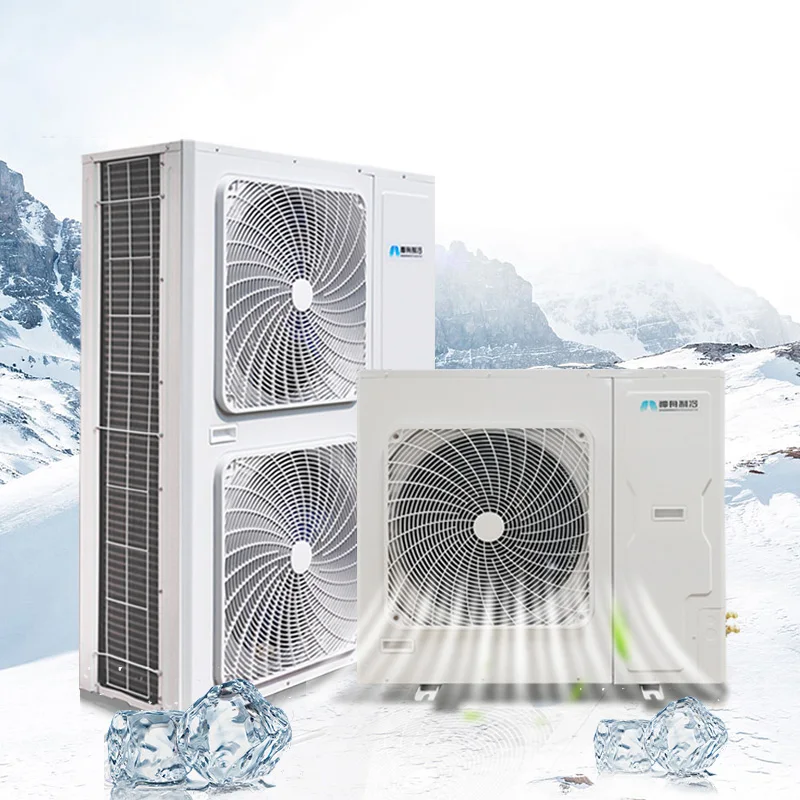

product display
Company Profile
Our company ensures the continuous improvement of product quality by using advanced 'SAP' management system,gradually transforming the methods of pipeline production, adopting advanced production methods and equipment, and applying strict quality assurance system and control system.
Certifications
Shandong Shenzhou Refrigeration Equipment Co.Ltd has obtained ISO9001:2008 quality system certification and CE and other certificates.
FAQ
Q1: Are you a factory or a trading company?
A1: We are one of the largest refrigeration equipment manufacturers in China.
Q2:Where is your factory located?
A2: Our factory is located in Shengjing High-tech Park of Zhangqiu, Jinan city, China.
Q3: Do you guarantee safe and secure delivery of products?
A3: Yes, we always use high quality export packaging. We also use specialized hazard packing for dangerous goods and validated cold storage shippers for temperature sensitive items. Specialist packaging and non-standard packing requirements may incur an additional charge.
Q4: Can the product be customized according to specifications?
A4: Yes, we are pretty strong on design and manufacturing of tailor made products, the drawings will be sent to our clients for approval before the samples are made.
A4: Yes, we are pretty strong on design and manufacturing of tailor made products, the drawings will be sent to our clients for approval before the samples are made.
Q5: What are the payment terms?
A5: We support 30% deposit in advance and the balance 70%T/T will be paid against copy of BL
