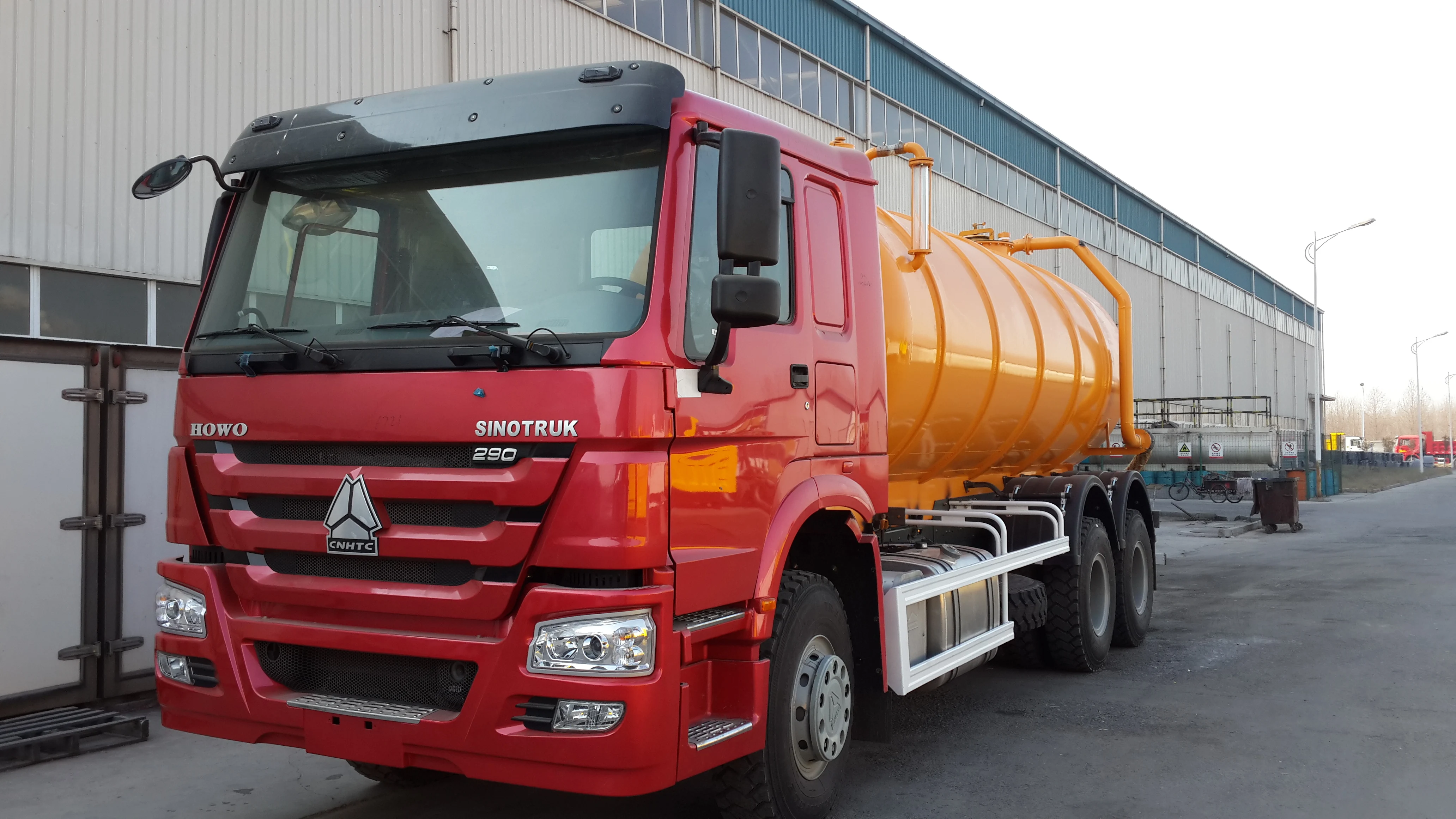

Used Sinotruk HOWO Suction Truck
US $6600-$8500
Sinotruk Howo 6x4 10 колесный вакуумный грузовик для очистки сточных вод на
- Категории: Илососная машина >>>
- Поставщик: Jinan,Sino,Truck,Sales,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Product Specification
Vacuum Sewage Truck
With self-priming function to extract sludge and sewage in ditches, pools and sewers.
Basic structure: chassis, tank body, vacuum system, straw;
Hydraulic discharge mechanism, other accessories
Basic structure: chassis, tank body, vacuum system, straw;
Hydraulic discharge mechanism, other accessories
DETAILS
The vacuum pump is driven by hydraulic transmission, the system works stably, the reliability is high, the transmission efficiency is high, the failure rate is low
Integrated hydraulic valve, pneumatic, manual two sets of operating systems, automatic sequence of opening and closing, locking, to prevent damage caused by misoperation of the device
Tank lifting 0-40 degrees, easy to dump materials
Back cover open 0-55 degrees, easy to dump materials, easy to clean personnel in and out
The rear end cover is hydraulically locked and opened and closed in sequence with the rear end cover hydraulically opened
Vacuum pump with optional exhaust muffler, lower noise
The water separator at the top of the tank is coordinated with the safety overflow prevention at the bottom (a primary overflow prevention valve) to effectively prevent liquid from entering the vacuum pump intake system
Secondary spillproof tank: once the former spillproof tank fails, the liquid enters the secondary spillproof tank to ensure the safe operation of the vacuum pump to the greatest extent
Tank pressure inlet air filter, safety valve, effectively ensure the safe operation of vacuum pump and system
The tank level electro-acoustic alarm system reminds the operator of the vehicle status in time
Tank level display to confirm the tank level height in time
6x4 14m3 Vacuum Suction Truck | ||||
Truck Brand | SINOTRUK—HOWO | |||
Driving Style | Left Hand Driving | |||
Truck Model | ZZ1257M4341W | |||
Diameter of suction tube | Φ100mm | |||
Suction depth | >5m | |||
Vacuum pump | JuropPN84D | |||
Absorb pipe | 4” 6meter black pipe | |||
Tank Details | Tank Volume | 14m3 | ||
Material | Q235, 6mm thickness | |||
Water Tank | 20L | |||
Truck Dimension (L x W x H)mm | 9800*2496*3718 | |||
Approaching angle/Departure angle(°) | 16/15 | |||
Overhang(front/rear) (mm) | 1500/2625 | |||
Wheel base (mm) | 4325+1350 | |||
Engine(Made in China) | Model | WD615.62, water-cooled, four strokes，6 cylinders in line with water cooling , directly injection | ||
Fuel type | Diesel | |||
Horse Power, max(kw/rpm) | 266hp | |||
Emission | EURO II | |||
Transmission | Model | HW13710, 10 forwards and 2 reverse | ||
Brake system | Service brake | Dual circuit compressed air brake | ||
Parking brake | spring energy, compressed air operating on rear wheels | |||
Auxiliary brake | Engine exhaust brake | |||
Steering system | Model | 8198 Germany type, hydraulic steering with power assistance | ||
Front axle | HF7 axle | |||
Rear axle | ST16 axle | |||
Color | Optional | |||
Tyre | 12R22.5 tire, 6 +1 spare tire | |||
Electrical system | Battery | 2X12V/165Ah | ||
Alternator | 28V-1500kw | |||
Cab | HW76 cab, one sleeper with air conditioner, all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers | |||
It is mainly used for the transportation of liquid substances such as industrial harmful waste liquid, urban sanitation waste liquid and construction sludge. It can be self-priming and self-discharging, with fast working speed, large capacity and convenient transportation, especially suitable for the suction, shipment and discharge of the sediment in the sewer. Advanced product design, reasonable structure, convenient and quick operation.

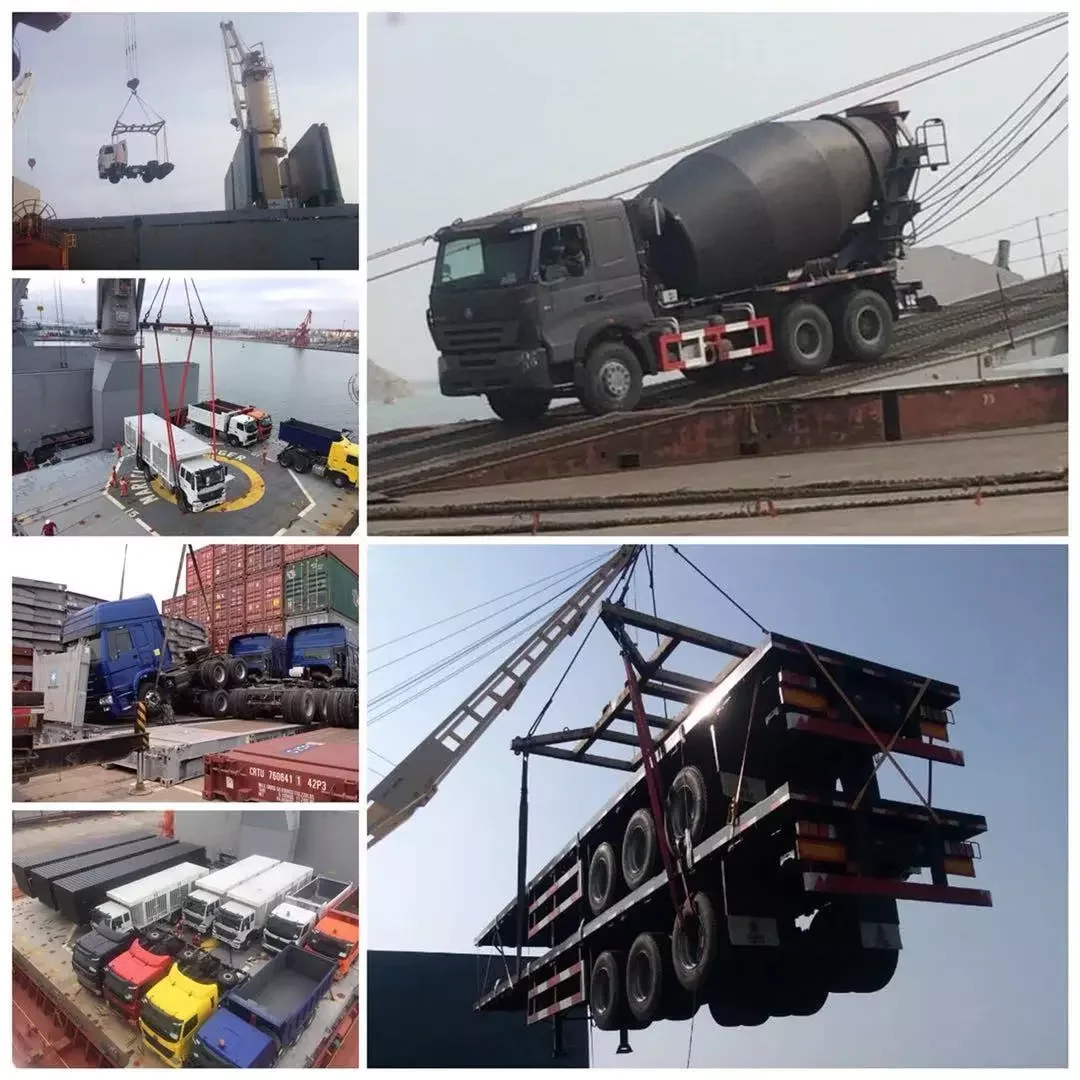

Packing & Delivery
Packaging Details: All the truck will be polish with wax before shipping and will be according the truck type and destination port to choose suitable shipping way. There are three way can be choose, RORO, BULK CARGO VESSEL AND FLAT RACK CONTAINER
Port: Tianjin,Qingdao
Lead time: Shipped in 30 days after payment
Port: Tianjin,Qingdao
Lead time: Shipped in 30 days after payment

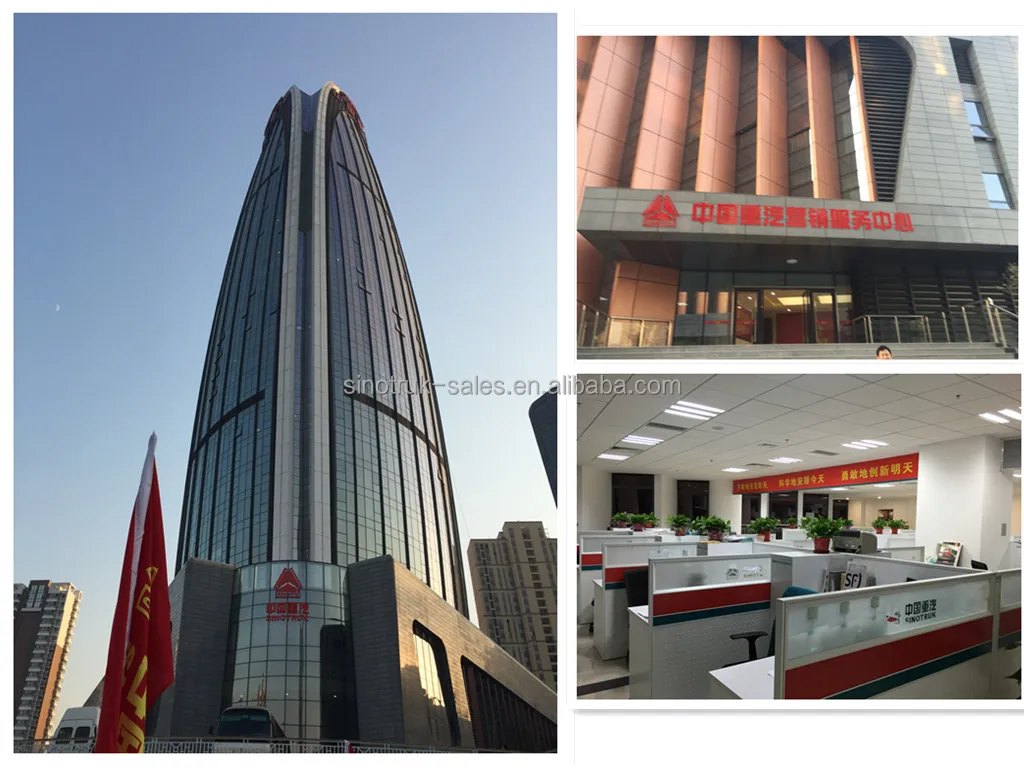

Company Profile
COMPANY BRIEF INTRODUCTION
Jinan Sino Truck Sales Co., Ltd Located in Jinan city, Shandong Province, China, the first heavy duty truck-Yellow River birth in here on 1956.
More Than ten years development, Jinan Sino Truck Sales Co., Ltd become to a Mature and professional trucks supplier at domestic and oversea market.
The main trucks that we can supply are all series of SINOTRUK, the branch brand as below : HOWO 7 , HOWO A7, HOWO-T7H, HOWO-T5G, HOMAN, HOWO light truck Mine Overlord, Mine warrior and Special vehicle for civilian product, which in terms of model, include Dump trucks, Tractor trucks, Concrete mix trucks, Cargo trucks, Sprinkler trucks, Fuel tank truck, Dry bulk cement powder truck,Sewage suction truck, Military trucks for army and different type semi-trailer, Flatbed semi-trailer, Skeleton semi-trailer, Tipper semi-trailer, Cargo type semi-trailer, Fence semi-trailer, Curtain side semi-trailer, Low bed semi-trailer, Fuel tank semi-trailer etc.
Our company undertakes all kinds of CNHTC’s truck’s sales service both at home and abroad. Welcome all customers to visit ourwebsite www.sino-truck.cn/ www.sino-truck.com.cn.
Jinan Sino Truck Sales Co., Ltd look forward to cooperate with you to create brilliant: One solid step, Counts for success in the end.
More Than ten years development, Jinan Sino Truck Sales Co., Ltd become to a Mature and professional trucks supplier at domestic and oversea market.
The main trucks that we can supply are all series of SINOTRUK, the branch brand as below : HOWO 7 , HOWO A7, HOWO-T7H, HOWO-T5G, HOMAN, HOWO light truck Mine Overlord, Mine warrior and Special vehicle for civilian product, which in terms of model, include Dump trucks, Tractor trucks, Concrete mix trucks, Cargo trucks, Sprinkler trucks, Fuel tank truck, Dry bulk cement powder truck,Sewage suction truck, Military trucks for army and different type semi-trailer, Flatbed semi-trailer, Skeleton semi-trailer, Tipper semi-trailer, Cargo type semi-trailer, Fence semi-trailer, Curtain side semi-trailer, Low bed semi-trailer, Fuel tank semi-trailer etc.
Our company undertakes all kinds of CNHTC’s truck’s sales service both at home and abroad. Welcome all customers to visit ourwebsite www.sino-truck.cn/ www.sino-truck.com.cn.
Jinan Sino Truck Sales Co., Ltd look forward to cooperate with you to create brilliant: One solid step, Counts for success in the end.
Certifications
FAQ
Q. Can your trucks be legally used in our country ?
A: Yes, they are CCC and ISO approved, and it has valid VIN number so that it can be used legally on road
Q. How about your product quality?
A: The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certification.All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
Q. How about your company's service, especially after-sale service?
A: Jinan Sino Truck Sales Co.,Ltd. have been in this field for many years, our company is constantly improving the service quality to provide excellent service for customers according to the “client first” principle.We always do our best to solve all the problems and put our customer's interests in the first place.
Q. Is there any advantages of your price?
A: Jinan Sino Truck Sales Co.,Ld. is one of the important suppliers of Sinotruk, which provides guarantees for reasonable price and good quality. Especially,we provide a new service pattern--online assembly service, which aims to produce cars according to customers’ specific requirements.
Q. What is your lead time and voyage days?
A: Our trucks usually can be completed within 20 working days and the voyage day it may take 30 days to arrive in your ports, it depends on the distance of your country.
A: Yes, they are CCC and ISO approved, and it has valid VIN number so that it can be used legally on road
Q. How about your product quality?
A: The products have passed the ISO,CCC,SGS,BV, and CONTECNA qualification certification.All our spare parts are from the original manufacturers with original part number and and anti-fake label, the quality is 100% guaranteed.
Q. How about your company's service, especially after-sale service?
A: Jinan Sino Truck Sales Co.,Ltd. have been in this field for many years, our company is constantly improving the service quality to provide excellent service for customers according to the “client first” principle.We always do our best to solve all the problems and put our customer's interests in the first place.
Q. Is there any advantages of your price?
A: Jinan Sino Truck Sales Co.,Ld. is one of the important suppliers of Sinotruk, which provides guarantees for reasonable price and good quality. Especially,we provide a new service pattern--online assembly service, which aims to produce cars according to customers’ specific requirements.
Q. What is your lead time and voyage days?
A: Our trucks usually can be completed within 20 working days and the voyage day it may take 30 days to arrive in your ports, it depends on the distance of your country.
Our Service
Excellent Quality First-class Service
1.Near 20 years Wholesaler experience in truck field
2.Specialization: Accurately meet your requirement, Experienced engineers serving for you
3.Good quality: Original products & OEM services, with many Certifications
4.Great variety and wide range: your “One-shop purchasing service”
5.English operation Manual
6.We will reply you for your inquiry in 24 hours
7.Important partner with SINOTRUK & SHACMAN and know the market very well
8.After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
2.Specialization: Accurately meet your requirement, Experienced engineers serving for you
3.Good quality: Original products & OEM services, with many Certifications
4.Great variety and wide range: your “One-shop purchasing service”
5.English operation Manual
6.We will reply you for your inquiry in 24 hours
7.Important partner with SINOTRUK & SHACMAN and know the market very well
8.After sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.

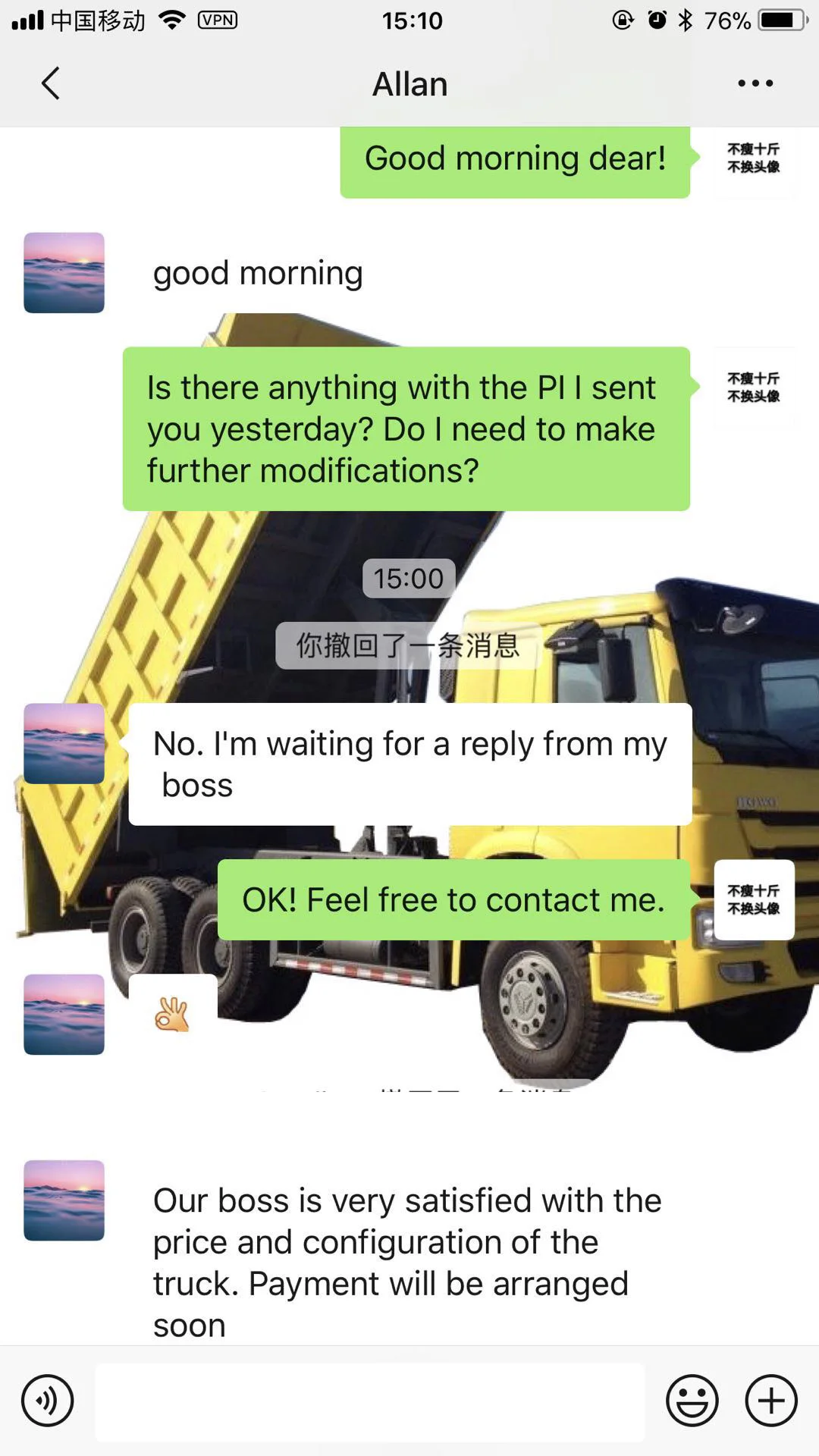

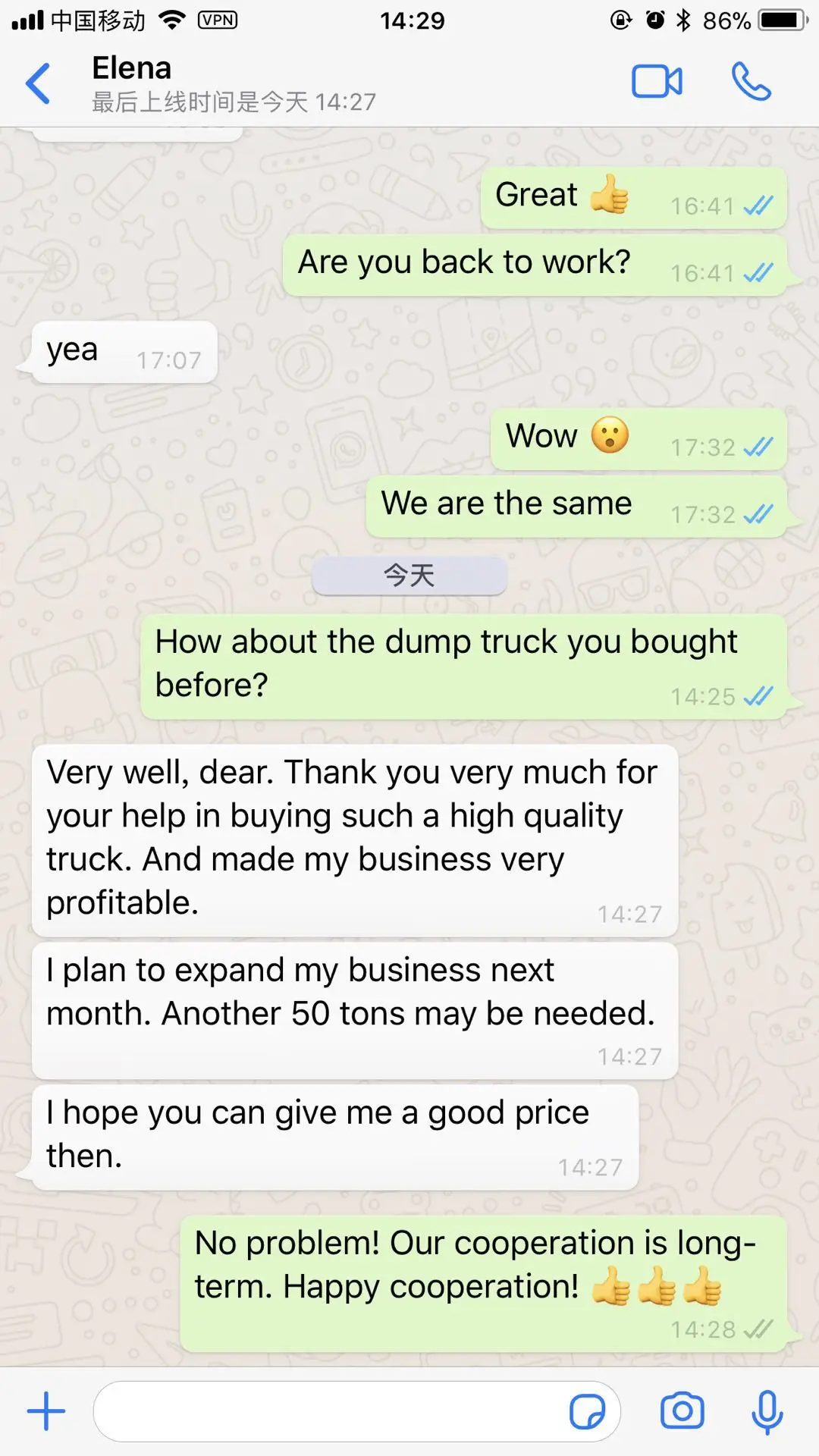

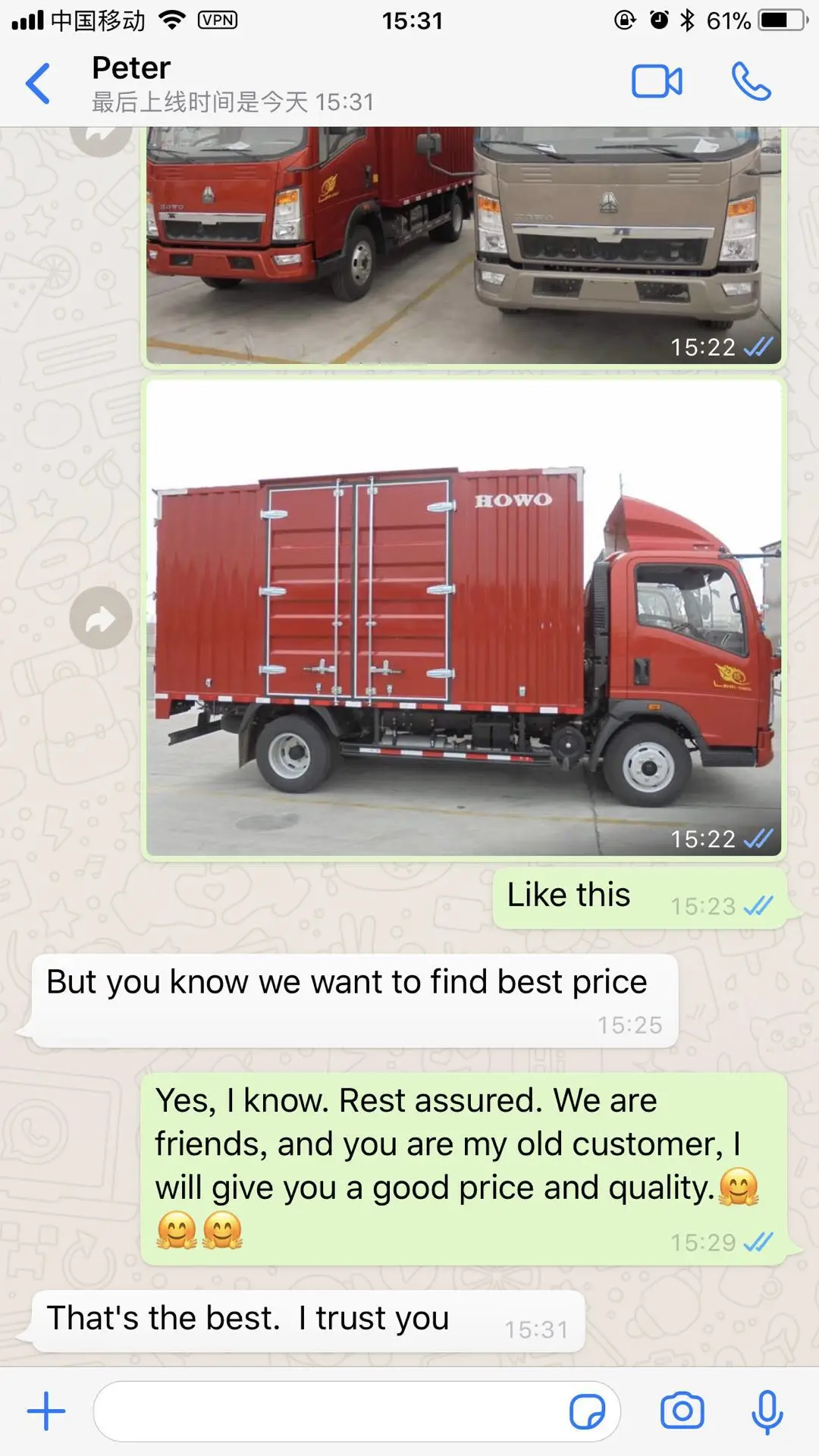

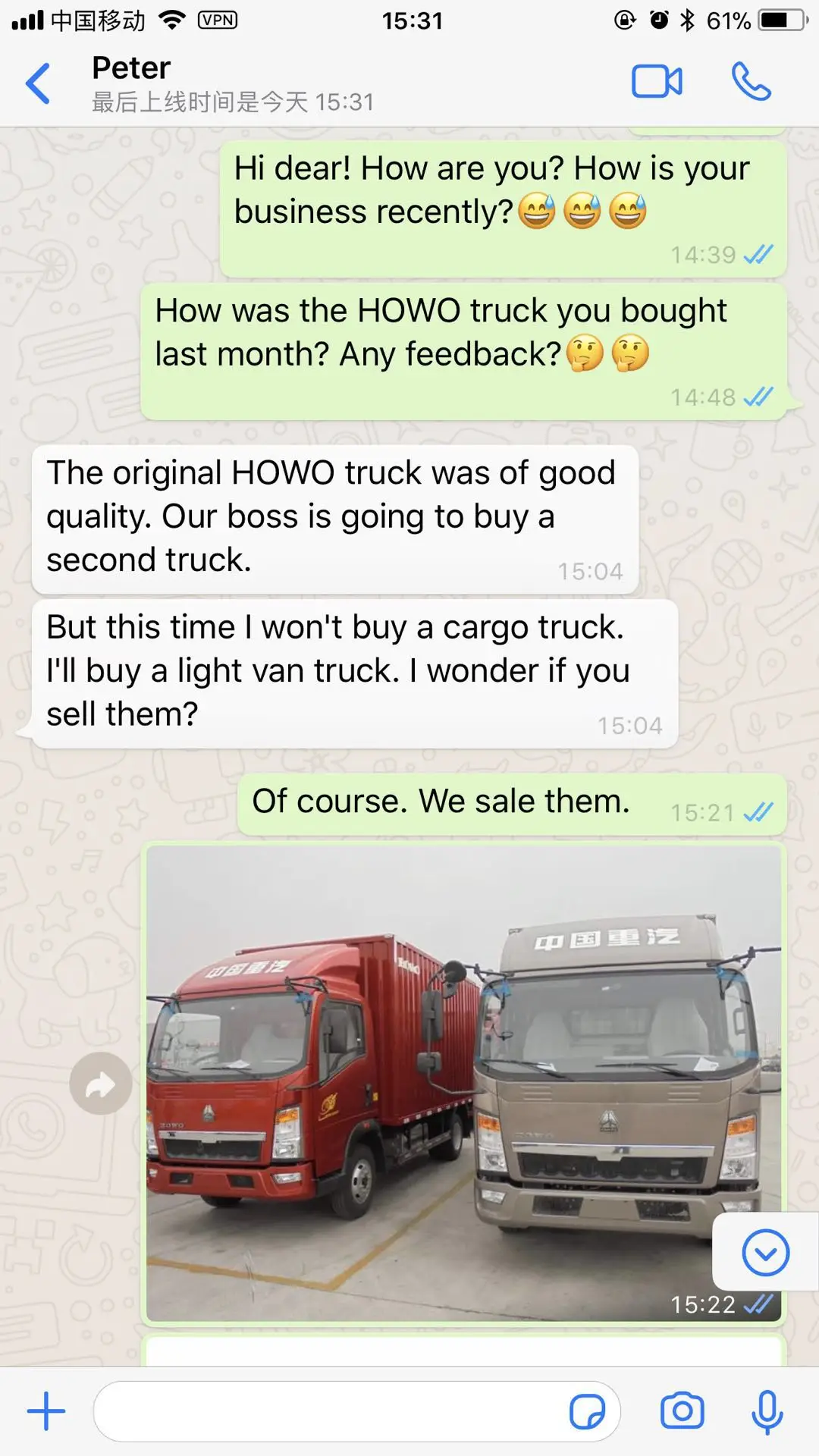

Customer Feedback
Contact Me
