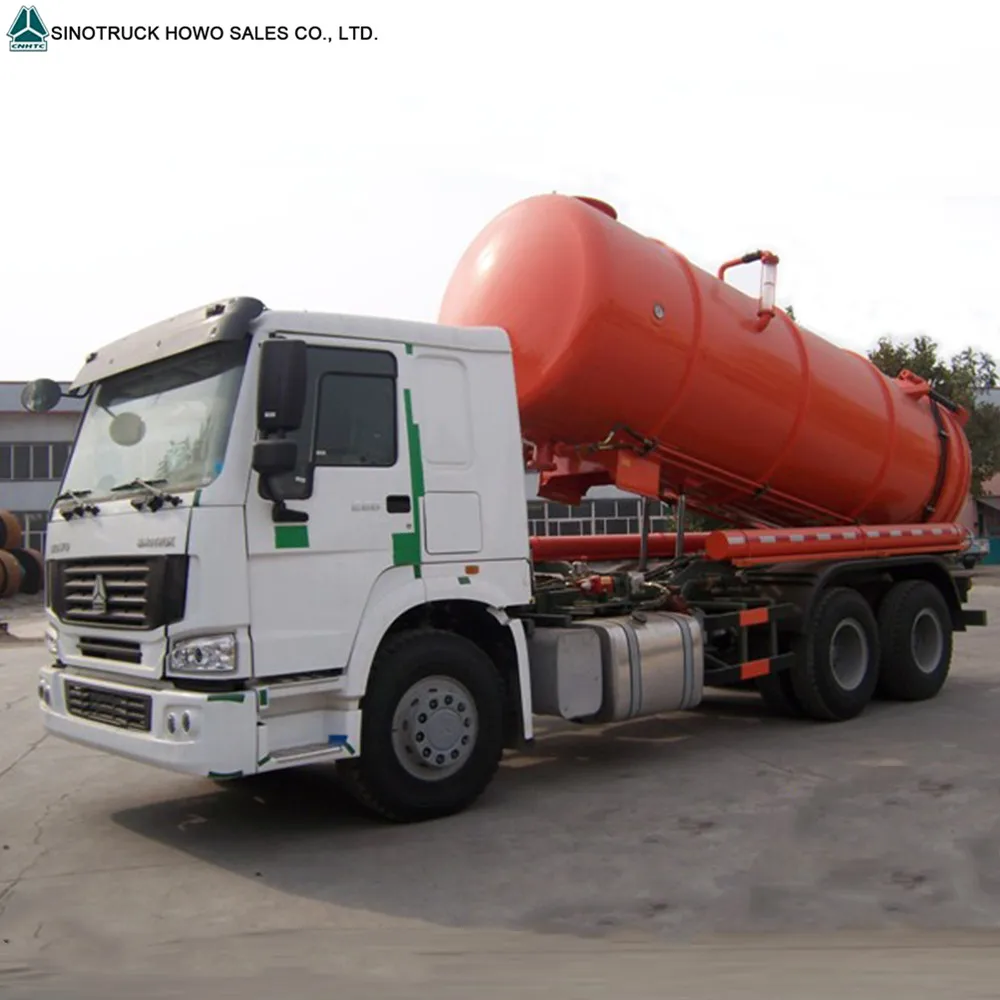

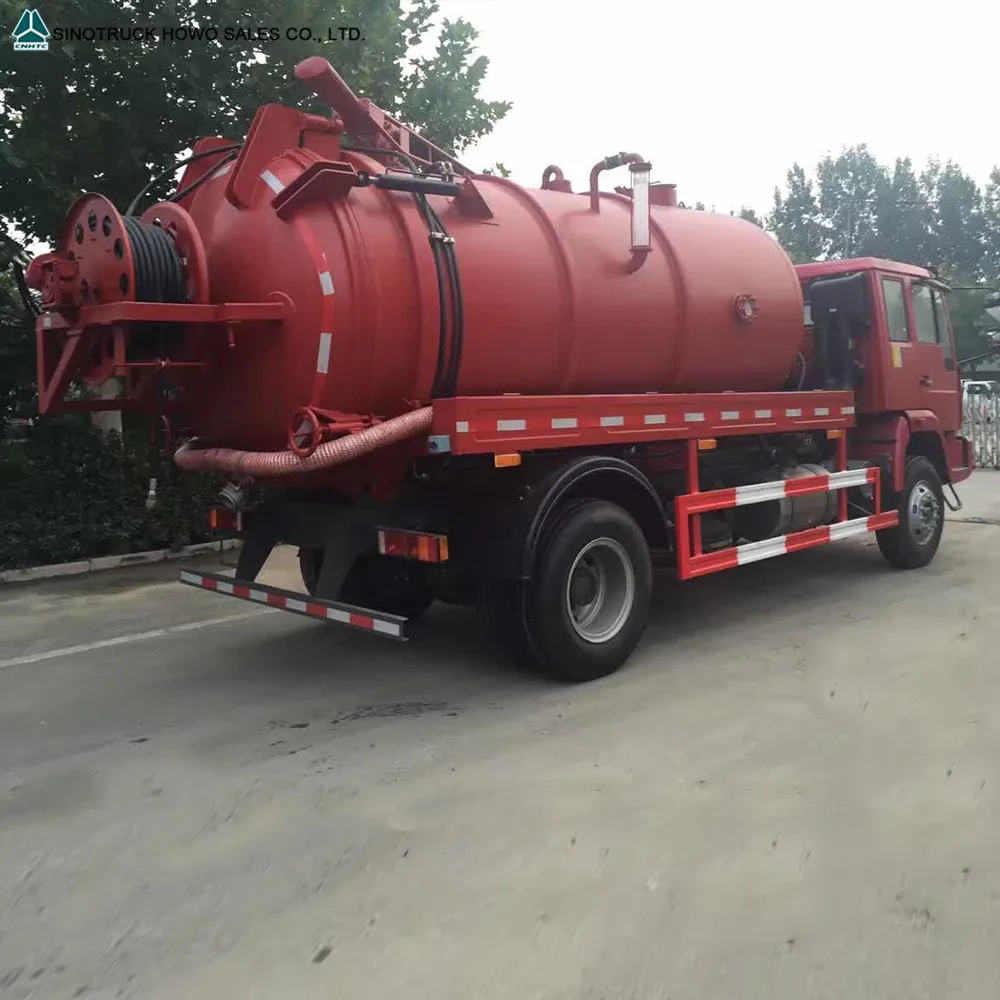

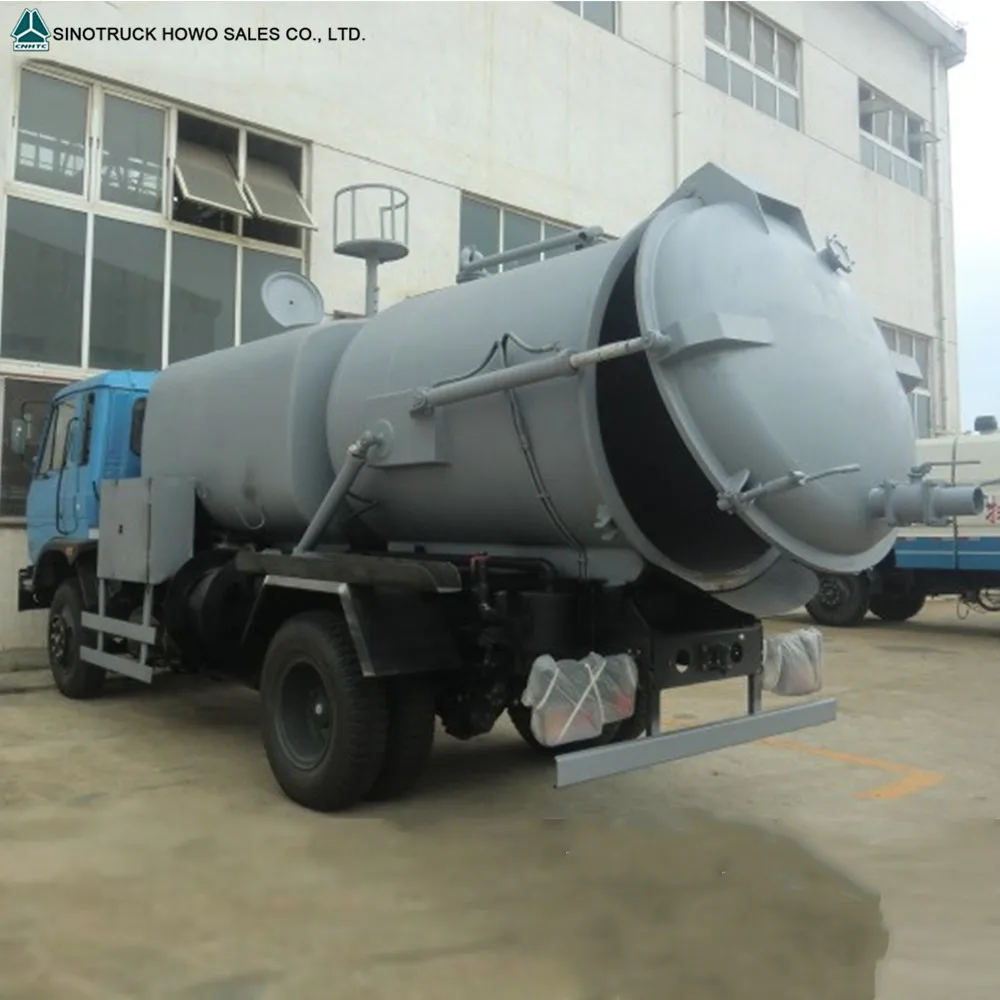

Подержанный всасывающий грузовик HOWO 20000 л для

Chassis

ZZ1167M4611W

Engine

Make: SINOTRUK
Diesel:4-stroke direct injection diesel engine
Engine model:WD615.62,EuroⅡemission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output:266 HP(196KW)at 2600 rpm
Maximum torque:1100 Nm at 1100-1600 rpm
Number of cylinder :6
Displacement:9.726 L
Bore:126mm
Stroke:130mm

Drive form

Left Hand Drive form

Clutch

430C Pull type diaphragm spring clutch. Friction disk diameter: 430mm

Transmission

HW13710, 10 forward & 2 reverse.

Propeller Shaft

Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle

HF7

Rear Axle

ST13, Central single reduction, full-floating axle shaft, steel plate press-welding axle housing.

Chassis

Frame :U-profile parallel ladder frame with section of 300×80×8 mm, all cold riveted cross members

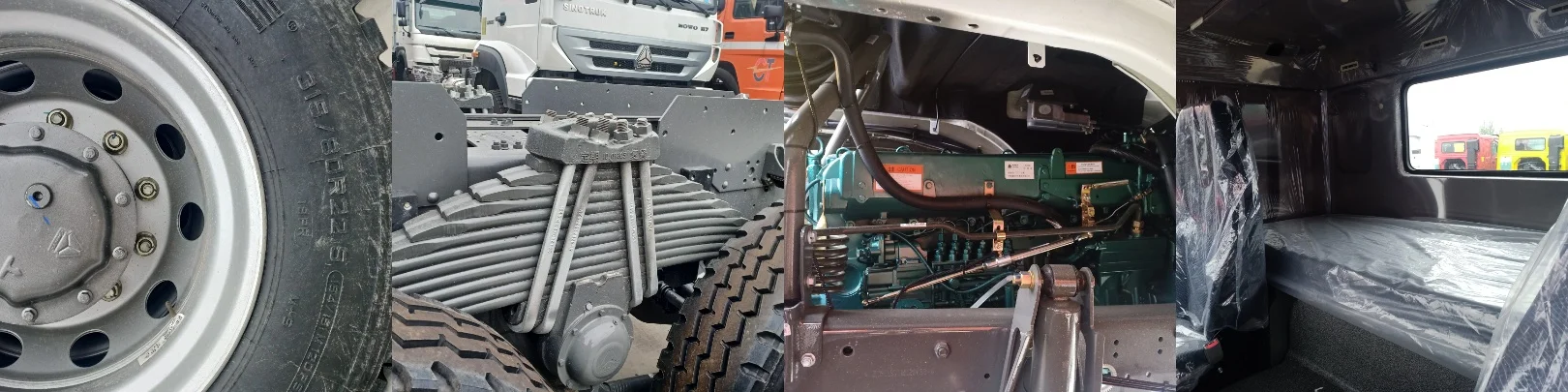

Front suspension:
9 semi-elliptic leaf springs with hydraulic telescopic double-action shock
absorbers and stabilizer
Rear suspention:
15 leaf semi-elliptic leaf springs with hydraulic telescopic double-action
shock absorbers
Aluminum fuel tank:
300 l capacity with locking fuel cap, fitted to the off side of the chassis

Steering

ZF8098,hydraulic steering with power assistance.

Brakes

Service brake: dual circuit compressed air brake
Parking brake (emergency brake):
spring energy, compressed air operating on rear wheels
Auxiliary brake: engine exhaust brake
Option: ABS

Electrics

Operating voltage:24 V, negative grounded
Starter:24 V,7.5Kw
Alternator:28 V,1500 W
Batteries:2×12 V,165Ah
Cigar-lighter, horn, headlamps, fog lights, indicators and reverse light

Weight kg

Dead weight:8840
Gross vehicle weight:19000

Body

Volume of body(m3):12
Volume of filler(m3):2.2
Time of one filling cycle(s):≤30
Lifting time of filler (s):8-10
Time of discharge (s):≤55
Pressure of fluid system (Mpa):20
Front/rear sewage capacity (L):250+150
Max compression force (kg):>25000
