Product Overview

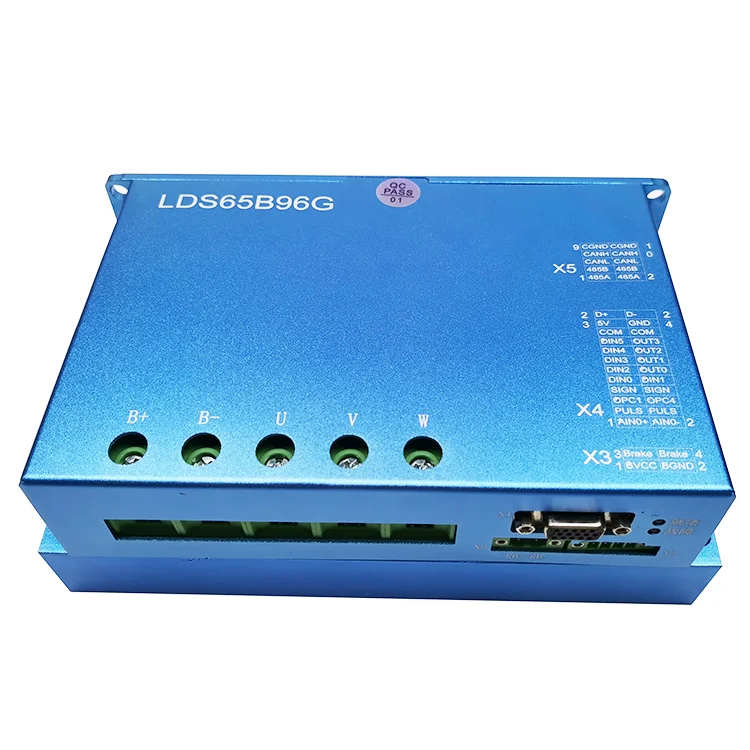

Single Channel Motor Driver LDS65B96G
LD series DC servo motor driver is a high-performance DC motor driver which has been introduced by senior experts after more than ten years of application experience in the robot industry, combined with leading motor control and current accurate detection technology. The powerful PID adjustment technology can perfectly control the motor's smooth forward and reverse rotation, commutation and braking. The output current can be adjusted in real time to prevent overcurrent. The motor speed and rotation position can be accurately controlled. The motor has a short response time and low recoil. We can provide 5A-200A high current, wide voltage input 12v-96v and other serialized products. This product is widely used in mobile cars, service robots, wearable exoskeleton robots and other products.
Product specifications
Item | Parameters |
Model | LDS65B96G |
Rated Current | 65Arms±1% |
Maximum Current | 130Arms±1% |
Maximum Overload Time | 6S |
Overload Recovery Time | 90S (without external heat dissipation) |
Limit Power Supply Range | 18VDC～96VDC |
Temperature Rise | Rated current operation 30min≤40K (refer to cooling mode) |
Driving Frequency | 6 ～ 21KHz±0.1KHz |
Cooling Method | The ventilation condition is good, and the installation surface needs to have some heat dissipation effect, such as iron plate, steel plate, etc |
Rated Insulation Withstand Voltage | Leakage current of input and output to the chassis DC 1000V is less than 3mA. |
Insulation Resistance of the Whole Machine | When the temperature is 40° and the humidity is 95%, ≥1M (no dew on the board) |
Mean Time Between Failures (MTBF) | ≥5000 hours |
Power Control Method | Vector control |
Protection Level | IP32 |
Product Advantages
* Flat, small size, wide voltage, light weight, high power density.
* Acceleration and acceleration mode control, fast positioning without shaking.
* Acceleration and acceleration mode control, fast positioning without shaking.
* Multiple hardware and software to protect the motor.
* Real-time reading current, speed, position.
Details Images
Company Profile
Certifications
FAQ
Q1: Transport/Shipment Time
A1: The shipment is 3~7 days by express, 3~4 days by air, 15~35 days by sea. Feel free to let us know your delivery destination for learning the exact transport time.
Q2: After-sale service
A2: For assured quality all products, we check all products’ quantity twice. The first time is end of production, the second time is before packing into cartons. If any negligence or accident about our goods, after received goods within 10 days, please don’t worry to contact us at any time. We will reply you in 24 hours and let you choose solutions to meet your satisfactory.
Q3: Our advantage
A3: Free cameraman special for you: Supply high quality photos for you after ordered. Save tax: We can make C/O, Form E, Form-F and so on. They can help you save 10~30$ custom tax. Reduce freight rate: We compress beds, integration space and talk with express. Just for saving freight rate for customer. Usually, by the way, it can save about 20%~35% shipping cost. And we are trying to improve all the time. We have a professional technical team: We can provide a full range of pre-sale consulting and after-sale technical guidance.
