Product Description

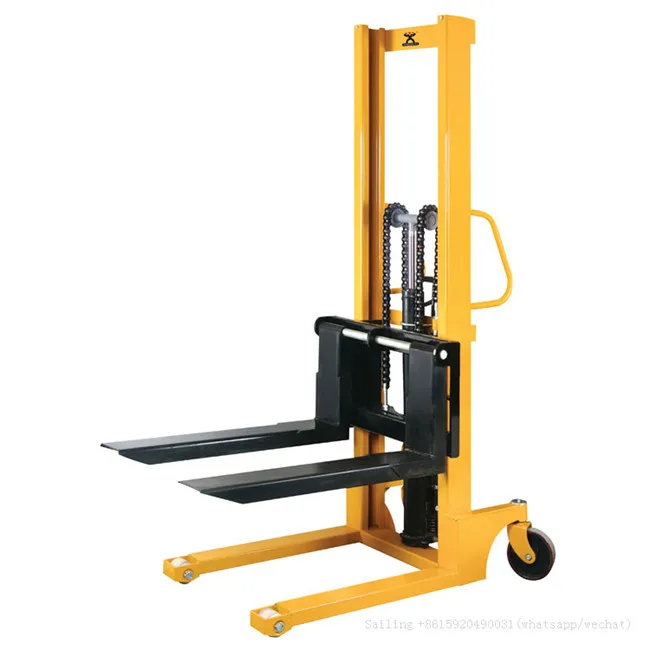

Manual Hand Stacker Price Hydraulic Hand Stacker with Foot Pedal 2ton Forklift Hand Pallet Stacker 5tons China Factory
Hydraulic and Manual (winch type) Hand Pallet Stackers are ideal for raising and lowering loads up to 5000kg (5Tonne), most stackers are complete with forks and act in a similar way to forklifts, others feature load rated tables for positioning.
What is a straddle stacker?
Chief among these is the straddle stacker, or pallet stacker, which is used to easily maneuver a series of pallets through a cramped storage space within warehouse areas and other commercial facilities.
Model | CTY-EH 1.0 | CTY-EH2.0 |
Rated lifting capacity(kg) | 1000 | 2000 |
Max. lifting height(mm) | 2500/3000 | 2500/3000 |
Lowered height of torks(mm) | 90/90 | 90/90 |
Fork length (mm) | 900/900 | 900/90. |
Adjustable width offorfcs(mm) | 300-750 | 340/750 |
Lifting speed(mm/stroke) | 14 | 14 |
Lowering sp«ed(mm/stroke) | Controllable | Controllable |
Operations power of crank(kg) | 32 | 32 |
Outer width of front l«gs(mm) | 690 | 690 |
Front wheel slze(mm) | *75x52 | ♦ 75x70 |
Rear wheel slze(mm) | f180x50 | 4180x50 |
Overall slze(mm) | 1895x785x1470 | 2150x785x1470 |
Selfweight(kg) | 220/240 | 250/280 |
