Производитель Китай, огнеупорная глина, бокситы, высокоглиноземные кирпичи
US $220.00-$230.00

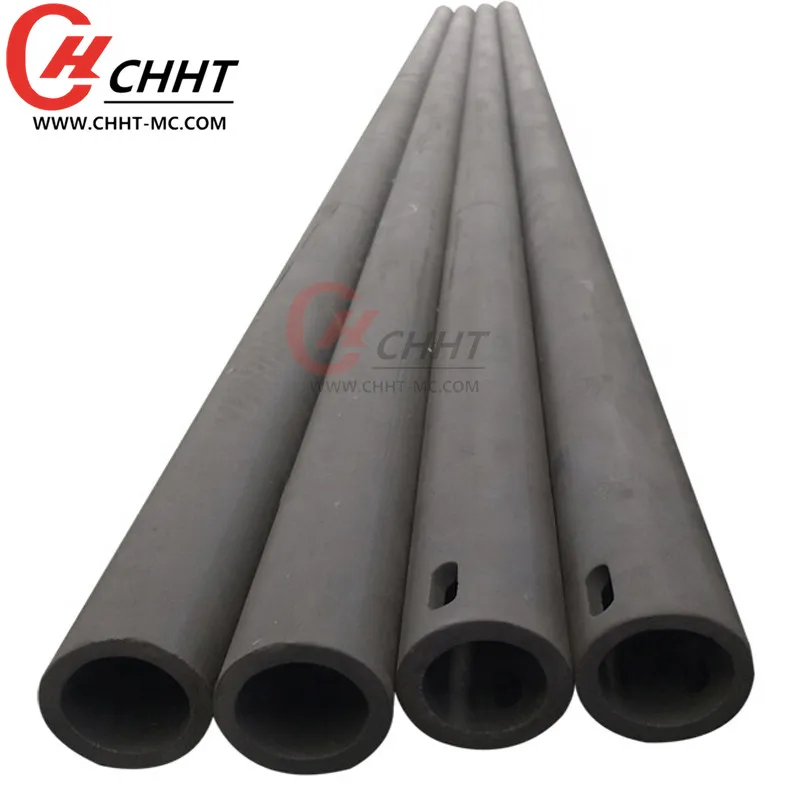

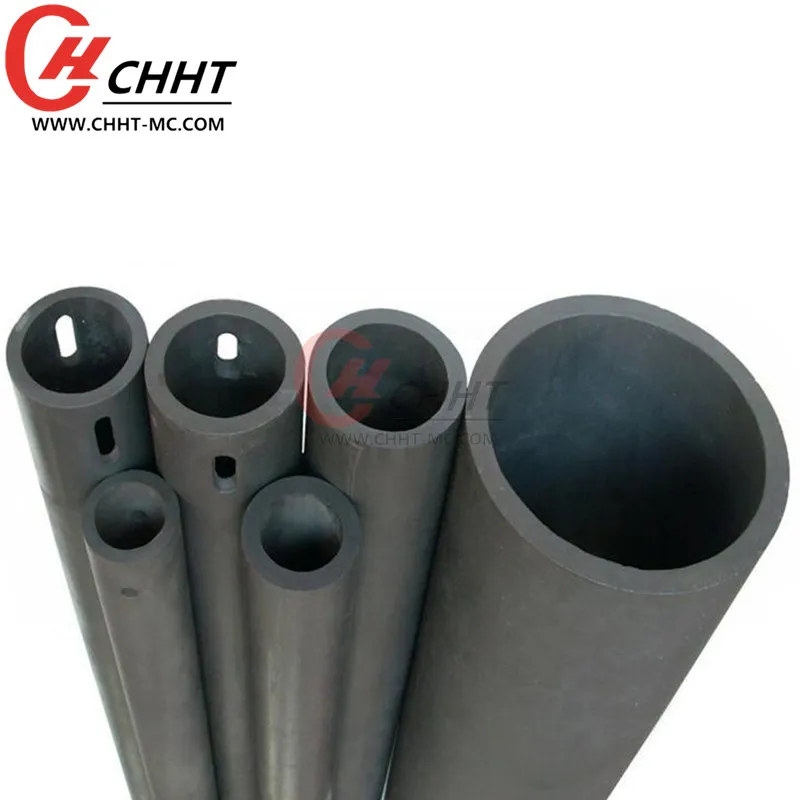

Высокотемпературный карбид кремния керамический ролик для строительства керамической
- Категории: Refractory >>>
- Поставщик: Shanghai,Chenghan,Electromechanical,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Характеристики
Why Choose Us
Specification
Properties | Unit | RSIC Recrystallized Silicon Carbide | NSIC Nitride Bonde Silicon Carbide |
Contents: SiC Si3N4 Si | Vol% | ≥99 0 0 | ≥75 ≥23 0 |
Bulk density 20℃ | g,cm3 | 2.65-2.75 | 2.75-2.85 |
Apparent porosity | % | 15-18 | 13-15 |
Moduius of rupture(at 20℃ ) | MPa | 80-100 | 160-180 |
Moduius of rupture(at 1200℃) | MPa | 90-110 | 170-180 |
Moduius of rupture(at 1350℃) | MPa | 90-120 | 170-190 |
Moduius of crushing(at 20℃) | MPa | 300 | 580 |
Thermal conductivity(at 1200℃) | w,m-1,k-1 | 36.6 | 19.6 |
Thermal expansion(at 1200℃) | a×10-6/℃ | 4.69 | 4.7 |
Thermal shock resistance(at 1200℃) | Good | Excellent | |
Max. working temperature | ℃ | 1620(oxid) | 1450 |
Product Description

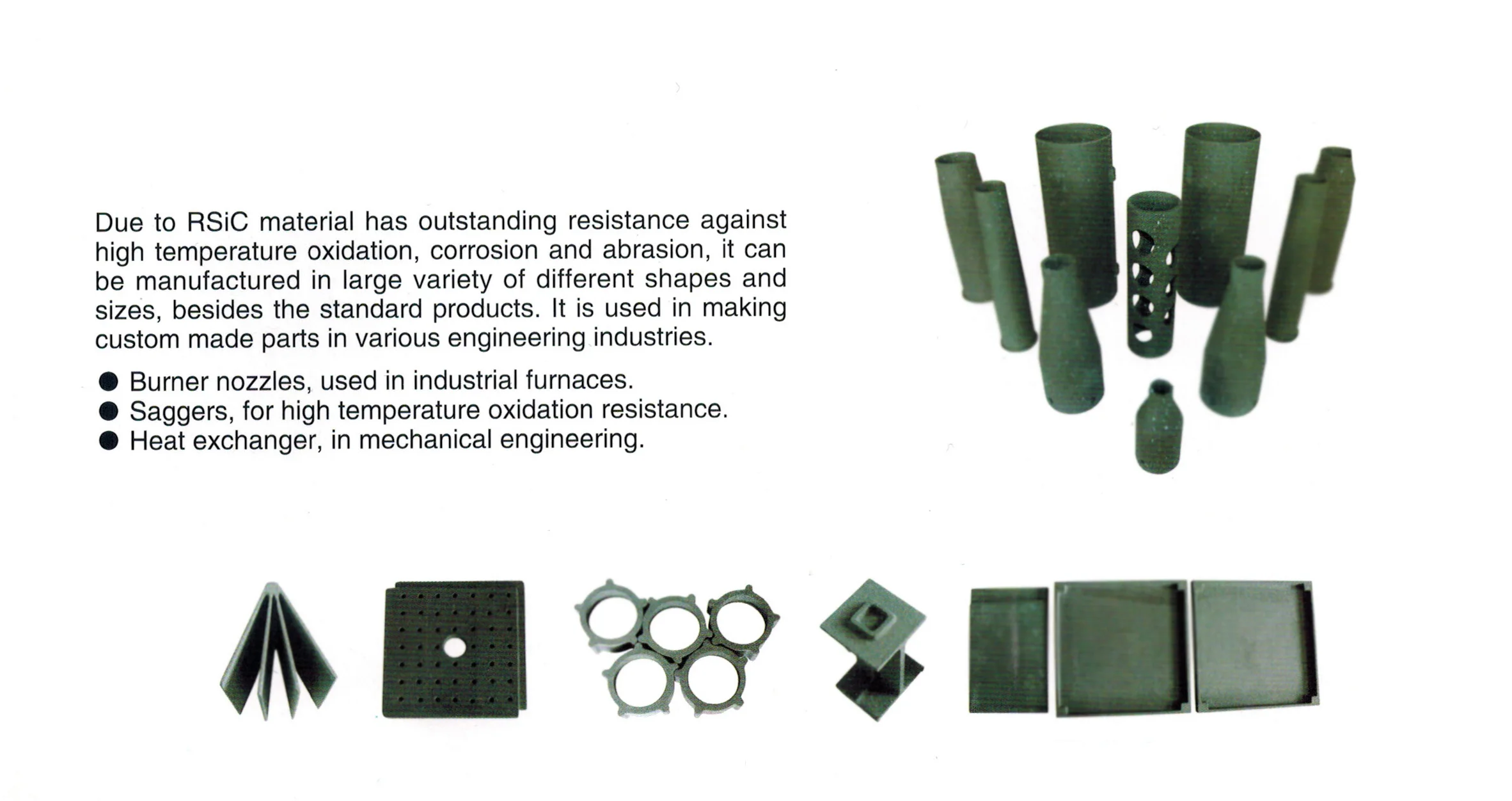

Recrystallized silicon carbide products (R-SiC) is a kind of high technology silicon carbide material, which is formed by mixing high purity silicon carbide coarse powder and high activity silicon carbide micro powder, after grouting molding and vacuum sintering at the high temperature of 2450℃ to recrystallized.Due to its high purity material (SiC ≥99.5%) without intermediate bonding phase, it has excellent high temperature mechanical properties, the maximum service temperature up to 1700°C.
Silicon nitride bonded silicon carbide products (N-SiC) is a new kind of structural ceramic material, it uses high purity silicon carbide powder and silicon metal powder, after the grouting molding process into porous body, at the temperature of 1400~1500℃, through reaction sintering and formed.To in the process of sintering furnace charge high purity nitrogen gas, make the body of the silicon and nitrogen reaction SI3N4, therefore, in the silicon nitride combined with silicon carbide is a two-phase composite material, about 75% of SIC, SI3N4 accounted for about 23%, its high strength, oxidation resistance is strong, as the kiln furniture material is especially suitable for medium and low temperature, large load of the kiln,The operating temperature is about 1450℃.
Silicon nitride bonded silicon carbide products (N-SiC) is a new kind of structural ceramic material, it uses high purity silicon carbide powder and silicon metal powder, after the grouting molding process into porous body, at the temperature of 1400~1500℃, through reaction sintering and formed.To in the process of sintering furnace charge high purity nitrogen gas, make the body of the silicon and nitrogen reaction SI3N4, therefore, in the silicon nitride combined with silicon carbide is a two-phase composite material, about 75% of SIC, SI3N4 accounted for about 23%, its high strength, oxidation resistance is strong, as the kiln furniture material is especially suitable for medium and low temperature, large load of the kiln,The operating temperature is about 1450℃.
How to order?
when ordering, pls let us know below information.
1.Outside diameter
2.Wall thickness
3.Length
4.Quantity
If you have other question,pls contact our.
Company Profile
About Us

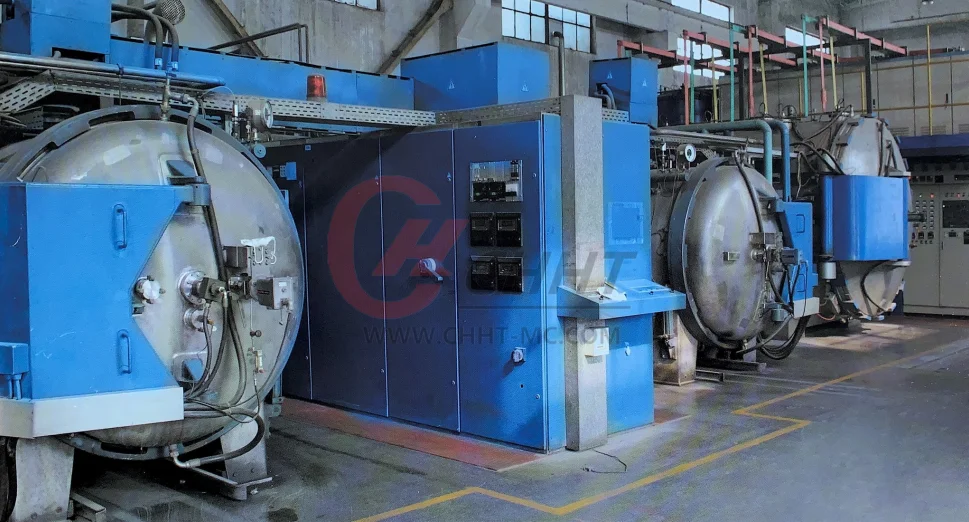

Production Process
Packing & Delivery
FAQ
Q1:How can I get more information about your product?
A1:You can send us an email or ask our online representatives and we can send you the latest catalog and price list.
Q2:Do you accept OEM or ODM?
A1:You can send us an email or ask our online representatives and we can send you the latest catalog and price list.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.please contact us directly.
Q3:What is the payment way of your company?
A3:T/T,sight L/C,Paypal,Western Union,Alibaba trade assurance,Escrow,Etc.
Q4:What is the shipping way?
A4:By sea,air,Fedex,DHL,UPS,TNT etc.
Q5:How long for manufacturing once we place order?
A5:It's about 7-15 days after payment or disposit.
Q3:What is the payment way of your company?
A3:T/T,sight L/C,Paypal,Western Union,Alibaba trade assurance,Escrow,Etc.
Q4:What is the shipping way?
A4:By sea,air,Fedex,DHL,UPS,TNT etc.
Q5:How long for manufacturing once we place order?
A5:It's about 7-15 days after payment or disposit.
