Product Description

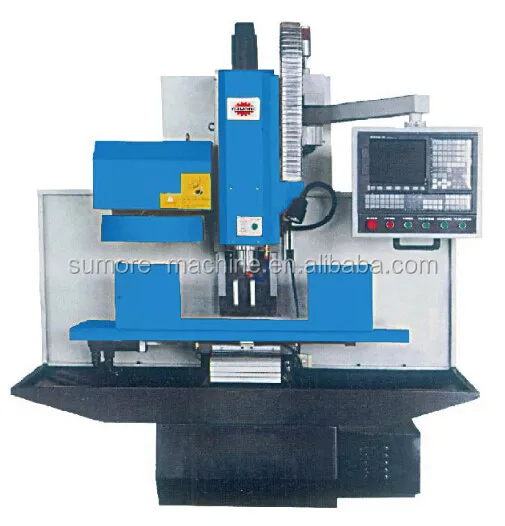

SMC8420-II specially designed for machining small-size parts. Smaller CNC machine with linear guide-way, but concentrated all of functions as normal vertical machine center. Tools can be changed automatically with high speed and high efficiency.
- MACH & GSK & SIEMENS & FANUC Programming Systems
- Additional Computer Socket
- Powerful Brushless Motor & High Precision Axes Movements
- Fine Feedings on Every Directions
- Robust Construction & Stable Performance
- Professional Electronic System
- Cabinet Safety Lock & Considerable Safety Signs
| Specifications | SMC8420-I without ATC | SMC8420-I I |
| Worktable size | 810x240mm | 810x240mm |
| Max loading of worktable | 100kgs | 100kgs |
| T slot size | 16x3x60 | 16x3x60 |
| X axis travel | 380mm | 380mm |
| Y axis travel | 240mm | 240mm |
| Z axis travel | 370mm/470mm | 370mm/470mm |
| Distance from spindle nose to worktable | 60-430mm | 60-430mm |
| Distance between spindle center to column | 309 | 309 |
| Spindle speed | 100-6000rpm | 100-6000rpm |
| Tool holder type | BT30 | BT30 |
| Tool clamping way | Pneumatically | Pneumatically |
| ATC capacity | 10pcs ATC | |
| Cutting feeding speed | 0-2000mm/min | 0-2000mm/min |
| Fast moving speed X/Y/Z | 15mm/min | 15mm/min |
| Positioning accuracy | 0.025mm | 0.025mm |
| Repeatability accuracy | 0.016mm | 0.016mm |
| Motor power | 2.2/3.7KW(servo) | 2.2/3.7KW(servo) |
| Feeding motor power X/Y/Z | 1.5/1.5/1.5kw | 1.5/1.5/1.5kw |
| Net weight | 1280kgs | 1280kgs |
| Overall size | 1770x1650x1300mm | 1770x1650x1300mm |
|
Standard Accessories |
Optional Accessories |
|
Mill Chuck |
Rotary Worktable (4th Axis) Package |
|
Vice |
Clamping Kit |
|
Coolant Pump |
Quick Vice / Angle Adjustable Vice |
|
Oil Tray |
Handwheel |
|
Wrench Set |
Drill Chuck |
|
Operating Manual Instruction and Parts List |
Boring Cutter with Arbor |
|
|
Metric 2 Flute HSS End Mill Set (6 or 7 pcs) |
|
|
Engraving Tool Set |
|
|
Vice (Quick Vice / Adjustable Vice Available) |
|
|
Base Stand |
|
|
Computer Stand and Frame |
|
|
PCMCIA Parallel Card |
Packaging & Shipping
| Package |
1 set/polywood case (aluminum strips strengthen) |
| Minimum Order Quantity (MOQ) | 1 sets |
| Full Container Loading Quantity (FCL) | 3sets/20’GP (unitary; customerized packing available) |
| Delivery Time | 35 calendar days after receiving of advance / full payment |
